cPVAL DUO WRAPSMARTCARD
Summary
Enable this custom property to require Duo after smart card primary logon, or not to allow smart card logon without Duo approval afterward.
Details
| Label | Field Name | Definition Scope | Type | Option Value | Default Value | Required | Technician Permission | Automation Permission | API Permission | Description | Tool Tip | Footer Text |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| cPVAL DUO WRAPSMARTCARD | cpvalDuoWrapsmartcard | Organization | drop-down | Windows, Windows Workstations, Windows Servers, Disabled | Disabled | False | Editable | Read/Write | Read/Write | Enable this custom property to require Duo after smart card primary logon, or not to allow smart card logon without Duo approval afterward. | Select the platform to require Duo after smart card primary logon | DUO WRAPSMARTCARD |
Custom Field Creation
Step 1
Navigate to the Administration menu, then proceed to Devices and select Global Custom Fields.
Step 2
Locate the Add button on the right-hand side of the screen and click on it.
Step 3
After clicking the Add button, select the Field button that appears.
The following Pop-up screen will appear:
Step 4
Custom Field Type: Drop-down
Select Drop-down for the Custom field type and click Continue to proceed.
The following Pop-up screen will appear:
Step 5
Set the following details in the Overview section and click the Next button.
Label: cPVAL DUO WRAPSMARTCARD
Name: cpvalDuoWrapsmartcard
Definition Scope: Organization
Custom field is required: <Leave it unchecked>
Clicking the Next button will take you to the Permission section.
Step 6
Set the following details in the Permission section and click the Next button.
Technician: Editable
Automation: Read/Write
API: Read/Write
Clicking the Next button will take you to the details tab.
Step 7
Fill in the following information in the Details section and click the Next button.
Description: Enable this custom property to require Duo after smart card primary logon, or not to allow smart card logon without Duo approval afterward.
Tooltip Text: Select the platform to require Duo after smart card primary logon
Footer Text: DUO WRAPSMARTCARD
Clicking the Next button will take you to the Advanced Settings tab.
Step 8
Configure the following options in the specified order. To add an option, paste it and click the Add button:
- Windows
- Windows Workstations
- Windows Servers
- Disabled
Click the Create button to create the Custom Field.

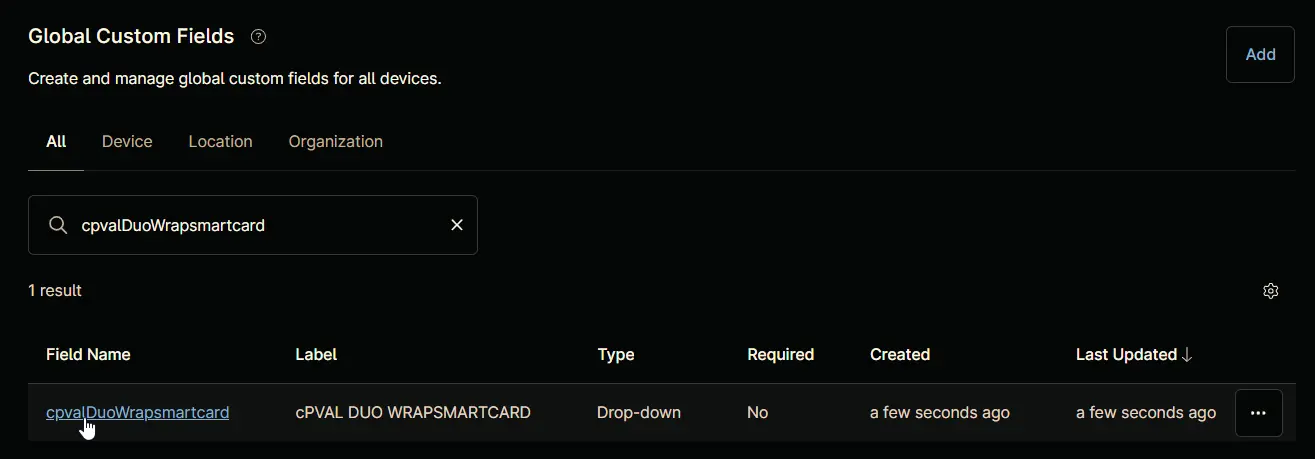

Completed Custom Field

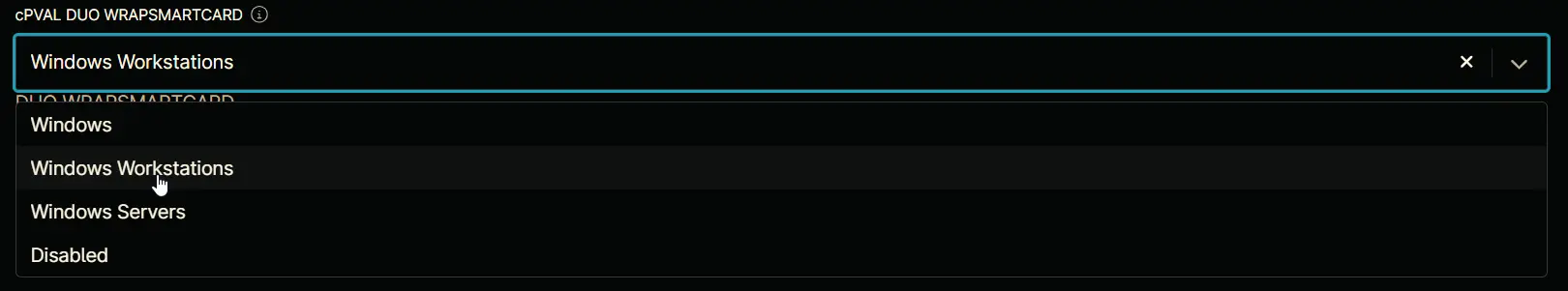

Example
