CWM - Automate - Automate Server Security Best Practices
Summary
This script will configure a ConnectWise Automate server with security settings outlined in the ConnectWise document Automate_Comprehensive_Best_Practice_Guide.pdf (connectwise.com).
This script will not, by default, set firewall port settings unless the global parameter is set to 1; if this parameter is set to 0, the script will return suggested port changes to be made. The script checks for preset values before determining a necessary change or suggesting any changes to firewall rules or LTShare additions.
The main execution is all PowerShell; however, due to the inclusion of API integrations directly from the Automate server itself, this is better suited as an Automate script. Server hardening will not work prior to the installation of ConnectWise Automate.
Sample Run
Variables
Document the various variables in the script. Delete any section that is not relevant to your script.
| Name | Description |
|---|---|
| TickID | Holds any current open ticket ID for this script on the target machine. |
| ExecuteCommand | The desired execute command for the PowerShell script; changes based on the global parameter setting. |
| Cperuser | Holds all users having permissions to take control of the target machines. |
| TicketBody | Holds the current body message for any ticket to be created. |
| TicketFinishBody | Holds the verbiage for finishing any currently open ticket. |
Global Parameters
| Name | Example | Required | Description |
|---|---|---|---|
| SetPortRules | 0 or 1 | True | 0 will disable the setting of suggested net firewall ports; 1 will enable the setting of suggested net firewall ports. |
| ProjectName | AutomateServerHardener | True | Designates the filename to create when writing the PowerShell to the target. |
| TicketCreateSubject | Server Hardening Results for %ClientName%/%ComputerName% | True | Designates the subject line of a created ticket for this script. |
| TicketCreationCategory | 1 | True | Designates the ticket creation category to use when creating a ticket from this script. |
| TicketFinishUserName | Admin | True | Designates the username to associate with the finishing/commenting of tickets created by this script. |
| DoNotCommentOpenTicket | 0 or 1 | True | 0 will allow for commenting on an already open ticket for this script on the target; 1 will disable commenting on an already open ticket for this script on the target. |
Output
- Script log
- Ticket
Script Log Example
Script: Automate Server Security Best Practices.
Run Time: 3/15/2023 8:46:19 AM
Target Machine: CW-AUTOMATE(294)
-------------------------------------------------------------------------
Writing the PowerShell file to:
%LTSVCDir%\\Packages\\AutomateServerHardener.ps1
-------------------------------------------------------------------------
-------------------------------------------------------------------------
Local Administrators on this machine:
-------------------------------------------------------------------------
Administrator ccalverley stephen.nix Test_Proval
-------------------------------------------------------------------------
Registry setting results:
-------------------------------------------------------------------------
restrictanonymous : 1
PSPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\System\\CurrentControlSet\\Control\\Lsa
PSParentPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\System\\CurrentControlSet\\Control
PSChildName : Lsa
PSDrive : HKLM
PSProvider : Microsoft.PowerShell.Core\\Registry
restrictanonymoussam : 1
PSPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\System\\CurrentControlSet\\Control\\Lsa
PSParentPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\System\\CurrentControlSet\\Control
PSChildName : Lsa
PSDrive : HKLM
PSProvider : Microsoft.PowerShell.Core\\Registry
NoAutoplatfornonVolume : 1
PSPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\Software\\Policies\\Microsoft\\Windows\\Explorer
PSParentPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\Software\\Policies\\Microsoft\\Windows
PSChildName : Explorer
PSDrive : HKLM
PSProvider : Microsoft.PowerShell.Core\\Registry
NoAutorun : 1
PSPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\Software\\Microsoft\\Windows\\CurrentVersion\\Policies\\Explorer
PSParentPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\Software\\Microsoft\\Windows\\CurrentVersion\\Policies
PSChildName : Explorer
PSDrive : HKLM
PSProvider : Microsoft.PowerShell.Core\\Registry
NoDriveTypeAutoRun : 255
PSPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\Software\\Microsoft\\Windows\\CurrentVersion\\Policies\\Explorer
PSParentPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\Software\\Microsoft\\Windows\\CurrentVersion\\Policies
PSChildName : Explorer
PSDrive : HKLM
PSProvider : Microsoft.PowerShell.Core\\Registry
AlwaysInstallElevated : 1
PSPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\Software\\Policies\\Microsoft\\Windows\\Installer
PSParentPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\Software\\Policies\\Microsoft\\Windows
PSChildName : Installer
PSDrive : HKLM
PSProvider : Microsoft.PowerShell.Core\\Registry
DisabledByDefault : 1
PSPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\SYSTEM\\CurrentControlSet\\Control\\SecurityProviders\\SCHANNEL\\Protocols\\TLS 1.0\\Server
PSParentPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\SYSTEM\\CurrentControlSet\\Control\\SecurityProviders\\SCHANNEL\\Protocols\\TLS 1.0
PSChildName : Server
PSDrive : HKLM
PSProvider : Microsoft.PowerShell.Core\\Registry
DisabledByDefault : 1
PSPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\SYSTEM\\CurrentControlSet\\Control\\SecurityProviders\\SCHANNEL\\Protocols\\TLS 1.1\\Server
PSParentPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\SYSTEM\\CurrentControlSet\\Control\\SecurityProviders\\SCHANNEL\\Protocols\\TLS 1.1
PSChildName : Server
PSDrive : HKLM
PSProvider : Microsoft.PowerShell.Core\\Registry
-------------------------------------------------------------------------
Permissions check results:
-------------------------------------------------------------------------
There are no users acting as a part of the Operating System.
-------------------------------------------------------------------------
Port Setting results:
-------------------------------------------------------------------------
You should consider setting the following firewall rules:
Number Protocol DisplayName Action
------ -------- ----------- ------
3389 TCP OLDCWARDP Block
3389 UDP OLDCWARDP Block
-------------------------------------------------------------------------
SMB Share results:
-------------------------------------------------------------------------
AccountName AccessRight
----------- -----------
Everyone Read
IIS APPPOOL\\LabTech Change
IIS APPPOOL\\LabTech WebCC Change
IIS APPPOOL\\CwaRestApi Change
NT AUTHORITY\\SYSTEM Full
-------------------------------------------------------------------------
IIS Hardening results:
-------------------------------------------------------------------------
Applied configuration changes to section "system.webServer/security/requestFiltering" for "MACHINE/WEBROOT/APPHOST/Default Web Site" at configuration commit path "MACHINE/WEBROOT/APPHOST/Default Web Site"
-------------------------------------------------------------------------
Here are the names of the users having permissions to take control of the machines. (Names of the superadmins might not be listed).
-------------------------------------------------------------------------
UmerTuri,snix,KunalMudgal,ITGlue API,AniketSingh,ITGlue API,SawarArora

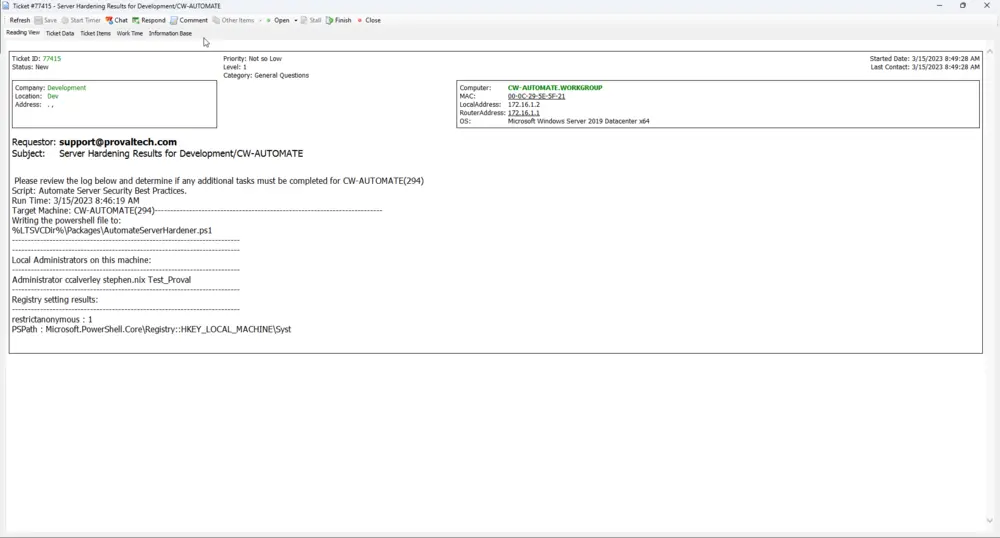

Ticket Example
Full output of request
Please review the log below and determine if any additional tasks must be completed for CW-AUTOMATE(294)
Script: Automate Server Security Best Practices.
Run Time: 3/15/2023 8:46:19 AM
Target Machine: CW-AUTOMATE(294)
-------------------------------------------------------------------------
Writing the PowerShell file to:
%LTSVCDir%\\Packages\\AutomateServerHardener.ps1
-------------------------------------------------------------------------
-------------------------------------------------------------------------
Local Administrators on this machine:
-------------------------------------------------------------------------
Administrator ccalverley stephen.nix Test_Proval
-------------------------------------------------------------------------
Registry setting results:
-------------------------------------------------------------------------
restrictanonymous : 1
PSPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\System\\CurrentControlSet\\Control\\Lsa
PSParentPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\System\\CurrentControlSet\\Control
PSChildName : Lsa
PSDrive : HKLM
PSProvider : Microsoft.PowerShell.Core\\Registry
restrictanonymoussam : 1
PSPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\System\\CurrentControlSet\\Control\\Lsa
PSParentPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\System\\CurrentControlSet\\Control
PSChildName : Lsa
PSDrive : HKLM
PSProvider : Microsoft.PowerShell.Core\\Registry
NoAutoplatfornonVolume : 1
PSPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\Software\\Policies\\Microsoft\\Windows\\Explorer
PSParentPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\Software\\Policies\\Microsoft\\Windows
PSChildName : Explorer
PSDrive : HKLM
PSProvider : Microsoft.PowerShell.Core\\Registry
NoAutorun : 1
PSPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\Software\\Microsoft\\Windows\\CurrentVersion\\Policies\\Explorer
PSParentPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\Software\\Microsoft\\Windows\\CurrentVersion\\Policies
PSChildName : Explorer
PSDrive : HKLM
PSProvider : Microsoft.PowerShell.Core\\Registry
NoDriveTypeAutoRun : 255
PSPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\Software\\Microsoft\\Windows\\CurrentVersion\\Policies\\Explorer
PSParentPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\Software\\Microsoft\\Windows\\CurrentVersion\\Policies
PSChildName : Explorer
PSDrive : HKLM
PSProvider : Microsoft.PowerShell.Core\\Registry
AlwaysInstallElevated : 1
PSPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\Software\\Policies\\Microsoft\\Windows\\Installer
PSParentPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\Software\\Policies\\Microsoft\\Windows
PSChildName : Installer
PSDrive : HKLM
PSProvider : Microsoft.PowerShell.Core\\Registry
DisabledByDefault : 1
PSPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\SYSTEM\\CurrentControlSet\\Control\\SecurityProviders\\SCHANNEL\\Protocols\\TLS 1.0\\Server
PSParentPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\SYSTEM\\CurrentControlSet\\Control\\SecurityProviders\\SCHANNEL\\Protocols\\TLS 1.0
PSChildName : Server
PSDrive : HKLM
PSProvider : Microsoft.PowerShell.Core\\Registry
DisabledByDefault : 1
PSPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\SYSTEM\\CurrentControlSet\\Control\\SecurityProviders\\SCHANNEL\\Protocols\\TLS 1.1\\Server
PSParentPath : Microsoft.PowerShell.Core\\Registry::HKEY_LOCAL_MACHINE\\SYSTEM\\CurrentControlSet\\Control\\SecurityProviders\\SCHANNEL\\Protocols\\TLS 1.1
PSChildName : Server
PSDrive : HKLM
PSProvider : Microsoft.PowerShell.Core\\Registry
-------------------------------------------------------------------------
Permissions check results:
-------------------------------------------------------------------------
There are no users acting as a part of the Operating System.
-------------------------------------------------------------------------
Port Setting results:
-------------------------------------------------------------------------
You should consider setting the following firewall rules:
Number Protocol DisplayName Action
------ -------- ----------- ------
3389 TCP OLDCWARDP Block
3389 UDP OLDCWARDP Block
-------------------------------------------------------------------------
SMB Share results:
-------------------------------------------------------------------------
AccountName AccessRight
----------- -----------
Everyone Read
IIS APPPOOL\\LabTech Change
IIS APPPOOL\\LabTech WebCC Change
IIS APPPOOL\\CwaRestApi Change
NT AUTHORITY\\SYSTEM Full
-------------------------------------------------------------------------
IIS Hardening results:
-------------------------------------------------------------------------
Applied configuration changes to section "system.webServer/security/requestFiltering" for "MACHINE/WEBROOT/APPHOST/Default Web Site" at configuration commit path "MACHINE/WEBROOT/APPHOST/Default Web Site"
-------------------------------------------------------------------------
Here are the names of the users having permissions to take control of the machines. (Names of the superadmins might not be listed).
-------------------------------------------------------------------------
UmerTuri,snix,KunalMudgal,ITGlue API,AniketSingh,ITGlue API,SawarArora
