BSOD Monitoring

Summary​

Reads the BSOD monitoring configuration from the local JSON file created by the BSOD Monitoring Configuration Writer task. It checks the Windows System event log for BSOD-related events (Event IDs 41, 1001, and 6008) within the configured monitoring period. If the number of detected events exceeds the configured threshold, the monitor reports a failure; otherwise, it returns a healthy status.

How It Works​

  1. Configuration File
    At each check interval, the monitor reads the file C:\ProgramData\_Automation\Script\BSODMonitoring\BSODMonitoring.json. This file contains two values:

    • Threshold – the maximum number of BSOD-related events allowed before an alert is generated.
    • Days – the number of previous days to search the Windows System event log.

  2. BSOD Event Monitoring
    The monitor scans the Windows System event log for the following BSOD-related events within the configured time period:

    • Event ID 41 – Kernel-Power (unexpected shutdown or restart).
    • Event ID 1001 – BugCheck (Blue Screen of Death).
    • Event ID 6008 – Unexpected shutdown.

  3. Threshold Evaluation
    The total number of matching events is compared against the configured Threshold.

    • If the event count exceeds the threshold: The monitor generates a failure.
    • If the event count is within the threshold: The monitor reports a healthy status.

  4. Alert & Resolution
    When a failure occurs, the monitor outputs the number of BSOD-related events detected during the configured monitoring period. Once the event count falls back within the configured threshold, the monitor returns a healthy status, allowing the monitor set to automatically resolve the alert if automatic resolution is enabled.

Dependencies​

Monitor Setup Location​

Monitors Path: ENDPOINTS ➞ Alerts ➞ Monitors

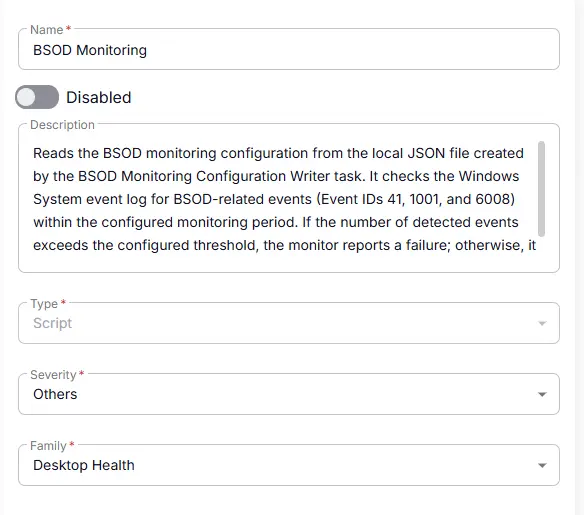

Monitor Summary​

  • Name: BSOD Monitoring
  • Description: Reads the BSOD monitoring configuration from the local JSON file created by the BSOD Monitoring Configuration Writer task. It checks the Windows System event log for BSOD-related events (Event IDs 41, 1001, and 6008) within the configured monitoring period. If the number of detected events exceeds the configured threshold, the monitor reports a failure; otherwise, it returns a healthy status.
  • Type: Script
  • Severity: Others
  • Family: Desktop Health


Targeted Resources​

  • Target Type: Device Groups
  • Group Name: [Group : BSOD Monitoring](/docs/607ed709-2b00-4f6c-a1aa-6d234d0a5c0e)

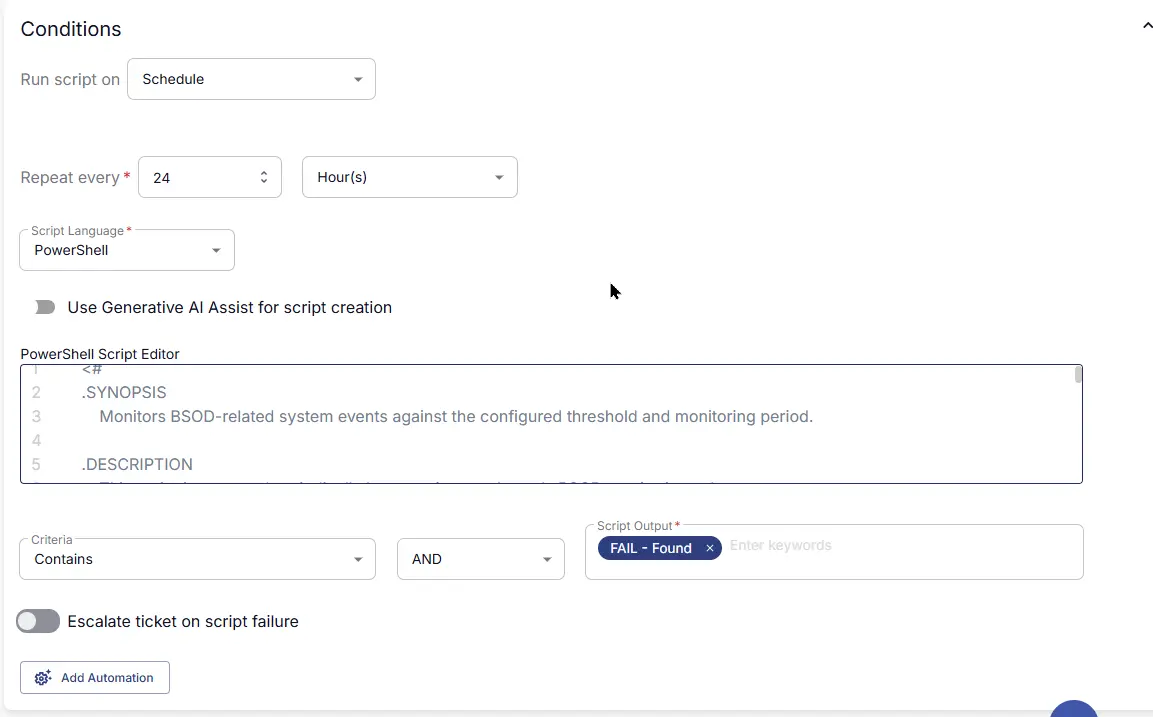

Conditions​

  • Run script on: Schedule

  • Repeat every: 24 Hour(s)

  • Script Language: PowerShell

  • Use Generative AI Assist for script creation: False

  • PowerShell Script Editor:

PowerShell Script

  • Criteria: Contains
  • Operator: AND
  • Script Output: Fail - Found
  • Escalate ticket on script failure: Disabled
  • Add Automation: <Leave it untouched>


Ticket Resolution​

  • Automatically Resolve: Enabled
  • Dropdown Option: Run same script as above
  • Criteria: Contain
  • Operator: AND
  • Script Output: PASS - Found


Monitor Output​

Output: Generate Ticket

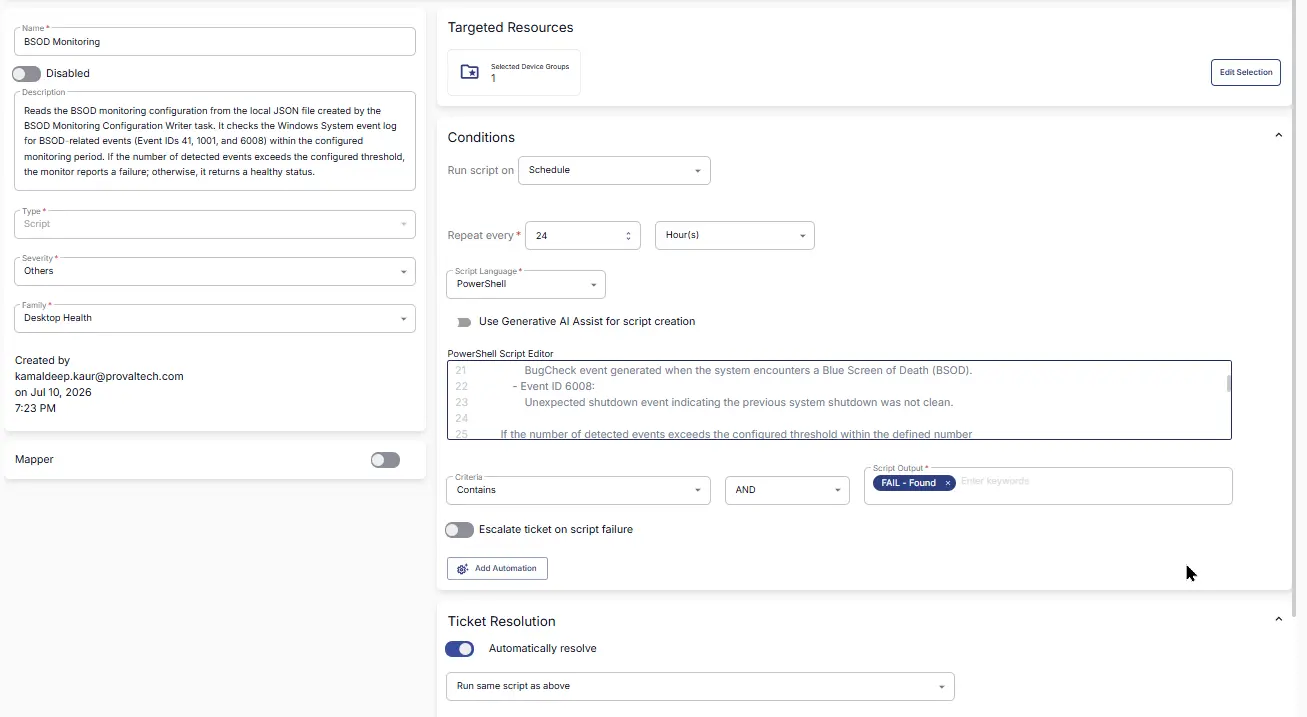

Completed Monitor​


Changelog​

2026-07-21​

  • Initial version of the document
