Get-CrashDump

Summary

This document collects information regarding any existing crash dumps.

Sample Run

• To collect data, run the Get-CrashDump script on a target endpoint.

Expected Return Types

• Ticket
• Email
• Custom Table

Dependencies

• SWM - Software Installation - Script - Winget - Install
• SWM - Software Management - Powershell - Invoke-WingetProcessor
• EPM - Data Collection - Custom Table - plugin_proval_crash_dumps

Variables

Name	Description
Name	Used with the Winget - Install script; specifies the winget package to install.
Scope	Used with the Winget - Install script; specifies the store that the package resides in.
psout	The return from PowerShell will be in a pipe-separated name = value format. When we split this return, we should expect the following variables to be created: processor full_path stack_address_2 crash_time dump_file_size caused_by_address stack_address_3 major_version stack_address_1 company file_description bug_check_code parameter_4 minor_version parameter_2 dump_file product_name caused_by_driver crash_address parameter_3 parameter_1 bug_check_string file_version dump_file_time computer_name processors_count
Subject	The subject line of a ticket/email.
Body	The initial body of a ticket/email.
Comment	The additional comment sent to the ticket containing all the variables returned from psout.
Sqlstartstatement	The first part of an SQL start statement from "insert into" to "values."
SQLData	The second half of the SQL insert statement containing all data provided by the split variables obtained from psout.

Global Parameters

Name	Example	Required	Description
CreateTicket	0	True	0 = Disabled, 1 = Enabled
EmailTo	Somebody@SomePlace.com	False	A report recipient's email address.
TicketCreationCategory	15	False	The ticket creation category to apply to a ticket
Threshold	7	True	The time in minutes to search back for to find an offending dump log.
TableName	plugin_proval_crash_dumps	True	This designates a table to write to with found data.
CreateTable	0	True	0 = Disabled, 1 = Enabled
ConfigureLoggingRegistryValue	0 or 1	True	0 = Disabled, 1 = Enabled. Enables the changing of the CrashDumpEnabled registry value to 3.

Process

1. If C:/windows/minidump does not exist, exit as a bluescreen has not been logged or the registry value CrashDumpEnabled has not been set to a compatible value.
   • If you set ConfigureLoggingRegistryValue to 1, the script will set the registry value to a compatible value.
2. Resend the software list and check for NirSoft BlueScreenView; if it exists, skip to step 5.
3. Set the Name variable to NirSoft BlueScreenView.
4. Run the Winget - Install script.
5. Run the following steps in PowerShell on the target machine:
   • Use BlueScreenView CLI to export an XML of the found dump to c:/temp/dumphtml.xml.
   • Read the XML and format the return.
   • Return the result.
6. Split the psout variable.
7. If we are not creating a ticket, skip to step 9.
8. Create a ticket, then add a comment with all the data.
9. If we are not sending an email, skip to step 11.
10. Send the email to the required recipient.
11. If we are not adding data to a custom table, then exit.
12. Populate the custom table with the retrieved data.

Output

• Script log
• Ticket
• Email
• Custom Table

Expected Outcome

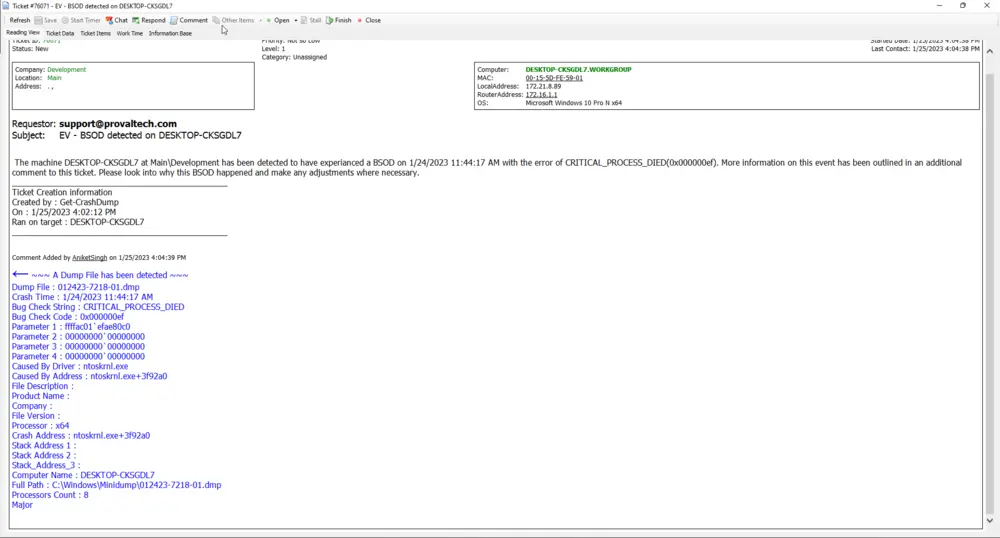

Ticket

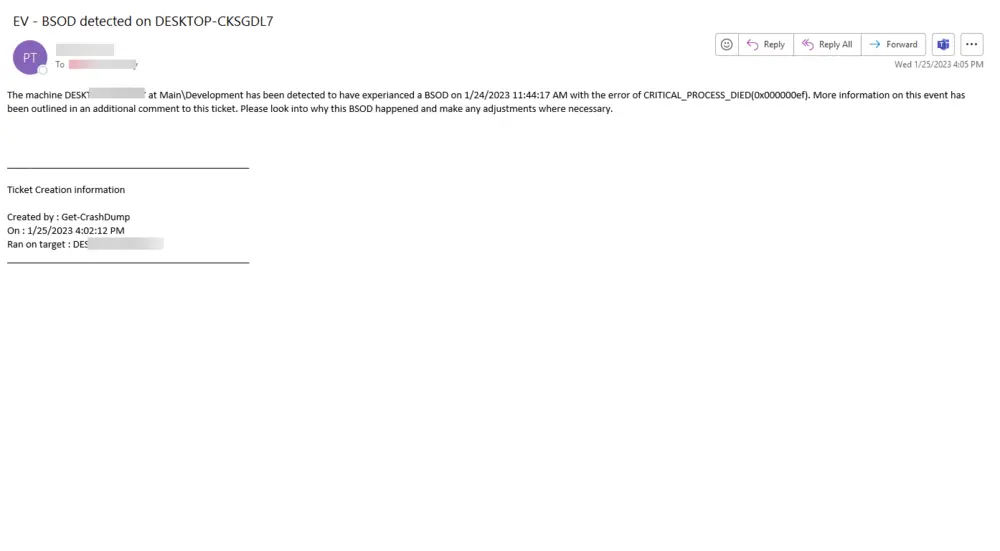

Email

Custom Table
