Bitlocker - Audit
Summary
The Bitlocker Audit script gathers Bitlocker information from the target endpoint and stores it in the custom table SEC - Encryption - Custom Table - plugin_proval_bitlocker_audit. It creates a TPM table named plugin_proval_tpm_audit and populates that table with TPM data. Additionally, it creates a backup text document with the recovery password in the LTShare for the target machine.
File Path: C:/ProgramData/_Automation/Script/Bitlocker_Audit/Bitlocker_Audit.ps1
File Hash (SHA256): 4C4E524791404130BA61E50C287681010F4D9161766945C36411AEAD23588CFF
File Hash (MD5): C8373016D05CE365885AF644F8C9773B
File Path: C:/ProgramData/_Automation/Script/Bitlocker_Audit/TPM_Audit.ps1
File Hash (SHA256): 36BDC7BDE052953BE5DB9324F6E00730C2E0494BC74121BE690CD16117FFF058
File Hash (MD5): B332B23E8155ACC256D9737322A7ADF1
Note: The Bitlocker Drive Encryption feature must be enabled on servers to encrypt a drive with Bitlocker disk encryption. Encryption will not work without enabling this feature.
Sample Run

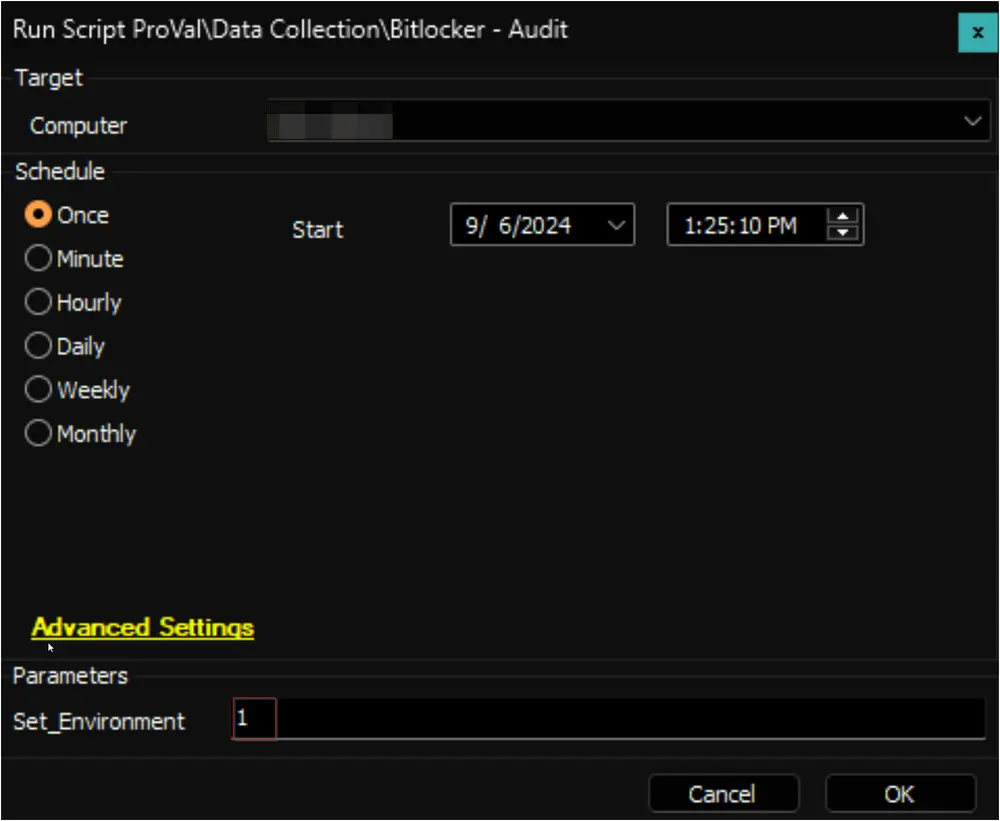

First Run: Run the script against any online Windows computer with the Set_Environment parameter set to 1 to create the custom tables used by the solution.

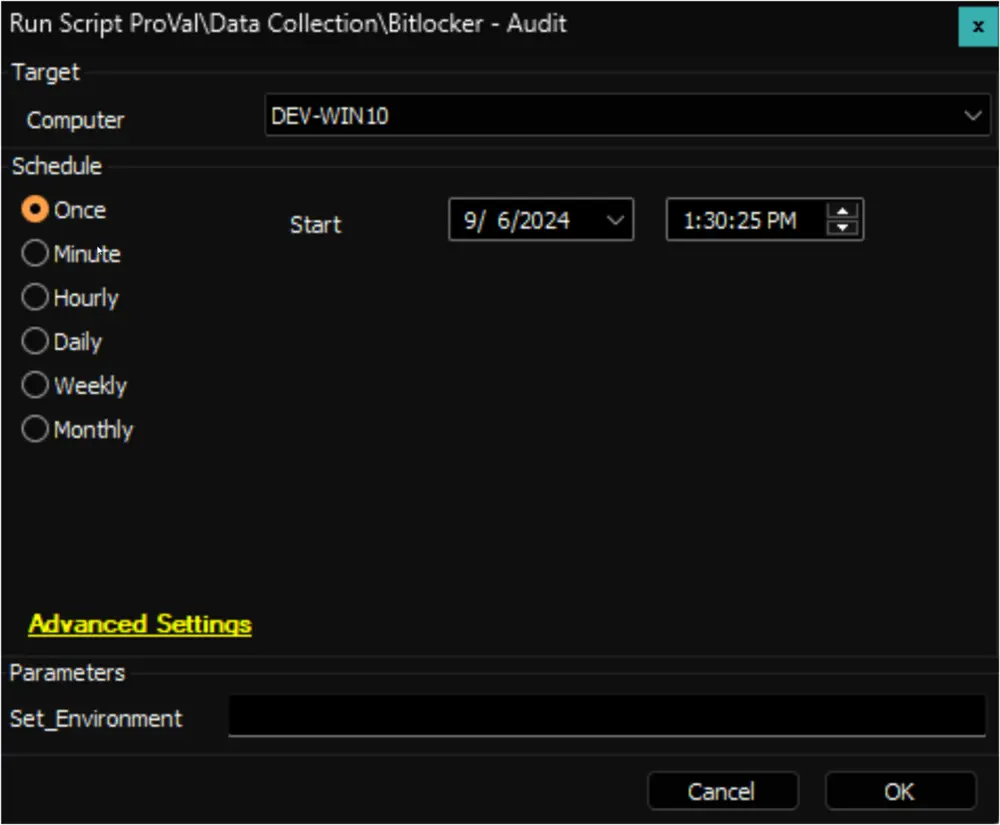

Regular Execution:
Dependencies
- PowerShell v5
- Bitlocker module for PowerShell
User Parameters
| Name | Example | Required | Description |
|---|---|---|---|
| Set_Environment | 1 | For First Run (After Updating the script) | Run the script against any online Windows computer with the Set_Environment parameter set to 1 to create the custom tables used by the solution. |
EDFs
| Name | Level | Type | Editable | Description |
|---|---|---|---|---|
| Bitlocker Recovery Key | Computer | Text | No | This stores the value of the "Recovery Password" of the C: volume whose key protector type is "RecoveryPassword". |
| Bitlocker Enabled | Computer | Flag | No | This is 'checked' if the protection status of the system drive shows true. |
| TPM Present | Computer | Flag | No | This marks the TPM Present flag if the 'TPM Present' is enabled for the TPM chipset audited by the "Get-TPM". |
Variables
| Name | Description |
|---|---|
| ProjectName | Bitlocker_Audit |
| WorkingDirectory | C:/ProgramData/_automation/script/Bitlocker_Audit |
| PsOutBitlocker | Output of the PowerShell script performing Bitlocker Audit |
| PsOutTPM | Output of the PowerShell script performing TPM Audit |
| Count | Iteration used for the loop generating Recovery Key Backup File for each drive |
| DriveLetter | Drive letter with ":" removed from the end |
| FilePath | C:/ProgramData/_automation/script/Bitlocker_Audit/Bitlocker_Recovery_Key_@DriveLetter@.txt |
| Content | The content of the created backup file |
Output
- Custom table
- Dataview
- Backup file under LTShare at
LTShare/Uploads/<ClientName>/<ComputerName (Computerid)>
