Create ticket with associated device

Summary

The Create ticket with associated device bot creates a service ticket and attaches a device to it in a single operation. It exists because a native CW RMM workflow can create a ticket but cannot associate a device with it.

The bot runs inside the platform, so it uses the pre-authenticated RPA HTTP client and needs no client ID or client secret. The base URL arrives automatically through the cwOpenAPIURL input.

It is the bot called on the toCreate branch of the CWRMM Ticket Management for Monitors workflow, in place of the native Create Ticket action.

How it works:

1. All eight form values are read and written to the result log before any of them are validated, so a single run shows exactly what the form delivered.
2. The company and site are resolved against the platform inventory and normalised to the identifiers the ticket API expects.
3. The service board, priority and source names are resolved to their GUIDs. The board lookup is filtered by company and site so only entitled boards are considered, falling back to the full partner list if the platform rejects that filter.
4. If a team was supplied, it is resolved against the teams of the selected service board.
5. The ticket is created with the device in its assets array, flagged as the primary asset.
6. ticketId, ticketNumber and deviceId are returned as result data for bot chaining.

Why the device is attached at creation

The device travels in the same API call that creates the ticket. A device attached to a ticket by a separate follow-up call does not carry through to the configuration on the ticket once it syncs to CW Manage, while a device supplied in the original create call does. That is the reason the monitors workflow calls this bot instead of creating the ticket natively and attaching the device afterwards.

A second benefit falls out of the same design: the native Create Ticket action does not return the ID of the ticket it created, whereas this bot returns both ticketId and ticketNumber as result data, so a following workflow step can act on the ticket it just raised.

Why names are resolved at runtime

The GUIDs for service boards, priorities, sources and teams are not exposed anywhere in the CW RMM interface, so a form cannot reasonably ask for them. The bot resolves the display names instead. Matching is case-insensitive and inactive records are skipped. When a name does not match, the error lists every valid name for that lookup, so one failed run identifies the correct value.

Identifier flexibility

Platform company and site identifiers are synthetic GUIDs that encode a legacy Command ID. The bot accepts the platform GUID, the bare numeric Command ID, an external product ID, or the display name for either field, and normalises whatever it receives to the identifier the ticket API expects.

API endpoints used

Method	Endpoint	Purpose
GET	/api/platform/v1/company/companies	Resolve the CompanyId value
GET	/api/platform/v1/company/companies/{companyId}/sites	Resolve the SiteId value within that company
GET	/api/platform/v1/service/ticketing/service-boards	Resolve the service board name
GET	/api/platform/v1/service/ticketing/priorities	Resolve the priority name
GET	/api/platform/v1/service/ticketing/sources	Resolve the ticket source name
GET	/api/platform/v1/service/ticketing/service-boards/{id}/teams	Resolve the team name on the selected board, when a team is supplied
POST	/api/platform/v2/service/ticketing/tickets	Create the ticket with the device attached

Details

Bot Name	Description	Execution Environment
Create ticket with associated device	Creates a service ticket from form input and attaches the selected device as the primary asset in the same API call. Service board, priority, team and source names are resolved to platform IDs. Returns ticketId and ticketNumber for chaining.	Cloud

Integration Configuration

Platform	Platform Scopes	3rd Party Apps	Integrations
True	Platform - Tickets - Read Platform - Devices - Read Platform - Sites - Read Platform - Assets - Read Platform - Companies - Read Platform - Tickets - Create Platform - Tickets - Update	False

Form Setup

Form Required	Form Template
Yes	Forms: Create ticket with associated device

Functions

• app.py
• conda.yaml
• formSchema.json

Forms Setup Path

• Tasks Path: Automation ➞ Bots

Dependencies

• Forms: Create ticket with associated device

The bot cannot run without its form, which supplies every value it operates on. Importing the bot brings the form in with it, already attached.

Consumed by:

• CWRMM Ticket Management for Monitors

Related content:

• Bots: Associate a device with an existing ticket — attaches a device to a ticket that already exists, rather than creating one.

Implementation

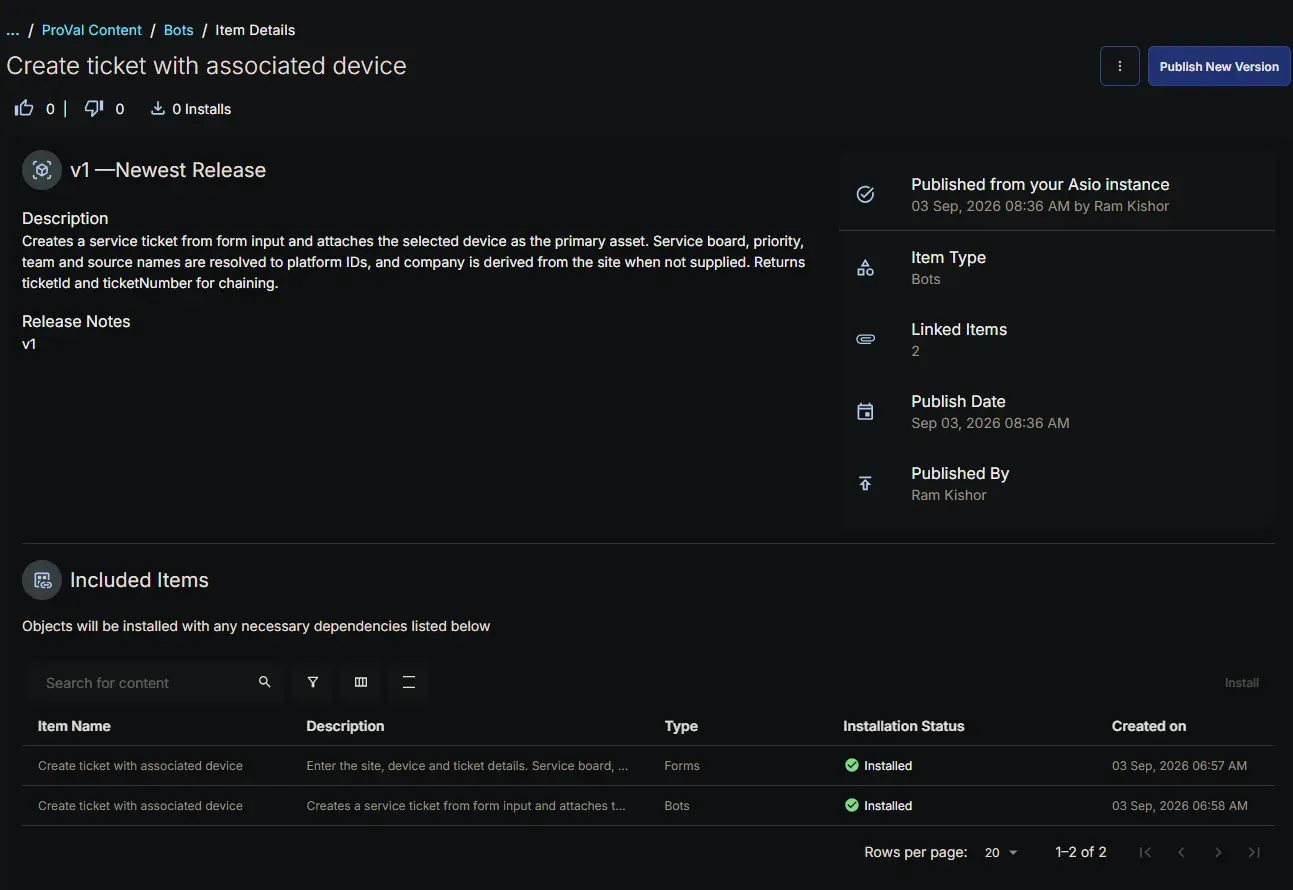

Install the bot from the ProVal - Content Community, selecting the Bots repository. After installation the following configuration steps are mandatory.

Primary Note: Reading the bot output

Progress and failure detail are written to the result log, which is what appears when bot logs are directed to a ticket. Every resolution step is logged with the value it received and the GUID it resolved to, so a failure shows exactly how far the run progressed. If a run fails with no detail beyond the exception, the form data itself did not arrive — the first logged line reports every value the form delivered.

Changelog

2026-09-07

• Initial version of the document
