cPVAL DUO USERNAMEFORMAT
Summary
The username format sent to Duo. One of: 0 for sAMAccountName (narroway), 1 for the NTLM domain and username (ACME\narroway), or 2 for the userPrincipalName (narroway@acme.corp)
Details
| Label | Field Name | Definition Scope | Type | Option Value | Default Value | Required | Technician Permission | Automation Permission | API Permission | Description | Tool Tip | Footer Text |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| cPVAL DUO USERNAMEFORMAT | cpvalDuoUsernameformat | Organization | drop-down | 0, 1, 2 | 1 | False | Editable | Read/Write | Read/Write | The username format sent to Duo. One of: 0 for sAMAccountName (narroway), 1 for the NTLM domain and username (ACME\narroway), or 2 for the userPrincipalName (narroway@acme.corp) | Select the username format to send to DUO. Default is 1 | DUO USERNAMEFORMAT |
Custom Field Creation
Step 1
Navigate to the Administration menu, then proceed to Devices and select Global Custom Fields.
Step 2
Locate the Add button on the right-hand side of the screen and click on it.
Step 3
After clicking the Add button, select the Field button that appears.
The following Pop-up screen will appear:
Step 4
Custom Field Type: Drop-down
Select Drop-down for the Custom field type and click Continue to proceed.
The following Pop-up screen will appear:
Step 5
Set the following details in the Overview section and click the Next button.
Label: cPVAL DUO USERNAMEFORMAT
Name: cpvalDuoUsernameformat
Definition Scope: Organization
Custom field is required: <Leave it unchecked>
Clicking the Next button will take you to the Permission section.
Step 6
Set the following details in the Permission section and click the Next button.
Technician: Editable
Automation: Read/Write
API: Read/Write
Clicking the Next button will take you to the details tab.

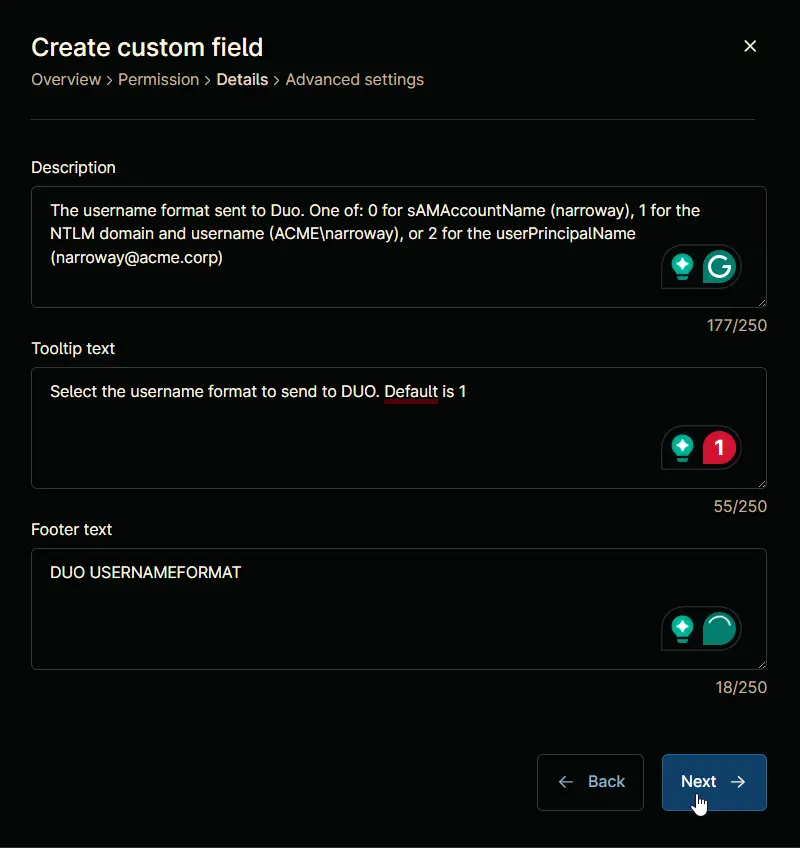

Step 7
Fill in the following information in the Details section and click the Next button.
Description: The username format sent to Duo. One of: 0 for sAMAccountName (narroway), 1 for the NTLM domain and username (ACME\narroway), or 2 for the userPrincipalName (narroway@acme.corp)
Tooltip Text: Select the username format to send to DUO. Default is 1
Footer Text: DUO USERNAMEFORMAT
Clicking the Next button will take you to the Advanced Settings tab.
Step 8
Configure the following options in the specified order. To add an option, paste it and click the Add button:
- 0
- 1
- 2
Click the Create button to create the Custom Field.

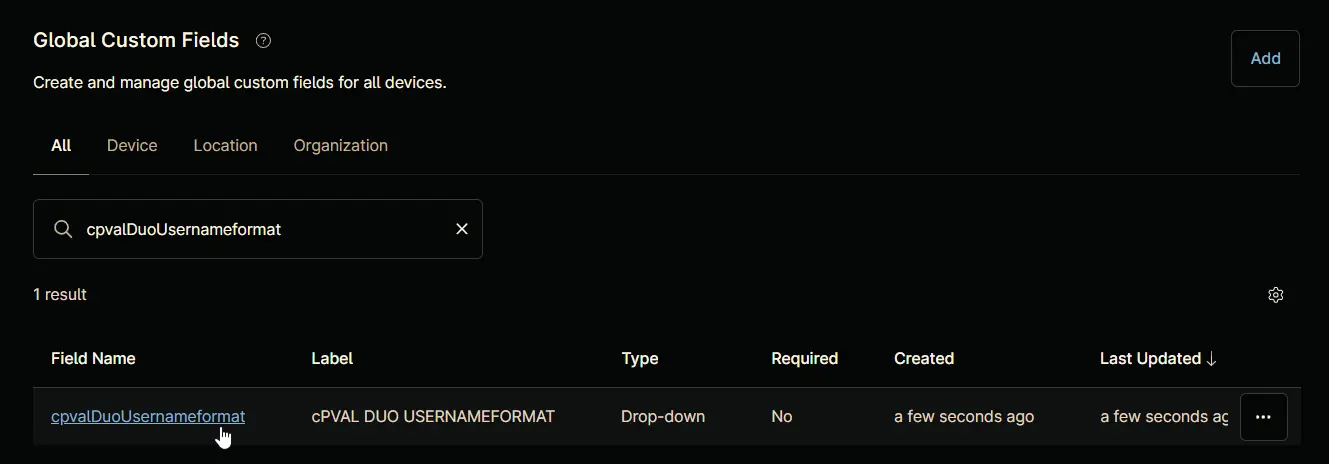

Completed Custom Field
Example
