Manage - Network Adapter Protocols

Summary

This script allows you to manage network protocols on Windows machines, including enabling, disabling, and configuring them to use DHCP.

Caution : Use this script with caution. Disabling IPv4 on the machine may result in a network disconnection.

Dependencies

• Internal Monitor : ProVal - Production - Manage Network Adapters
• Solution : Manage-NetworkAdapterProtocols

Sample Run

User Parameters

Name	Example	Required	Description
Set_Environment	1	True (For First execution)	Set to '1' to create the EDFs if they are not already created in the environment. This must be set to '1' for the first execution.

EDFs

Name	Level	Type	Example	Section	Description
Enable Solution	Client	Checkbox	-	Network Adapter Settings	Select it to enable the solution on the Client
Action	Client	Dropdown	ENABLE DISABLE Enable DHCP	Network Adapter Settings	Set it to Enable to enable a protocol, Disable to disable a protocol, Enable DHCP to configure a protocol to use DHCP
Protocol	Client	Dropdown	IPv4 IPv6 Both	Network Adapter Settings	Select IPv4 to perform the above action on IPv4, IPv6 to perform the above action on IPv6, Both to perform action on both IPv4 and IPv6. Both option is not supported with the Disable action, as both protocols cannot be disabled simultaneously
Action	Location	Dropdown	ENABLE DISABLE Enable DHCP Exclude From Solution	Network Adapter Settings	Location override for Action. Set it to Exclude From Solution to exclude Location from the solution. Script will prefer location Action over Client Action for the location
Protocol	Location	Dropdown	IPv4 IPv6 Both	Network Adapter Settings	Location override for Protocol. Script will prefer location Protocol over Client Protocol for the location
Action	Computer	Dropdown	ENABLE DISABLE Enable DHCP Exclude From Solution	Network Adapter Settings	Computer override for Action. Set it to Exclude From Solution to exclude Computer from the solution. Script will prefer Computer Action over Client/Location Action for the Computer
Protocol	Computer	Dropdown	IPv4 IPv6 Both	Network Adapter Settings	Computer override for Protocol. Script will prefer Computer Protocol over Client/Location Protocol for the Computer

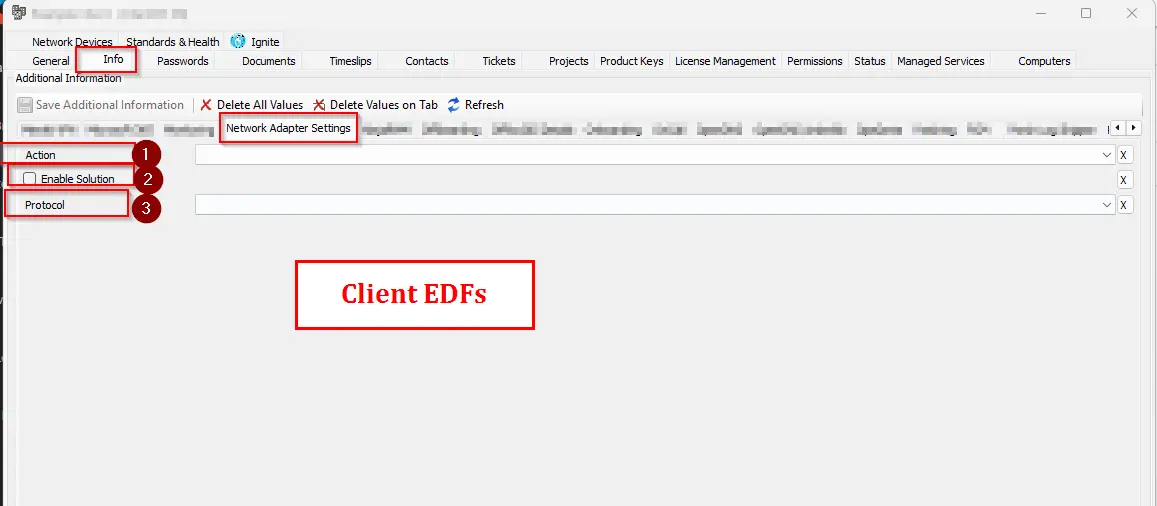

Client EDFs

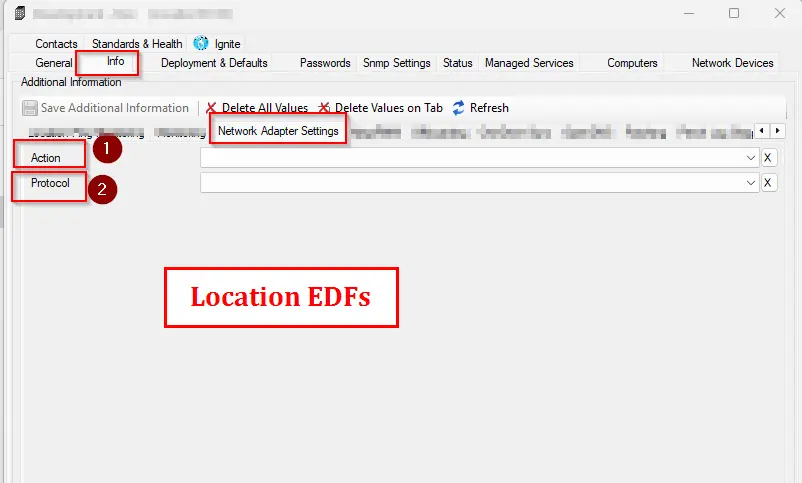

Location EDFs

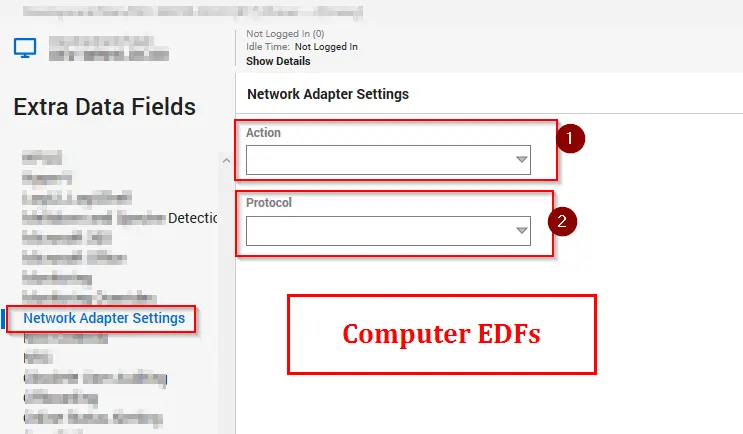

Computer EDFs

Output

• Script Logs
