Reboot TriggerSchedule

Summary

The custom fields listed below are used in the Reboot Schedule Solution.

Dependencies

Details

Name	Level	Type	Default	Editable	Description
WorkstationRebootWindowStart	Company	Text Box	1	Yes	This sets the minimum time when the reboot can start for workstations. Set the numeric value in 24-hour format. For example: 0 = Midnight, 1 = 1:00 AM, 5 = 5:00 AM, 11 = 11:00 AM, 23 = 11:00 PM.
WorkstationRebootWindowEnd	Company	Text Box	5	Yes	This sets the maximum time until the reboot can end for workstations. Set the numeric value in 24-hour format. For example: 0 = Midnight, 1 = 1:00 AM, 5 = 5:00 AM, 11 = 11:00 AM, 23 = 11:00 PM.
WorkstationRebootWindowDay	Company	Text Box	'Monday','Tuesday','Wednesday','Thursday','Friday'	Yes	Approved reboot day for the workstation. NOTE: To exclude this client from the solution, please enter 'Exclude' in the field. This will cause the script to exit and not take any actions on the target device.
ServerRebootWindowStart	Company	Text Box	1	Yes	This sets the minimum time when the reboot can start for servers. Set the numeric value in 24-hour format. For example: 0 = Midnight, 1 = 1:00 AM, 5 = 5:00 AM, 11 = 11:00 AM, 23 = 11:00 PM.
ServerRebootWindowEnd	Company	Text Box	5	Yes	This sets the maximum time until the reboot can end for servers. Set the numeric value in 24-hour format. For example: 0 = Midnight, 1 = 1:00 AM, 5 = 5:00 AM, 11 = 11:00 AM, 23 = 11:00 PM.
ServerRebootWindowDay	Company	Text Box	'Monday','Tuesday','Wednesday','Thursday','Friday'	Yes	Approved reboot day for the server. NOTE: To exclude this client from the solution, please enter 'Exclude' in the field. This will cause the script to exit and not take any actions on the target device.
Force Reboot	Endpoint	Flag	No	Yes	If this flag is checked on the agent, then the reboot will be forced via the Reboot Schedule or Force Reboot script.
Exclude Reboot	Endpoint	Flag	No	No	This will exclude the endpoint from the Reboot custom solutions.

Note: The Force Reboot flag has a higher priority than the Exclude Reboot flag.

If there is any endpoint where both 'Force Reboot' and 'Exclude Reboot' are checked, then the endpoint will be rebooted or scheduled for reboot if the task is executed.

Steps to Create Custom Fields

1. Go to Settings > Custom Fields


2. Click the Add option


3. Create a Custom Field
   Provide Name: ServerRebootWindowEnd
   Select Level: Company

   Then check the Type option:
   Type: Text Box

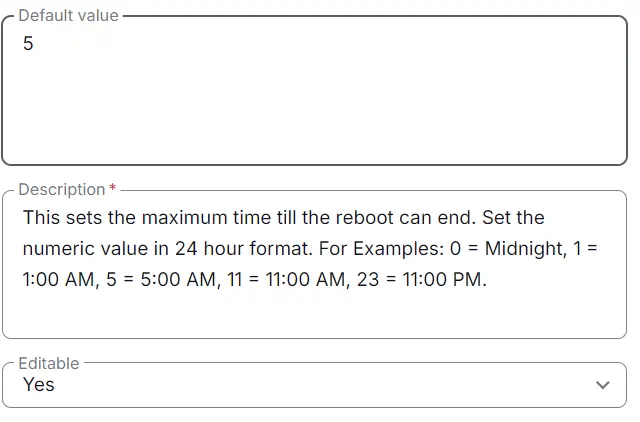

   Then provide Default Value and Description:
   Default: 5
   Description: This sets the maximum time until the reboot can end. Set the numeric value in 24-hour format. For example: 0 = Midnight, 1 = 1:00 AM, 5 = 5:00 AM, 11 = 11:00 AM, 23 = 11:00 PM.
   Editable: Yes

   Note: The description is mandatory and must be written in one phrase. It does not accept 'NEW LINE'.

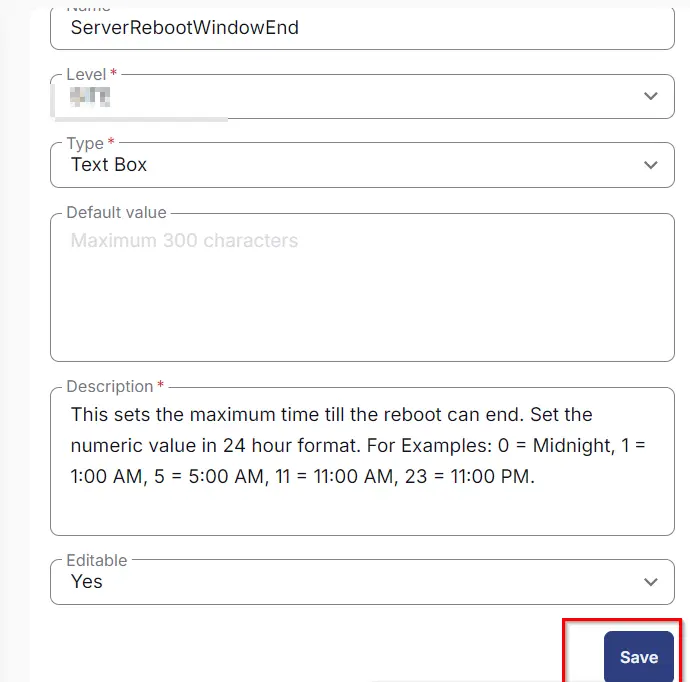

4. Click Save
   Once all details are filled, click Save, and the custom field will be created.


5. Repeat the above four steps to create all other custom fields based on the Name, Level, Type, Default, Description, and Editable values provided in the table.
   NOTE: To exclude this client from the solution, please enter 'Exclude' in the field. This will cause the script to exit and not take any actions on the target device.
