Updating the WinRE Partition

Purpose

Updating the WinRE partition on deployed devices to address security vulnerabilities in CVE-2024-20666 by pushing the KB5034957 update.

Associated Content

Content	Type	Function
Script - KB5034957 - CVE-2024-20666 - Updating the WinRE partition	Script	This script automates the updating of WinRE images on supported Windows OS. It updates the WinRE partition on deployed devices to address security vulnerabilities in CVE-2024-20666. Refer to article: link
Dataview - KB5034957 - CVE-2024-20666 - WinRE Partition Update Status	Dataview	This dataview contains the status of the WinRE update on the agent stored by the script CWA Script - KB5034957 - CVE-2024-20666 - Updating the WinRE partition at computer-EDF 'Update WinRE Partition KB5034957'.
Internal Monitor - Update WinRE Partition Detection	Internal Monitor	This monitor detects the online Windows machines whose OS falls under the supported OS criteria using the query (c.os NOT REGEXP 'Windows.* (XP
△ Custom - Execute Script - WinRE Partition Updating	Alert Template	This executes the script KB5034957 - CVE-2024-20666 - Updating the WinRE partition on the detected device of monitor Update WinRE Partition Detection.

Other Content

Content	Type	Function
KB5034957 - CVE-2024-20666 - Updating the WinRE partition	Agnostic	Download the required CAB file for the endpoint to patch WinRE for CVE-2024-20666.

Implementation

1. Import Contents:

   • Script - KB5034957 - CVE-2024-20666 - Updating the WinRE partition
   • Dataview - KB5034957 - CVE-2024-20666 - WinRE Partition Update Status
   • Internal Monitor - Update WinRE Partition Detection
   • △ Custom - Execute Script - WinRE Partition Updating

2. Reload the system cache:



3. Enable Solution:

   • Navigate to Automation → Monitors within the CWA Control Center and set up the following:
     Internal Monitor - Update WinRE Partition Detection

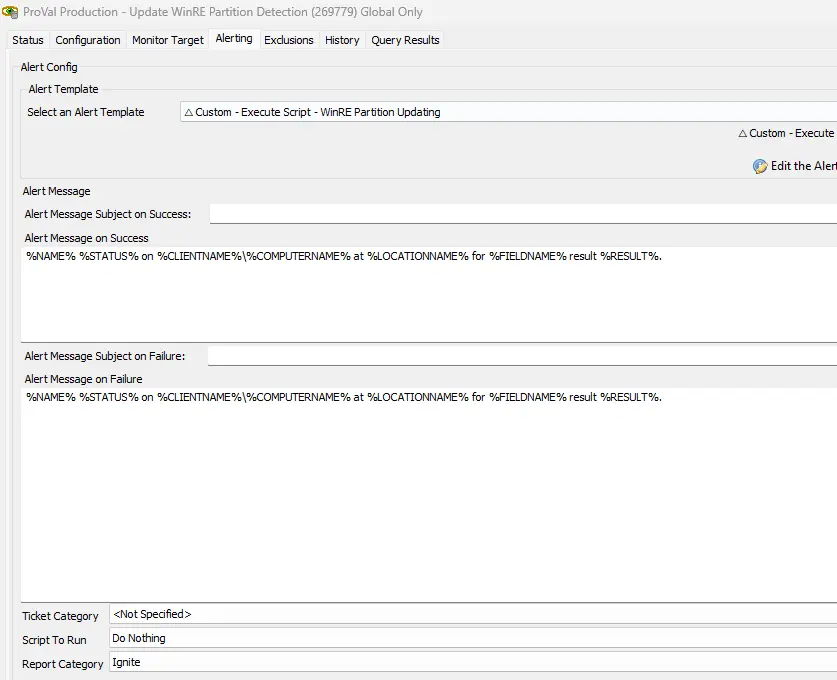

   • Set up with the △ Custom - Execute Script - WinRE Partition Updating alert template.

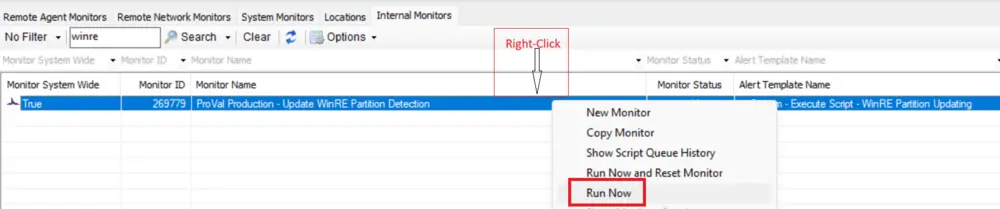

   • Right-click and select Run Now to start the monitor.


   • The automation will automatically update the WinRE partition on all supported OS.

4. Audit Data:

   The Dataview is designed to store the result of the status for the Update WinRE partition.
   Dataview - KB5034957 - CVE-2024-20666 - WinRE Partition Update Status

5. Ticket/Email Creation:

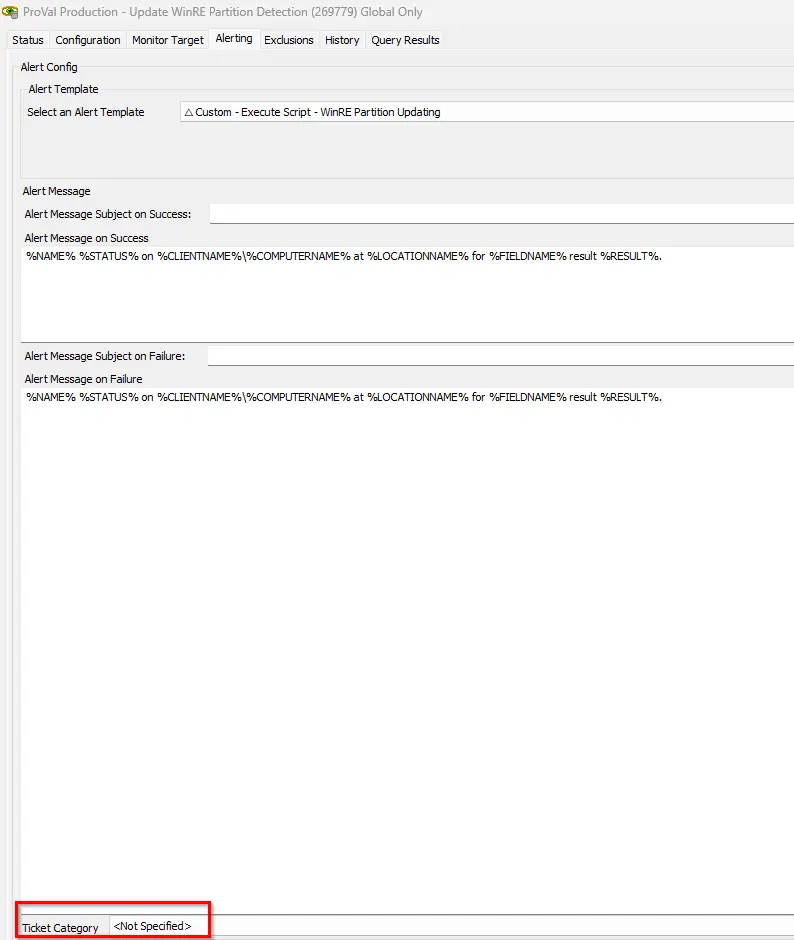

   • The script has a feature to enable ticketing or sending emails. To set ticketing, it is required to set the ticket category in the monitor itself:


   • Once the ticket category is set, adjust the global parameter value to 1 in the script for EnableTicketing:


   • To send emails, it is mandatory to set the email address. Multiple email addresses can be set, separated by semicolons:
     e.g., abc@def.com; ghi@jkl.com; mno@pqr.com
     Once the email address is set, you can set the value to 1 for the failure email if you need an email only on failure, set 1 for success email if you want an email for success, or set 1 for both for emails on both success and failure.
