Domain Trust Relationship Check

Summary​

This monitor is used to generate a ticket whenever the trust relationship between the domain and the workstation is broken.

Details​

Suggested "Limit to": Domain Joined Machines excluding Domain Controllers
Suggested Alert Style: Once
Suggested Alert Template: △ Custom - Ticket Creation - Computer

Check ActionServer AddressCheck TypeExecute InfoComparatorInterval
System127.0.0.1Run FileREDACTEDState Based3600

Dependencies​

CWM - Automate - Script - Ticket Creation - Computer

Target​

Target Image

Ticketing​

Subject: Domain trust relationship failure detected on %ComputerName%

Body:

The trust relationship between this workstation and the primary domain failed for %ComputerName%.

%RESULT%

Example %Result%:

Domain trust relationship failure detected.
Reason:
Flags: b0 HAS_IP HAS_TIMESERV
Trusted DC Name: \\DEV-Server2019DC.provaldev.local
Trusted DC Connection Status: Status = 0 0x0 NERR_Success
Trust Verification Status: = 1 0x1 NERR_Failed
The command was completed with a failure

Implementation​

Step 1​

Run this SQL query from a RAWSQL monitor set to import the required search.

INSERT INTO `sensorchecks`
   (`Name`, `SQL`, `QueryType`, `ListDATA`, `FolderID`, `GUID`, `SearchXML`)
SELECT
   'Domain Joined Machines excluding Domain Controllers' as `Name`,
   'SELECT
   computers.computerid as `Computer Id`,
   computers.name as `Computer Name`,
   clients.name as `Client Name`,
   computers.domain as `Computer Domain`,
   computers.username as `Computer User`,
   Computers.Domain as `Computer.Network.Domain`
FROM Computers
LEFT JOIN inv_operatingsystem ON (Computers.ComputerId=inv_operatingsystem.ComputerId)
LEFT JOIN Clients ON (Computers.ClientId=Clients.ClientId)
LEFT JOIN Locations ON (Computers.LocationId=Locations.LocationID)
WHERE
((((NOT ((Computers.Domain like 'DC:%'))) AND (Computers.Domain like '%.%'))))' as `SQL`,
   '4' as `QueryType`,
   'Select||=||=||=|^Select|||||||^' as `ListDATA`,
   '3' as `FolderID`,
   '664b9d5e-b0b0-4e5b-b0e3-3ea9ad184462' as `GUID`,
   '<LabTechAbstractSearch><asn><st>AndNode</st><cn><asn><st>AndNode</st><cn><asn><st>NotNode</st><cn><asn><st>ComparisonNode</st><lon>Computer.Network.Domain</lon><lok>Computer.Network.Domain</lok><lmo>TextLike</lmo><dv>DC:%</dv><dk>DC:%</dk></asn></cn></asn><asn><st>ComparisonNode</st><lon>Computer.Network.Domain</lon><lok>Computer.Network.Domain</lok><lmo>TextLike</lmo><dv>%.%</dv><dk>%.%</dk></asn></cn></asn></cn></asn></LabTechAbstractSearch>' as `SearchXML`
FROM
   (SELECT MIN(computerid) FROM computers) a
WHERE
   (SELECT Count(0) From sensorchecks where `GUID` = '664b9d5e-b0b0-4e5b-b0e3-3ea9ad184462') = 0;

Step 2​

Obtain the group ID(s) of the group(s) that the remote monitor should be applied to.

Step 3​

Copy the following query and replace YOUR COMMA SEPARATED LIST OF GROUPID(S) with the Group ID(s) of the relevant groups. (The string to replace can be found at the very bottom of the query, right after WHERE)

SET @searchid = (SELECT MIN(sensid) FROM sensorchecks WHERE GUID = '664b9d5e-b0b0-4e5b-b0e3-3ea9ad184462');
INSERT INTO groupagents
SELECT '' as `AgentID`,
`groupid` as `GroupID`,
@searchid as `SearchID`,
'ProVal - Production - Domain Trust Relationship Check' as `Name`,
'6' as `CheckAction`,
'1' as `AlertAction`,
'Domain trust relationship failure detected on %ComputerName%~~~The trust relationship between this workstation and the primary domain has been reestablished.!!!Domain trust relationship failure detected on %ComputerName%~~~The trust relationship between this workstation and the primary domain failed for %ComputerName%. %RESULT%' as `AlertMessage`,
'0' as `ContactID`,
'3600' as `interval`,
'127.0.0.1' as `Where`,
'7' as `What`,
'C:\\Windows\\System32\\WindowsPowerShell\\v1.0\\powershell.exe -ExecutionPolicy Bypass -Command "$output = cmd.exe /c nltest /sc_verify:$env:userdomain; if ($LASTEXITCODE -gt 0) { return \'Domain trust relationship failure detected.\' + $($output | Out-String)}"' as `DataOut`,
'16' as `Comparor`,
'10|((^((OK){0,}(\\r\\n){0,}[\\r\\n]{0,}\\s{0,})$)%7C(^$))|11|((^((OK){0,}(\\r\\n){0,}[\\r\\n]{0,}\\s{0,})$)%7C(^$))%7C(failed: Status)|10|(failed: Status)' as `DataIn`,
'' as `IDField`,
'1' as `AlertStyle`,
'0' as `ScriptID`,
'' as `datacollector`,
'21' as `Category`,
'0' as `TicketCategory`,
'1' as `ScriptTarget`,
UUID() as `GUID`,
'root' as `UpdatedBy`,
(NOW()) as `UpdateDate`
FROM mastergroups m
WHERE m.groupid IN (<strong>YOUR COMMA SEPARATED LIST OF GROUPID(S)</strong>)
AND m.groupid NOT IN  (SELECT DISTINCT groupid FROM groupagents WHERE `Name` = 'ProVal - Production - Domain Trust Relationship Check');

Step 4​

An example of the query with group IDs and modified thresholds.

SET @searchid = (SELECT MIN(sensid) FROM sensorchecks WHERE GUID = '664b9d5e-b0b0-4e5b-b0e3-3ea9ad184462');
INSERT INTO groupagents
SELECT '' as `AgentID`,
`groupid` as `GroupID`,
@searchid as `SearchID`,
'ProVal - Production - Domain Trust Relationship Check' as `Name`,
'6' as `CheckAction`,
'1' as `AlertAction`,
'Domain trust relationship failure detected on %ComputerName%~~~The trust relationship between this workstation and the primary domain has been reestablished.!!!Domain trust relationship failure detected on %ComputerName%~~~The trust relationship between this workstation and the primary domain failed for %ComputerName%. %RESULT%' as `AlertMessage`,
'0' as `ContactID`,
'3600' as `interval`,
'127.0.0.1' as `Where`,
'7' as `What`,
'C:\\Windows\\System32\\WindowsPowerShell\\v1.0\\powershell.exe -ExecutionPolicy Bypass -Command "$output = cmd.exe /c nltest /sc_verify:$env:userdomain; if ($LASTEXITCODE -gt 0) { return \'Domain trust relationship failure detected.\' + $($output | Out-String)}"' as `DataOut`,
'16' as `Comparor`,
'10|((^((OK){0,}(\\r\\n){0,}[\\r\\n]{0,}\\s{0,})$)%7C(^$))|11|((^((OK){0,}(\\r\\n){0,}[\\r\\n]{0,}\\s{0,})$)%7C(^$))%7C(failed: Status)|10|(failed: Status)' as `DataIn`,
'' as `IDField`,
'1' as `AlertStyle`,
'0' as `ScriptID`,
'' as `datacollector`,
'21' as `Category`,
'0' as `TicketCategory`,
'1' as `ScriptTarget`,
UUID() as `GUID`,
'root' as `UpdatedBy`,
(NOW()) as `UpdateDate`
FROM mastergroups m
WHERE m.groupid IN (<strong>2,3,855,856</strong>)
AND m.groupid NOT IN  (SELECT DISTINCT groupid FROM groupagents WHERE `Name` = 'ProVal - Production - Domain Trust Relationship Check');

Step 5​

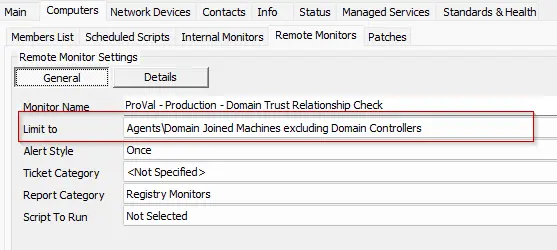

Check the concerned groups and ensure the monitor set is created and configured with the correct search.

Limit to: Domain Joined Machines excluding Domain Controllers


Step 6​

Set the appropriate alert template.
