Lockdown Chromium Browsers Credit Card Autofill

Summary

The remote monitor attempts to disable the Autofilling feature for credit cards in Chromium-based browsers such as Google Chrome, Microsoft Edge, and Brave. This solution entails modifying the computer's registry settings.

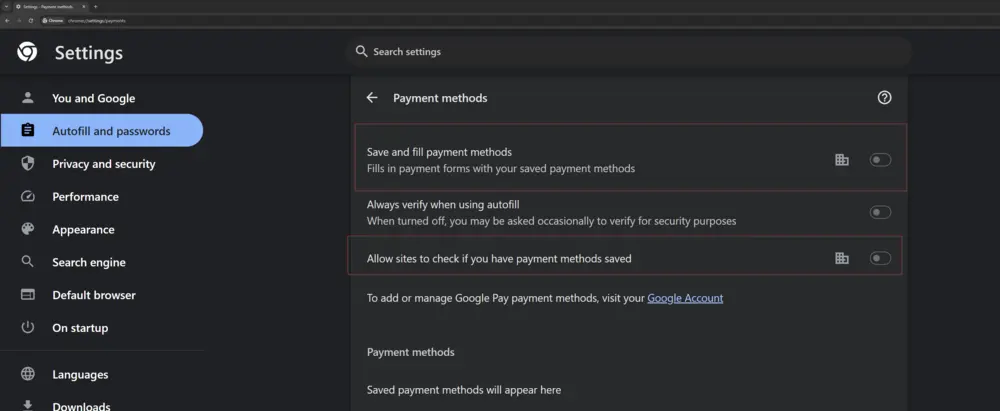

Affected Setting for Google Chrome:
Google Chrome Setting

Affected Settings for Microsoft Edge:
Microsoft Edge Settings

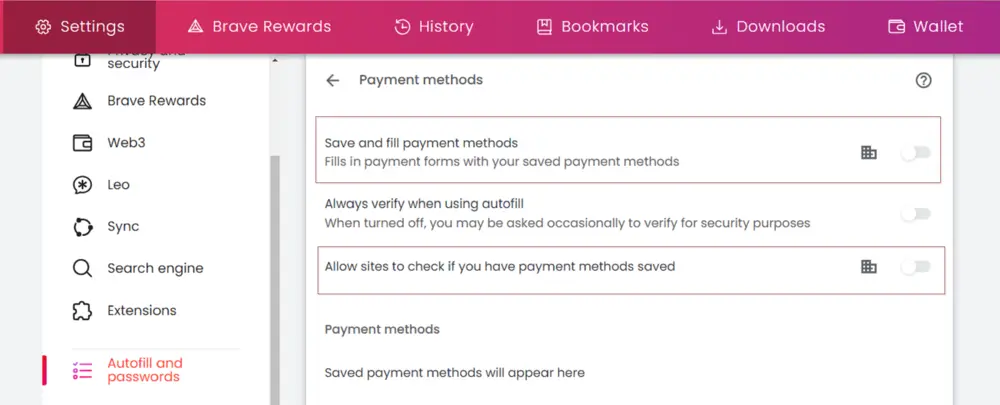

Affected Setting for Brave:
Brave Setting

Note:

The changes will only take effect once the browser is restarted if it is currently open.
If the PowerShell version on the machines is older than version 5, the remote monitor may not produce the expected outcomes.

Details

Suggested "Limit to": Lockdown Browsers Credit Card Autofill
Suggested Alert Style: Continuous
Suggested Alert Template: Default - Do Nothing

Using any alert templates is not recommended unless the partner specifically desires an alert for failures. The remote monitor records both its successes and failures in the Chromium Browsers Credit Card Lockdown - Status dataview.

Check Action	Server Address	Check Type	Execute Info	Comparator	Interval	Result
System	127.0.0.1	Run File	REDACTED	State Based	604800 (Weekly)	Screenshot attached below.

Screenshot

Dependencies

Search: Lockdown Browsers Credit Card Autofill
Search: Lockdown Browsers Autofill
Group: △ Lockdown Browsers Autofill
Dataview: EPM - Dataview - Chromium Browsers Credit Card Lockdown - Status

Target

Group: △ Lockdown Browsers Password Manager
Target Group

Implementation

Step 1

Execute the provided SQL query from a RAWSQL monitor set in the provided order to import the following contents:

Client Level EDFs:
- Lockdown Browsers Password Manager
- Lockdown Browsers Credit Card Autofill
- Lockdown Browsers Address Autofill
Location Level EDFs:
- Exclude Browser Lockdown
- Exclude Browser Credit Card Lockdown
- Lockdown Browsers Address Autofill
Computer Level EDFs:
- Exclude Browser Lockdown
- Exclude Browser Credit Card Lockdown
- Lockdown Browsers Address Autofill
Searches:
- Lockdown Browsers Autofill
- Lockdown Browsers Password Manager
- Lockdown Browsers Credit Card Autofill
- Lockdown Browsers Address Autofill
Groups:
- △ System Monitoring,
- △ Lockdown Browsers Autofill
Remote Monitors:
- ProVal - Production - Lockdown Browsers Password Manager
- ProVal - Production - Lockdown Chromium Browsers Credit Card Autofill
- ProVal - Production - Lockdown Chromium Browsers Address Autofill

Step 2

Remove Existing Content

Delete From groupagents where groupid = ( Select distinct groupid from mastergroups where `GUID` = 'eea5f14b-c12a-11ee-a53f-960002890dfa' );
Delete From mastergroups where `GUID` = 'eea5f14b-c12a-11ee-a53f-960002890dfa';
Delete From sensorchecks where `GUID` = '80d153cb-440b-4312-9191-a9f5dd20744a';

Step 3

Create EDFs

INSERT IGNORE INTO `extrafield`
    (`Form`, `Name`, `Sort`, `NoBreak`, `FType`, `Section`, `UnEditable`, `Collapsed`, `Fill`, `LtGuid`, `IsPassword`, `IsEncrypted`, `IsHidden`, `IsRestricted`, `ViewPermissions`, `EditPermissions`)
VALUES
    (1, 'Exclude Browser Password Lockdown', 0, 0, 1, 'Exclusions', 0, 0, '', '427b21d2-e43a-4638-b692-3a15f56f7092', 0, 0, 0, 0, '', ''),
    (2, 'Exclude Browser Password Lockdown', 0, 0, 1, 'Exclusions', 0, 0, '', '5dd1e888-f7f8-4e2d-af53-b6cac8c00efb', 0, 0, 0, 0, '', ''),
    (1, 'Exclude Browser Address Autofill Lockdown', 0, 0, 1, 'Exclusions', 0, 0, '', '2de882af-81ea-4300-b410-d6c155239a83', 0, 0, 0, 0, '', ''),
    (2, 'Exclude Browser Credit Card Lockdown', 0, 0, 1, 'Exclusions', 0, 0, '', '5126b37d-1d63-456c-b44b-180871bd5d97', 0, 0, 0, 0, '', ''),
    (1, 'Exclude Browser Credit Card Lockdown', 0, 0, 1, 'Exclusions', 0, 0, '', '3eb6042d-68f3-4c87-b2cf-72d69bb57e45', 0, 0, 0, 0, '', ''),
    (2, 'Exclude Browser Address Autofill Lockdown', 0, 0, 1, 'Exclusions', 0, 0, '', 'ffd807a0-62a6-4cfa-86e6-d90cfc9f0f3c', 0, 0, 0, 0, '', ''),
    (3, 'Lockdown Browsers Password Manager', 0, 0, 1, 'Security', 0, 0, '', '611dcf5a-b316-4986-a624-a176efe4b5c6', 0, 0, 0, 0, '', ''),
    (3, 'Lockdown Browsers Credit Card Autofill', 0, 0, 1, 'Security', 0, 0, '', 'e74a03bc-b190-4ccb-9c29-95d7f3b23c1f', 0, 0, 0, 0, '', ''),
    (3, 'Lockdown Browsers Address Autofill', 0, 0, 1, 'Security', 0, 0, '', '3c002fdd-a25a-4bc2-bb1e-1a6f7af67432', 0, 0, 0, 0, '', '');
CALL v_extradata(1,'computers');
CALL v_ExtraDataRefresh(1,'computers');
CALL v_extradata(2,'locations');
CALL v_ExtraDataRefresh(2,'locations');
CALL v_extradata(3,'clients');
CALL v_ExtraDataRefresh(3,'clients');

Step 4

Create Searches

INSERT INTO `sensorchecks`
    (`Name`, `SQL`, `QueryType`, `ListDATA`, `FolderID`, `GUID`, `SearchXML`)
SELECT
    'Lockdown Browsers Autofill'  as `Name`,
    'SELECT \n   computers.computerid as `Computer Id`,\n   computers.name as `Computer Name`,\n   clients.name as `Client Name`,\n   computers.domain as `Computer Domain`,\n   computers.username as `Computer User`,\n   IF(INSTR(IFNULL(inv_operatingsystem.Name, Computers.OS), \'windows\')>0, 1, IF(INSTR(IFNULL(inv_operatingsystem.Name, Computers.OS), \'darwin\') >0, 2, 3)) as `Computer.OS.Type`,\n   IFNULL(IFNULL(edfAssigned1.Value,edfDefault1.value),\'0\') as `Computer - Client - Extra Data Field - Security - Lockdown Browsers Password Manager`,\n   IFNULL(IFNULL(edfAssigned2.Value,edfDefault2.value),\'0\') as `Computer - Client - Extra Data Field - Security - Lockdown Browsers Credit Card Autofill`,\n   IFNULL(IFNULL(edfAssigned3.Value,edfDefault3.value),\'0\') as `Computer - Client - Extra Data Field - Security - Lockdown Browsers Address Autofill`\nFROM Computers \nLEFT JOIN inv_operatingsystem ON (Computers.ComputerId=inv_operatingsystem.ComputerId)\nLEFT JOIN Clients ON (Computers.ClientId=Clients.ClientId)\nLEFT JOIN Locations ON (Computers.LocationId=Locations.LocationID)\nLEFT JOIN ExtraFieldData edfAssigned1 ON (edfAssigned1.id=Clients.ClientId and edfAssigned1.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'611dcf5a-b316-4986-a624-a176efe4b5c6\'))\nLEFT JOIN ExtraFieldData edfDefault1 ON (edfDefault1.id=0 and edfDefault1.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'611dcf5a-b316-4986-a624-a176efe4b5c6\'))\nLEFT JOIN ExtraFieldData edfAssigned2 ON (edfAssigned2.id=Clients.ClientId and edfAssigned2.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'e74a03bc-b190-4ccb-9c29-95d7f3b23c1f\'))\nLEFT JOIN ExtraFieldData edfDefault2 ON (edfDefault2.id=0 and edfDefault2.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'e74a03bc-b190-4ccb-9c29-95d7f3b23c1f\'))\nLEFT JOIN ExtraFieldData edfAssigned3 ON (edfAssigned3.id=Clients.ClientId and edfAssigned3.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'3c002fdd-a25a-4bc2-bb1e-1a6f7af67432\'))\nLEFT JOIN ExtraFieldData edfDefault3 ON (edfDefault3.id=0 and edfDefault3.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'3c002fdd-a25a-4bc2-bb1e-1a6f7af67432\'))\n WHERE \n((((IF(INSTR(IFNULL(inv_operatingsystem.Name, Computers.OS), \'windows\')>0, 1, IF(INSTR(IFNULL(inv_operatingsystem.Name, Computers.OS), \'darwin\') >0, 2, 3)) = \'1\') AND (((IFNULL(IFNULL(edfAssigned1.Value,edfDefault1.value),\'0\')<>0) OR (IFNULL(IFNULL(edfAssigned2.Value,edfDefault2.value),\'0\')<>0) OR (IFNULL(IFNULL(edfAssigned3.Value,edfDefault3.value),\'0\')<>0))))))\n' as `SQL`,
    '4' as `QueryType`,
    'Select||=||=||=|^Select|||||||^' as `ListData`,
    '0' as `FolderID`,
    '80d153cb-440b-4312-9191-a9f5dd20744a' as `GUID`,'<LabTechAbstractSearch><asn><st>AndNode</st><cn><asn><st>AndNode</st><cn><asn><st>ComparisonNode</st><lon>Computer.OS.Type</lon><lok>Computer.OS.Type</lok><lmo>Equals</lmo><dv>Windows</dv><dk>1</dk></asn><asn><st>OrNode</st><cn><asn><st>ComparisonNode</st><lon>Computer.Client.Extra Data Field.Security.Lockdown Browsers Password Manager</lon><lok>Computer.Client.Edf.611dcf5a-b316-4986-a624-a176efe4b5c6</lok><lmo>IsTrue</lmo><dv>NULL</dv><dk>NULL</dk></asn><asn><st>ComparisonNode</st><lon>Computer.Client.Extra Data Field.Security.Lockdown Browsers Credit Card Autofill</lon><lok>Computer.Client.Edf.e74a03bc-b190-4ccb-9c29-95d7f3b23c1f</lok><lmo>IsTrue</lmo><dv>NULL</dv><dk>NULL</dk></asn><asn><st>ComparisonNode</st><lon>Computer.Client.Extra Data Field.Security.Lockdown Browsers Address Autofill</lon><lok>Computer.Client.Edf.3c002fdd-a25a-4bc2-bb1e-1a6f7af67432</lok><lmo>IsTrue</lmo><dv>NULL</dv><dk>NULL</dk></asn></cn></asn></cn></asn></cn></asn></LabTechAbstractSearch>' as `SearchXML`
FROM
    (SELECT MIN(computerid) FROM computers) a
WHERE
    (SELECT count(*) From SensorChecks where `GUID` = '80d153cb-440b-4312-9191-a9f5dd20744a') = 0 ;
INSERT INTO `sensorchecks`
    (`Name`, `SQL`, `QueryType`, `ListDATA`, `FolderID`, `GUID`, `SearchXML`)
SELECT
    'Lockdown Browsers Password Manager'  as `Name`,
    'SELECT \r\n   computers.computerid as `Computer Id`,\r\n   computers.name as `Computer Name`,\r\n   clients.name as `Client Name`,\r\n   computers.domain as `Computer Domain`,\r\n   computers.username as `Computer User`,\r\n   IF(INSTR(IFNULL(inv_operatingsystem.Name, Computers.OS), \'windows\')>0, 1, IF(INSTR(IFNULL(inv_operatingsystem.Name, Computers.OS), \'darwin\') >0, 2, 3)) as `Computer.OS.Type`,\r\n   IFNULL(IFNULL(edfAssigned1.Value,edfDefault1.value),\'0\') as `Computer - Client - Extra Data Field - Security - Lockdown Browsers Password Manager`,\r\n   IFNULL(IFNULL(edfAssigned2.Value,edfDefault2.value),\'0\') as `Computer - Location - Extra Data Field - Exclusions - Exclude Browser Password Lockdown`,\r\n   IFNULL(IFNULL(edfAssigned3.Value,edfDefault3.value),\'0\') as `Computer - Extra Data Field - Exclusions - Exclude Browser Password Lockdown`\r\nFROM Computers \r\nLEFT JOIN inv_operatingsystem ON (Computers.ComputerId=inv_operatingsystem.ComputerId)\r\nLEFT JOIN Clients ON (Computers.ClientId=Clients.ClientId)\r\nLEFT JOIN Locations ON (Computers.LocationId=Locations.LocationID)\r\nLEFT JOIN ExtraFieldData edfAssigned1 ON (edfAssigned1.id=Clients.ClientId and edfAssigned1.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'611dcf5a-b316-4986-a624-a176efe4b5c6\'))\r\nLEFT JOIN ExtraFieldData edfDefault1 ON (edfDefault1.id=0 and edfDefault1.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'611dcf5a-b316-4986-a624-a176efe4b5c6\'))\r\nLEFT JOIN ExtraFieldData edfAssigned2 ON (edfAssigned2.id=Locations.LocationId and edfAssigned2.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'5dd1e888-f7f8-4e2d-af53-b6cac8c00efb\'))\r\nLEFT JOIN ExtraFieldData edfDefault2 ON (edfDefault2.id=0 and edfDefault2.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'5dd1e888-f7f8-4e2d-af53-b6cac8c00efb\'))\r\nLEFT JOIN ExtraFieldData edfAssigned3 ON (edfAssigned3.id=Computers.ComputerId and edfAssigned3.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'427b21d2-e43a-4638-b692-3a15f56f7092\'))\r\nLEFT JOIN ExtraFieldData edfDefault3 ON (edfDefault3.id=0 and edfDefault3.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'427b21d2-e43a-4638-b692-3a15f56f7092\'))\r\n WHERE \r\n((((IF(INSTR(IFNULL(inv_operatingsystem.Name, Computers.OS), \'windows\')>0, 1, IF(INSTR(IFNULL(inv_operatingsystem.Name, Computers.OS), \'darwin\') >0, 2, 3)) = \'1\') AND (IFNULL(IFNULL(edfAssigned1.Value,edfDefault1.value),\'0\')<>0) AND (IFNULL(IFNULL(edfAssigned2.Value,edfDefault2.value),\'0\')=0) AND (IFNULL(IFNULL(edfAssigned3.Value,edfDefault3.value),\'0\')=0))))\r\n' as `SQL`,
    '4' as `QueryType`,
    'Select||=||=||=|^Select|||||||^' as `ListData`,
    '0' as `FolderID`,
    '40d97d6b-8726-48f3-ac28-eeaed20f75d7' as `GUID`,'<LabTechAbstractSearch><asn><st>AndNode</st><cn><asn><st>AndNode</st><cn><asn><st>ComparisonNode</st><lon>Computer.OS.Type</lon><lok>Computer.OS.Type</lok><lmo>Equals</lmo><dv>Windows</dv><dk>1</dk></asn><asn><st>ComparisonNode</st><lon>Computer.Client.Extra Data Field.Security.Lockdown Browsers Password Manager</lon><lok>Computer.Client.Edf.611dcf5a-b316-4986-a624-a176efe4b5c6</lok><lmo>IsTrue</lmo><dv>NULL</dv><dk>NULL</dk></asn><asn><st>ComparisonNode</st><lon>Computer.Location.Extra Data Field.Exclusions.Exclude Browser Password Lockdown</lon><lok>Computer.Location.Edf.5dd1e888-f7f8-4e2d-af53-b6cac8c00efb</lok><lmo>IsFalse</lmo><dv>NULL</dv><dk>NULL</dk></asn><asn><st>ComparisonNode</st><lon>Computer.Extra Data Field.Exclusions.Exclude Browser Password Lockdown</lon><lok>Computer.Edf.427b21d2-e43a-4638-b692-3a15f56f7092</lok><lmo>IsFalse</lmo><dv>NULL</dv><dk>NULL</dk></asn></cn></asn></cn></asn></LabTechAbstractSearch>' as `SearchXML`
FROM
    (SELECT MIN(computerid) FROM computers) a
WHERE
    (SELECT count(*) From SensorChecks where `GUID` = '40d97d6b-8726-48f3-ac28-eeaed20f75d7') = 0 ;
INSERT INTO `sensorchecks`
    (`Name`, `SQL`, `QueryType`, `ListDATA`, `FolderID`, `GUID`, `SearchXML`)
SELECT
    'Lockdown Browsers Credit Card Autofill'  as `Name`,
    'SELECT \r\n   computers.computerid as `Computer Id`,\r\n   computers.name as `Computer Name`,\r\n   clients.name as `Client Name`,\r\n   computers.domain as `Computer Domain`,\r\n   computers.username as `Computer User`,\r\n   IF(INSTR(IFNULL(inv_operatingsystem.Name, Computers.OS), \'windows\')>0, 1, IF(INSTR(IFNULL(inv_operatingsystem.Name, Computers.OS), \'darwin\') >0, 2, 3)) as `Computer.OS.Type`,\r\n   IFNULL(IFNULL(edfAssigned1.Value,edfDefault1.value),\'0\') as `Computer - Client - Extra Data Field - Security - Lockdown Browsers Credit Card Autofill`,\r\n   IFNULL(IFNULL(edfAssigned2.Value,edfDefault2.value),\'0\') as `Computer - Location - Extra Data Field - Exclusions - Exclude Browser Credit Card Lockdown`,\r\n   IFNULL(IFNULL(edfAssigned3.Value,edfDefault3.value),\'0\') as `Computer - Extra Data Field - Exclusions - Exclude Browser Credit Card Lockdown`\r\nFROM Computers \r\nLEFT JOIN inv_operatingsystem ON (Computers.ComputerId=inv_operatingsystem.ComputerId)\r\nLEFT JOIN Clients ON (Computers.ClientId=Clients.ClientId)\r\nLEFT JOIN Locations ON (Computers.LocationId=Locations.LocationID)\r\nLEFT JOIN ExtraFieldData edfAssigned1 ON (edfAssigned1.id=Clients.ClientId and edfAssigned1.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'e74a03bc-b190-4ccb-9c29-95d7f3b23c1f\'))\r\nLEFT JOIN ExtraFieldData edfDefault1 ON (edfDefault1.id=0 and edfDefault1.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'e74a03bc-b190-4ccb-9c29-95d7f3b23c1f\'))\r\nLEFT JOIN ExtraFieldData edfAssigned2 ON (edfAssigned2.id=Locations.LocationId and edfAssigned2.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'5126b37d-1d63-456c-b44b-180871bd5d97\'))\r\nLEFT JOIN ExtraFieldData edfDefault2 ON (edfDefault2.id=0 and edfDefault2.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'5126b37d-1d63-456c-b44b-180871bd5d97\'))\r\nLEFT JOIN ExtraFieldData edfAssigned3 ON (edfAssigned3.id=Computers.ComputerId and edfAssigned3.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'3eb6042d-68f3-4c87-b2cf-72d69bb57e45\'))\r\nLEFT JOIN ExtraFieldData edfDefault3 ON (edfDefault3.id=0 and edfDefault3.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'3eb6042d-68f3-4c87-b2cf-72d69bb57e45\'))\r\n WHERE \r\n((((IF(INSTR(IFNULL(inv_operatingsystem.Name, Computers.OS), \'windows\')>0, 1, IF(INSTR(IFNULL(inv_operatingsystem.Name, Computers.OS), \'darwin\') >0, 2, 3)) = \'1\') AND (IFNULL(IFNULL(edfAssigned1.Value,edfDefault1.value),\'0\')<>0) AND (IFNULL(IFNULL(edfAssigned2.Value,edfDefault2.value),\'0\')=0) AND (IFNULL(IFNULL(edfAssigned3.Value,edfDefault3.value),\'0\')=0))))\r\n' as `SQL`,
    '4' as `QueryType`,
    'Select||=||=||=|^Select|||||||^' as `ListData`,
    '0' as `FolderID`,
    'bcfaf65a-4eb7-4cf9-9496-0c94ae86e59b' as `GUID`,'<LabTechAbstractSearch><asn><st>AndNode</st><cn><asn><st>AndNode</st><cn><asn><st>ComparisonNode</st><lon>Computer.OS.Type</lon><lok>Computer.OS.Type</lok><lmo>Equals</lmo><dv>Windows</dv><dk>1</dk></asn><asn><st>ComparisonNode</st><lon>Computer.Client.Extra Data Field.Security.Lockdown Browsers Credit Card Autofill</lon><lok>Computer.Client.Edf.e74a03bc-b190-4ccb-9c29-95d7f3b23c1f</lok><lmo>IsTrue</lmo><dv>NULL</dv><dk>NULL</dk></asn><asn><st>ComparisonNode</st><lon>Computer.Location.Extra Data Field.Exclusions.Exclude Browser Credit Card Lockdown</lon><lok>Computer.Location.Edf.5126b37d-1d63-456c-b44b-180871bd5d97</lok><lmo>IsFalse</lmo><dv>NULL</dv><dk>NULL</dk></asn><asn><st>ComparisonNode</st><lon>Computer.Extra Data Field.Exclusions.Exclude Browser Credit Card Lockdown</lon><lok>Computer.Edf.3eb6042d-68f3-4c87-b2cf-72d69bb57e45</lok><lmo>IsFalse</lmo><dv>NULL</dv><dk>NULL</dk></asn></cn></asn></cn></asn></LabTechAbstractSearch>' as `SearchXML`
FROM
    (SELECT MIN(computerid) FROM computers) a
WHERE
    (SELECT count(*) From SensorChecks where `GUID` = 'bcfaf65a-4eb7-4cf9-9496-0c94ae86e59b') = 0 ;
INSERT INTO `sensorchecks`
    (`Name`, `SQL`, `QueryType`, `ListDATA`, `FolderID`, `GUID`, `SearchXML`)
SELECT
    'Lockdown Browsers Address Autofill'  as `Name`,
    'SELECT \r\n   computers.computerid as `Computer Id`,\r\n   computers.name as `Computer Name`,\r\n   clients.name as `Client Name`,\r\n   computers.domain as `Computer Domain`,\r\n   computers.username as `Computer User`,\r\n   IF(INSTR(IFNULL(inv_operatingsystem.Name, Computers.OS), \'windows\')>0, 1, IF(INSTR(IFNULL(inv_operatingsystem.Name, Computers.OS), \'darwin\') >0, 2, 3)) as `Computer.OS.Type`,\r\n   IFNULL(IFNULL(edfAssigned1.Value,edfDefault1.value),\'0\') as `Computer - Client - Extra Data Field - Security - Lockdown Browsers Address Autofill`,\r\n   IFNULL(IFNULL(edfAssigned2.Value,edfDefault2.value),\'0\') as `Computer - Location - Extra Data Field - Exclusions - Exclude Browser Address Autofill Lockdown`,\r\n   IFNULL(IFNULL(edfAssigned3.Value,edfDefault3.value),\'0\') as `Computer - Extra Data Field - Exclusions - Exclude Browser Address Autofill Lockdown`\r\nFROM Computers \r\nLEFT JOIN inv_operatingsystem ON (Computers.ComputerId=inv_operatingsystem.ComputerId)\r\nLEFT JOIN Clients ON (Computers.ClientId=Clients.ClientId)\r\nLEFT JOIN Locations ON (Computers.LocationId=Locations.LocationID)\r\nLEFT JOIN ExtraFieldData edfAssigned1 ON (edfAssigned1.id=Clients.ClientId and edfAssigned1.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'3c002fdd-a25a-4bc2-bb1e-1a6f7af67432\'))\r\nLEFT JOIN ExtraFieldData edfDefault1 ON (edfDefault1.id=0 and edfDefault1.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'3c002fdd-a25a-4bc2-bb1e-1a6f7af67432\'))\r\nLEFT JOIN ExtraFieldData edfAssigned2 ON (edfAssigned2.id=Locations.LocationId and edfAssigned2.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'ffd807a0-62a6-4cfa-86e6-d90cfc9f0f3c\'))\r\nLEFT JOIN ExtraFieldData edfDefault2 ON (edfDefault2.id=0 and edfDefault2.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'ffd807a0-62a6-4cfa-86e6-d90cfc9f0f3c\'))\r\nLEFT JOIN ExtraFieldData edfAssigned3 ON (edfAssigned3.id=Computers.ComputerId and edfAssigned3.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'2de882af-81ea-4300-b410-d6c155239a83\'))\r\nLEFT JOIN ExtraFieldData edfDefault3 ON (edfDefault3.id=0 and edfDefault3.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'2de882af-81ea-4300-b410-d6c155239a83\'))\r\n WHERE \r\n((((IF(INSTR(IFNULL(inv_operatingsystem.Name, Computers.OS), \'windows\')>0, 1, IF(INSTR(IFNULL(inv_operatingsystem.Name, Computers.OS), \'darwin\') >0, 2, 3)) = \'1\') AND (IFNULL(IFNULL(edfAssigned1.Value,edfDefault1.value),\'0\')<>0) AND (IFNULL(IFNULL(edfAssigned2.Value,edfDefault2.value),\'0\')=0) AND (IFNULL(IFNULL(edfAssigned3.Value,edfDefault3.value),\'0\')=0))))\r\n' as `SQL`,
    '4' as `QueryType`,
    'Select||=||=||=|^Select|||||||^' as `ListData`,
    '0' as `FolderID`,
    'c95002e6-0cfb-4a47-8e28-fa4092ef2826' as `GUID`,'<LabTechAbstractSearch><asn><st>AndNode</st><cn><asn><st>AndNode</st><cn><asn><st>ComparisonNode</st><lon>Computer.OS.Type</lon><lok>Computer.OS.Type</lok><lmo>Equals</lmo><dv>Windows</dv><dk>1</dk></asn><asn><st>ComparisonNode</st><lon>Computer.Client.Extra Data Field.Security.Lockdown Browsers Address Autofill</lon><lok>Computer.Client.Edf.3c002fdd-a25a-4bc2-bb1e-1a6f7af67432</lok><lmo>IsTrue</lmo><dv>NULL</dv><dk>NULL</dk></asn><asn><st>ComparisonNode</st><lon>Computer.Location.Extra Data Field.Exclusions.Exclude Browser Address Autofill Lockdown</lon><lok>Computer.Location.Edf.ffd807a0-62a6-4cfa-86e6-d90cfc9f0f3c</lok><lmo>IsFalse</lmo><dv>NULL</dv><dk>NULL</dk></asn><asn><st>ComparisonNode</st><lon>Computer.Extra Data Field.Exclusions.Exclude Browser Address Autofill Lockdown</lon><lok>Computer.Edf.2de882af-81ea-4300-b410-d6c155239a83</lok><lmo>IsFalse</lmo><dv>NULL</dv><dk>NULL</dk></asn></cn></asn></cn></asn></LabTechAbstractSearch>' as `SearchXML`
FROM
    (SELECT MIN(computerid) FROM computers) a
WHERE
    (SELECT count(*) From SensorChecks where `GUID` = 'c95002e6-0cfb-4a47-8e28-fa4092ef2826') = 0 ;

Step 5

Create Groups

INSERT IGNORE INTO `mastergroups` (
  `ParentID`, `Parents`, `Children`,
  `depth`, `Name`, `FullName`, `Permissions`,
  `Template`, `AutoJoinScript`, `Master`,
  `LimitToParent`, `Control`, `ControlID`,
  `Notes`, `MaintenanceID`, `MaintWindowApplied`,
  `GroupType`, `Priority`, `GUID`,
  `assetID`, `NetworkPermissions`,
  `NetworkJoin`, `NetworkJoinOptions`,
  `ContactPermissions`, `ContactJoin`,
  `ContactJoinOptions`
)
VALUES
  (
    0,
    ',',
    ',',
    0,
    '△ System Monitoring',
    '△ System Monitoring',
    0,
    0,
    0,
    2,
    0,
    0,
    0,
    '',
    0,
    (NOW()),
    5,
    5,
    '1749280f-9114-11ed-9c83-000c295e5f17',
    NULL,
    NULL,
    0,
    0,
    NULL,
    0,
    0
  );
SET
  @searchid = (
    SELECT
      DISTINCT sensid
    FROM
      sensorchecks
    WHERE
      `GUID` = '80d153cb-440b-4312-9191-a9f5dd20744a'
  );
SET
  @parentid = (
    SELECT
      groupid
    FROM
      mastergroups
    WHERE
      GUID = '1749280f-9114-11ed-9c83-000c295e5f17'
  );
SET
  @parents = CONCAT(',', @parentid, ',');
INSERT IGNORE INTO `mastergroups` (
  `ParentID`, `Parents`, `Children`,
  `depth`, `Name`, FullName, `Permissions`,
  `Template`, `AutoJoinScript`, `Master`,
  `LimitToParent`, `Control`, `ControlID`,
  `Notes`, `MaintenanceID`, `MaintWindowApplied`,
  `GroupType`, `Priority`, `GUID`,
  `NetworkJoin`, `NetworkJoinOptions`,
  `ContactJoin`, `ContactJoinOptions`
)
VALUES
  (
    @parentid, @parents, ',', 1, '△ Lockdown Browsers Autofill',
    '△ System Monitoring.△ Lockdown Browsers Autofill',
    0, 0, @searchid, 2, 1, 0, 0, '', 0, NOW(),
    5, 5, 'eea5f14b-c12a-11ee-a53f-960002890dfa',
    0, 0, 0, 0
  );

Step 6

Create Remote Monitors

SET @groupid = (SELECT groupid from mastergroups where `GUID` = 'eea5f14b-c12a-11ee-a53f-960002890dfa') ;
SET @searchid = (SELECT SensID from sensorchecks where `GUID` = '40d97d6b-8726-48f3-ac28-eeaed20f75d7') ;
INSERT INTO groupagents
 SELECT '' as `AgentID`,
`groupid` as `GroupID`,
 @Searchid as `SearchID`,
'ProVal - Production - Lockdown Browsers Password Manager' as `Name`,
'6' as `CheckAction`,
'1' as `AlertAction`,
'Browsers Password Manager Lockdown - Failed on %CLIENTNAME%\\%COMPUTERNAME%~~~Successfully Disabled the Password Manager for the Installed Browsers. !!!Browsers Password Manager Lockdown - Failed on %CLIENTNAME%\\%COMPUTERNAME%~~~Password Manager Lockdown failed on %CLIENTNAME%\\%COMPUTERNAME%. The script was unable to disable the Password Manager on the following browsers:
%RESULT%
Manual investigation is required.' as `AlertMessage`,
'0' as `ContactID`,
'604800' as `interval`,
'127.0.0.1' as `Where`,
'7' as `What`,
'C:\\Windows\\System32\\WindowsPowerShell\\v1.0\\powershell.exe -ExecutionPolicy Bypass -Command "$erroractionpreference = \'silentlycontinue\'; $browsers = @{\'Google Chrome\' = \'HKLM:\\Software\\Policies\\Google\\Chrome\'; \'Microsoft Edge\' = \'HKLM:\\SOFTWARE\\Policies\\Microsoft\\Edge\'; Brave = \'HKLM:\\SOFTWARE\\Policies\\BraveSoftware\\Brave\'; \'Mozilla Firefox\' = \'HKLM:\\Software\\Policies\\Mozilla\\Firefox\'}; function find-application {Param([Parameter()][String]$Name); if (Get-ChildItem -Path HKLM:\\SOFTWARE\\Microsoft\\Windows\\CurrentVersion\\Uninstall, HKLM:\\SOFTWARE\\Wow6432Node\\Microsoft\\Windows\\CurrentVersion\\Uninstall | Get-ItemProperty | Where-Object { $_.DisplayName -match $name }) {return $true} else {return $false} }; function check-regvalue { Param([Parameter()][String]$path); (Get-ItemProperty -Path $path ).passwordmanagerenabled }; function set-regvalue { Param([Parameter()][String]$path) ;  if ( ( check-regvalue -path $path ) -ne \'0\' ) { if ( !( Test-Path $path ) ) { New-Item -Path $path -Force | Out-Null }; Set-ItemProperty -Path $path -Name PasswordManagerEnabled -Value 0 -Force } } ; $failed=@(); foreach ( $browser in $browsers.Keys ) { if ( find-application -Name $browser ) { set-regvalue -Path $browsers.($browser); if ( ( check-regvalue -path $browsers.($browser) ) -ne \'0\' ) { $failed += $browser } } }; if ( $failed ) { return \\"Failed: $($failed)\\" }"' as `DataOut`,
'16' as `Comparor`,
'10|(^((OK){0,}(\\r\\n){0,}[\\r\\n]{0,}\\s{0,})$)|11|(^((OK){0,}(\\r\\n){0,}[\\r\\n]{0,}\\s{0,})$)%7C(Failed: ((Google Chrome)%7C(Brave)%7C(Microsoft Edge)%7C(Mozilla Firefox)))|10|(Failed: ((Google Chrome)%7C(Brave)%7C(Microsoft Edge)%7C(Mozilla Firefox)))' as `DataIn`,
'' as `IDField`,
'0' as `AlertStyle`,
'0' as `ScriptID`,
'' as `datacollector`,
'21' as `Category`,
'0' as `TicketCategory`,
'1' as `ScriptTarget`,
UUID() as `GUID`,
'root' as `UpdatedBy`,
(NOW()) as `UpdateDate`
FROM mastergroups m
WHERE m.groupid = @groupid
AND m.groupid NOT IN  (SELECT DISTINCT groupid FROM groupagents WHERE `Name` = 'ProVal - Production - Lockdown Browsers Password Manager');
SET @groupid = (SELECT groupid from mastergroups where `GUID` = 'eea5f14b-c12a-11ee-a53f-960002890dfa') ;
SET @searchid = (SELECT SensID from sensorchecks where `GUID` = 'bcfaf65a-4eb7-4cf9-9496-0c94ae86e59b') ;
INSERT INTO groupagents
 SELECT '' as `AgentID`,
`groupid` as `GroupID`,
 @Searchid as `SearchID`,
'ProVal - Production - Lockdown Chromium Browsers Credit Card Autofill' as `Name`,
'6' as `CheckAction`,
'1' as `AlertAction`,
'Chromium Browsers Credit Cards Autofill Lockdown - Failed on %CLIENTNAME%\\%COMPUTERNAME%~~~Successfully Disabled the Credit Cards Autofill for the Installed Browsers. !!!Chromium Browsers Credit Cards Autofill Lockdown - Failed on %CLIENTNAME%\\%COMPUTERNAME%~~~Credit Cards Autofill Lockdown Failed on %CLIENTNAME%\\%COMPUTERNAME%. The script was unable to disable the Autofill of Credit Cards on the following browsers:
%RESULT%
Manual investigation is required.' as `AlertMessage`,
'0' as `ContactID`,
'604800' as `interval`,
'127.0.0.1' as `Where`,
'7' as `What`,
'C:\\Windows\\System32\\WindowsPowerShell\\v1.0\\powershell.exe -ExecutionPolicy Bypass -Command "$ErrorActionPreference = \'SilentlyContinue\';$browsers = @{\'Google Chrome\' = \'HKLM:\\Software\\Policies\\Google\\Chrome\';\'Microsoft Edge\' = \'HKLM:\\SOFTWARE\\Policies\\Microsoft\\Edge\';\'Brave\' = \'HKLM:\\SOFTWARE\\Policies\\BraveSoftware\\Brave\'}; Function Find-Application { Param([Parameter()][String]$Name); if ( Get-ChildItem -Path HKLM:\\SOFTWARE\\Microsoft\\Windows\\CurrentVersion\\Uninstall, HKLM:\\SOFTWARE\\Wow6432Node\\Microsoft\\Windows\\CurrentVersion\\Uninstall | Get-ItemProperty | Where-Object { $_.DisplayName -match "$Name" } ) { return $Name } else { return $false } }; Function Get-RegValue { Param([Parameter()][String]$path,$Reg); ( Get-ItemProperty -Path $path )."$Reg" }; Function Set-RegValue { Param([Parameter()][String]$path,$Reg); if ( ( Get-RegValue -path $path -Reg $Reg ) -ne \'0\' ) { if ( !( Test-Path $path ) ) { New-Item -Path $path -Force | Out-Null }; Set-ItemProperty -Path $path -Name $Reg -Value 0 -Force } }; $failed = @(); foreach ( $browser in $browsers.Keys ) { if ( Find-Application -Name $browser ) { foreach ( $Reg in (\'AutofillCreditCardEnabled\', \'PaymentMethodQueryEnabled\') ) { Set-RegValue -Path $browsers.($browser) -Reg $Reg; if ( ( Get-RegValue -path $browsers.($browser) -Reg $Reg ) -ne \'0\' ) { $failed += $browser } } } }; if ( $failed ) { return \\"Failed: $($failed)\\" }"' as `DataOut`,
'16' as `Comparor`,
'10|(^((OK){0,}(\\r\\n){0,}[\\r\\n]{0,}\\s{0,})$)|11|(^((OK){0,}(\\r\\n){0,}[\\r\\n]{0,}\\s{0,})$)%7C(Failed: ((Google Chrome)%7C(Brave)%7C(Microsoft Edge)))|10|(Failed: ((Google Chrome)%7C(Brave)%7C(Microsoft Edge)))' as `DataIn`,
'' as `IDField`,
'0' as `AlertStyle`,
'0' as `ScriptID`,
'' as `datacollector`,
'21' as `Category`,
'0' as `TicketCategory`,
'1' as `ScriptTarget`,
UUID() as `GUID`,
'root' as `UpdatedBy`,
(NOW()) as `UpdateDate`
FROM mastergroups m
WHERE m.groupid = @groupid
AND m.groupid NOT IN  (SELECT DISTINCT groupid FROM groupagents WHERE `Name` = 'ProVal - Production - Lockdown Chromium Browsers Credit Card Autofill');
SET @groupid = (SELECT groupid from mastergroups where `GUID` = 'eea5f14b-c12a-11ee-a53f-960002890dfa') ;
SET @searchid = (SELECT SensID from sensorchecks where `GUID` = 'c95002e6-0cfb-4a47-8e28-fa4092ef2826') ;
INSERT INTO groupagents
 SELECT '' as `AgentID`,
`groupid` as `GroupID`,
 @searchid as `SearchID`,
'ProVal - Production - Lockdown Chromium Browsers Address Autofill' as `Name`,
'6' as `CheckAction`,
'1' as `AlertAction`,
'Chromium Browsers Address Autofill Lockdown - Failed on %CLIENTNAME%\\%COMPUTERNAME%~~~Successfully Disabled the Address Autofill for the Installed Browsers.!!!Chromium Browsers Address Autofill Lockdown - Failed on %CLIENTNAME%\\%COMPUTERNAME%~~~Addresses Autofill Lockdown Failed on %CLIENTNAME%\\%COMPUTERNAME%. The script was unable to disable the Autofill of Addresses on the following browsers:
%RESULT%
Manual investigation is required.' as `AlertMessage`,
'0' as `ContactID`,
'604800' as `interval`,
'127.0.0.1' as `Where`,
'7' as `What`,
'C:\\Windows\\System32\\WindowsPowerShell\\v1.0\\powershell.exe -ExecutionPolicy Bypass -Command "$ErrorActionPreference = \'SilentlyContinue\';$browsers = @{\'Google Chrome\' = \'HKLM:\\Software\\Policies\\Google\\Chrome\';\'Microsoft Edge\' = \'HKLM:\\SOFTWARE\\Policies\\Microsoft\\Edge\';\'Brave\' = \'HKLM:\\SOFTWARE\\Policies\\BraveSoftware\\Brave\'}; Function Find-Application { Param([Parameter()][String]$Name); if ( Get-ChildItem -Path HKLM:\\SOFTWARE\\Microsoft\\Windows\\CurrentVersion\\Uninstall, HKLM:\\SOFTWARE\\Wow6432Node\\Microsoft\\Windows\\CurrentVersion\\Uninstall | Get-ItemProperty | Where-Object { $_.DisplayName -match "$Name" } ) { return $Name } else { return $false } }; Function Get-RegValue { Param([Parameter()][String]$path,$Reg); ( Get-ItemProperty -Path $path )."$Reg" }; Function Set-RegValue { Param([Parameter()][String]$path,$Reg); if ( ( Get-RegValue -path $path -Reg $Reg ) -ne \'0\' ) { if ( !( Test-Path $path ) ) { New-Item -Path $path -Force | Out-Null }; Set-ItemProperty -Path $path -Name $Reg -Value 0 -Force } }; $failed = @(); foreach ( $browser in $browsers.Keys ) { if ( Find-Application -Name $browser ) { foreach ( $Reg in (\'AutofillAddressEnabled\') ) { Set-RegValue -Path $browsers.($browser) -Reg $Reg; if ( ( Get-RegValue -path $browsers.($browser) -Reg $Reg ) -ne \'0\' ) { $failed += $browser } } } }; if ( $failed ) { return \\"Failed: $($failed)\\" }"' as `DataOut`,
'16' as `Comparor`,
'10|(^((OK){0,}(\\r\\n){0,}[\\r\\n]{0,}\\s{0,})$)|11|(^((OK){0,}(\\r\\n){0,}[\\r\\n]{0,}\\s{0,})$)%7C(Failed: ((Google Chrome)%7C(Brave)%7C(Microsoft Edge)))|10|(Failed: ((Google Chrome)%7C(Brave)%7C(Microsoft Edge)))' as `DataIn`,
'' as `IDField`,
'0' as `AlertStyle`,
'0' as `ScriptID`,
'' as `datacollector`,
'21' as `Category`,
'0' as `TicketCategory`,
'1' as `ScriptTarget`,
UUID() as `GUID`,
'root' as `UpdatedBy`,
(NOW()) as `UpdateDate`
FROM mastergroups m
WHERE m.groupid = @groupid
AND m.groupid NOT IN  (SELECT DISTINCT groupid FROM groupagents WHERE `Name` = 'ProVal - Production - Lockdown Chromium Browsers Address Autofill');

Step 7

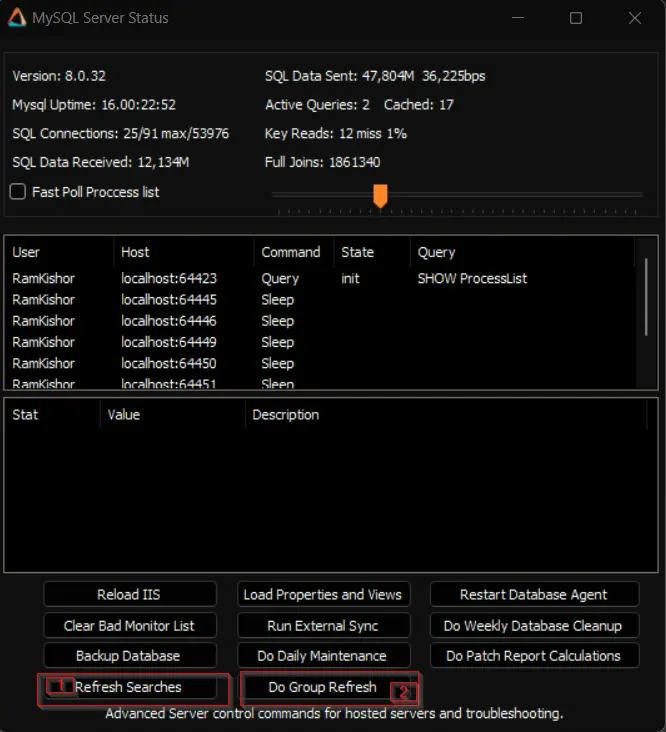

Reload System Cache

Step 8

Refresh Searches and Groups.

Step 9

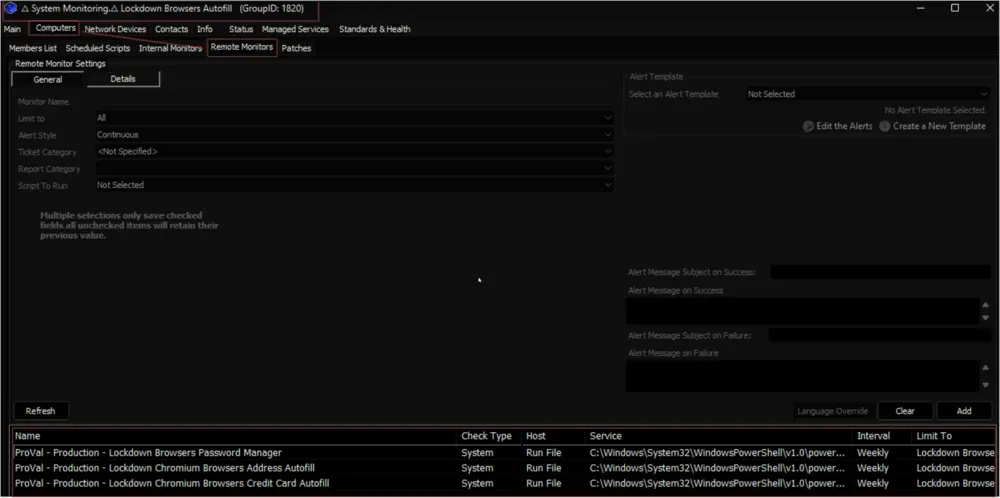

Confirm the presence of the following remote monitors on the △ Lockdown Browsers Autofill group:

ProVal - Production - Lockdown Browsers Password Manager
ProVal - Production - Lockdown Chromium Browsers Credit Card Autofill
ProVal - Production - Lockdown Chromium Browsers Address Autofill
