TLS Enabled List Audit

Summary

This script gathers information about the TLS Client and Server protocol versions installed on an endpoint and stores the data in custom fields.

Sample Run

Dependencies

• TLS Version Audit

Task Creation

Script Details

Step 1

Navigate to Automation ➞ Tasks

Step 2

Create a new Script Editor style task by choosing the Script Editor option from the Add dropdown menu

The New Script page will appear on clicking the Script Editor button:

Step 3

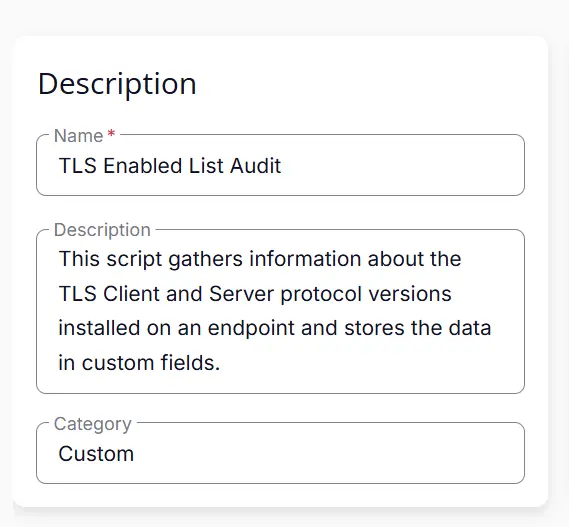

Fill in the following details in the Description section:

• Name: TLS Enabled List Audit
• Description: This script gathers information about the TLS Client and Server protocol versions installed on an endpoint and stores the data in custom fields.
• Category: Custom

Script Editor

Click the Add Row button in the Script Editor section to start creating the script

A blank function will appear:

Row 1 Function: PowerShell Script

Search and select the PowerShell Script function.

The following function will pop up on the screen:

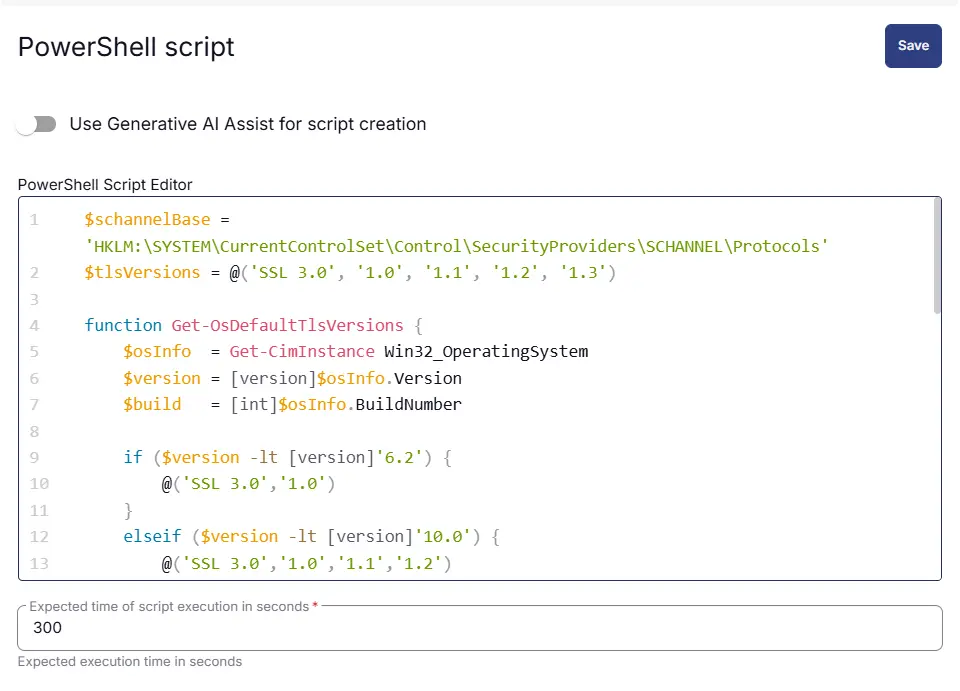

Paste in the following PowerShell script and set the Expected time of script execution in seconds to 300 seconds. Click the Save button.

$schannelBase = 'HKLM:\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL\Protocols'
$tlsVersions = @('SSL 3.0', '1.0', '1.1', '1.2', '1.3')

function Get-OsDefaultTlsVersions {
    $osInfo  = Get-CimInstance Win32_OperatingSystem
    $version = [version]$osInfo.Version
    $build   = [int]$osInfo.BuildNumber

    if ($version -lt [version]'6.2') {
        @('SSL 3.0','1.0')
    }
    elseif ($version -lt [version]'10.0') {
        @('SSL 3.0','1.0','1.1','1.2')
    }
    elseif ($build -ge 20348) {
        @('1.0','1.1','1.2','1.3')
    }
    else {
        @('1.0','1.1','1.2')
    }
}

$osDefaults = Get-OsDefaultTlsVersions

$enabledProtocols = foreach ($version in $tlsVersions) {
    $path = if ($version -eq 'SSL 3.0') {
        "$schannelBase\SSL 3.0\Server"
    }
    else {
        "$schannelBase\TLS $version\Server"
    }

    $reg = Get-ItemProperty -Path $path -ErrorAction SilentlyContinue

    $enabled = if ($null -ne $reg) {
        ($reg.Enabled -ge 1 -or $reg.DisabledByDefault -eq 0)
    }
    else {
        $osDefaults -contains $version
    }

    if ($enabled) { $version }
}

$enabledProtocols -join ', '

Row 2 Function: Script Log

Add a new row by clicking the Add Row button.

A blank function will appear.

Search and select the Script Log function.

In the script log message, simply type TLS Server Enabled : %Output% and click the Save button.

Row 3 Logic: If/Then

Click Add Logic and select If/Then

Row 3a Condition: Output Contains

In the IF part, enter . in the right box of the "Output Contains" part.

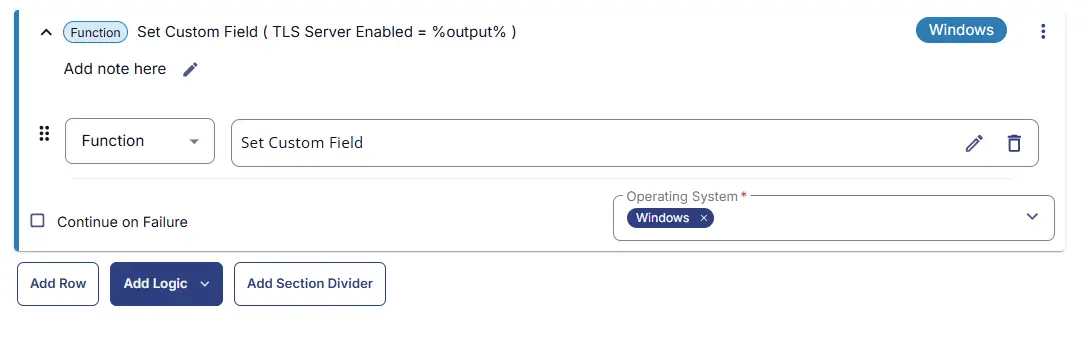

Row 3b Function: Set Custom Field

Add a new row by clicking on the Add Row button. Set Custom Field TLS Server Enabled to %output%.

Row 4 Function: PowerShell Script

Search and select the PowerShell Script function.

The following function will pop up on the screen:

Paste in the following PowerShell script and set the Expected time of script execution in seconds to 300 seconds. Click the Save button.

$schannelBase = 'HKLM:\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL\Protocols'
$tlsVersions = @('SSL 3.0', '1.0', '1.1', '1.2', '1.3')

function Get-OsDefaultTlsVersions {
    $osInfo  = Get-CimInstance Win32_OperatingSystem
    $version = [version]$osInfo.Version
    $build   = [int]$osInfo.BuildNumber

    if ($version -lt [version]'6.2') {
        @('SSL 3.0','1.0')
    }
    elseif ($version -lt [version]'10.0') {
        @('SSL 3.0','1.0','1.1','1.2')
    }
    elseif ($build -ge 20348) {
        @('1.0','1.1','1.2','1.3')
    }
    else {
        @('1.0','1.1','1.2')
    }
}

$osDefaults = Get-OsDefaultTlsVersions

$enabledProtocols = foreach ($version in $tlsVersions) {
    $path = if ($version -eq 'SSL 3.0') {
        "$schannelBase\SSL 3.0\Client"
    }
    else {
        "$schannelBase\TLS $version\Client"
    }

    $reg = Get-ItemProperty -Path $path -ErrorAction SilentlyContinue

    $enabled = if ($null -ne $reg) {
        ($reg.Enabled -ge 1 -or $reg.DisabledByDefault -eq 0)
    }
    else {
        $osDefaults -contains $version
    }

    if ($enabled) { $version }
}

$enabledProtocols -join ', '

Row 5 Function: Script Log

Add a new row by clicking the Add Row button.

A blank function will appear.

Search and select the Script Log function.

In the script log message, simply type TLS Client Enabled : %Output% and click the Save button.

Row 6 Logic: If/Then

Click Add Logic and select If/Then

Row 6a Condition: Output Contains

In the IF part, enter . in the right box of the "Output Contains" part.

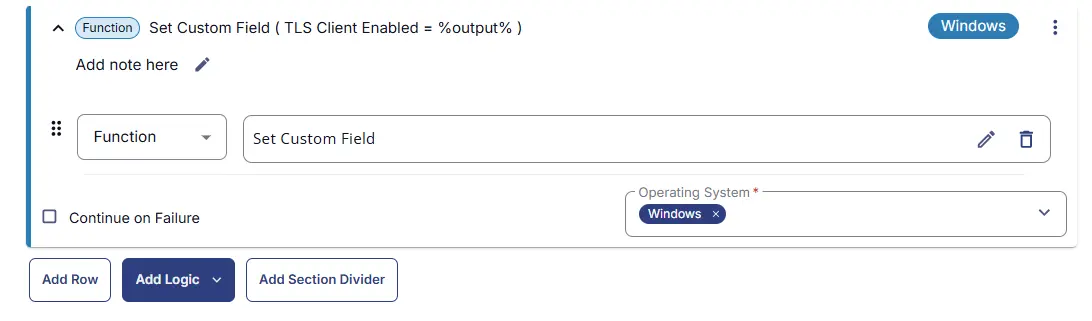

Row 6b Function: Set Custom Field

Add a new row by clicking on the Add Row button. Set Custom Field TLS Client Enabled to %output%.

Save Task

Click the Save button at the top-right corner of the screen to save the script.

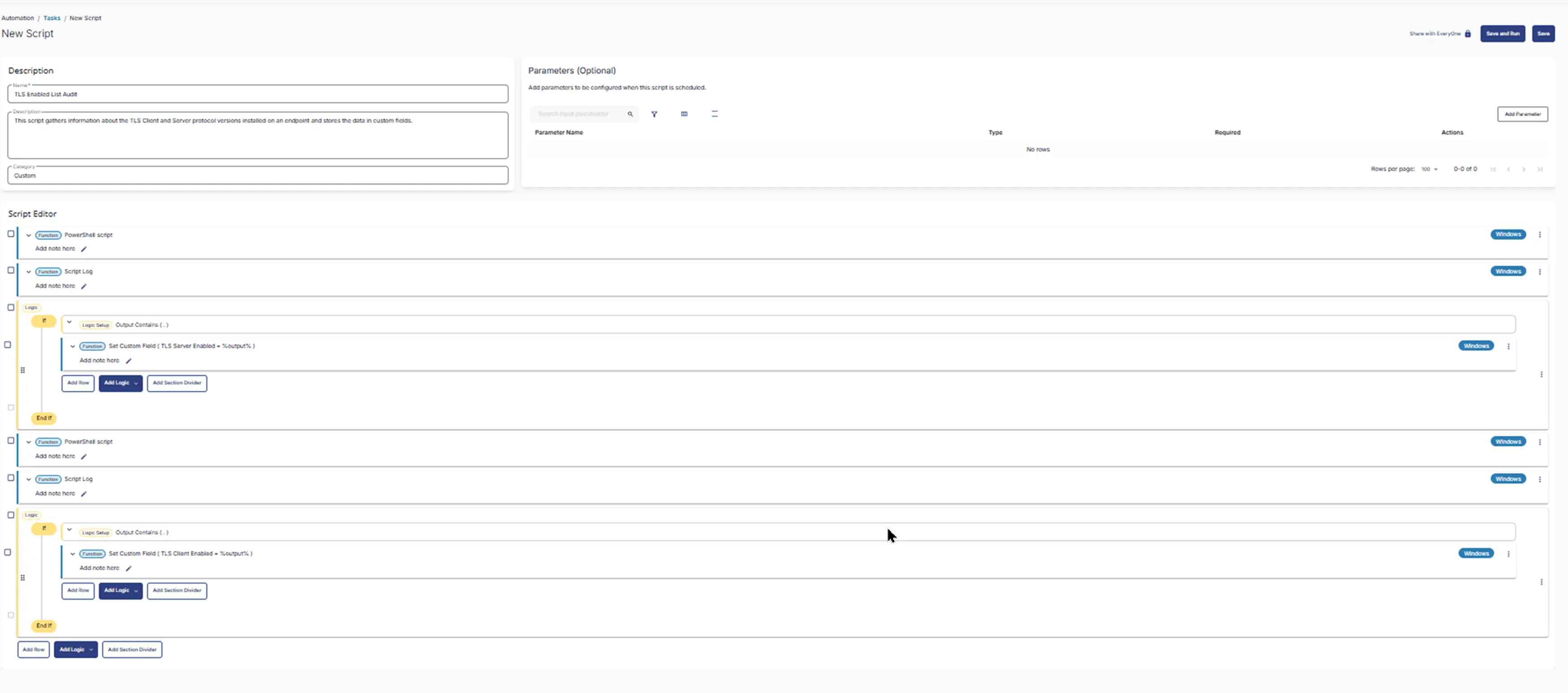

Completed Task

Deployment

This task has to be scheduled on the Windows Machines group for auto deployment. The script can also be run manually if required.

• Go to Automation > Tasks.
• Search for TLS Enabled List Audit.

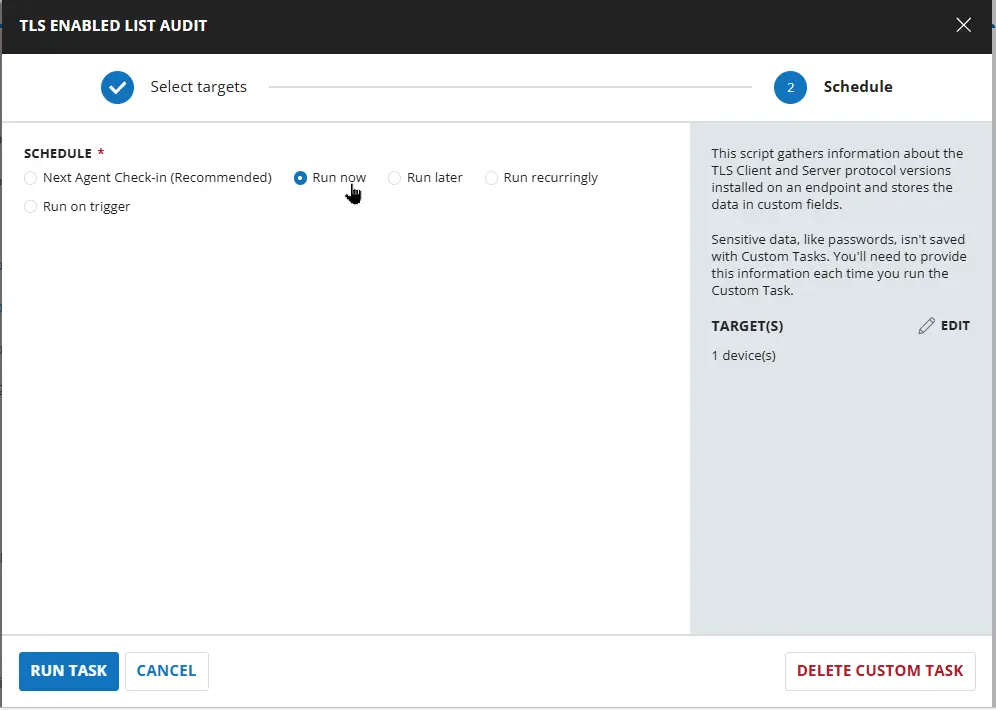

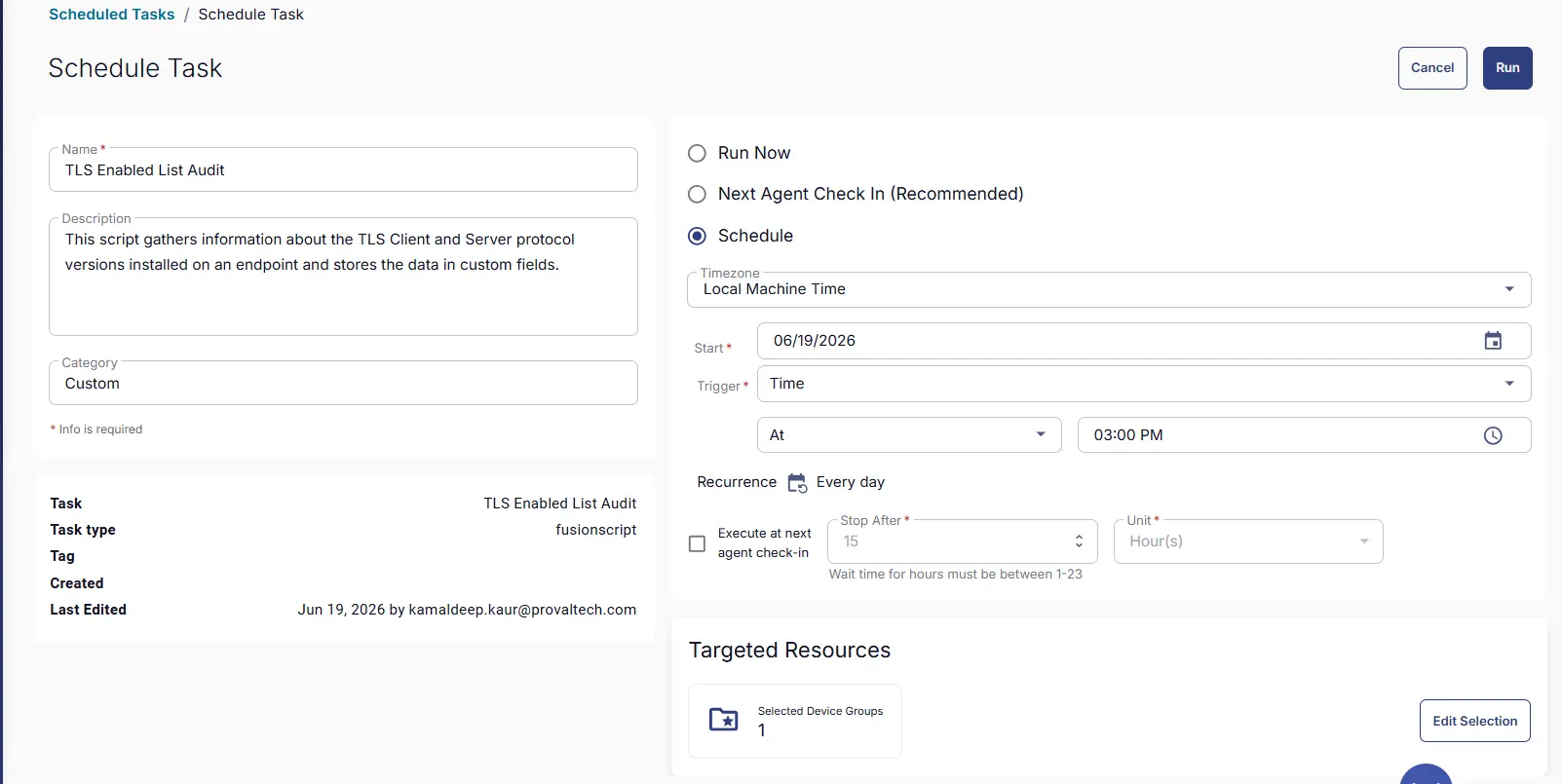

• Then click on Schedule and provide the parameters detail as necessary for scheduling.

Output

• Script Log
• Custom Field

Changelog

2026-06-22

• Initial version of the document
