Overview

This document configures power plan settings using the provided CSV file. If the specified power plan does not exist, it will be created.

Configuration/VSA Implementation

This procedure requires the following template to be completed:

• PowerPlanSettingsTemplate.csv

This file is located in the attachments as well as the agent procedure.

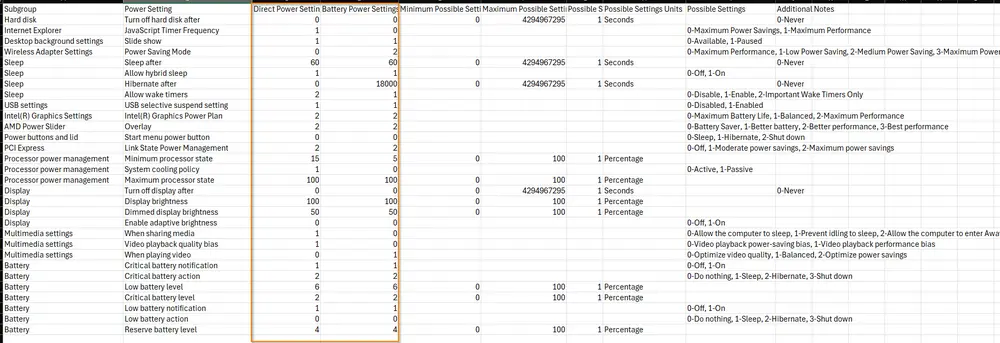

The values that can be modified are the Direct Power Settings and Battery Power Settings within this template. The maximum and minimum values are shown for reference along with any other important information.

Process

• Ensures mandatory parameters are provided and validates the parameter format and structure.
• Retrieves available power plans using powercfg /list.
• Checks if the specified power plan ($Name) exists.
• If not, duplicates the active plan and renames it to the specified name.
• Retrieves current settings of the power plan.
• If a download URL is provided for $CSVPath, downloads and converts the CSV file to a PowerShell object.
• If a local computer path is provided for $CSVPath, converts the contents of the CSV file to a PowerShell object.
• If using a hashtable ($Setting), creates an array of settings based on the hashtable structure.
• Iterates through each setting in the configuration.
• Retrieves GUIDs for the subgroup and power setting from the current power plan settings.
• Uses powercfg commands to set AC and DC values for the specified subgroup and power setting.
• Logs success or error messages for each configuration attempt.

Payload Usage

Configures a custom power plan named 'CustomPlan' with specified AC and DC power settings.

./PS C:/> ./Set-PowerPlanSettings.ps1 -Name 'CustomPlan' -Setting @{Subgroup=@{'Sleep' = @{ PowerSetting = @{ 'Sleep after' = @{ AC = 60; DC = 60 }; 'Allow hybrid sleep' = @{ AC = 1; DC = 100}; 'Hibernate After' = @{ AC = 0; DC = 18000}; 'Allow Wake Timers' = @{ AC = 2; DC = 2 }}}}}

Configures a custom power plan named 'CustomPlan' with specified AC and DC power settings from the $Settings hashtable.

./PS C:/> $setting = @{
            Subgroup = @{
                'Hard Disk' = @{
                    PowerSetting = @{
                        'Turn off hard disk after' = @{
                            AC = 0
                            DC = 0
                        }
                    }
                }
                'Internet Explorer' = @{
                    PowerSetting = @{
                        'JavaScript Timer Frequency' = @{
                            AC = 1
                            DC = 0
                        }
                    }
                }
                'Sleep' = @{
                    PowerSetting = @{
                        'Sleep after' = @{
                            AC = 60
                            DC = 60
                        }
                        'Allow hybrid sleep' = @{
                            AC = 1
                            DC = 100
                        }
                        'Hibernate After' = @{
                            AC = 0
                            DC = 18000
                        }
                        'Allow Wake Timers' = @{
                            AC = 2
                            DC = 2
                        }
                    }
                }
                'Intel(R) Graphics Settings' = @{
                    PowerSetting = @{
                        'Intel(R) Graphics Power Plan' = @{
                            AC = 2
                            DC = 2
                        }
                    }
                }
                'AMD Power Slider' = @{
                    PowerSetting = @{
                        Overlay = @{
                            DC = 2
                            AC = 2
                        }
                    }
                }
            }
        }

./PS C:/> ./Set-PowerPlanSettings.ps1 -Name 'CustomPlan' -Setting $Settings

Configures a custom power plan named 'CustomPlan' with specified AC and DC power settings from the 'CustomPlanTemplate.csv' file located in the 'C:/Temp' directory.

PS C:/> ./Set-PowerPlanSettings.ps1 -Name 'CustomPlan' -CSVPath 'C:/temp/CustomPlanTemplate.csv'

Configures a custom power plan named 'CustomPlan' with specified AC and DC power settings from the 'CustomPlanTemplate.csv' downloaded from 'https://file.provaltech.com//CustomPlanTemplate.csv'.

PS C:/> ./Set-PowerPlanSettings.ps1 -Name 'CustomPlan' -CSVPath 'https://file.provaltech.com\\CustomPlanTemplate.csv'

Parameters

Parameter	Alias	Required	ParameterSetName	Type	Description
Name		True	hashtable, csv	String	Specifies the name of the power plan to configure.
CSVPath		True	hashtable	String	Specifies the path to a CSV file containing the power plan configuration, which can be either a local file on the computer or a download URL.
Setting		True	hashtable	HashTable	Specifies a hashtable containing the configuration for the power plan.

Output

./Set-PowerPlan-log.txt
./Set-PowerPlan-Error.txt

Attachments

PowerPlanSettingsTemplate.csv
