Install Windows App

Summary

This remote monitor detects Windows workstations where automatic deployment of the Windows App is enabled and the Windows App is either not installed or the desktop shortcut is missing or broken

Details

Suggested "Limit to": Windows App Deployment
Suggested Alert Style: Once
Suggested Alert Template: Default - Do Nothing

Insert the details of the monitor in the table below.

Check Action	Server Address	Check Type	Execute Info	Comparator	Interval	Result
System	127.0.0.1	Run File	REDACTED	Not Contains	1800	False

Dependencies

• Script: Install Windows App
• Solution: Install Windows App

Target

The remote monitor should be limited to the Windows App Deployment search on the Managed Windows Workstations service plan group(s).

Implementation

Step 1

Import the Install Windows App script using the ProSync plugin.

Step 2

Reload the system cache (Ctrl + R).

Step 3

Run the script with the SetEnvironment parameter set to 1 to import the required EDFs.

Step 4

Reload the system cache (Ctrl + R).

Step 5

Collect the group ID(s) for the group(s) where you want to apply this remote monitor.

Step 6

Run the following SQL query to import the Windows App Deployment search.

INSERT INTO `sensorchecks`
SELECT
'' as `SensID`,
'Windows App Deployment'  as `Name`,
'SELECT \r\n   computers.computerid as `Computer Id`,\r\n   computers.name as `Computer Name`,\r\n   clients.name as `Client Name`,\r\n   computers.domain as `Computer Domain`,\r\n   computers.username as `Computer User`,\r\n   IFNULL(IFNULL(edfAssigned1.Value,edfDefault1.value),\'0\') as `Computer - Client - Extra Data Field - Software - Windows App`,\r\n   IFNULL(IFNULL(edfAssigned2.Value,edfDefault2.value),\'0\') as `Computer - Location - Extra Data Field - Exclusions - Exclude Windows App`,\r\n   IFNULL(IFNULL(edfAssigned3.Value,edfDefault3.value),\'0\') as `Computer - Extra Data Field - Exclusions - Exclude Windows App`,\r\n   IF(INSTR(IFNULL(inv_operatingsystem.Name, Computers.OS), \'windows\')>0, 1, IF(INSTR(IFNULL(inv_operatingsystem.Name, Computers.OS), \'darwin\') >0, 2, 3)) as `Computer.OS.Type`,\r\n   inv_operatingsystem.Server as `Computer.OS.IsServer`\r\nFROM Computers \r\nLEFT JOIN inv_operatingsystem ON (Computers.ComputerId=inv_operatingsystem.ComputerId)\r\nLEFT JOIN Clients ON (Computers.ClientId=Clients.ClientId)\r\nLEFT JOIN Locations ON (Computers.LocationId=Locations.LocationID)\r\nLEFT JOIN ExtraFieldData edfAssigned1 ON (edfAssigned1.id=Clients.ClientId and edfAssigned1.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'736af4e6-7939-463f-b743-dc1dfa420911\'))\r\nLEFT JOIN ExtraFieldData edfDefault1 ON (edfDefault1.id=0 and edfDefault1.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'736af4e6-7939-463f-b743-dc1dfa420911\'))\r\nLEFT JOIN ExtraFieldData edfAssigned2 ON (edfAssigned2.id=Locations.LocationId and edfAssigned2.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'773f9b11-67cd-4510-8d06-ea9cf0788431\'))\r\nLEFT JOIN ExtraFieldData edfDefault2 ON (edfDefault2.id=0 and edfDefault2.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'773f9b11-67cd-4510-8d06-ea9cf0788431\'))\r\nLEFT JOIN ExtraFieldData edfAssigned3 ON (edfAssigned3.id=Computers.ComputerId and edfAssigned3.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'05361f65-7e68-40b5-8f2e-8caa0e91836f\'))\r\nLEFT JOIN ExtraFieldData edfDefault3 ON (edfDefault3.id=0 and edfDefault3.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'05361f65-7e68-40b5-8f2e-8caa0e91836f\'))\r\n WHERE \r\n((((IFNULL(IFNULL(edfAssigned1.Value,edfDefault1.value),\'0\')<>0) AND (IFNULL(IFNULL(edfAssigned2.Value,edfDefault2.value),\'0\')=0) AND (IFNULL(IFNULL(edfAssigned3.Value,edfDefault3.value),\'0\')=0) AND (IF(INSTR(IFNULL(inv_operatingsystem.Name, Computers.OS), \'windows\')>0, 1, IF(INSTR(IFNULL(inv_operatingsystem.Name, Computers.OS), \'darwin\') >0, 2, 3)) = \'1\') AND (inv_operatingsystem.Server=0))))\r\n' as `SQL`,
'4' as `QueryType`,
'Select||=||=||=|^Select|||||||^' as `ListData`,
'0' as `FolderID`,
'5227fdcf-d154-4278-a3bd-9e0a4a942f1a' as `GUID`,
'<LabTechAbstractSearch><asn><st>AndNode</st><cn><asn><st>AndNode</st><cn><asn><st>ComparisonNode</st><lon>Computer.Client.Extra Data Field.Software.Windows App</lon><lok>Computer.Client.Edf.736af4e6-7939-463f-b743-dc1dfa420911</lok><lmo>IsTrue</lmo><dv>NULL</dv><dk>NULL</dk></asn><asn><st>ComparisonNode</st><lon>Computer.Location.Extra Data Field.Exclusions.Exclude Windows App</lon><lok>Computer.Location.Edf.773f9b11-67cd-4510-8d06-ea9cf0788431</lok><lmo>IsFalse</lmo><dv>NULL</dv><dk>NULL</dk></asn><asn><st>ComparisonNode</st><lon>Computer.Extra Data Field.Exclusions.Exclude Windows App</lon><lok>Computer.Edf.05361f65-7e68-40b5-8f2e-8caa0e91836f</lok><lmo>IsFalse</lmo><dv>NULL</dv><dk>NULL</dk></asn><asn><st>ComparisonNode</st><lon>Computer.OS.Type</lon><lok>Computer.OS.Type</lok><lmo>Equals</lmo><dv>Windows</dv><dk>1</dk></asn><asn><st>ComparisonNode</st><lon>Computer.OS.IsServer</lon><lok>Computer.OS.IsServer</lok><lmo>IsFalse</lmo><dv>NULL</dv><dk>NULL</dk></asn></cn></asn></cn></asn></LabTechAbstractSearch>' as `SearchXML`,
(NULL) as `UpdatedBy`,
(NULL) as `UpdateDate`
FROM  (SELECT MIN(computerid) FROM computers) a
Where (SELECT count(*) From SensorChecks where `GUID` = '5227fdcf-d154-4278-a3bd-9e0a4a942f1a') = 0 ;

Step 7

Copy the following query, then replace YOUR COMMA SEPARATED LIST OF GROUPID(S) with the group ID(s) for the relevant groups:

You can find the placeholder at the end of the query, immediately after WHERE.

SET @searchId = (SELECT Min(sensID) From SensorChecks where `GUID` = '5227fdcf-d154-4278-a3bd-9e0a4a942f1a');
INSERT INTO groupagents
 SELECT '' as `AgentID`,
`groupid` as `GroupID`,
@searchId as `SearchID`,
'ProVal - Production - Install Windows App' as `Name`,
'6' as `CheckAction`,
'1' as `AlertAction`,
'<NoAlerts>~~~<NoAlerts>!!!<NoAlerts>~~~<NoAlerts>' as `AlertMessage`,
'0' as `ContactID`,
'3600' as `interval`,
'127.0.0.1' as `Where`,
'7' as `What`,
'C:\\Windows\\System32\\WindowsPowerShell\\v1.0\\powershell.exe -ExecutionPolicy Bypass -Command "$ErrorActionPreference = \'SilentlyContinue\'; $ProgressPreference = \'SilentlyContinue\'; $isInstalled = $null -ne (Get-AppxPackage \'MicrosoftCorporationII.Windows365\' -AllUsers); $isShortcutConfigured = Test-Path -Path \'C:\\Users\\Public\\Desktop\\Windows App.lnk\'; if ($isShortcutConfigured) { $shell = New-Object -ComObject WScript.Shell; $shortcutPath = \'C:\\Users\\Public\\Desktop\\Windows App.lnk\'; $targetPath = $shell.CreateShortcut($shortcutPath).TargetPath; $isShortcutConfigured = Test-Path -Path $targetPath }; return (\'IsInstalled={0}|IsShortcutConfigured={1}|DataCollectionTime={2}\' -f $isInstalled, $isShortcutConfigured, (Get-Date).ToString(\'yyyy-MM-dd HH:mm:ss\'))"' as `DataOut`,
'9' as `Comparor`,
'False' as `DataIn`,
'' as `IDField`,
'1' as `AlertStyle`,
'0' as `ScriptID`,
'' as `datacollector`,
'21' as `Category`,
'0' as `TicketCategory`,
'1' as `ScriptTarget`,
(UUID()) as `GUID`,
'root' as `UpdatedBy`,
(NOW()) as `UpdateDate`
FROM mastergroups m
WHERE m.groupid IN (YOUR COMMA SEPARATED LIST OF GROUPID(S))
AND m.groupid NOT IN  (SELECT DISTINCT groupid FROM groupagents WHERE `Name` = 'ProVal - Production - Install Windows App')

An example of a query with a group ID:

SET @searchId = (SELECT Min(sensID) From SensorChecks where `GUID` = '5227fdcf-d154-4278-a3bd-9e0a4a942f1a');
INSERT INTO groupagents
 SELECT '' as `AgentID`,
`groupid` as `GroupID`,
@searchId as `SearchID`,
'ProVal - Production - Install Windows App' as `Name`,
'6' as `CheckAction`,
'1' as `AlertAction`,
'<NoAlerts>~~~<NoAlerts>!!!<NoAlerts>~~~<NoAlerts>' as `AlertMessage`,
'0' as `ContactID`,
'3600' as `interval`,
'127.0.0.1' as `Where`,
'7' as `What`,
'C:\\Windows\\System32\\WindowsPowerShell\\v1.0\\powershell.exe -ExecutionPolicy Bypass -Command "$ErrorActionPreference = \'SilentlyContinue\'; $ProgressPreference = \'SilentlyContinue\'; $isInstalled = $null -ne (Get-AppxPackage \'MicrosoftCorporationII.Windows365\' -AllUsers); $isShortcutConfigured = Test-Path -Path \'C:\\Users\\Public\\Desktop\\Windows App.lnk\'; if ($isShortcutConfigured) { $shell = New-Object -ComObject WScript.Shell; $shortcutPath = \'C:\\Users\\Public\\Desktop\\Windows App.lnk\'; $targetPath = $shell.CreateShortcut($shortcutPath).TargetPath; $isShortcutConfigured = Test-Path -Path $targetPath }; return (\'IsInstalled={0}|IsShortcutConfigured={1}|DataCollectionTime={2}\' -f $isInstalled, $isShortcutConfigured, (Get-Date).ToString(\'yyyy-MM-dd HH:mm:ss\'))"' as `DataOut`,
'9' as `Comparor`,
'False' as `DataIn`,
'' as `IDField`,
'1' as `AlertStyle`,
'0' as `ScriptID`,
'' as `datacollector`,
'21' as `Category`,
'0' as `TicketCategory`,
'1' as `ScriptTarget`,
(UUID()) as `GUID`,
'root' as `UpdatedBy`,
(NOW()) as `UpdateDate`
FROM mastergroups m
WHERE m.groupid IN (2, 3)
AND m.groupid NOT IN  (SELECT DISTINCT groupid FROM groupagents WHERE `Name` = 'ProVal - Production - Install Windows App')

Step 8

Run your updated query in a RAWSQL monitor set.

Step 9

Reload the system cache (Ctrl + R).

Step 10

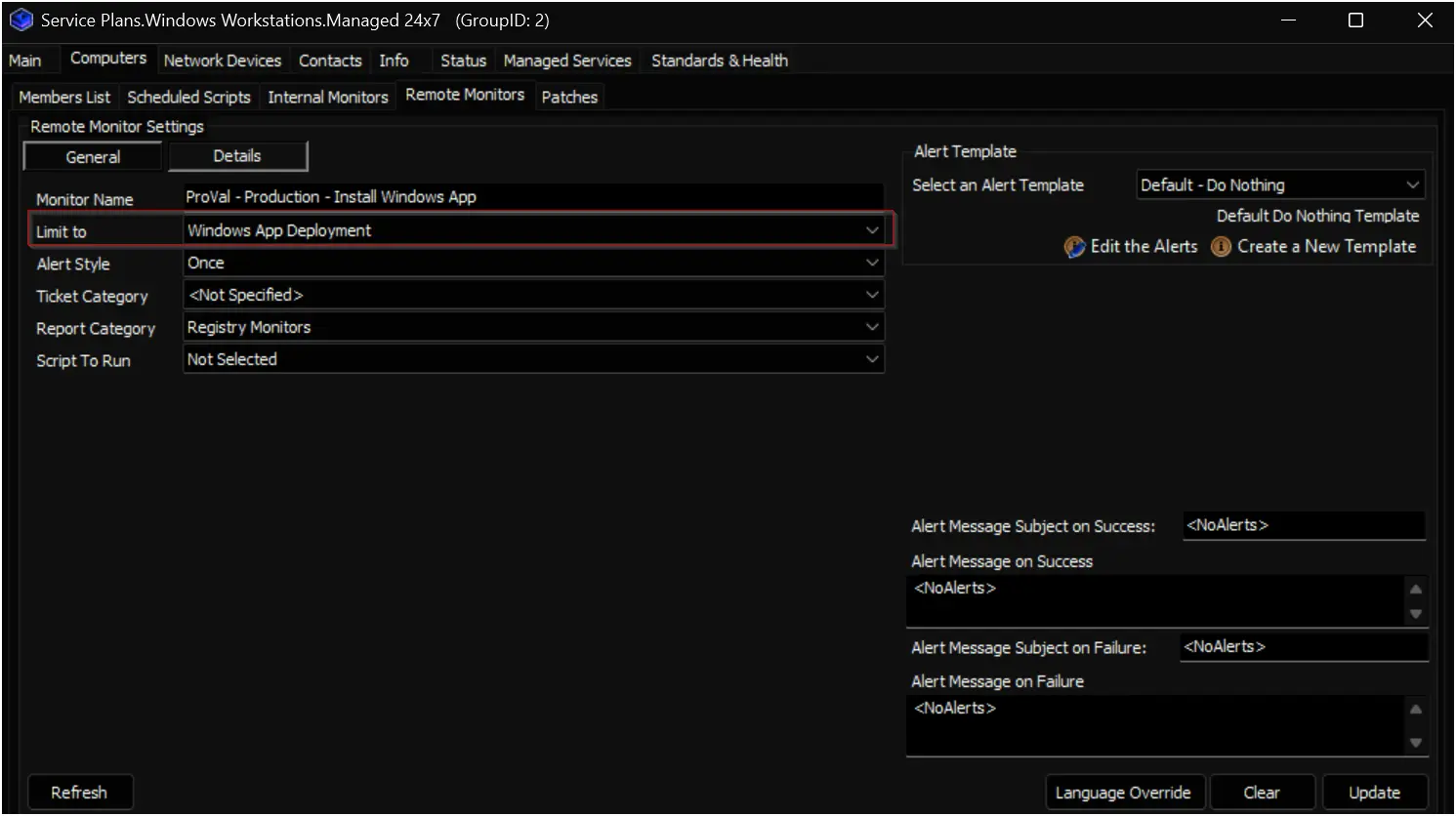

Open the Remote Monitors tab for the target group(s) and verify that this monitor is limited to the Windows App Deployment search.

Changelog

2026-03-17

• Initial version of the document
