SWM - Software Install - DUO - Install MFA Authentication for MAC

Summary​

The script attempts to install the latest version of the DUO 2FA Authentication for MAC Operating System.

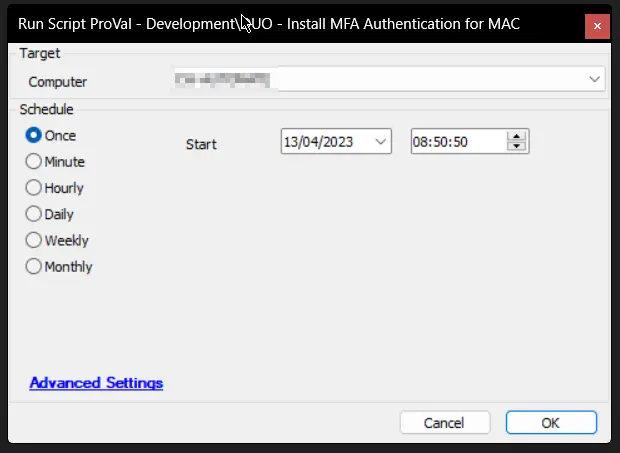

Sample Run​

Sample Run

Requirements​

  1. There are several EDFs involved in the process, and EDFs must be configured to make the script function properly.
    EDFs used are:

    Client-Level:

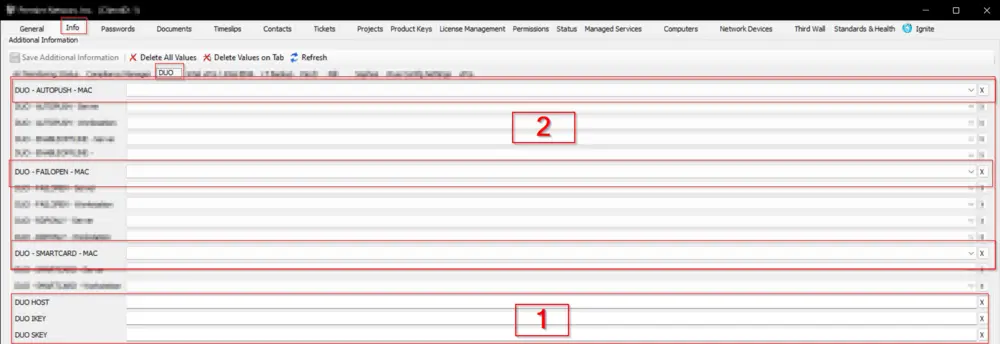

    Client-Level EDFs

    1. EDFs in section 1 are text boxes and must be filled in order to execute the script.
    2. EDFs in section 2 are drop-downs with "False/True" as the options. These EDFs can be used to configure the application. The default value for these EDFs is False.

  2. Overrides should be set at the computer level, as shown below:
    Overrides
    Values set at the computer level will override the values set at the client level.

Note: The EDFs mentioned in section 1 will be imported along with the script, but EDFs in section 2 must be created manually. The following SQL queries can be executed from a RAWSQL monitor to create these EDFs:

INSERT IGNORE INTO `extrafield` VALUES
('',1,'DUO - SMARTCARD',0,0,2,'DUO Overrides',0,0,'Yes~No','97dbf325-425e-4f6e-97c6-793462a1cdcf',0,0,0,0,'',''),
('',1,'DUO - AUTOPUSH',0,0,2,'DUO Overrides',0,0,'Yes~No','97dba59c-2dcb-46a6-9d2f-1af4951d653e',0,0,0,0,'',''),
('',1,'DUO - FAILOPEN',0,0,2,'DUO Overrides',0,0,'Yes~No','5d34c156-ea24-4bea-b95c-4e374b7f3de5',0,0,0,0,'',''),
('', 3, 'DUO - FAILOPEN - MAC', 0, 0, 2, 'DUO', 0, 0, 'False~True', '124a5519-a440-4256-8dd2-81ee633f1027', 0, 0, 0, 0, '', ''),
('', 3, 'DUO - SMARTCARD - MAC', 0, 0, 2, 'DUO', 0, 0, 'False~True', '0a6ec75a-db4f-4acf-9269-94da9e1faad7', 0, 0, 0, 0, '', ''),
('', 3, 'DUO - AUTOPUSH - MAC', 0, 0, 2, 'DUO', 0, 0, 'False~True', 'b461afaa-9c1a-4491-9228-3c276ad90103', 0, 0, 0, 0, '', '');
Call v_Extradata(1,'Computers');
Call v_Extradata(3,'Clients');
Call v_Extradatarefresh(1,'Computers');
Call v_Extradatarefresh(3,'Clients');

Variables​

NameDescription
STATUSSTATUS returned by the monitor set (FAILED/SUCCESS/WARNING). The script can be used as an autofix with an alert template as well.
HostTo store the value of the Client level EDF, DUO HOST
SKEYTo store the value of the Client level EDF, DUO SKEY
IKEYTo store the value of the Client level EDF, DUO IKEY
ArgumentsArguments to be passed to the command, calculated by a SQL query based on the client and computer level "DUO - *" EDFs.
AutopushTrue/False; From Client Level EDF 'DUO - AUTOPUSH - MAC' or from Computer Level EDF 'DUO - AUTOPUSH' if overridden. Default value is FALSE, in case both client and computer level EDFs are blank.
SmartCardTrue/False; From Client Level EDF 'DUO - SMARTCARD - MAC' or from Computer Level EDF 'DUO - SMARTCARD' if overridden. Default value is FALSE, in case both client and computer level EDFs are blank.
FailOpenTrue/False; From Client Level EDF 'DUO - FAILOPEN - MAC' or from Computer Level EDF 'DUO - FAILOPEN' if overridden. Default value is FALSE, in case both client and computer level EDFs are blank.
FilesInfoParsed output of the command to extract the downloaded archived file.
FolderNamePath to the extracted contents from the archived (.zip) file.
ConfigureFilePath to the extracted configuration file.
NotConfiguredFilePath to the extracted unconfigured file.
FileVersionVersion of the extracted files.
FinalPackagePath to the installer.

Output​

  • Script Logs
