CPU Temperature Monitoring Process
Summary
The remote monitor is responsible for CPU temperature monitoring on physical Windows machines. It utilizes the CPUTempMon.exe tool to obtain readings from the CPU temperature sensors. This tool is based on the Libre Hardware Monitor.
The remote monitor verifies if the current temperature readings from the sensors exceed the permissible temperature for more than two consecutive executions of the monitor set. If this condition is met, it triggers a failure.
The monitor set is established by the EPM - Sensors - Script - CPU Temperature Monitor - Create script, and its configuration is dependent on the system properties and the EDFs, as detailed in the script's documentation.
Details
Suggested "Limit to": Physical Windows machines
Suggested Alert Style: Once
Suggested Alert Template: △ Custom - Ticket Creation - Computer or △ Custom - Email Creation - Computer
Dependencies
- EPM - Sensors - Script - CPU Temperature Monitor - Create
- EPM - Sensors - Internal Monitor - Execute Script - CPU Temperature Monitor - Create
- EPM - Sensors - Script - CPU Temperature Monitor - Manage
Ticketing
Subject: CPU Temperature Monitoring - Failure - \\<COMPUTER NAME>

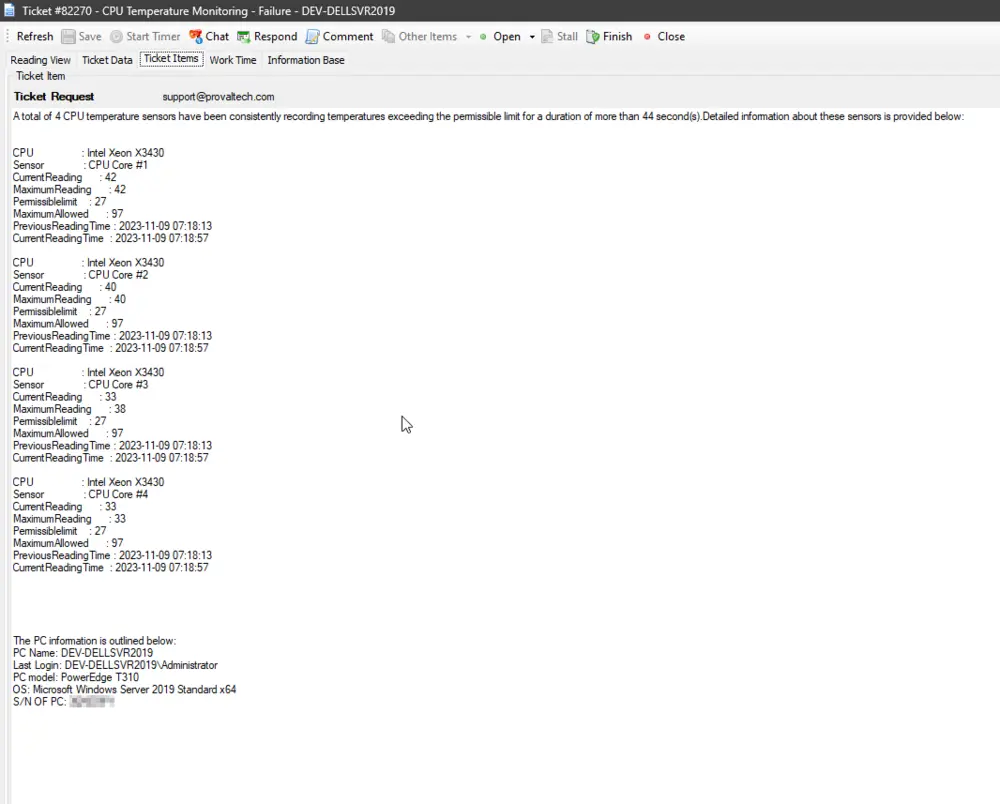

Sample Screenshot:
