CWM - Automate - ESXi - Snapshot Delete Param

Summary

This script can be used to delete a snapshot of a machine hosted on an ESXi host server. It utilizes the PowerCLI Module to perform the required action.

Note: The script must be executed from a machine that can reach the ESXi Host.

Prerequisites

• .NET Framework 4.7.2+ (Release: 461808)
• PowerShell v5.1+

Sample Run

1. Create a credential entry on the client's password tab to connect with the ESXi Host. It must be an admin/root-level credential.
2. Add either the public or private IP address of the ESXi Host in the URL section of the entry. Do not use HTTP or HTTPS along with the IP address.
   e.g.,
   http://10.0.0.4/io ==> Incorrect
   10.0.0.4 ==> Correct

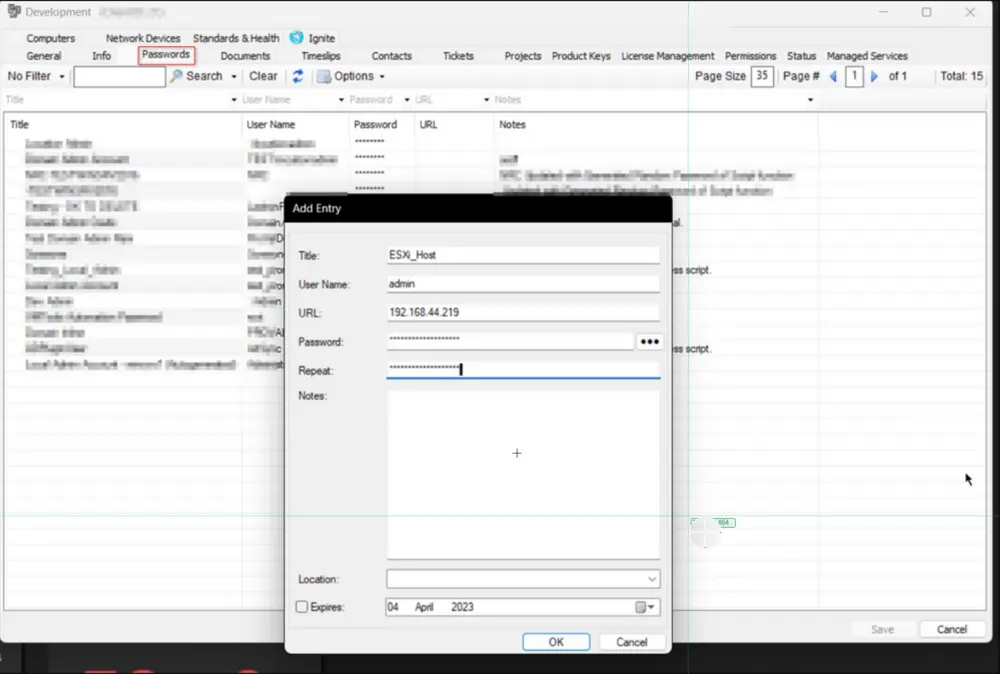

3. Sample Screenshot:

4. Add proper parameters while executing the script.

   The Password_Title should be the title of the password entry created in the first step. In the above example, the script will attempt to remove the snapshot SnapShot 12-12-1997 from the virtual machine Test VM 1. It will not generate any alerts on failure.
5. For alerting on failure:

   In this example, the script will attempt to remove the snapshot SnapShot 12-12-1997 from the virtual machine Test VM 1. Additionally, the script will create a ticket if it fails to deliver the desired results and will send a failure email to the user running/scheduling the script. Either or both of the alerting options can be used.

Dependencies

CWM - Automate - Script - ESXi - Snapshot Create [Param]

Note: This script can be scheduled with proper parameters to remove the snapshot created by the CWM - Automate - Script - ESXi - Snapshot Create [Param] script after @Hours_To_Keep@ hours.

Variables

Name	Description
ProjectName	ESXi_RemoveSnapshot
WorkingDirectory	C:/ProgramData/_automation/script/ESXi_RemoveSnapshot
ESXiHost	IP Address of ESXi Host, fetched from the password entry
UserName	UserName to use to connect with the ESXi Host, fetched from the password entry
Password	Password to use to connect with the ESXi Host, fetched from the password entry
psout	Output of the PowerShell script deleting the Snapshot

User Parameters

Name	Example	Required	Description
SnapshotName	CW-Automate-Temp-Snapshot_20230501_081958	True	Name of the Snapshot to remove
VMName	DEV_Test-win10	True	Name of the virtual machine from which to remove the snapshot
Password_Title	Esxi_Host	True	Title of the password entry to use to connect with the ESXi Host
Ticket_On_Failure	1	False	1 to enable ticketing for the script's failure.
Email_On_Failure	1	False	1 to enable email alerts for the script's failure. The email will be sent to the user running/scheduling the script.

Output

• Script Logs
• Ticket (If Enabled)
• Email to the user running the script (if Enabled)

Alerting

Subject: Snapshot deletion failed for the VM @VMName@

Body:

For Prerequisites Validation Failure:

Automate failed to delete the Snapshot @SnapShotName@ from the virtual machine @VMName@.
The prerequisite check failed for %ComputerName%, and the `ESXi - SnapShot Delete [Param]` script cannot be executed against %ComputerName%.
Please execute the script against another machine in the network to delete the Snapshot.
Prerequisite Validation Command Output: %ShellResult%

For Snapshot Deletion Failure:

Automate failed to delete the Snapshot @SnapShotName@ from the virtual machine @VMName@. Please review manually.
PowerShell script result: @psout@
