RDP Access Check

Summary

Identifies Windows machines where RDP is enabled or not completely disabled.

Details

Suggested "Limit to": RDP Access Check Enabled
Suggested Alert Style: Once
Suggested Alert Template: △ Custom - Ticket Creation - Computer

Check Action	Server Address	Check Type	Condition	Interval	Result
System	127.0.0.1	Run File	Does Not Contain	86400	Disabled

Dependencies

Disable RDP Access

Target

Managed Windows Servers and Workstations

EDF

Name	Level	Type	Section	Description
Exclude RDP Access Check	Computer	Check Box	Exclusions	Flag this EDF to exclude the computer from RDP Access Check monitoring

Ticketing

Ticket Subject: RDP Enabled on %COMPUTERNAME%

Ticket Body: RDP is either enabled or not completely disabled on %COMPUTERNAME%. Please run the "Disable RDP Access" script to ensure RDP is completely disabled.

Implementation

Step 1

Import the Disable RDP Access script using the ProSync plugin.

Step 2

Run the following SQL query in a RAWSQL Monitor to create the Exclude RDP Access Check EDF.

INSERT IGNORE INTO
    `extrafield` (
        `Form`,
        `Name`,
        `Sort`,
        `NoBreak`,
        `FType`,
        `Section`,
        `UnEditable`,
        `Collapsed`,
        `Fill`,
        `LtGuid`,
        `IsPassword`,
        `IsEncrypted`,
        `IsHidden`,
        `IsRestricted`,
        `ViewPermissions`,
        `EditPermissions`
    )
VALUES (
        1,
        'Exclude RDP Access Check',
        0,
        0,
        1,
        'Exclusions',
        0,
        0,
        '|Flag this EDF to exclude the computer from RDP Access Check monitoring|',
        'e77ba3fe-dea5-442f-a838-885ddb4a8b72',
        0,
        0,
        0,
        0,
        '',
        ''
    );
CALL v_ExtraData(1, 'Computers');

Step 3

Run the following SQL query in a RAWSQL Monitor to create the RDP Access Check Enabled Search.

INSERT INTO
    `SensorChecks` (
        `Name`,
        `SQL`,
        `QueryType`,
        `ListDATA`,
        `FolderID`,
        `GUID`,
        `SearchXML`
    )
SELECT
    'RDP Access Check Enabled' AS `Name`,
    'SELECT \r\n   computers.computerid as `Computer Id`,\r\n   computers.name as `Computer Name`,\r\n   clients.name as `Client Name`,\r\n   computers.domain as `Computer Domain`,\r\n   computers.username as `Computer User`,\r\n   IFNULL(IFNULL(edfAssigned1.Value,edfDefault1.value),\'0\') as `Computer - Extra Data Field - Exclusions - Exclude RDP Access Check`\r\nFROM Computers \r\nLEFT JOIN inv_operatingsystem ON (Computers.ComputerId=inv_operatingsystem.ComputerId)\r\nLEFT JOIN Clients ON (Computers.ClientId=Clients.ClientId)\r\nLEFT JOIN Locations ON (Computers.LocationId=Locations.LocationID)\r\nLEFT JOIN ExtraFieldData edfAssigned1 ON (edfAssigned1.id=Computers.ComputerId and edfAssigned1.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'e77ba3fe-dea5-442f-a838-885ddb4a8b72\'))\r\nLEFT JOIN ExtraFieldData edfDefault1 ON (edfDefault1.id=0 and edfDefault1.ExtraFieldId =(Select ExtraField.id FROM ExtraField WHERE LTGuid=\'e77ba3fe-dea5-442f-a838-885ddb4a8b72\'))\r\n WHERE \r\n((IFNULL(IFNULL(edfAssigned1.Value,edfDefault1.value),\'0\')=0))\r\n' AS `SQL`,
    '4' AS `QueryType`,
    'Select||=||=||=|^Select|||||||^' AS `ListDATA`,
    '0' AS `FolderID`,
    '1c7d4098-547c-4d69-8b60-9c5711dbc23f' AS `GUID`,
    '<LabTechAbstractSearch><asn><st>AndNode</st><cn><asn><st>ComparisonNode</st><lon>Computer.Extra Data Field.Exclusions.Exclude RDP Access Check</lon><lok>Computer.Edf.e77ba3fe-dea5-442f-a838-885ddb4a8b72</lok><lmo>IsFalse</lmo><dv>NULL</dv><dk>NULL</dk></asn></cn></asn></LabTechAbstractSearch>' AS `SearchXML`
FROM (
        SELECT MIN(computerid)
        FROM computers
    ) a
WHERE (
        SELECT COUNT(*)
        FROM SensorChecks
        WHERE
            `GUID` = '1c7d4098-547c-4d69-8b60-9c5711dbc23f'
    ) = 0;

Step 4

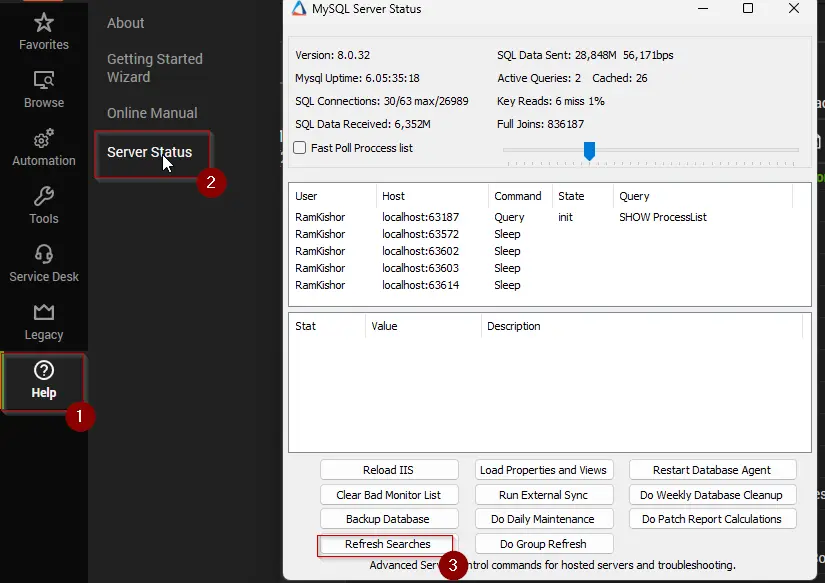

Help > Server Status > Refresh Searches

Step 5

Reload System Cache

Step 6

Obtain the groupid(s) of the group(s) that the remote monitor should be applied to.

Step 7

Copy the following query and replace YOUR COMMA SEPARATED LIST OF GROUPID(S) with the groupid(s) of the relevant groups. (The string to replace can be found at the very bottom of the query, right after WHERE).

SET @searchid = (SELECT sensid FROM sensorchecks WHERE `GUID` = '1c7d4098-547c-4d69-8b60-9c5711dbc23f');

INSERT INTO groupagents
 SELECT '' as `AgentID`,
`groupid` as `GroupID`,
@searchid as `SearchID`,
'ProVal - Production - RDP Access Check' as `Name`,
'6' as `CheckAction`,
'1' as `AlertAction`,
'RDP Enabled on %COMPUTERNAME%~~~RDP is disabled.!!!RDP Enabled on %COMPUTERNAME%~~~RDP is either enabled or not completely disabled on %COMPUTERNAME%. Please run the "Disable RDP Access" script to ensure RDP is completely disabled.' as `AlertMessage`,
'0' as `ContactID`,
'86400' as `interval`,
'127.0.0.1' as `Where`,
'7' as `What`,
'C:\\Windows\\System32\\WindowsPowerShell\\v1.0\\powershell.exe -ExecutionPolicy Bypass -NoLogo -NonInteractive -NoProfile -Command "$ErrorActionPreference = \'SilentlyContinue\'; $regValue = (Get-ItemProperty -Path \'HKLM:\\System\\CurrentControlSet\\Control\\Terminal Server\' -Name \'fDenyTSConnections\').fDenyTSConnections; $fireWallRule = (Get-NetFirewallRule -DisplayGroup \'Remote Desktop\').Enabled; if ($fireWallRule -match \'True\' -or $regValue -ne \'1\') { return \'Enabled\' } else { return \'Disabled\' }"' as `DataOut`,
'5' as `Comparor`,
'Disabled' as `DataIn`,
'' as `IDField`,
'1' as `AlertStyle`,
'0' as `ScriptID`,
'' as `datacollector`,
'21' as `Category`,
'0' as `TicketCategory`,
'1' as `ScriptTarget`,
(UUID()) as `GUID`,
'root' as `UpdatedBy`,
(NOW()) as `UpdateDate`
FROM mastergroups m
WHERE m.groupid IN (YOUR COMMA SEPARATED LIST OF GROUPID(S))
AND m.groupid NOT IN  (SELECT DISTINCT groupid FROM groupagents WHERE `Name` = 'ProVal - Production - RDP Access Check')

Step 8

An example of the query with groupids and modified thresholds:

SET @searchid = (SELECT sensid FROM sensorchecks WHERE `GUID` = '1c7d4098-547c-4d69-8b60-9c5711dbc23f');

INSERT INTO groupagents
 SELECT '' as `AgentID`,
`groupid` as `GroupID`,
@searchid as `SearchID`,
'ProVal - Production - RDP Access Check' as `Name`,
'6' as `CheckAction`,
'1' as `AlertAction`,
'RDP Enabled on %COMPUTERNAME%~~~RDP is disabled.!!!RDP Enabled on %COMPUTERNAME%~~~RDP is either enabled or not completely disabled on %COMPUTERNAME%. Please run the "Disable RDP Access" script to ensure RDP is completely disabled.' as `AlertMessage`,
'0' as `ContactID`,
'86400' as `interval`,
'127.0.0.1' as `Where`,
'7' as `What`,
'C:\\Windows\\System32\\WindowsPowerShell\\v1.0\\powershell.exe -ExecutionPolicy Bypass -NoLogo -NonInteractive -NoProfile -Command "$ErrorActionPreference = \'SilentlyContinue\'; $regValue = (Get-ItemProperty -Path \'HKLM:\\System\\CurrentControlSet\\Control\\Terminal Server\' -Name \'fDenyTSConnections\').fDenyTSConnections; $fireWallRule = (Get-NetFirewallRule -DisplayGroup \'Remote Desktop\').Enabled; if ($fireWallRule -match \'True\' -or $regValue -ne \'1\') { return \'Enabled\' } else { return \'Disabled\' }"' as `DataOut`,
'5' as `Comparor`,
'Disabled' as `DataIn`,
'' as `IDField`,
'1' as `AlertStyle`,
'0' as `ScriptID`,
'' as `datacollector`,
'21' as `Category`,
'0' as `TicketCategory`,
'1' as `ScriptTarget`,
(UUID()) as `GUID`,
'root' as `UpdatedBy`,
(NOW()) as `UpdateDate`
FROM mastergroups m
WHERE m.groupid IN (855,856)
AND m.groupid NOT IN  (SELECT DISTINCT groupid FROM groupagents WHERE `Name` = 'ProVal - Production - RDP Access Check')

Step 9

Check the concerned groups and ensure the monitor set is created and configured with the correct search.
Limit to: RDP Access Check Enabled

Step 10

Apply required Ticket Category and Alert Template to the monitor.
