Update Table Data - UnifiController

Child of Solution

EPM - Data Collection - Solution - CWA - Update Table Data - UnifiController

Summary

This script launches the Get-UnifiController.ps1 file from the registry, filters out the needed information, and populates the following tables with data:

• CWM - Automate - Custom Table - plugin_proval_unificontroller
• CWM - Automate - Custom Table - plugin_proval_unifidevices
• CWM - Automate - Custom Table - plugin_proval_unifiwireless

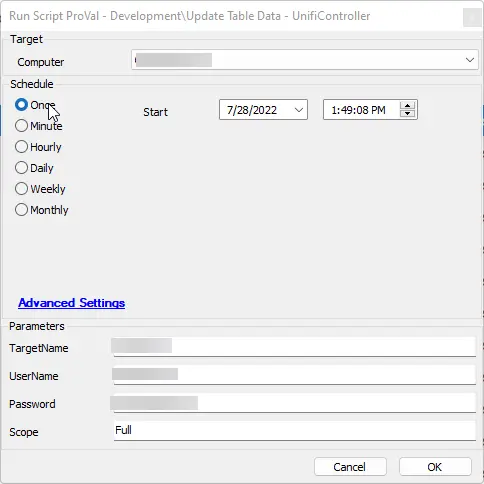

Sample Run

Dependencies

This should be a list of ITGlue documents listed in the Related Items sidebar on which this script depends.

• EPM - Data Collection - Agnostic - Script - Get-UnifiController
• CWM - Automate - Custom Table - plugin_proval_unificontroller
• CWM - Automate - Custom Table - plugin_proval_unifidevices
• CWM - Automate - Custom Table - plugin_proval_unifiwireless

Variables

Document the various variables in the script. Delete any section that is not relevant to your script.

Name	Description
ControllerTableName	Holds the name of the Unifi Controller's data table.
DeviceTableName	Holds the name of the Unifi Device's data table.
WifiTableName	Holds the name of the Unifi Wireless data table.
ControllerSqlInsert	Populates the insert statement for the ControllerTableName table.
SQLInsert	This variable is created by splitting the output of the PowerShell command; it holds the insert statement for either the DeviceTableName or the WifiTableName tables.
totalRowsToWrite	This variable is created by splitting the output of the PowerShell command; it holds the total rows needed to write to complete all items found.
totalRowsToLimit	This variable is created by splitting the output of the PowerShell command; it holds the total amount of rows that the command can fit before exceeding the 65,000 character limit. I intentionally left about a 500 character padding.

Global Parameters

Name	Example	Required	Description
Port	8443	False, defaults to 8443	The port in which the Unifi Controller communicates.

User Parameters

Name	Example	Required	Description
TargetName	10.125.56.152, LocalHost	True	The URL, HostName, or IP address of the Unifi Controller
UserName	JoesSnackShack	True	The username for an admin account on the Unifi Controller.
Password	jndfgsjkoli908435!@_435j	True	The password for the admin account provided above.
Scope	Full	False	Under Empty or Null operation, this script will populate data into the following tables: plugin_proval_unificontroller, plugin_proval_unifidevices. Under Full operation, this script will additionally populate the following table: plugin_proval_unifiwireless.

Process

Describe the steps the script performs to accomplish the desired task. Note that if this script is just a front-end for a piece of Agnostic Content, then you can insert a link to the documentation for that content here instead.

1. Downloads, executes, and formats the results of EPM - Data Collection - Agnostic - Script - Get-UnifiController to accomplish the following:
   1. Create two files on the target machine: MyUnifiController.json and MyUnifiControllerNetworks.json, containing objects for the Unifi Controller tables.
   2. Read the data and return to Automate the following variables/values:
      • totalRowsToWrite
        • The total amount of rows that need to be written to the insert statement to complete the file.
      • totalRowsToLimit
        • The total amount of rows that can be added to the insert statement before the character limit, including the statement before the data and the completing statement at the tail end, reaches 65,000.
      • sqlInsert
        • The character-limited SQL statement to execute.
   3. Overwrite the MyUnifiController.json file with all the values, skipping totalRowsToLimit items.
2. Creates the ControllerTableName insert statement needed to populate data.
3. Creates the ControllerTableName table if it doesn't exist.
4. Runs the ControllerTableName insert statement.
5. Creates the DeviceTableName.
6. Executes the first returned sqlInsert statement.
7. Creates the WifiTableName.
8. Checks the totalRowsToWrite against the totalRowsToLimit:
   • If totalRowsToWrite is greater:
     1. Executes an SQL statement to accomplish the following:
        1. Read the MyUnifiController.json file.
        2. Return the following values:
           • ControllerID
           • totalRowsToWrite
           • totalRowsToLimit
           • sqlInsert
        3. Overwrite the MyUnifiController.json file with all the values, skipping totalRowsToLimit items.
     2. Split the variables.
     3. Execute sqlInsert.
     4. Checks the totalRowsToWrite against the totalRowsToLimit. Returns to step 8 if totalRowsToWrite is greater.
9. Checks to see if Scope is "Full".
10. Logs all output.
11. Deletes the following files:
    • MyUnifiController.json
    • MyUnifiControllerNetworks.json
12. Exits.

Output

• Script log
