Export Office 365 users MFA Status Report

Summary

This script is designed to automatically generate and distribute a report on the Multi-Factor Authentication (MFA) status of Office 365 users for a specified ClientID. The report is sent via email to the individual executing the script, provided that an email address has not been pre-set in the user parameter EmailAddress.

The script employs the Microsoft.Graph PowerShell module to establish a connection with the Office 365 portal and generate the report. As there is no provision for a silent or remote connection to the Office 365 portal using Office 365 credentials, the script utilizes the Using PSCredential object method for this purpose.

To effectively use this script, it is imperative to have the Office 365 ClientID, TenantID, and Client Secret. This information can either be supplied as user parameters when running the script or stored in the client-level EDFs as detailed in the article below.

Please note that this script is designed for professional use and requires a certain level of technical expertise for successful execution. It is recommended to thoroughly understand the script and its requirements before running it.

Note of Caution: Its functionality is not guaranteed on any computer running a version of PowerShell older than 5. Please ensure your systems are updated to at least PowerShell version 5 for optimal performance.

How to Create Office 365 ClientID, TenantID, and Client Secret?

Register Office 365 Application

To register an application:

1. Go to https://www.portal.azure.com and log in with your Azure admin credentials. If you do not have an account, create one at this time.

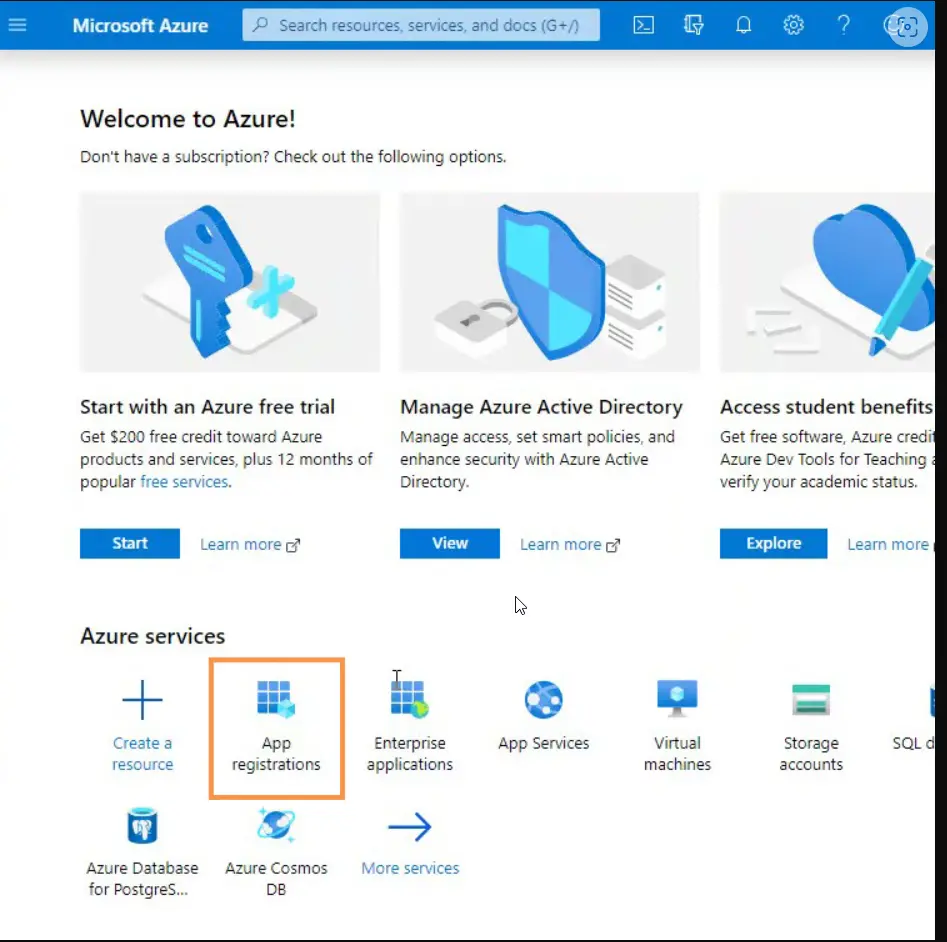

2. On the homepage under Azure services, click App Registrations.

3. Click New Registration.

4. Enter a name for the registration.

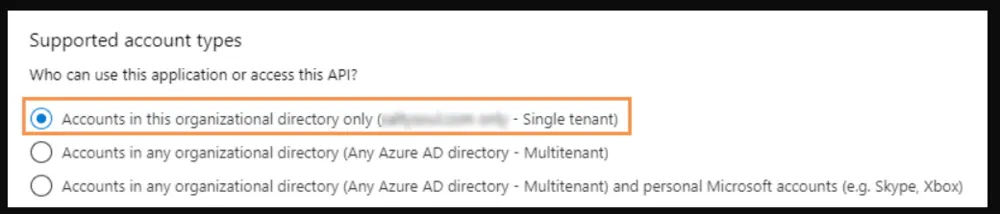

5. Under Supported account types, select Accounts in this organizational directory only (Single tenant).

6. Click Register. Your application is created, and you are redirected to your application page to generate a client secret for this application.

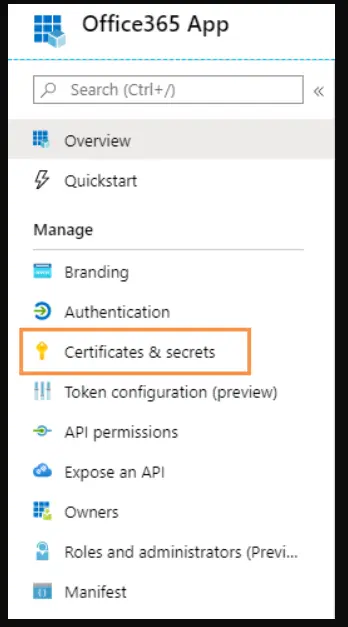

7. Click Certificates & secrets.

8. Click New client secret.
9. Enter a Description.
10. Select the longest possible duration (currently two years) under Expires.
11. Click Add. Your client secret is generated. Copy and save the Value (not the Secret ID). You need this code to configure Automate patch installs. The client secret Value is never displayed again after you leave this page. Next, add permissions to your application.
    Warning: Copy and save the Value (not the Secret ID) before proceeding; the Value is never displayed again after you navigate away from this screen.

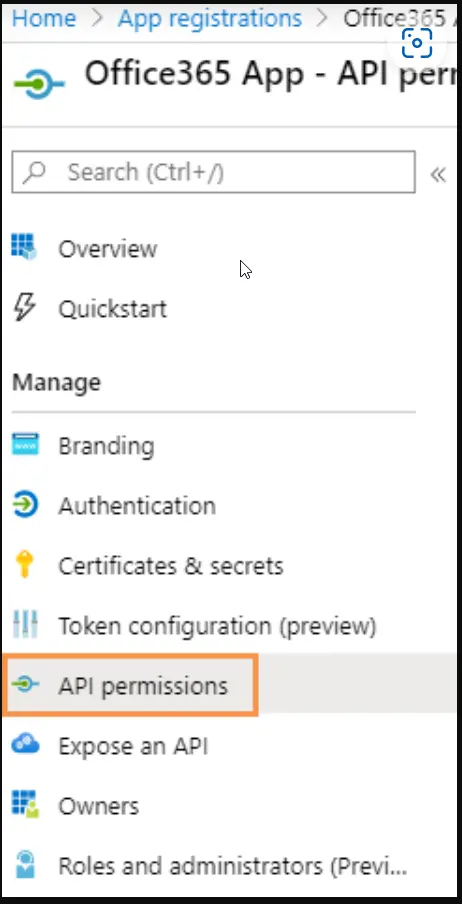

12. Click API permissions.

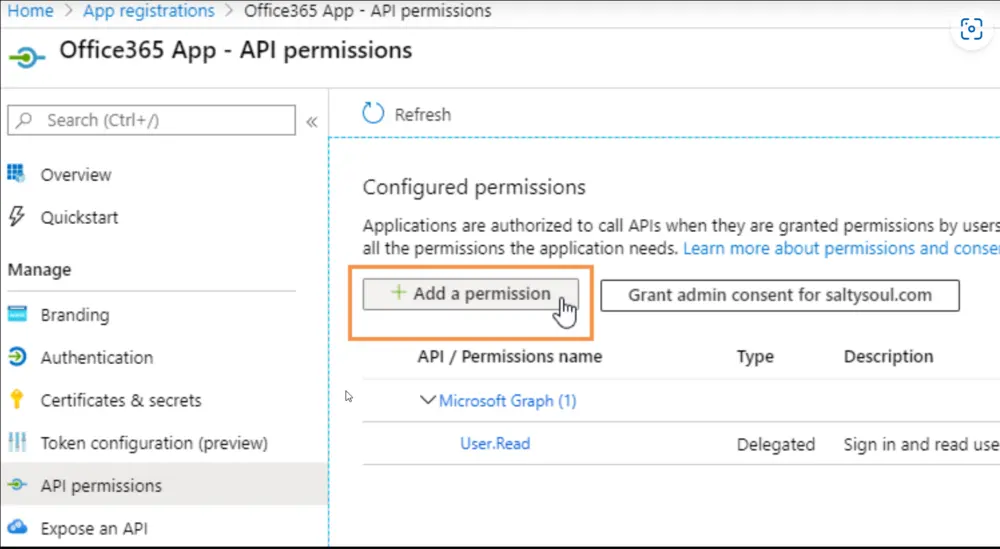

13. Click Add a permission.

14. Select Microsoft Graph.

15. Click Application permissions.
16. In the search bar, enter User.
17. For User permissions, select the application permissions User.Read.All and User.Export.All.
18. In the search bar, enter AuthenticationMethod.
19. For User authentication method permissions, select the application permission UserAuthenticationMethod.Read.All.
20. Remove the default permission User.Read (Delegated type), which is not needed.
21. Click Add permissions. A Preparing content button displays. Proceed when the button is no longer disabled.

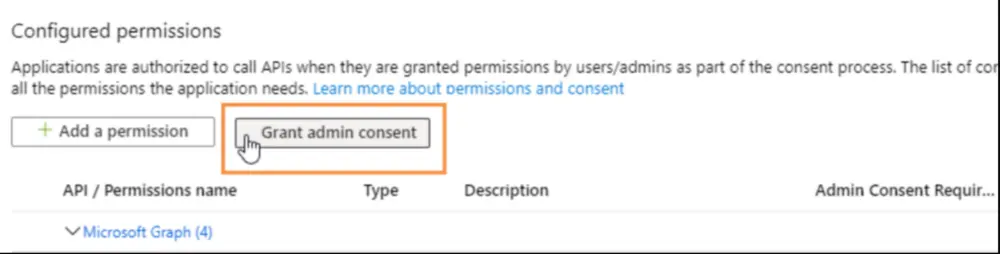

22. Click Grant admin consent. A confirmation window displays.

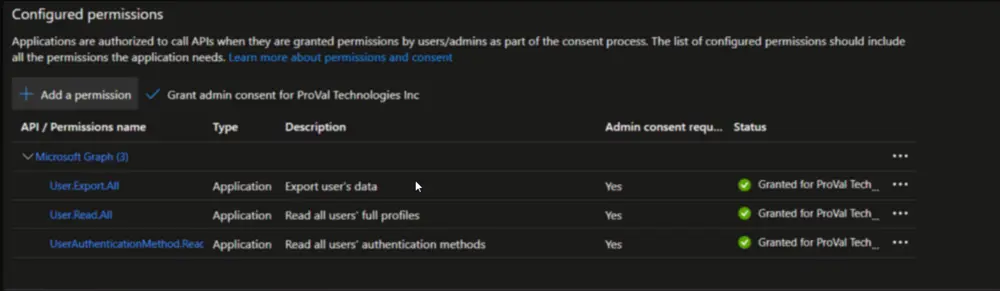

23. Click Accept. Each permission is granted.

24. Click Overview to view your Application (client) ID and Directory (tenant) ID. Keep this page open as you need to enter this ID to configure the required EDFs in Automate.


Sample Run

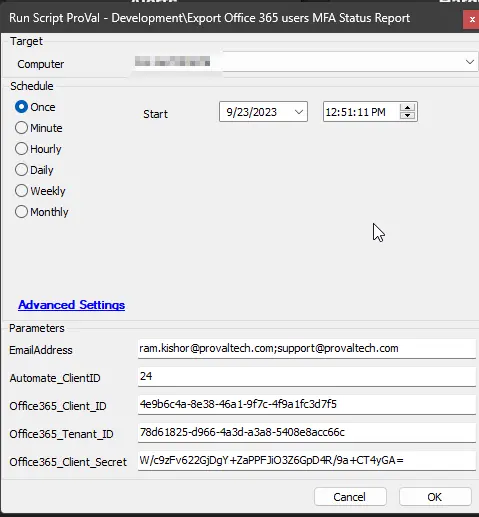

• The script will generate a report for the ClientID 24. This report will then be dispatched via email to the addresses specified in the user parameter EmailAddress. The script will utilize the information provided in these parameters to establish a connection with the Office 365 portal.

• The script will generate a report for the client associated with the computer on which the script is executed. This report will subsequently be emailed to the user who initiated the script. The script will leverage the information stored in the client-level EDFs to establish a connection with the Office 365 portal.


Global Variables

Name	Default	Required	Description
Failure_Tickets	1	True	0 or 1 to disable or enable the ticket creation function of the script.

User Parameters

Name	Example	Required	Description
EmailAddress	support@provaltech.com; Alerts@provaltech.com	False	The email address or addresses that will receive the generated report. If this parameter is left blank, the script will default to sending the report to the email address of the user executing the script. In the case of multiple email addresses, each address should be separated by a semicolon.
Automate_ClientID	21	False	This parameter specifies the Automate Client for which the report will be generated. If this parameter is left blank, the script will default to generating a report for the client associated with the computer on which the script is executed. This parameter offers flexibility, allowing the script to be run on a centralized computer (for example, an Automate server) and generate reports for all clients.
Office365_Client_ID	4e9b6c4a-8e38-46a1-9f7c-4f9a1fc3d7f5	True (if the Client-Level EDF M365 Client ID is not set)	Office 365 Client ID. If this parameter is left blank, the script will default to using the value stored in the client-level EDF M365 Client ID.
Office365_Tenant_ID	78d61825-d966-4a3d-a3a8-5408e8acc66c	True (if the Client-Level EDF M365 Tenant ID is not set)	Office 365 Tenant ID. If this parameter is left blank, the script will default to using the value stored in the client-level EDF M365 Tenant ID.
Office365_Client_Secret	W/c9zFv622GjDgY+ZaPPFJiO3Z6GpD4R/9a+CT4yGA=	True (if the Client-Level EDF M365 Client Secret is not set)	Office 365 Client Secret. If this parameter is left blank, the script will default to using the value stored in the client-level EDF M365 Client Secret.

Client-Level Extra Data Fields

Name	Example	Required	Description
M365 Client ID	4e9b6c4a-8e38-46a1-9f7c-4f9a1fc3d7f5	True (Otherwise set the value in the user parameter Office365_Client_ID while running the script.)	Office 365 Client ID
M365 Tenant ID	78d61825-d966-4a3d-a3a8-5408e8acc66c	True (Otherwise set the value in the user parameter Office365_Tenant_ID while running the script.)	Office 365 Tenant ID
M365 Client Secret	W/c9zFv622GjDgY+ZaPPFJiO3Z6GpD4R/9a+CT4yGA=	True (Otherwise set the value in the user parameter Office365_Client_Secret while running the script.)	Office 365 Client Secret

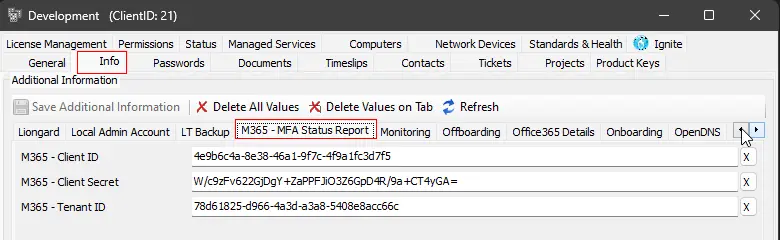

These EDFs are in the Client-Level EDF section Office 365 - MFA Status Report.

Output

• Script Log
• Email
• Ticket

Email

Subject: \<ClientName> - Office 365 Users MFA Stats Report - \<TimeStamp>

Body: Attached CSV file is the Office 365 Users MFA Stats Report for the client \<ClientName>.

File Name Example: MfaStatusReport_2023-Sep-23-Sat 01-51 PM.csv

Ticketing

The script can create a ticket for failures. The ticketing feature can be toggled by the script's global parameter Failure_Tickets.

Ticket Subject: Failed to Gather Office 365 Users MFA Report for \<Client Name>

Ticket Body for configuration error: The script was unable to initiate the PowerShell script due to the absence of the necessary key configurations. Set the Office365 ClientID, TenantID, and Client Secret in the Client level EDFs 'Office 365 - ClientID', 'Office 365 - TenantID', and 'Office 365 - Client Secret' respectively for \<Client Name>. The EDFs are present in the Client level EDF section 'Office 365 - MFA Status Report'. Alternatively, you can pass the required values in the script's user parameters 'Office365_Client_ID', 'Office365_Tenant_ID', and 'Office365_Client_Secret' respectively while initiating the script.

Ticket Body for the script failure: The script was unable to initiate the PowerShell script due to the absence of the necessary key configurations. <Error returned by the PowerShell script>
