Bitlocker - Volume - Initialize
Summary
Encrypts a drive with Bitlocker disk encryption.
Note: The Bitlocker Drive Encryption feature must be enabled on servers to encrypt a drive with Bitlocker disk encryption. Encryption will not work without enabling this feature.
Sample Run

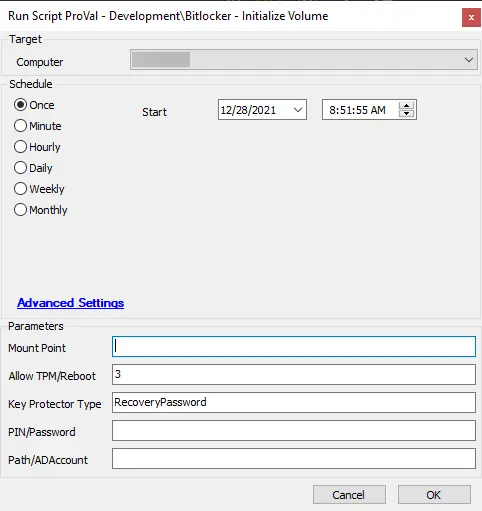

Encrypts the system drive of the target system with a Recovery Password, allowing TPM to be initialized if needed and rebooting if necessary.

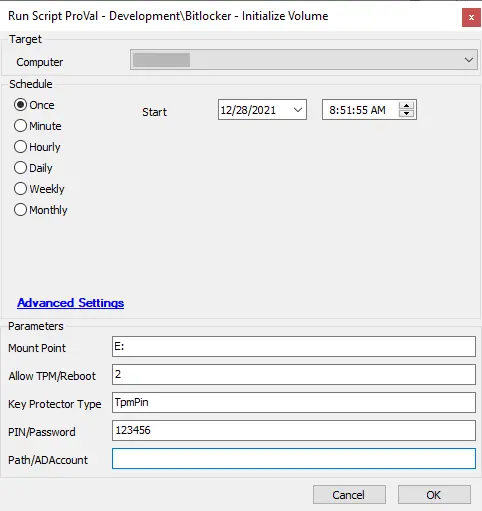

Encrypts the E: volume of the target system with a TPM+PIN combination, allowing a reboot if necessary.
Dependencies
- SEC - Encryption - Agnostic - Initialize-BitLockerVolume
- PowerShell v5
Global Parameters
| Name | Example | Required | Description |
|---|---|---|---|
| Encryption Method | Aes128 | True | The encryption method that will be used to protect the target volume. Valid options are: |
| - Aes128 | |||
| - Aes256 | |||
| - XtsAes128 | |||
| - XtsAes256 |
User Parameters
| Name | Example | Required | Description |
|---|---|---|---|
| Mount Point | E: | False | The volume to protect. Defaults to the system drive. |
| Allow TPM/Reboot | 3 | False | Options for allowing TPM initialization and rebooting. |
| 0 = Do not allow | |||
| 1 = Allow TPM Initialization | |||
| 2 = Allow Reboot | |||
| 3 = Allow TPM Initialization and Reboot | |||
| Key Protector Type | RecoveryPassword | True | Options for which type of protector to use for Bitlocker: |
| - Tpm | |||
| - TpmPin (Requires PIN/Password parameter) | |||
| - TpmStartup (Requires Path/ADAccount parameter) | |||
| - TpmPinStartup (Requires PIN/Password and Path/ADAccount parameters) | |||
| - Password (Requires PIN/Password parameter) | |||
| - Startup (Requires Path/ADAccount parameter) | |||
| - RecoveryKey (Requires Path/ADAccount parameter) | |||
| - RecoveryPassword | |||
| - AdAccount (Requires Path/ADAccount parameter) | |||
| PIN/Password | - 123456 | Semi | Option for the PIN or Password needed for specific key protector types. |
| - Pa$sw0rD! | |||
| - 123456-654321-123456-654321-123456-654321 | |||
| Path/ADAccount | - F:/Recovery | Semi | Option for the Path or AD Account needed for specific key protector types. |
| - CONTOSO/ContosoUser | |||
| - CONTOSO/ContosoGroup |
Process
See detailed process information in the document for SEC - Encryption - Agnostic - Initialize-BitLockerVolume.
When running the script, you must select a key protector type. Here is a brief explanation of each of them:
| Name | Description |
|---|---|
| Tpm | Protect the encrypted drive with only the TPM chip. |
| TpmPin | Protect the encrypted drive with the TPM chip and a PIN. Requires the PIN/Password parameter to be passed. |
| TpmStartup | Protect the encrypted drive with the TPM chip and a startup key. Requires the Path/ADAccount parameter to be passed. |
| TpmPinStartup | Protect the encrypted drive with the TPM chip, a PIN, and a startup key. Requires the PIN/Password and Path/ADAccount parameters to be passed. |
| Password | Protects the encrypted drive with a custom password. Requires the PIN/Password parameter to be passed. |
| Startup | Protect the encrypted drive with a startup key. Requires the Path/ADAccount parameter to be passed. |
| RecoveryKey | Protect the encrypted drive with a recovery key. Requires the Path/ADAccount parameter to be passed. |
| RecoveryPassword | Protect the encrypted drive with a recovery password. If the PIN/Password parameter is not passed, then the script will generate one automatically. |
| AdAccount | Protect the encrypted drive with an Active Directory Account or Group. Requires the Path/ADAccount parameter to be passed. |
Output
- Script log
- Local file on computer
