Bitlocker Recovery Password - AD Backup

Summary​

This is a CW RMM implementation of the agnostic script Backup-BitlockerRecoveryPW. This script will back up BitLocker Recovery Passwords to the associated Active Directory instance.

Requirements​

  • PowerShell v5
  • Target must be domain-joined
  • Group policy must be properly configured on the domain controller to allow backups of BitLocker keys into Active Directory

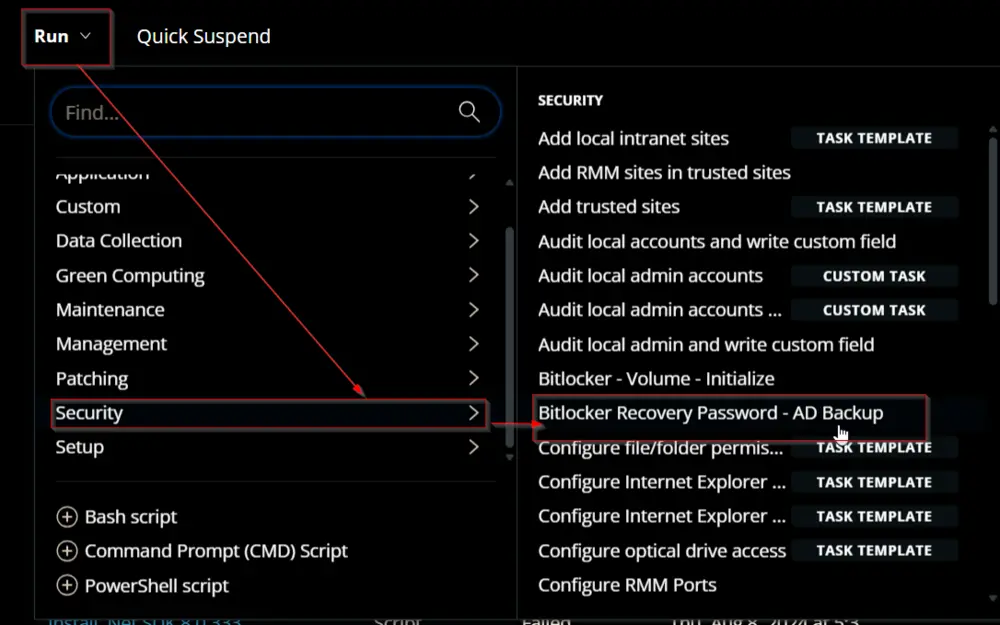

Sample Run​

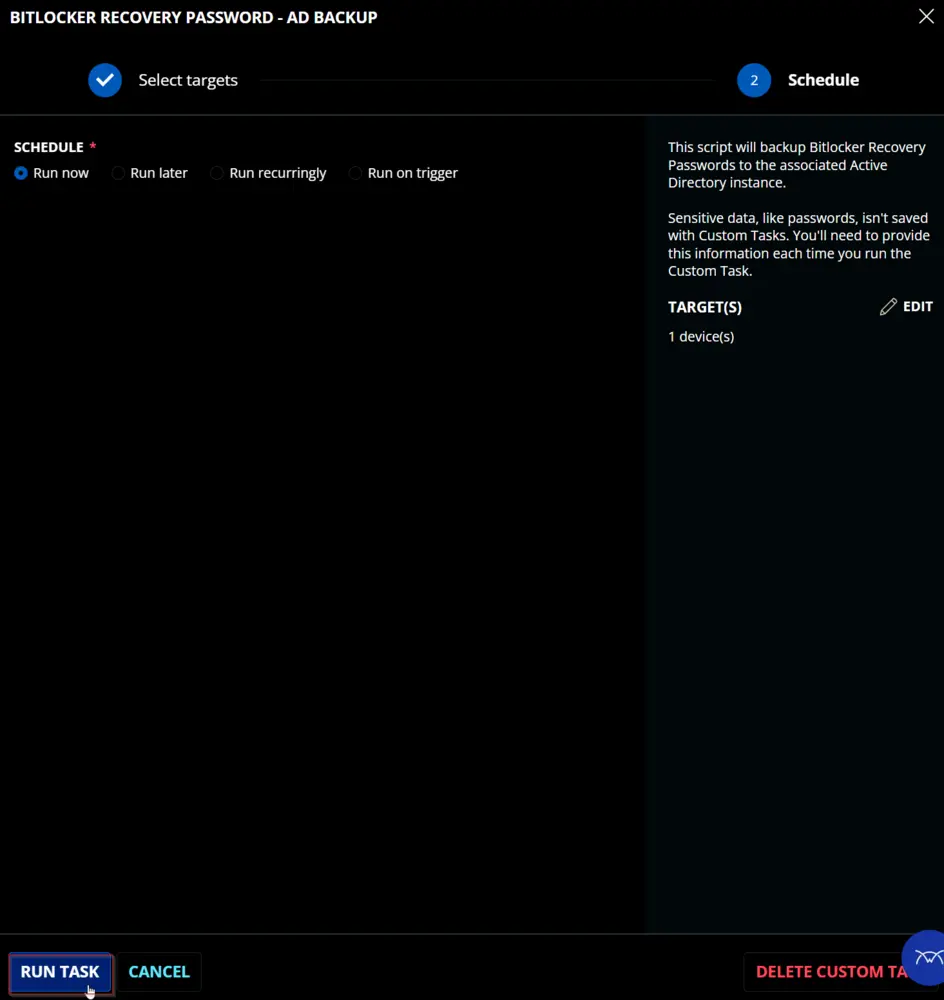

Sample Run 1
Sample Run 2

Dependencies​

Backup-BitlockerRecoveryPW

Task Creation​

Create a new Script Editor style script in the system to implement this task.

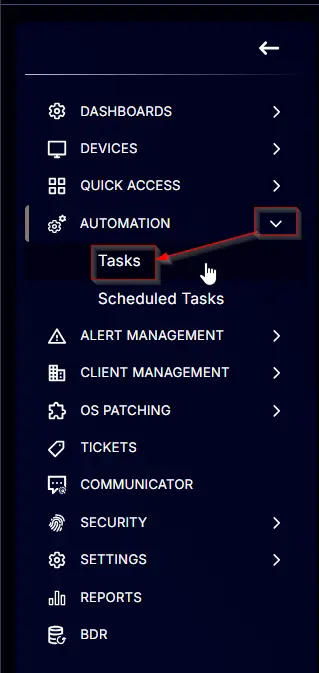

Task Creation Step 1
Task Creation Step 2

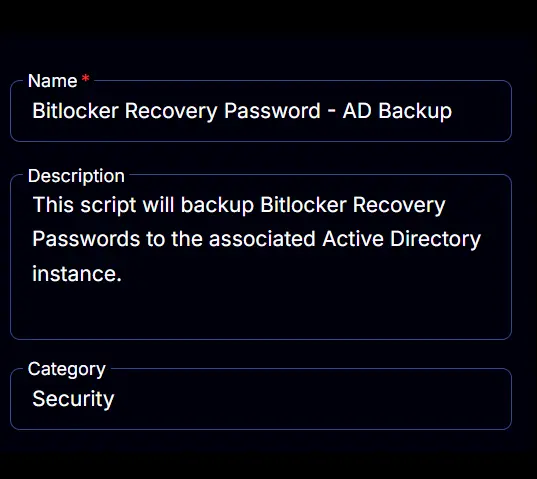

Name: BitLocker Recovery Password - AD Backup
Description: This script will back up BitLocker Recovery Passwords to the associated Active Directory instance.
Category: Security
Task Creation Step 3

Task​

Navigate to the Script Editor section and start by adding a row. You can do this by clicking the Add Row button at the bottom of the script page.
Task Step 1

A blank function will appear.
Task Step 2

Row 1 Function: PowerShell Script​

Search and select the PowerShell Script function.
Task Step 3
Task Step 4

The following function will pop up on the screen:
Task Step 5

Paste in the following PowerShell script and set the Expected time of script execution in seconds to 300 seconds. Click the Save button.

#region Variables
$ProjectName = 'Backup-BitlockerRecoveryPW'
[Net.ServicePointManager]::SecurityProtocol = [enum]::ToObject([Net.SecurityProtocolType], 3072)
$BaseURL = 'https://file.provaltech.com/repo'
$PS1URL = "$BaseURL/script/$ProjectName.ps1"
$WorkingDirectory = "C:\ProgramData\_automation\script\$ProjectName"
$PS1Path = "$WorkingDirectory\$ProjectName.ps1"
$Workingpath = $WorkingDirectory
$LogPath = "$WorkingDirectory\$ProjectName-log.txt"
$ErrorLogPath = "$WorkingDirectory\$ProjectName-Error.txt"
#endregion
#region Setup - Folder Structure
New-Item -Path $WorkingDirectory -ItemType Directory -ErrorAction SilentlyContinue | Out-Null
$response = Invoke-WebRequest -Uri $PS1URL -UseBasicParsing
if (($response.StatusCode -ne 200) -and (!(Test-Path -Path $PS1Path))) {
    throw "No pre-downloaded script exists and the script '$PS1URL' failed to download. Exiting."
} elseif ($response.StatusCode -eq 200) {
    Remove-Item -Path $PS1Path -ErrorAction SilentlyContinue
    [System.IO.File]::WriteAllLines($PS1Path, $response.Content)
}
if (!(Test-Path -Path $PS1Path)) {
    throw 'An error occurred and the script was unable to be downloaded. Exiting.'
}
#endregion
#region Execution
if ($Parameters) {
    & $PS1Path @Parameters
} else {
    & $PS1Path
}
#endregion

if ( !(Test-Path $LogPath) ) {
    throw 'PowerShell Failure. A Security application seems to have restricted the execution of the PowerShell Script.'
}
if ( Test-Path $ErrorLogPath ) {
    $ErrorContent = ( Get-Content -Path $ErrorLogPath )
    throw $ErrorContent
}
Get-Content -Path $LogPath

Task Step 6

Row 2 Function: Script Log​

Add a new row by clicking the Add Row button.
Task Step 7

A blank function will appear.
Task Step 8

Search and select the Script Log function.
Task Step 9
Task Step 10

The following function will pop up on the screen:
Task Step 11

In the script log message, simply type %output% and click the Save button.
Task Step 12

Click the Save button at the top-right corner of the screen to save the script.
Task Step 13

Completed Task​

Completed Task

Output​

  • Script log

FAQ​

  1. The script is failing with "Unable to find type [Microsoft.BitLocker.Structures.BitLockerVolume]."
    • Group policy must be properly configured to allow backups of BitLocker keys to Active Directory. Follow the process below:

GPO Creation Process​

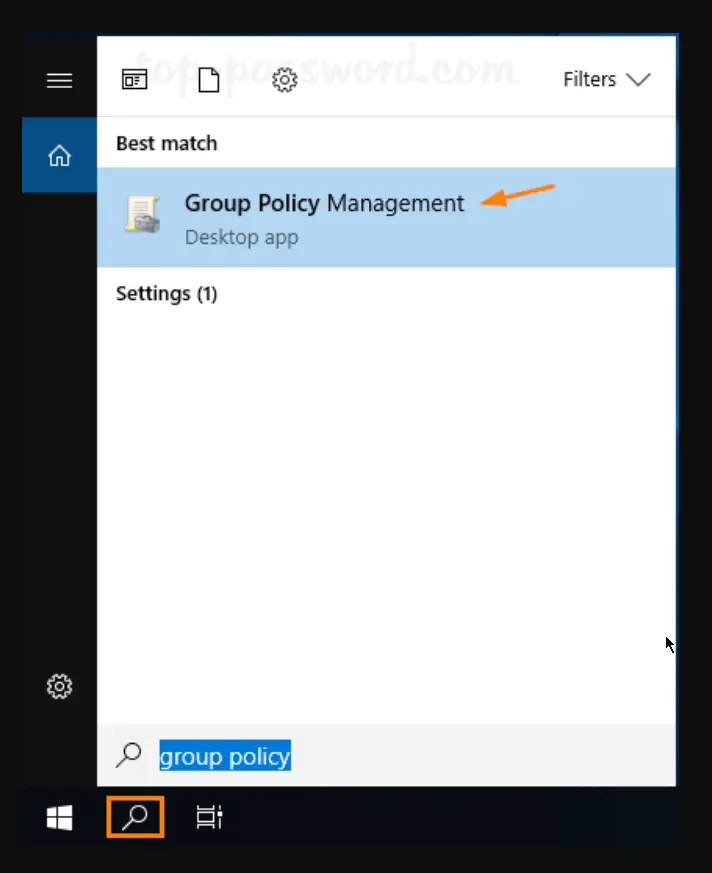

  1. Click the search icon in the taskbar and type “Group Policy“. You can then click Group Policy Management to launch it.
    GPO Step 1

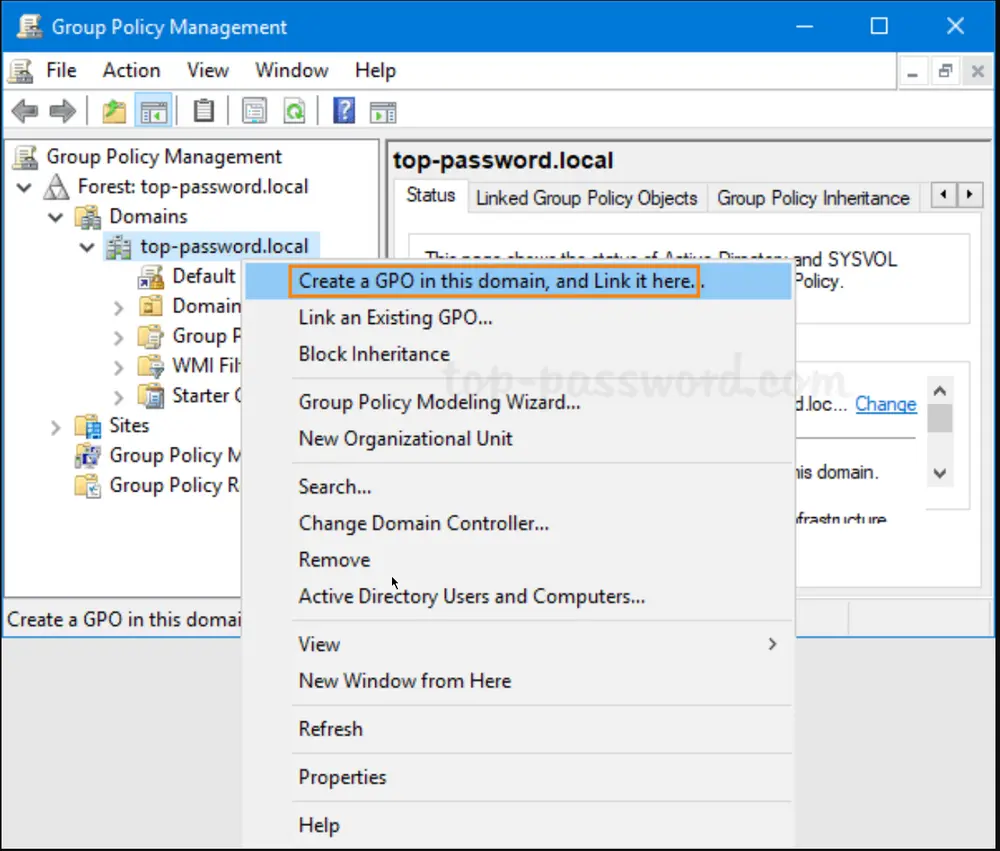

  2. In the left pane of Group Policy Management, right-click your AD domain and select “Create a GPO in this domain, and Link it here…” from the menu.
    GPO Step 2

  3. In the New GPO dialog, give the GPO a name and click OK.
    GPO Step 3

  4. Right-click the newly created GPO in the left pane, and select Edit.
    GPO Step 4

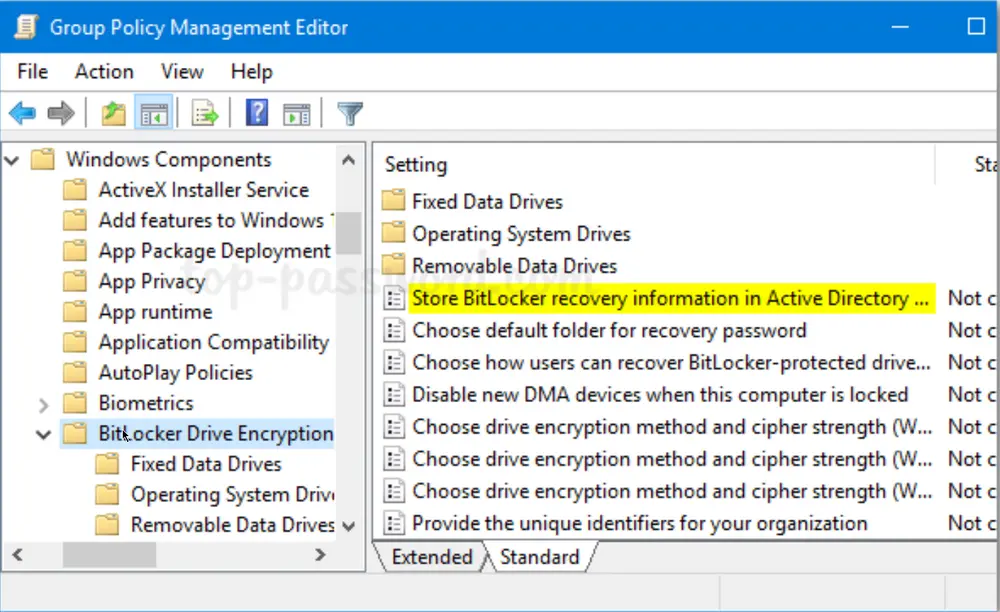

  5. Browse to Computer Configuration -> Policies -> Administrative Templates -> Windows Components -> BitLocker Drive Encryption, and then double-click the policy “Store BitLocker recovery information in Active Directory Domain Services“.
    GPO Step 5

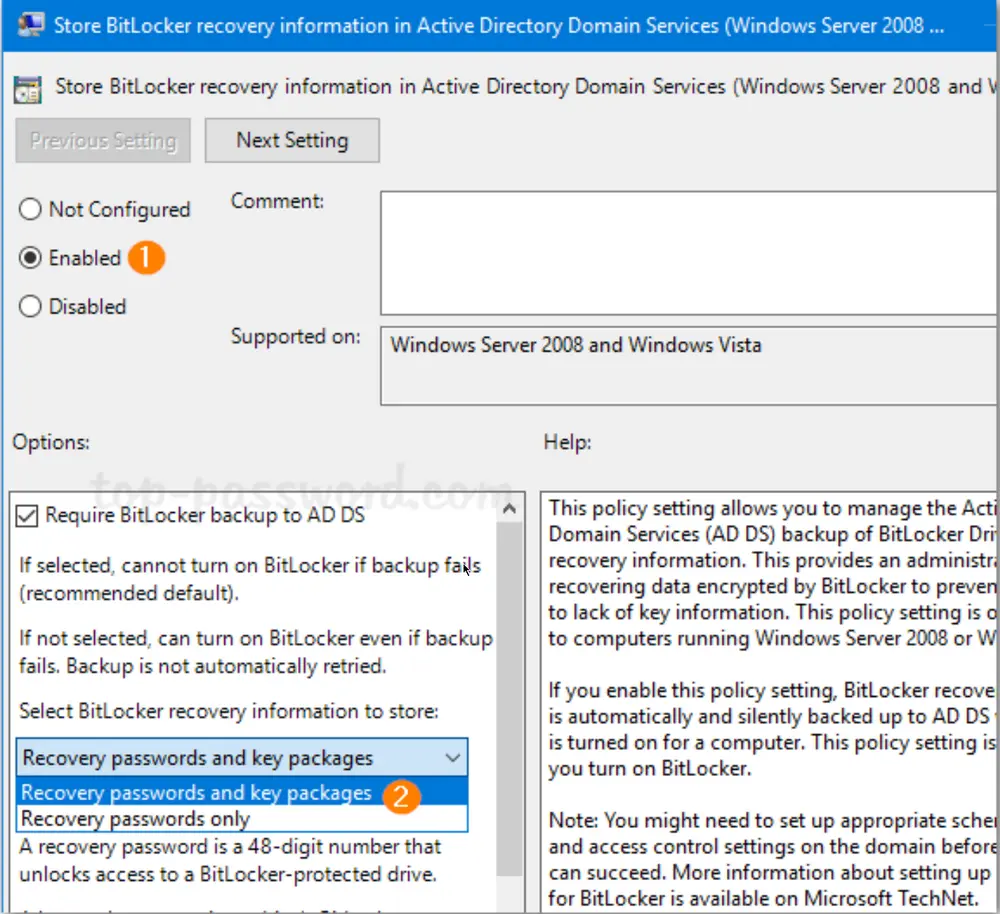

  6. Set the policy to Enabled. Make sure the “Require BitLocker backup to AD DS” option is checked, and select to store both recovery passwords and key packages.
    GPO Step 6

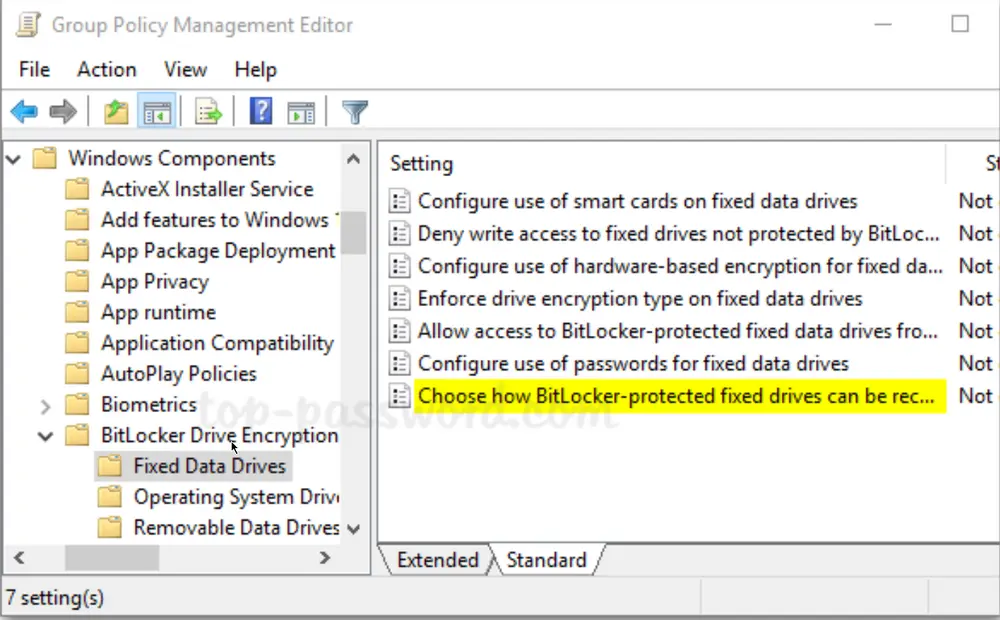

  7. Next, expand BitLocker Drive Encryption in the left pane. You’ll see three nodes: Fixed Data Drives, Operating System Drives, and Removable Data Drives. Select Fixed Data Drives and double-click the policy “Choose how BitLocker-protected fixed drives can be recovered“.
    GPO Step 7

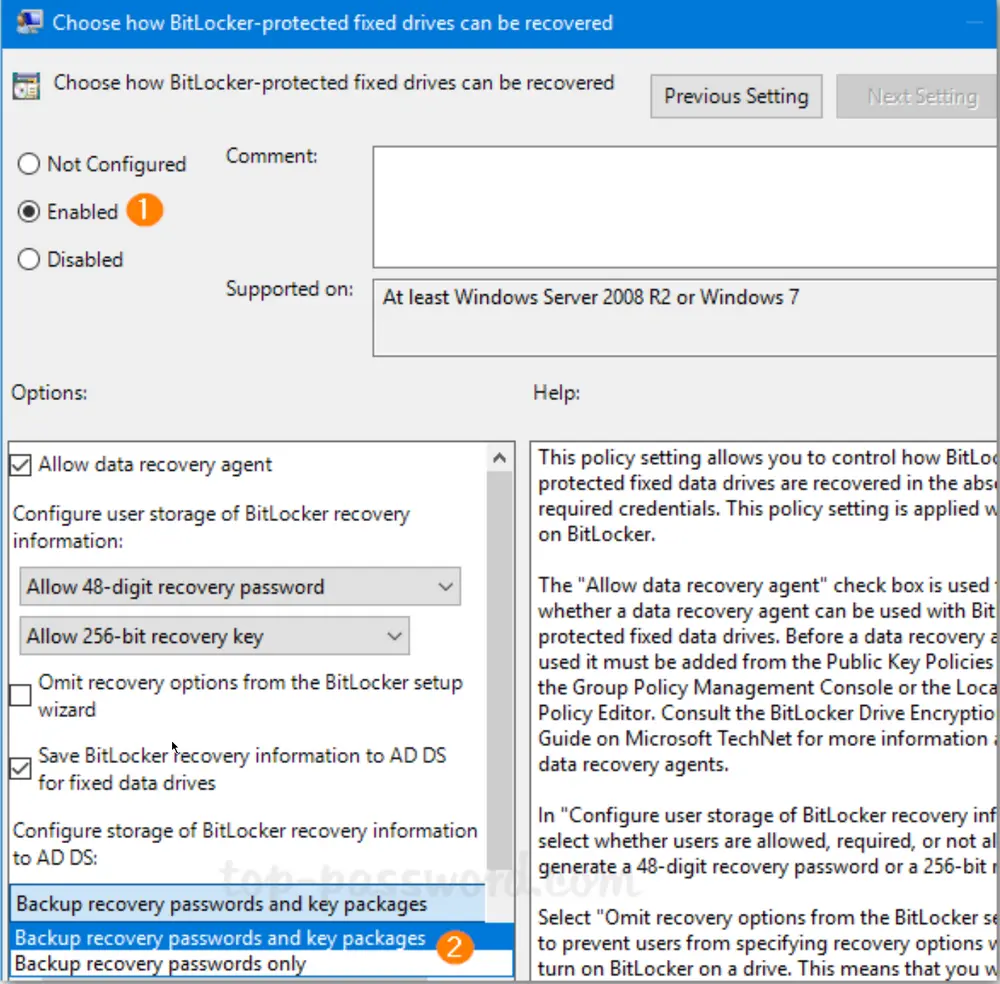

  8. Set it to Enabled. Check the options “Save BitLocker recovery information to AD DS for fixed drives” and then click OK.
    GPO Step 8

  9. Go to the “Operating System Drives” node and enable the similar policy “Choose how BitLocker-protected operating system drives can be recovered“. Afterwards, go to the “Removable Data Drives” node and enable the policy “Choose how BitLocker-protected removable drives can be recovered“.

  10. When any client PC retrieves the policy changes, BitLocker recovery information will be automatically and silently backed up to AD DS when BitLocker is turned on for fixed drives, OS drives, or removable drives.
