Get - CW-ControlAPI - Online Status

Summary​

The EPM - Data Collection - Script - Get - CW-ControlAPI - Online Status script is a ConnectWise Automate script designed to fetch the online status of all machines in the ConnectWise Control application. To achieve this, the script utilizes the ProVal Tech agnostic script Get-CWControlAgentSession.ps1, which is intended to run only in Automate environments. The script queries the Control session using the Control Plugin in Automate as its jump point.

The purpose of the EPM - Data Collection - Script - Get - CW-ControlAPI - Online Status script is to return the online status of all machines in Control and insert those states into a custom table named plugin_proval_control_session_status. The information that the script collects is stored in the Automate database and is used by other scripts and monitors to determine the state of the machines in the ConnectWise environment.

File Hash​

File Path: C:\ProgramData\_automation\Script\Get-CWControlAgentSession\Get-CWControlAgentSession-AI.ps1
File Hash (Sha256): 95CEEF57C9C2D2B24ED0C620328EDC506DBEEE0518DAE0742A313EAE3BBFDE69
File Hash (MD5): AC13C1EB0C924D865DE95A4142AE1DAC
File Path: C:\ProgramData\_automation\Script\Get-CWControlAgentSession\Get-CWControlAgentSession.ps1
File Hash (Sha256): CA23BBB99EE98806C16FD28A24022B912249536466CB078A0EC37023A1789358
File Hash (MD5): 6EC5B4A08FB14A5DF47DD5482F578859
File Path: C:\ProgramData\_automation\Script\Get-CWControlAgentSession\Manage-OverFlowedVariable.ps1
File Hash (Sha256): 79B76E6780B61ED657C7FC07C5C0D9A0662165066D5BAD95D9D672513BADD674
File Hash (MD5): 12B41CDBC04010E638D3FFB8A4BDB1D6

Dependencies​

Requirements​

  1. ConnectWise Control must have the Automate extension installed and configured properly.
  2. ConnectWise Automate must have the ConnectWise Control plugin installed and configured properly.

Sample Run​

Intended Target: Any Windows machine. It is suggested to schedule the script to run twice per day against the Automate server if possible; otherwise, it can be scheduled against any Windows machine.

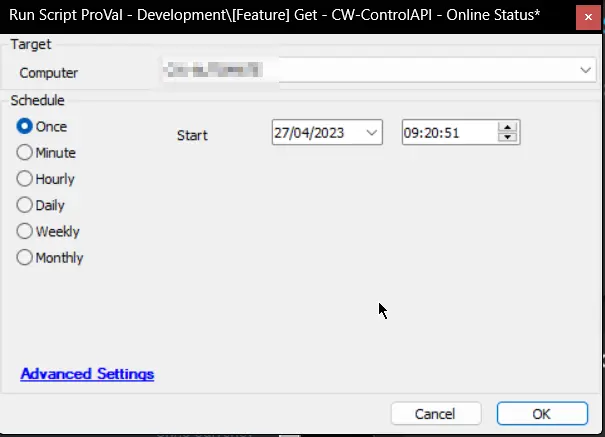

Sample Run

Variables​

Document the various variables in the script. Delete any section that is not relevant to your script.

NameDescription
TableNameThe name of the new table that will be created if it does not exist.
ServerThe queried server from the ConnectWise Control plugins configuration table.
TokenThe queried API key from the ConnectWise Control plugins configuration table.
IncludePropertyThe additional included item from the API call query set to Name.

Output​

  • Script log
  • Custom Table
