Validate TLS SSL Hardening

Overview​

This script validates that insecure protocols (SSL 3.0, TLS 1.0, TLS 1.1) and specified weak cipher suites are disabled at both the server and client levels on the system, while ensuring TLS 1.2 and TLS 1.3 are enabled when supported, providing a clear PASS/FAIL status without making any changes. The result can be stored in an UDF.

  • TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA384
  • TLS_RSA_WITH_AES_256_CBC_SHA256
  • TLS_RSA_WITH_AES_256_GCM_SHA384
  • TLS_RSA_WITH_AES_128_CBC_SHA256
  • TLS_RSA_WITH_AES_128_GCM_SHA256
  • TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA256

Implementation​

  1. Download the component from the datto-rmm repository: Validate TLS SSL Hardening

  2. After downloading the file, click on the Import button in the Datto RMM interface.

  3. Select the component just downloaded and add it to the Datto RMM interface.
    Image 1

  4. After Importing the component to the Datto RMM, make sure to add the component to the PVAL Group always.

    • Steps to Add the component under PVAL Group.
      i. Click on Drop Down Icon.
      ii. Click on Add to Group.
      Image 4

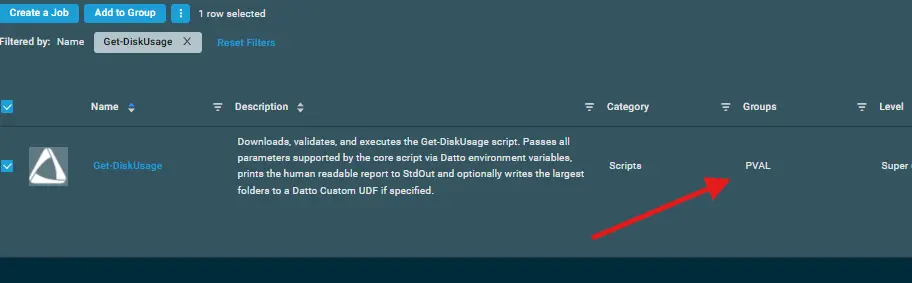

      iii. Select the group as PVAL
      Image 5

Sample Run​

To execute the component over a specific machine, follow these steps:

  1. Select the machine you want to run the component on from the Datto RMM.

  2. Click on the Quick Job button.
    Image 2

  3. Search the component Validate TLS SSL Hardening and click on Select
    Image 3

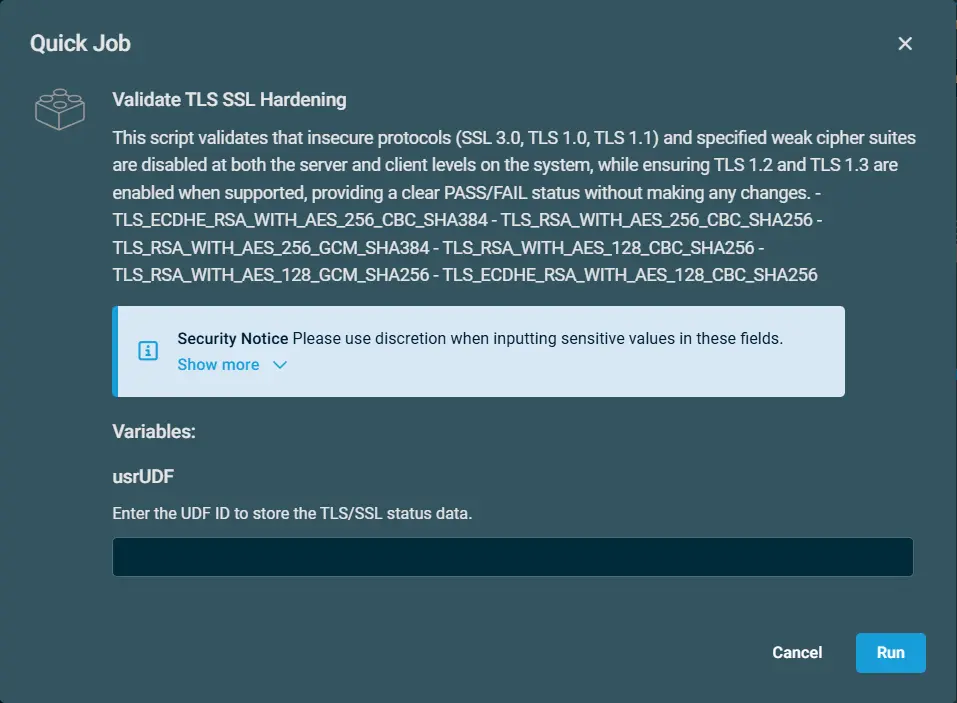

  4. Click on Run to execute the script:

Datto Variables​

Variable NameTypeDefaultDescription
usrUDFString-Enter the UDF ID to store the TLS/SSL status data

Output​

  • stdOut
  • stdError

Attachments​

Changelog​

2026-09-29​

  • Updated the script to store the SSL/TLS status to a UDF.

2026-09-16​

  • Initial version of the document
