Sysmon

Summary​

This solution handles the optional application Sysmon.

Base Scripts:​

  1. Install Sysmon application
  2. Uninstall Sysmon application

Optional Script Enhancement Suggestions:​

  1. Monitor Configuration

Intended Target: Windows Computers

Install Sysmon on an Endpoint (Sysmon - Install)​

  1. Import the Sysmon Install Script.
  2. Set the optional config file as a user parameter, or leave it blank if you do not have a specified config file.

Image or Image

Uninstall Sysmon From an Endpoint (Sysmon - Uninstall)​

  1. Import the Sysmon Uninstall Script.
  2. Run the script.


Optional Script Enhancement Suggestions​

  1. Service Monitor
    1. Sysmon64 - 64-bit service
    2. Sysmon - 32-bit service

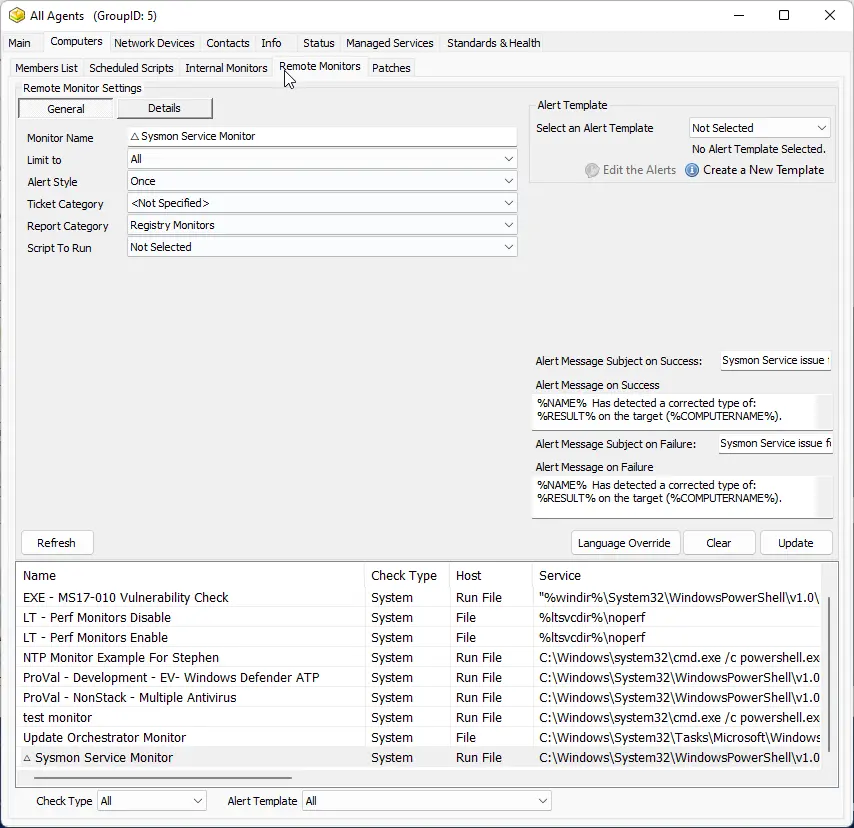

  2. Pick an appropriate group that you would like to monitor for Sysmon services and set up a remote monitor.
    1. Name: △ Sysmon Service Monitor
    2. Limit to: Feel free to add a limit if desired.
    3. Alert style: Once
    4. Alert Template: Service - Restart autocorrect script template.
    5. Check Action: System
    6. Check Type: Run File
    7. Execute Info: C:/Windows/System32/WindowsPowerShell/v1.0/powershell.exe -ExecutionPolicy Bypass -Command "If ((Get-Service | Where-Object -Property Name -Match 'Sysmon').count -eq 0) {return} else { Get-Service | Where-Object -Property Name -Match 'Sysmon' | ForEach-Object { if ($_.status -ne 'Running') { return $_.DisplayName; } else { return } } }"
    8. Condition: Missing
    9. Interval: 300

Image Image

Variables​

Sysmon - Install​

NameDescription
Local File LocationThe folder location of where the config file and the zip file will be downloaded.
Sysmon File NameThe name of the Sysmon executable file (changes based on bitness).
Command ArgumentsThe arguments that follow the installation command when installing or uninstalling the application.
ExtractResultOutcome of the PowerShell script downloading and extracting the Sysmon installer.
%Shellresult%Outcome of the Sysmon installation command.
Full CommandThe full command being run to install/uninstall the application.

Sysmon - Uninstall​

NameDescription
Local File LocationThe folder location of where the config file and the zip file will be downloaded.
Sysmon File NameThe name of the Sysmon executable file (changes based on bitness).
Command ArgumentsThe arguments that follow the installation command when installing or uninstalling the application.
Full CommandThe full command being run to install/uninstall the application.

Output​

  • Script log
