cPVAL DUO UAC_PROTECTMODE

Summary

0 to respect existing Duo authentication control around logon; 1 to Disable Duo at logon and only prompt during User Elevation; 2 to enforce Duo at logon and User Elevation

Details

Label	Field Name	Definition Scope	Type	Option Value	Default Value	Required	Technician Permission	Automation Permission	API Permission	Description	Tool Tip	Footer Text
cPVAL DUO UAC_PROTECTMODE	cpvalDuoUacprotectmode	Organization	drop-down	0, 1, 2	0	False	Editable	Read/Write	Read/Write	0 to respect existing Duo authentication control around logon; 1 to Disable Duo at logon and only prompt during User Elevation; 2 to enforce Duo at logon and User Elevation	Select the UAC Protect Mode. The default value is 0	DUO UAC_PROTECTMODE

Custom Field Creation

Step 1

Navigate to the Administration menu, then proceed to Devices and select Global Custom Fields.

Step 2

Locate the Add button on the right-hand side of the screen and click on it.

Step 3

After clicking the Add button, select the Field button that appears.

The following Pop-up screen will appear:

Step 4

Custom Field Type: Drop-down

Select Drop-down for the Custom field type and click Continue to proceed.

The following Pop-up screen will appear:

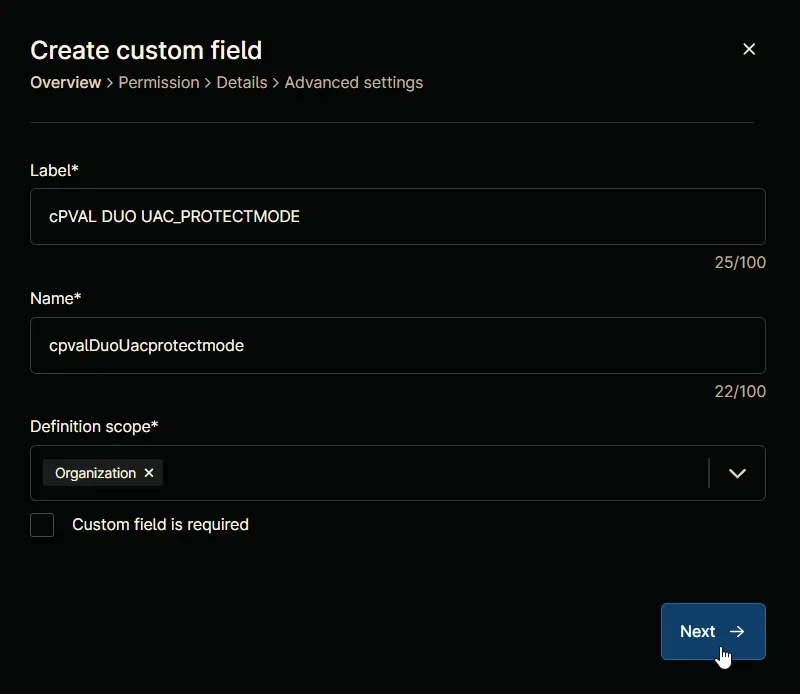

Step 5

Set the following details in the Overview section and click the Next button.

Label: cPVAL DUO UAC_PROTECTMODE
Name: cpvalDuoUacprotectmode
Definition Scope: Organization
Custom field is required: <Leave it unchecked>

Clicking the Next button will take you to the Permission section.

Step 6

Set the following details in the Permission section and click the Next button.

Technician: Editable
Automation: Read/Write
API: Read/Write

Clicking the Next button will take you to the details tab.

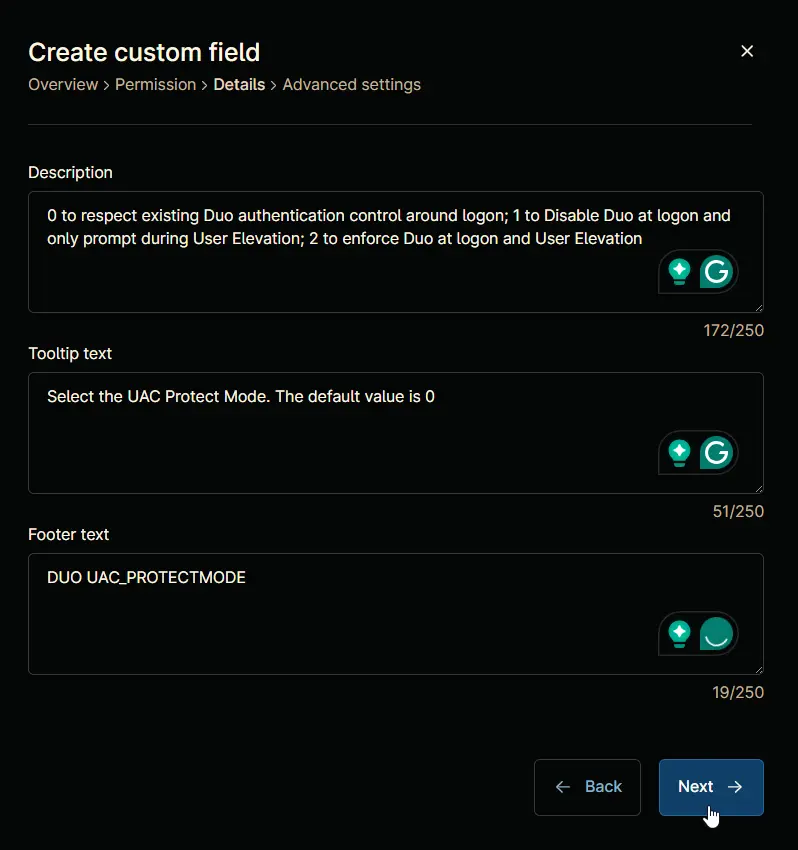

Step 7

Fill in the following information in the Details section and click the Next button.

Description: 0 to respect existing Duo authentication control around logon; 1 to Disable Duo at logon and only prompt during User Elevation; 2 to enforce Duo at logon and User Elevation
Tooltip Text: Select the UAC Protect Mode. The default value is 0
Footer Text: DUO UAC_PROTECTMODE

Clicking the Next button will take you to the Advanced Settings tab.

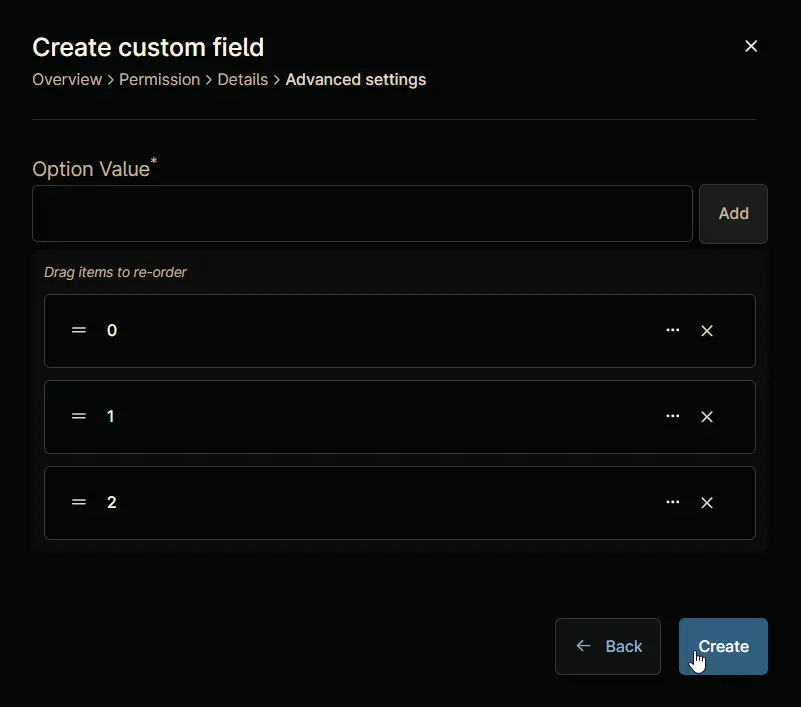

Step 8

Configure the following options in the specified order. To add an option, paste it and click the Add button:

• 0
• 1
• 2

Click the Create button to create the Custom Field.

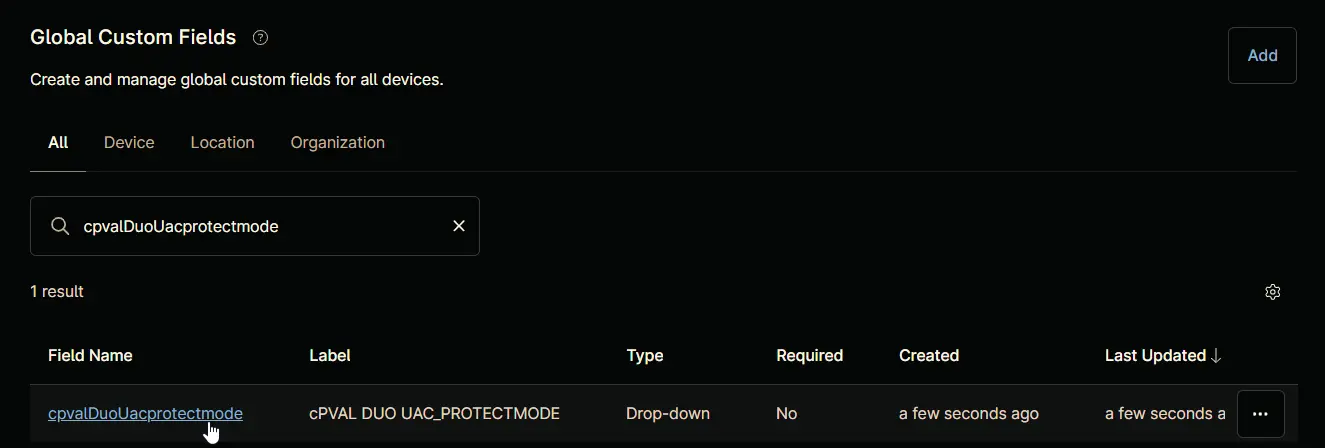

Completed Custom Field

Example
