Implement - Remote Monitor - HP Hardware Monitoring
Steps
1. Import the Alert Template
Import the Alert Template △ Custom - Ticket Creation Computer. The alert template should not be performing any action for the Warning state.
2. Validate the Script
Validate that the Script - Ticket Creation - Computer script was imported as well.
3. Run SQL Query
Run this SQL query from a RAWSQL monitor set to import the required search.
INSERT INTO `sensorchecks`
SELECT
'' as `SensID`,
'HP Servers' as `Name`,
'SELECT \n computers.computerid as `Computer Id`,\n computers.name as `Computer Name`,\n clients.name as `Client Name`,\n computers.domain as `Computer Domain`,\n computers.username as `Computer User`,\n IF(INSTR(computers.os, \'server\')>0, 1, 0) as `Computer.OS.IsServer`,\n Computers.BiosMFG as `Computer.Hardware.Manufacturer`\nFROM Computers \nLEFT JOIN inv_operatingsystem ON (Computers.ComputerId=inv_operatingsystem.ComputerId)\nLEFT JOIN Clients ON (Computers.ClientId=Clients.ClientId)\nLEFT JOIN Locations ON (Computers.LocationId=Locations.LocationID)\n WHERE \n((((IF(INSTR(computers.os, \'server\')>0, 1, 0)<>0) AND (((Instr(Computers.BiosMFG,\'HPE\') > 0) OR (Instr(Computers.BiosMFG,\'Hewlett-Packard\') > 0))))))\n' as `SQL`,
'4' as `QueryType`,
'READONLY' as `ListData`,
'3' as `FolderID`,
'f96d2c44-49a1-11e0-8c4a-0050568b7d1e' as `GUID`,
'<LabTechAbstractSearch><asn><st>AndNode</st><cn><asn><st>AndNode</st><cn><asn><st>ComparisonNode</st><lon>Computer.OS.IsServer</lon><lok>Computer.OS.IsServer</lok><lmo>IsTrue</lmo><dv>NULL</dv><dk>NULL</dk></asn><asn><st>OrNode</st><cn><asn><st>ComparisonNode</st><lon>Computer.Hardware.Manufacturer</lon><lok>Computer.Hardware.Manufacturer</lok><lmo>Contains</lmo><dv>HPE</dv><dk>HPE</dk></asn><asn><st>ComparisonNode</st><lon>Computer.Hardware.Manufacturer</lon><lok>Computer.Hardware.Manufacturer</lok><lmo>Contains</lmo><dv>Hewlett-Packard</dv><dk>Hewlett-Packard</dk></asn></cn></asn></cn></asn></cn></asn></LabTechAbstractSearch>' as `SearchXML`,
(NULL) as `UpdatedBy`,
(NULL) as `UpdateDate`
FROM (SELECT MIN(computerid) FROM computers) a
WHERE (SELECT count(*) FROM SensorChecks where `GUID` = 'f96d2c44-49a1-11e0-8c4a-0050568b7d1e') = 0;
4. Obtain Group IDs
Obtain the groupid(s) of the group(s) that the remote monitor should be applied to.
5. Copy and Modify Query
Copy the following query and replace YOUR COMMA SEPARATED LIST OF GROUPID(S) with the groupid(s) of the relevant groups. (The string to replace can be found at the very bottom of the query, right after WHERE).
Set @searchid = (SELECT sensid FROM sensorchecks WHERE `GUID` = 'f96d2c44-49a1-11e0-8c4a-0050568b7d1e');
INSERT INTO groupagents
SELECT '' as `AgentID`,
`groupid` as `GroupID`,
@searchid as `SearchID`,
'ProVal - Production - HP Hardware Monitoring' as `Name`,
'6' as `CheckAction`,
'1' as `AlertAction`,
'HP Event Log Errors Detected on %CLIENTNAME%\\%COMPUTERNAME%~~~No HP Hardware alerts have been detected in the last 60 minutes.!!!HP Event Log Errors Detected on %CLIENTNAME%\\%COMPUTERNAME%~~~HP Hardware Monitoring has detected an issue with %Computername% at %clientname%. The message details are outlined below: /r/n/r/n%RESULT%' as `AlertMessage`,
'0' as `ContactID`,
'3600' as `interval`,
'127.0.0.1' as `Where`,
'7' as `What`,
'C:\\Windows\\System32\\WindowsPowerShell\\v1.0\\powershell.exe -ExecutionPolicy Bypass -Command "$ErroractionPreference= \'SilentlyContinue\'; $startTime = (Get-Date).AddMinutes(-60) ;$excludeMessages=\'Connectivity has been lost for the NIC|SNMP trap to the Compaq Remote Insight Board trap due to processing error|A network interface has failed|HP WBEM data was captured|Network Adapter Link\'; $providers = \'Smart Array Events|Storage Agents|Server Agents|Nic Agents|hp|Cissesrv|HPE\'; Get-WinEvent -FilterHashTable @{Logname = \'Application\',\'System\'; StartTime = $StartTime; Level = 1,2 } | Where-Object { $_.ProviderName -match $Providers -and $_.message -notmatch $excludeMessages } | Select-Object Id, TimeCreated, LogName, ProviderName, LevelDisplayName, Message | Group-Object -Property Id | Sort-Object -Property Count -Descending | Select-Object -Property count, group | Foreach-Object {$mostrecent = $_.Group | Sort-Object -Property TimeCreated -Descending | Select-Object -First 1; [pscustomobject]@{Occurrences=$_.Count; EventID=$mostrecent.id; Logname=$Mostrecent.Logname; Source=$MostRecent.ProviderName; MostRecentDate=$mostrecent.TimeCreated; Level=$Mostrecent.LevelDisplayName; Message = $MostRecent.Message }}"' as `DataOut`,
'16' as `Comparor`,
'10|((^((OK){0,}(\\r\\n){0,}[\\r\\n]{0,}\\s{0,})$)%7C(^$))|11|((^((OK){0,}(\\r\\n){0,}[\\r\\n]{0,}\\s{0,})$)%7C(^$))%7C(^((\\r\\n){0,}[\\r\\n]{0,}\\s{0,})Occurrences)|10|^((\\r\\n){0,}[\\r\\n]{0,}\\s{0,})Occurrences' as `DataIn`,
'' as `IDField`,
'1' as `AlertStyle`,
'0' as `ScriptID`,
'' as `datacollector`,
'21' as `Category`,
'0' as `TicketCategory`,
'1' as `ScriptTarget`,
UUID() as `GUID`,
'root' as `UpdatedBy`,
(NOW()) as `UpdateDate`
FROM mastergroups m
WHERE m.groupid IN (YOUR COMMA SEPARATED LIST OF GROUPID(S))
AND m.groupid NOT IN (SELECT DISTINCT groupid FROM groupagents WHERE `Name` = 'ProVal - Production - HP Hardware Monitoring')
6. Example Query
An example of the query with groupids and modified thresholds.
Set @searchid = (SELECT sensid FROM sensorchecks WHERE `GUID` = 'f96d2c44-49a1-11e0-8c4a-0050568b7d1e');
INSERT INTO groupagents
SELECT '' as `AgentID`,
`groupid` as `GroupID`,
@searchid as `SearchID`,
'ProVal - Production - HP Hardware Monitoring' as `Name`,
'6' as `CheckAction`,
'1' as `AlertAction`,
'HP Event Log Errors Detected on %CLIENTNAME%\\%COMPUTERNAME%~~~No HP Hardware alerts have been detected in the last 60 minutes.!!!HP Event Log Errors Detected on %CLIENTNAME%\\%COMPUTERNAME%~~~HP Hardware Monitoring has detected an issue with %Computername% at %clientname%. The message details are outlined below: /r/n/r/n%RESULT%' as `AlertMessage`,
'0' as `ContactID`,
'3600' as `interval`,
'127.0.0.1' as `Where`,
'7' as `What`,
'C:\\Windows\\System32\\WindowsPowerShell\\v1.0\\powershell.exe -ExecutionPolicy Bypass -Command "$ErroractionPreference= \'SilentlyContinue\'; $startTime = (Get-Date).AddMinutes(-60) ;$excludeMessages=\'Connectivity has been lost for the NIC|SNMP trap to the Compaq Remote Insight Board trap due to processing error|A network interface has failed|HP WBEM data was captured|Network Adapter Link\'; $providers = \'Smart Array Events|Storage Agents|Server Agents|Nic Agents|hp|Cissesrv|HPE\'; Get-WinEvent -FilterHashTable @{Logname = \'Application\',\'System\'; StartTime = $StartTime; Level = 1,2 } | Where-Object { $_.ProviderName -match $Providers -and $_.message -notmatch $excludeMessages } | Select-Object Id, TimeCreated, LogName, ProviderName, LevelDisplayName, Message | Group-Object -Property Id | Sort-Object -Property Count -Descending | Select-Object -Property count, group | Foreach-Object {$mostrecent = $_.Group | Sort-Object -Property TimeCreated -Descending | Select-Object -First 1; [pscustomobject]@{Occurrences=$_.Count; EventID=$mostrecent.id; Logname=$Mostrecent.Logname; Source=$MostRecent.ProviderName; MostRecentDate=$mostrecent.TimeCreated; Level=$Mostrecent.LevelDisplayName; Message = $MostRecent.Message }}"' as `DataOut`,
'16' as `Comparor`,
'10|((^((OK){0,}(\\r\\n){0,}[\\r\\n]{0,}\\s{0,})$)%7C(^$))|11|((^((OK){0,}(\\r\\n){0,}[\\r\\n]{0,}\\s{0,})$)%7C(^$))%7C(^((\\r\\n){0,}[\\r\\n]{0,}\\s{0,})Occurrences)|10|^((\\r\\n){0,}[\\r\\n]{0,}\\s{0,})Occurrences' as `DataIn`,
'' as `IDField`,
'1' as `AlertStyle`,
'0' as `ScriptID`,
'' as `datacollector`,
'21' as `Category`,
'0' as `TicketCategory`,
'1' as `ScriptTarget`,
UUID() as `GUID`,
'root' as `UpdatedBy`,
(NOW()) as `UpdateDate`
FROM mastergroups m
WHERE m.groupid IN (678, 536)
AND m.groupid NOT IN (SELECT DISTINCT groupid FROM groupagents WHERE `Name` = 'ProVal - Production - HP Hardware Monitoring')

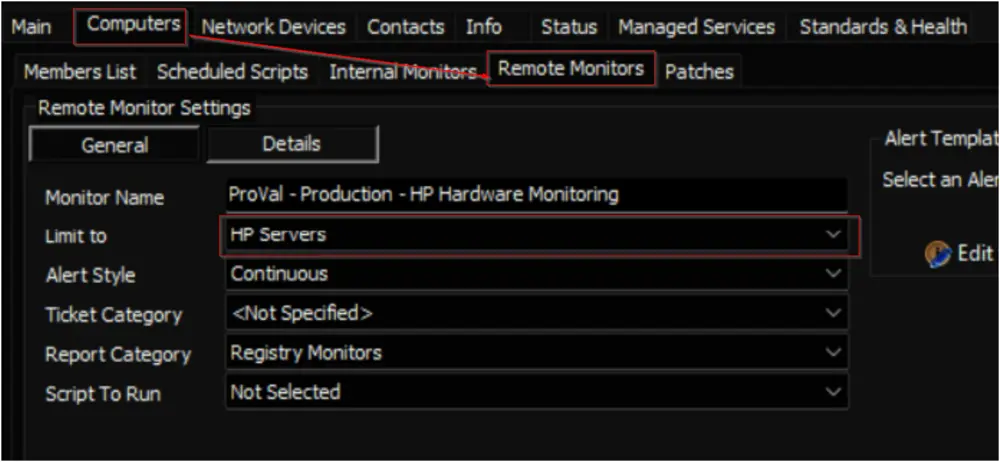

7. Verify Monitor Set
Check the concerned groups to ensure the monitor set is created and configured with the correct search.
Limit to: HP Servers
8. Set Alert Template
Set the appropriate alert template.
