Enhanced Drive Space Monitoring
Summary
Target group for the Enhanced Drive Space Monitoring automation. Includes all servers and workstations explicitly opted-in through hierarchical custom fields.
Dependencies
- Custom Field: EDSM_Enable_Svr
- Custom Field: EDSM_Enable_Wks
- Custom Field: EDSM_Enable_Svr_Site
- Custom Field: EDSM_Enable_Wks_Site
- Custom Field: EDSM_Enable
- Solution: Enhanced Drive Space Monitoring
Group Setup Location
- Group Path:
ENDPOINTS➞Groups - Group Type:
Dynamic Group

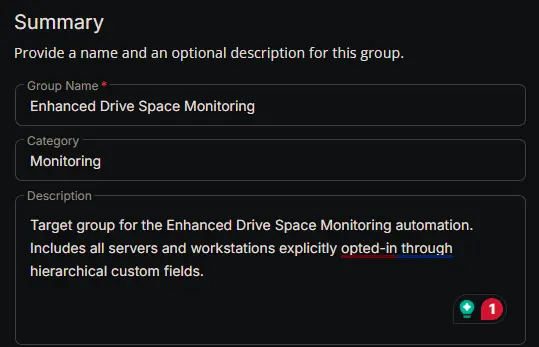

Group Summary
- Group Name:
Enhanced Drive Space Monitoring - Category:
Monitoring - Description:
Target group for the Enhanced Drive Space Monitoring automation. Includes all servers and workstations explicitly opted-in through hierarchical custom fields.

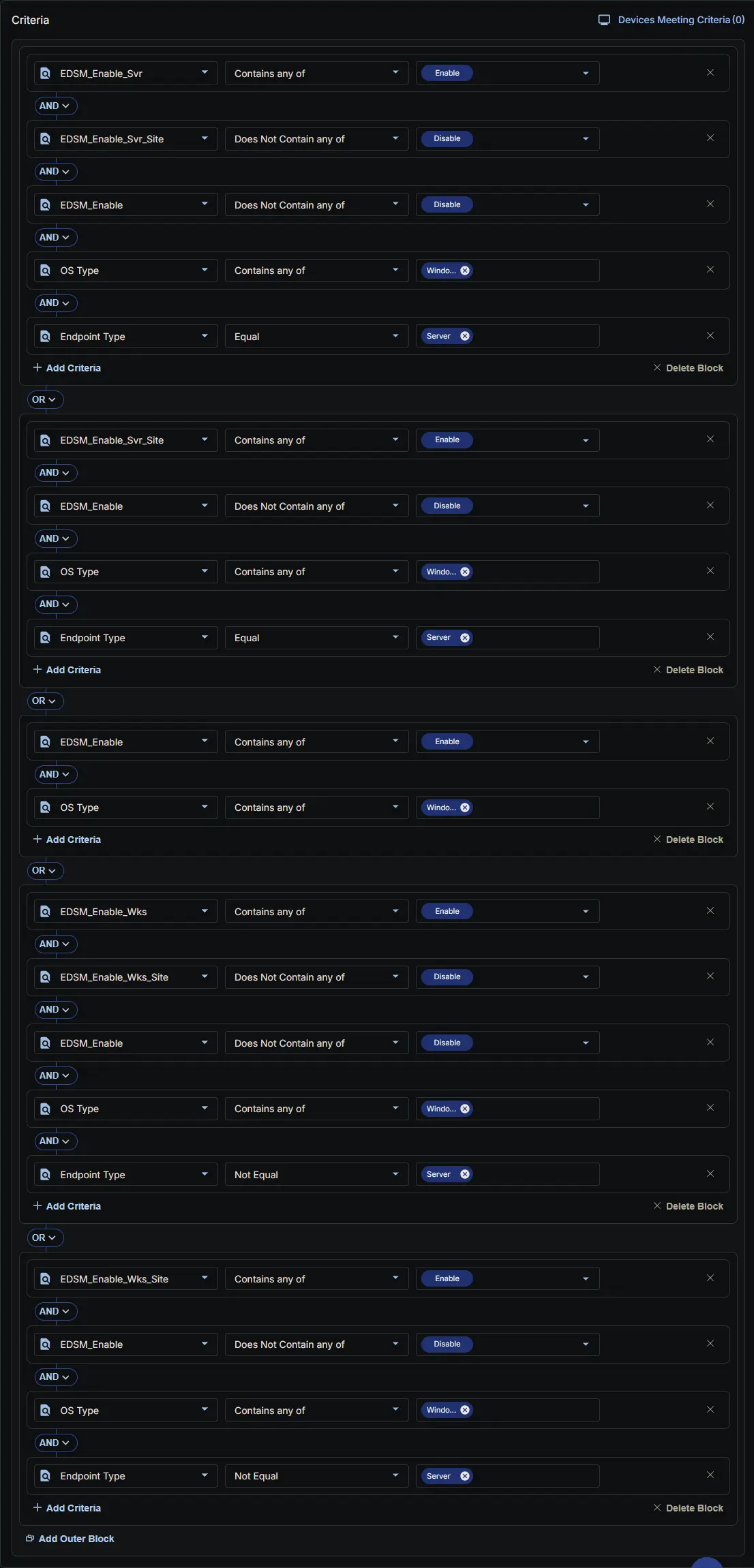

Criteria
The group is defined by the following criteria blocks, joined by an OR. Each block uses AND logic between its conditions.
| Block | Criteria Name | Operator | Value(s) |
|---|---|---|---|
| 1 | EDSM_Enable_Svr | Contains any of | Enable |
| 1 | EDSM_Enable_Svr_Site | Does Not Contain any of | Disable |
| 1 | EDSM_Enable | Does Not Contain any of | Disable |
| 1 | OS Type | Contains any of | Windows |
| 1 | Endpoint Type | Equal | Server |
| 2 | EDSM_Enable_Svr_Site | Contains any of | Enable |
| 2 | EDSM_Enable | Does Not Contain any of | Disable |
| 2 | OS Type | Contains any of | Windows |
| 2 | Endpoint Type | Equal | Server |
| 3 | EDSM_Enable | Contains any of | Enable |
| 3 | OS Type | Contains any of | Windows |
| 4 | EDSM_Enable_Wks | Contains any of | Enable |
| 4 | EDSM_Enable_Wks_Site | Does Not Contain any of | Disable |
| 4 | EDSM_Enable | Does Not Contain any of | Disable |
| 4 | OS Type | Contains any of | Windows |
| 4 | Endpoint Type | Not Equal | Server |
| 5 | EDSM_Enable_Wks_Site | Contains any of | Enable |
| 5 | EDSM_Enable | Does Not Contain any of | Disable |
| 5 | OS Type | Contains any of | Windows |
| 5 | Endpoint Type | Not Equal | Server |
- Block 1: Targets Windows Servers where the primary server setting (EDSM_Enable_Svr) is enabled, provided that the feature has not been explicitly disabled at the site level (EDSM_Enable_Svr_Site) or the individual endpoint level (EDSM_Enable).
- Block 2: Targets Windows Servers where the site-level server setting (EDSM_Enable_Svr_Site) is explicitly enabled, provided that it has not been overridden and disabled at the individual endpoint level (EDSM_Enable).
- Block 3: Targets Any Windows Device (Server or Workstation) where the feature is explicitly enabled directly at the individual endpoint level (EDSM_Enable).
- Block 4: Targets Windows Workstations (devices not equal to "Server") where the primary workstation setting (EDSM_Enable_Wks) is enabled, provided that the feature has not been explicitly disabled at the site level (EDSM_Enable_Wks_Site) or the individual endpoint level (EDSM_Enable).
- Block 5: Targets Windows Workstations (devices not equal to "Server") where the site-level workstation setting (EDSM_Enable_Wks_Site) is explicitly enabled, provided that it has not been overridden and disabled at the individual endpoint level (EDSM_Enable).
Logic:
A machine matches the group if it meets ALL criteria in Block 1, OR ALL criteria in Block 2, OR ALL criteria in Block 3, OR ALL criteria in Block 4, OR ALL criteria in Block 5.

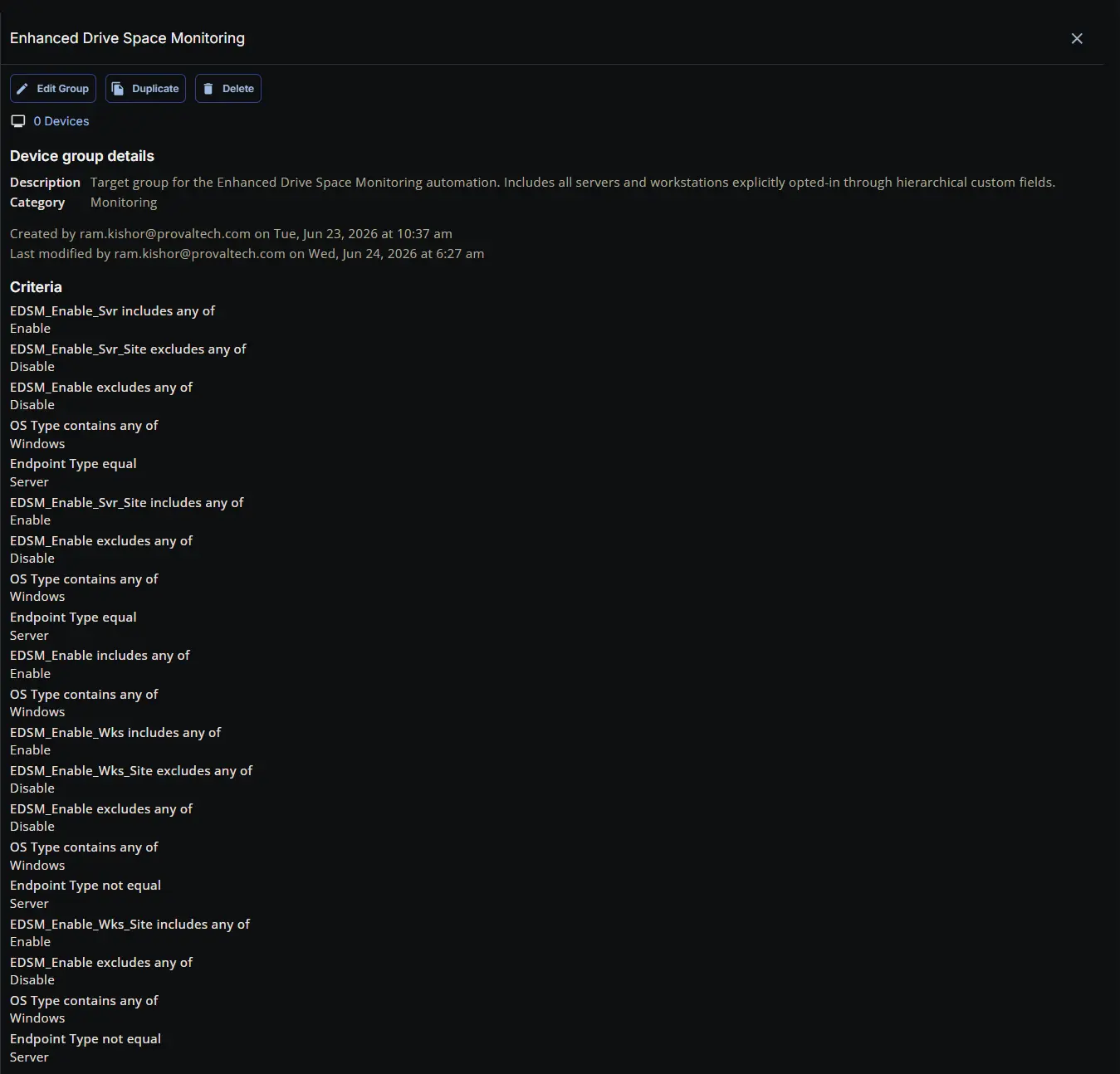

Completed Group
Changelog
2026-06-24
- Initial version of the document
