Summary

This report is used to show the out of compliance machine and OS build count. We have combined two reports into a single report.

1. Compliant Count
2. Win10 Out of Compliance

Dependencies

View: xpval OS Windows 10

Report Type

Report

Layout

List the report parts used. If custom report parts were designed during report creation, list their properties and attributes.

Compliant Count

• Report Parts Used

  • Audit

• Custom Report Part 1

  • Audit Template
  • Data Type: (table)
  • Columns: xPVAL OS Build, AgentGuid (Alias = Endpoints, Aggregate = COUNT)
  • Ordering and Grouping
    • Order By Columns (agentGuid, count, Descending)
    • Group By Columns
  • Filtering
    • Row Filter Settings (Distinct, Limit Types, Limit Values)
    • Date Filters
    • Advanced Filters (OS Information, Not Like, Server)
    • Advanced Filters (Operating System, Like, Windows)

List the report parts used. If custom report parts were designed during report creation, list their properties and attributes.

Win10 Out of Compliance

• Report Parts Used

  • Audit

• Custom Report Part 1

  • Audit Template
  • Data Type: (table)
  • Columns: Machine Id, Last Logged On User, xPVAL Org Name, xPVAL OS Build
  • Ordering and Grouping
    • Order By Columns (Group Name, None, Ascending)
    • Group By Columns (xPVAL Org Name)
  • Filtering
    • Row Filter Settings (Distinct, Limit Types, Limit Values)
    • Date Filters
    • Advanced Filters (OS Information, Not Like, Server)
    • Advanced Filters (Operating System, Like, 10)
    • Advanced Filters (xPVAL OS Build, Not Like, 19044)
    • Advanced Filters (xPVAL OS Build, Not Like, 190443)

General

• Report Format: (HTML)
• Paper Size
• Paper Orientation
• Custom Email Settings

Cover Page, Header, Footer

Header, footer

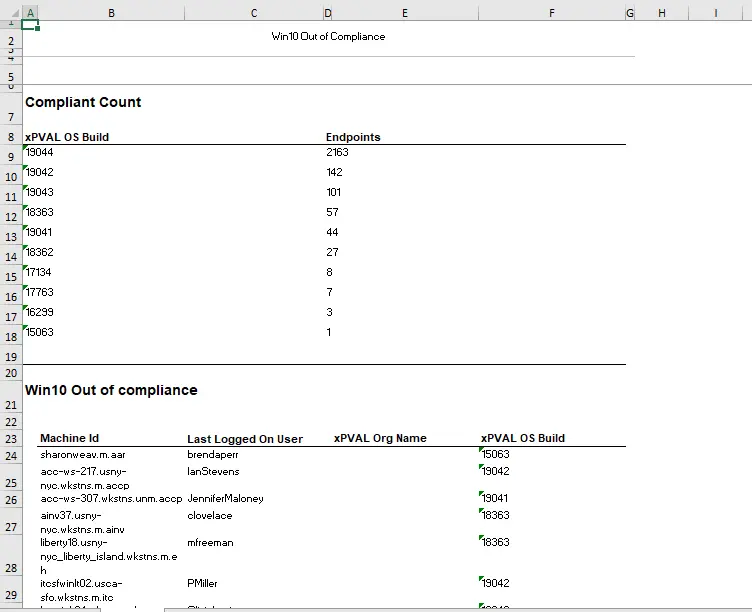

Sample Report

Export Attachment

Attach the export XML of the report to this document.

Attachments

out_of_complaince_report.xml Win10_Out_of_Compliance.xlsx
