Get Crystal Disk Info (Disk Health)

Summary

The script runs the Crystal Disk Info tool on the end machines and fetches the Disk Health. The data is then formatted and stored in CW RMM - Custom Field - Crystal Disk Info_Disk Health Custom Field for further auditing and monitoring purposes.

Output Syntax: Harddisk - \\<Model> (Drives: \\<Drive Letter(s)>): Health Status - \\<Status>

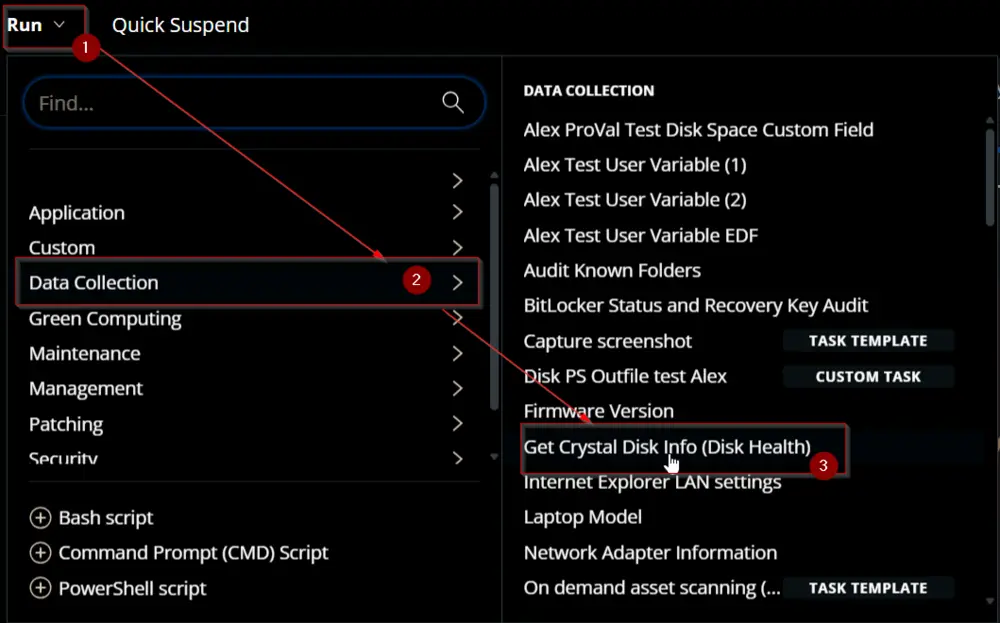

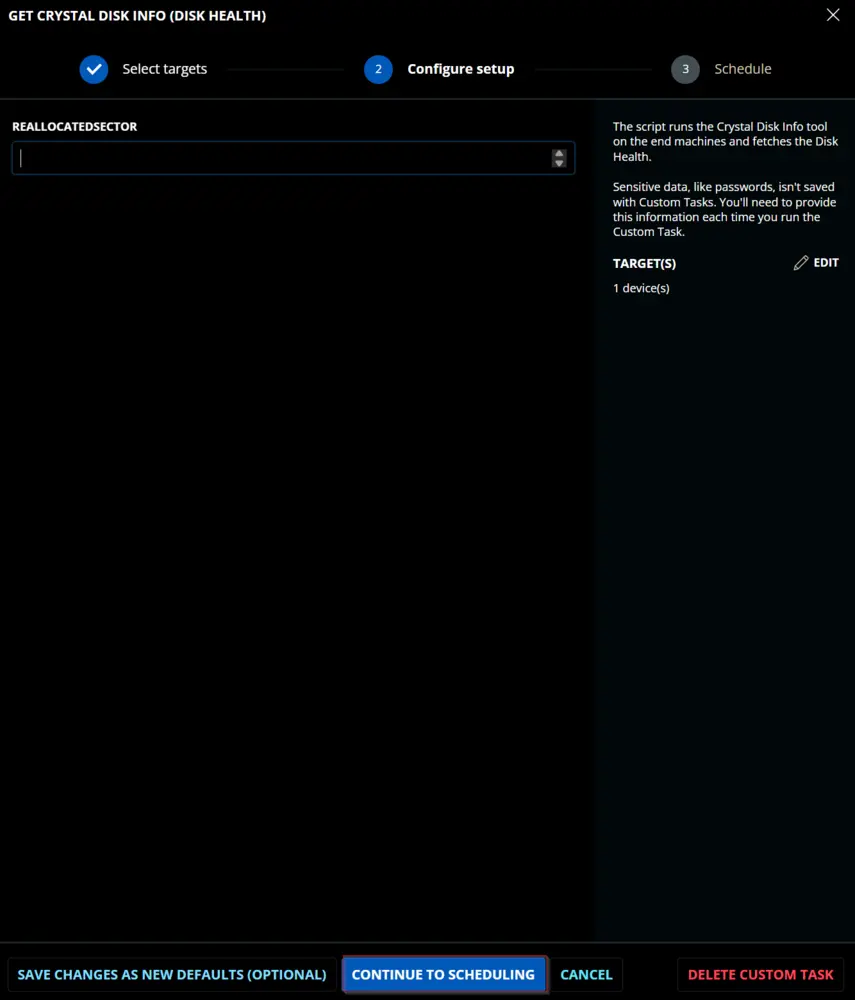

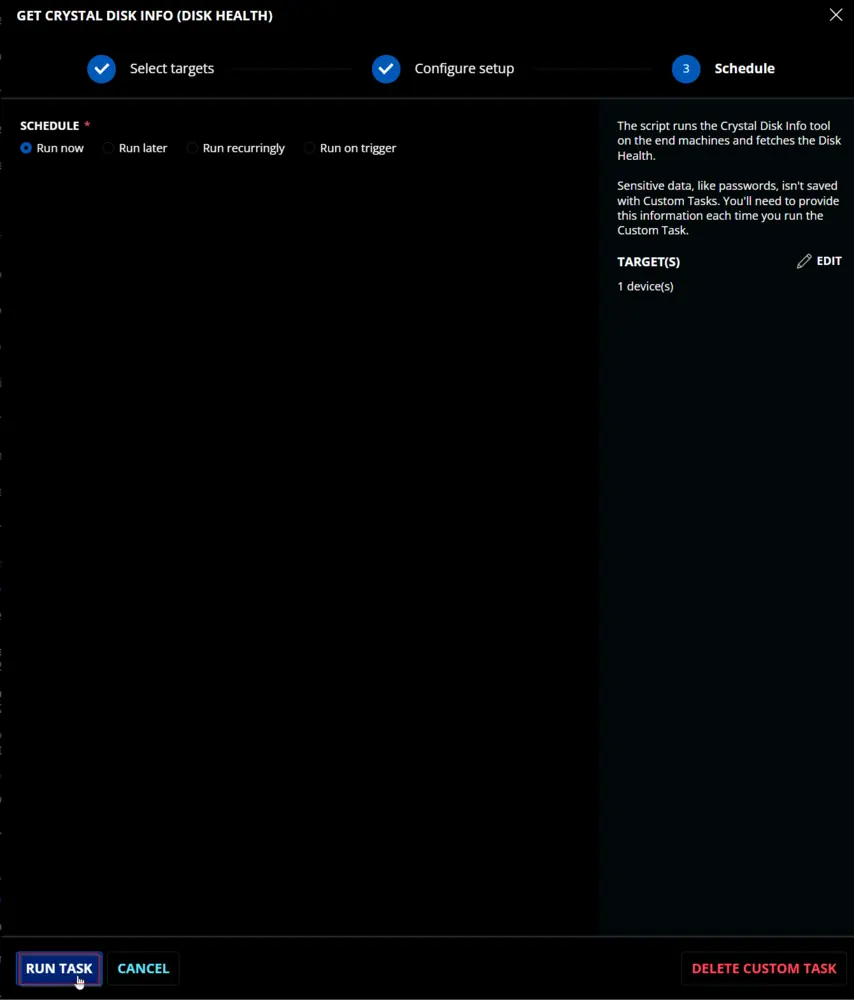

Sample Run

Dependencies

• CW RMM - Custom Field - Crystal Disk Info_Disk Health
• EPM - Disk - Agnostic - Get-CrystalDiskInfo

User Parameters

Name	Example	Required	Type	Description
ReallocatedSector	65	False	Number Value	The threshold for the number of reallocated sectors to mark an HDD as caution (not applicable to SSDs). The default threshold is 50.

Task Creation

Create a new Script Editor style script in the system to implement this task.

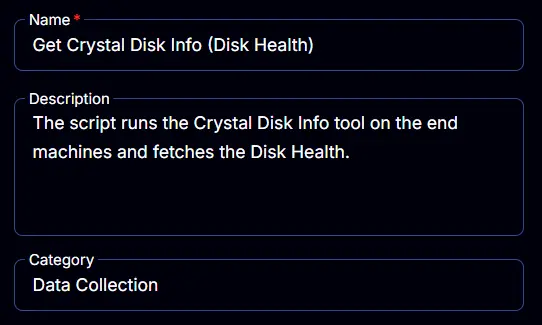

Name: Get Crystal Disk Info (Disk Health)
Description: The script runs the Crystal Disk Info tool on the end machines and fetches the Disk Health.
Category: Data Collection

Parameters

ReallocatedSector

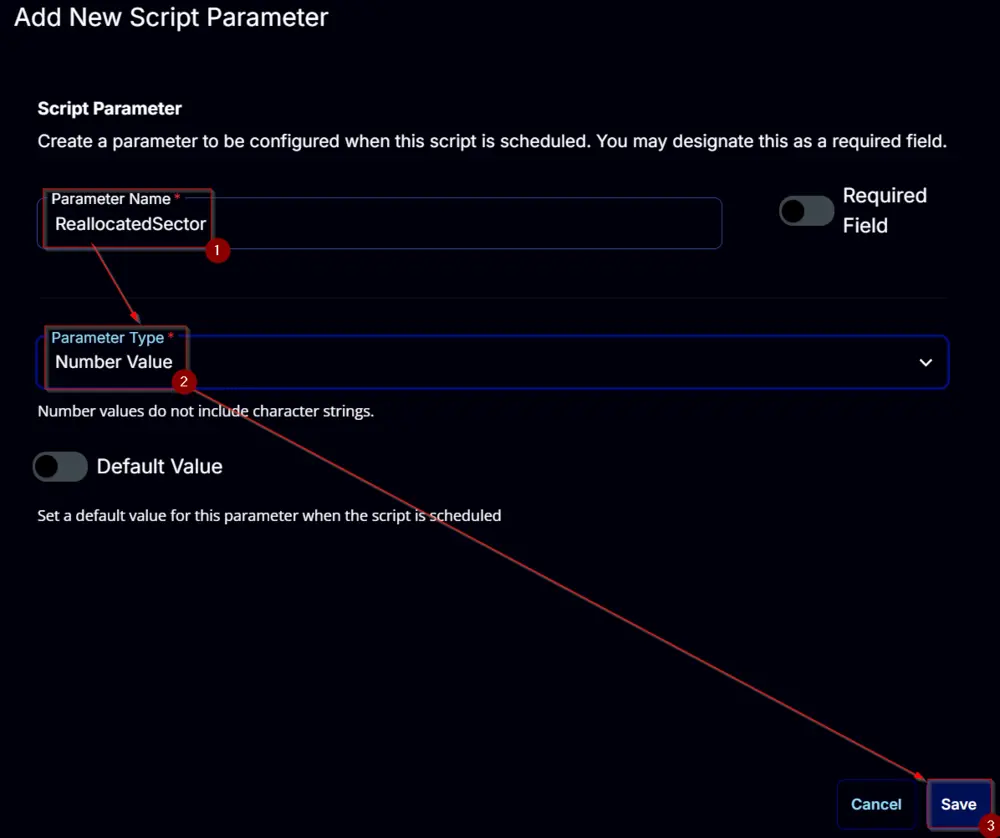

Add a new parameter by clicking the Add Parameter button present at the top-right corner of the screen.

This screen will appear.

• Set ReallocatedSector in the Parameter Name field.
• Select Number Value from the Parameter Type dropdown menu.
• Click the Save button.

Task

Navigate to the Script Editor section and start by adding a row. You can do this by clicking the Add Row button at the bottom of the script page.

A blank function will appear.

Row 1 Function: PowerShell Script

Search and select the PowerShell Script function.

The following function will pop up on the screen:

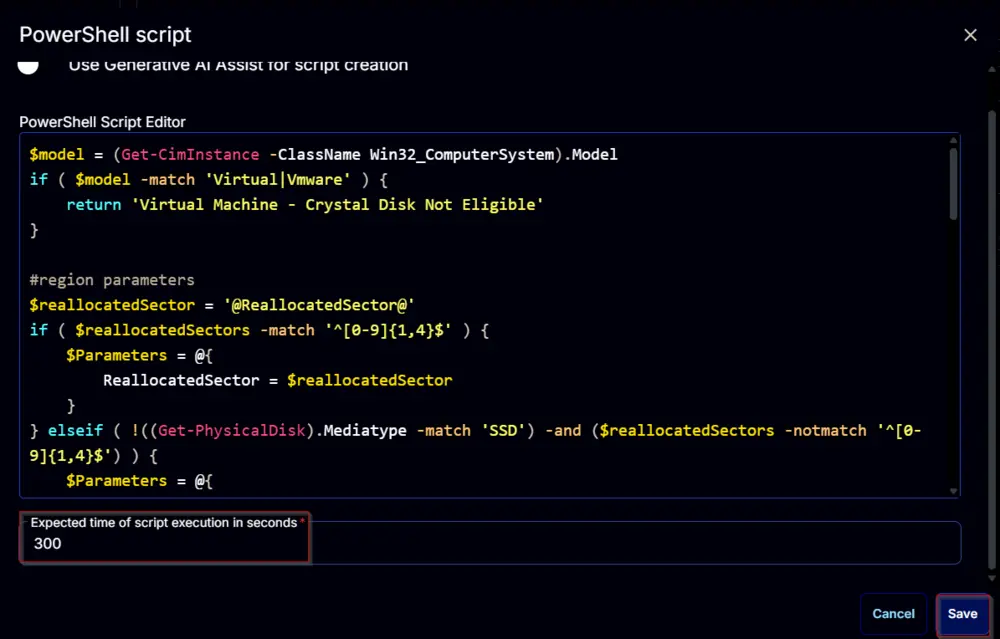

Paste in the following PowerShell script and set the Expected time of script execution in seconds to 300 seconds. Click the Save button.

$model = (Get-CimInstance -ClassName Win32_ComputerSystem).Model
if ( $model -match 'Virtual|Vmware' ) {
    return 'Virtual Machine - Crystal Disk Not Eligible'
}
#region parameters
$reallocatedSector = '@ReallocatedSector@'
if ( $reallocatedSectors -match '^[0-9]{1,4}$' ) {
    $Parameters = @{
        ReallocatedSector = $reallocatedSector
    }
} elseif ( !((Get-PhysicalDisk).Mediatype -match 'SSD') -and ($reallocatedSectors -notmatch '^[0-9]{1,4}$') ) {
    $Parameters = @{
        ReallocatedSector = 50
    }
}
#region Setup - Variables
$ProjectName = 'Get-CrystalDiskInfo'
[Net.ServicePointManager]::SecurityProtocol = [enum]::ToObject([Net.SecurityProtocolType], 3072)
$BaseURL = 'https://file.provaltech.com/repo'
$PS1URL = "$BaseURL/script/$ProjectName.ps1"
$WorkingDirectory = "C:\ProgramData\_automation\script\$ProjectName"
$PS1Path = "$WorkingDirectory\$ProjectName.ps1"
$WorkingPath = $WorkingDirectory
$LogPath = "$WorkingDirectory\$ProjectName-log.txt"
$ErrorLogPath = "$WorkingDirectory\$ProjectName-Error.txt"
#endregion
#region Setup - Folder Structure
New-Item -Path $WorkingDirectory -ItemType Directory -ErrorAction SilentlyContinue | Out-Null
$response = Invoke-WebRequest -Uri $PS1URL -UseBasicParsing
if (($response.StatusCode -ne 200) -and (!(Test-Path -Path $PS1Path))) {
    throw "No pre-downloaded script exists and the script '$PS1URL' failed to download. Exiting."
} elseif ($response.StatusCode -eq 200) {
    Remove-Item -Path $PS1Path -ErrorAction SilentlyContinue
    [System.IO.File]::WriteAllLines($PS1Path, $response.Content)
}
if (!(Test-Path -Path $PS1Path)) {
    throw 'An error occurred and the script was unable to be downloaded. Exiting.'
}
#endregion
#region Execution
if ($Parameters) {
    $disks = & $PS1Path @Parameters
} else {
    $disks = & $PS1Path
}
#endregion
if ( !(Test-Path $LogPath) ) {
    throw 'PowerShell Failure. A Security application seems to have restricted the execution of the PowerShell Script.'
}
if ( $disks ) {
    $op = @()
    foreach ( $disk in $disks ) {
        $op += "Harddisk - $($disk.Model)$(if($disk.'Drive Letter' -match '[A-z]'){' (Drive Letter: ' + $disk.'Drive Letter' + ')'}): Health Status - $($disk.'Health Status')"
    }
    return $op -join '\|'
}
if ( Test-Path $ErrorLogPath ) {
    $ErrorContent = ( Get-Content -Path $ErrorLogPath )
    throw $ErrorContent
}

Row 2 Function: Script Log

Add a new row by clicking the Add Row button.

A blank function will appear.

Search and select the Script Log function.

The following function will pop up on the screen:

In the script log message, simply type %output% and click the Save button.

Row 3 Function: Set Custom Field

Add a new row by clicking the Add Row button.

A blank function will appear.

Search and select the Set Custom Field function.

The following function will pop up on the screen:

• Search and select the Computer-Level Custom Field Crystal Disk Info_Disk Health from the Custom Field dropdown menu.
• Set %Output% in the Value field.
• Click the Save button.

Click the Save button at the top-right corner of the screen to save the script.

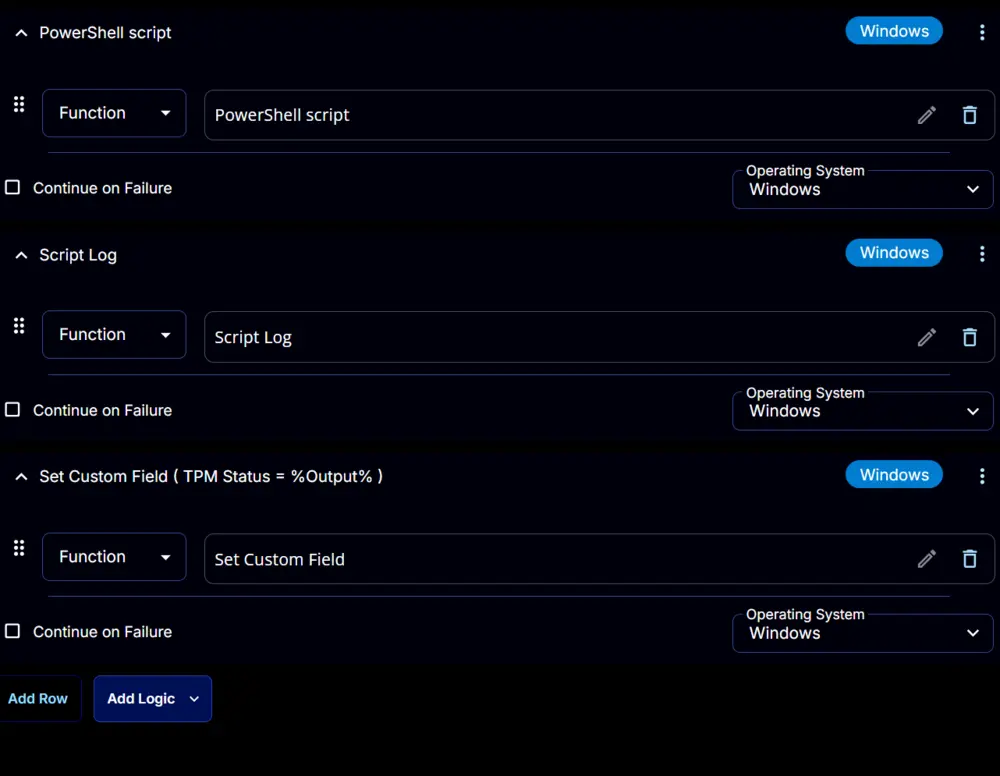

Completed Script

Deployment

It is suggested to run the task once per week against Windows computers.

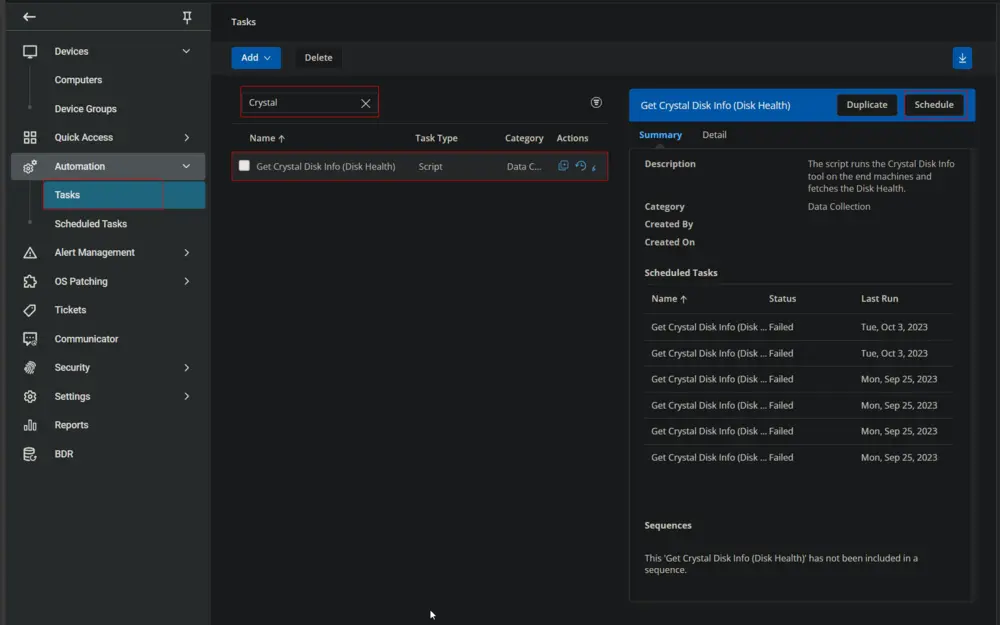

• Go to Automation > Tasks.
• Search for the Crystal Disk Info Task.
• Select the concerned task.

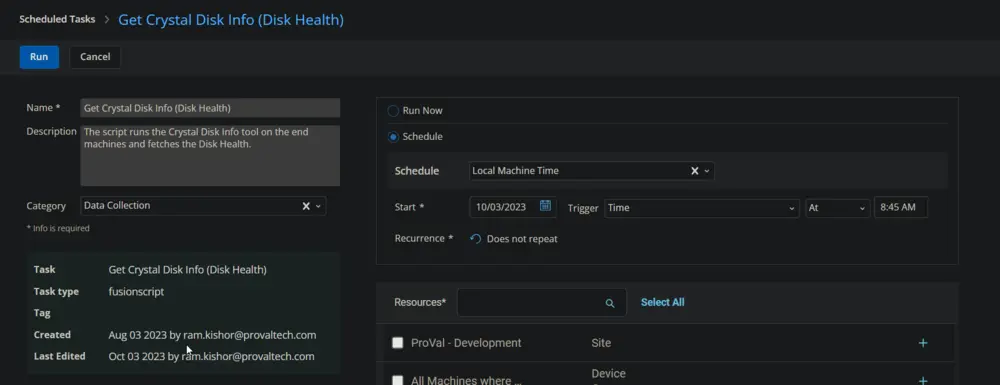

• Click on the Schedule button to schedule the task/script.


This screen will appear.

• Select the relevant time to run the script and click the "Does not repeat" button.


This pop-up box will appear.

• Change the number of days to 7 and click OK.

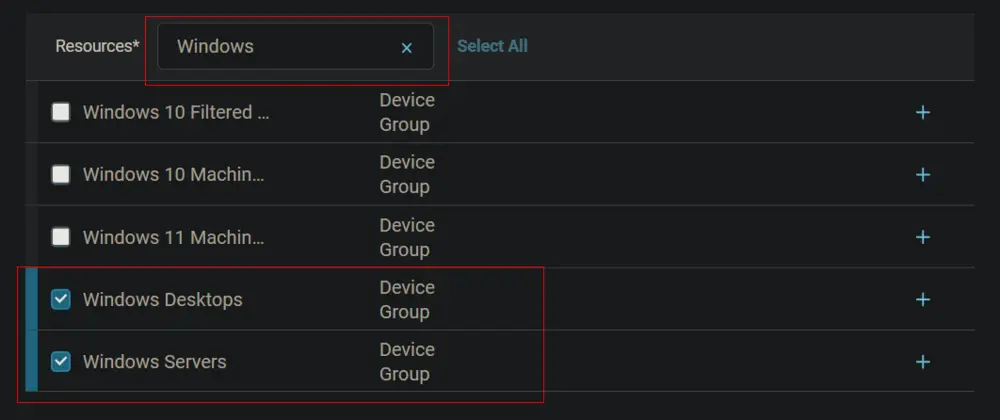

• Search for windows in the Resources* and select Windows Desktops and Windows Servers groups. You can search and select any relevant group you would like to schedule the task against.


• Now click the Run button to initiate the task.

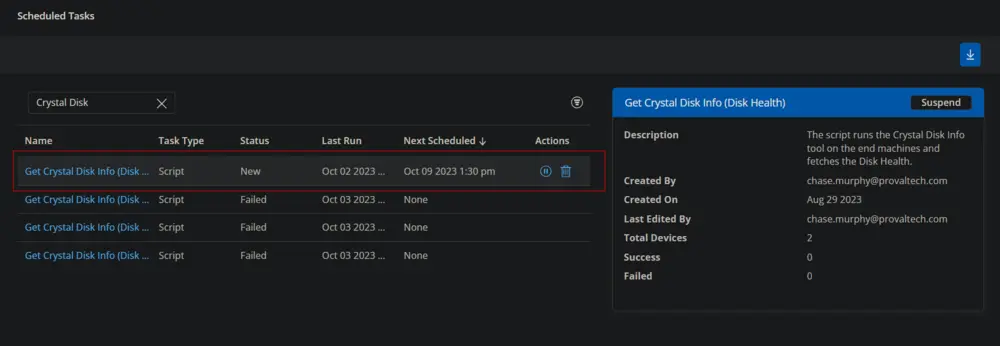

• The task will start appearing in the Scheduled Tasks.



Output

• Script log

• Custom Field
