TPM Status

Summary

Shows the Trusted Platform Module (TPM) status of each Windows workstation. The TPM is the security chip BitLocker uses to protect encryption keys. Use it to find devices with a missing, disabled or locked-out TPM before you roll out BitLocker. The BitLocker and TPM Audit automation collects the data on each device.

Requirements

note

The Knowledge Base articles need the NinjaOne Documentation app enabled in NinjaOne, as shown below. If your NinjaOne does not have it, set Report Output to Local CSV Files in the report automation. The report then creates only the CSV files, on the device that runs it.

Where to Find the Report

Report	Knowledge Base Article	CSV File
Global	Global Knowledge Base > Dataviews > TPM > TPM Status	C:\ProgramData\_Automation\Report\TPM\TPM Status.csv
Organization	Organization Knowledge Base > Dataviews > TPM > TPM Status	C:\ProgramData\_Automation\Report\TPM\Organization_Level_Reports\TPM Status_<Organization>.csv

note

The articles and CSV files are replaced every time the report runs. CSV files are saved on the device that runs the report automation. An article that grows too large is split into - Part 1, - Part 2 and so on.

Report Columns

Column Name	Appears In	Description
Organization	Global only	The organization the device belongs to.
Location	Both	The location the device belongs to.
Device	Both	The device name.
OS	Both	The operating system of the device.
DeviceType	Both	The device type: Physical Server, Virtual Server, Laptop, Desktop or Virtual Workstation.
TpmPresent	Both	True when the device has a TPM.
TpmReady	Both	True when the TPM is ready for use.
TpmEnabled	Both	True when the TPM is enabled in the BIOS or UEFI.
TpmActivated	Both	True when the TPM is activated. Applies mainly to TPM 1.2.
TpmOwned	Both	True when Windows has taken ownership of the TPM.
RestartPending	Both	True when a restart is needed to finish a TPM change.
PpiVersion	Both	The Physical Presence Interface version.
ManufacturerIdTxt	Both	The TPM manufacturer.
ManufacturerVersion	Both	The TPM firmware version.
ManagedAuthLevel	Both	How much of the TPM authorization Windows manages.
OwnerClearDisabled	Both	True when clearing the TPM is blocked by policy.
AutoProvisioning	Both	Whether Windows sets up the TPM automatically.
LockedOut	Both	True when the TPM is locked after too many failed attempts.
LockoutHealTime	Both	How long until the failed-attempt counter goes down.
LockoutCount	Both	The current number of failed attempts.
LockoutMax	Both	The number of failed attempts allowed before lockout.
DataCollectionTime	Both	When the device collected the data.

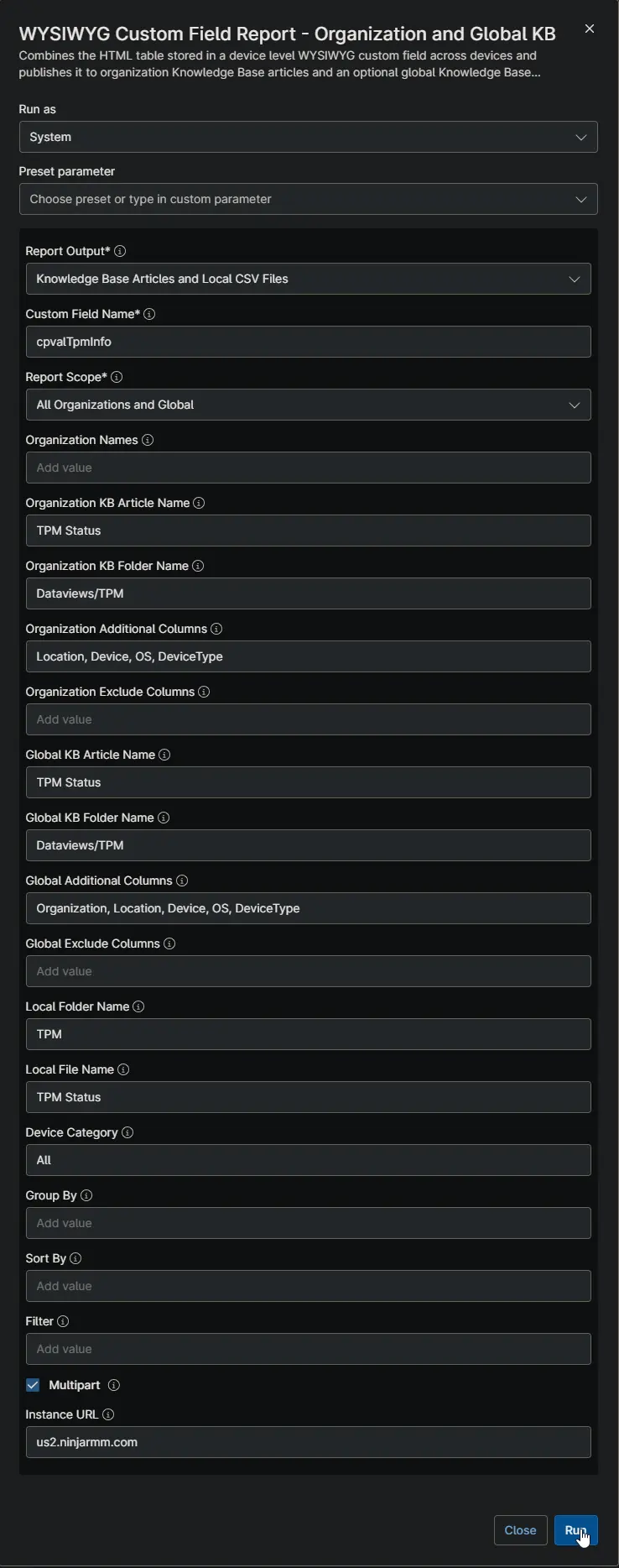

Report Settings

Values used in the WYSIWYG Custom Field Report - Organization and Global KB automation to build this report.

Script Variable	Value
Report Output	Knowledge Base Articles and Local CSV Files
Custom Field Name	cpvalTpmInfo
Report Scope	All Organizations and Global
Organization KB Article Name	TPM Status
Organization KB Folder Name	Dataviews/TPM
Organization Additional Columns	Location, Device, OS, DeviceType
Global KB Article Name	TPM Status
Global KB Folder Name	Dataviews/TPM
Global Additional Columns	Organization, Location, Device, OS, DeviceType
Local Folder Name	TPM
Local File Name	TPM Status
Device Category	All
Multipart	True
Instance Url	The NinjaOne instance of the partner, for example us2.ninjarmm.com

Dependencies

• Automation: WYSIWYG Custom Field Report - Organization and Global KB
• Automation: BitLocker and TPM Audit
• Custom Field: cPVAL TPM Info
• Solution: BitLocker and TPM Audit

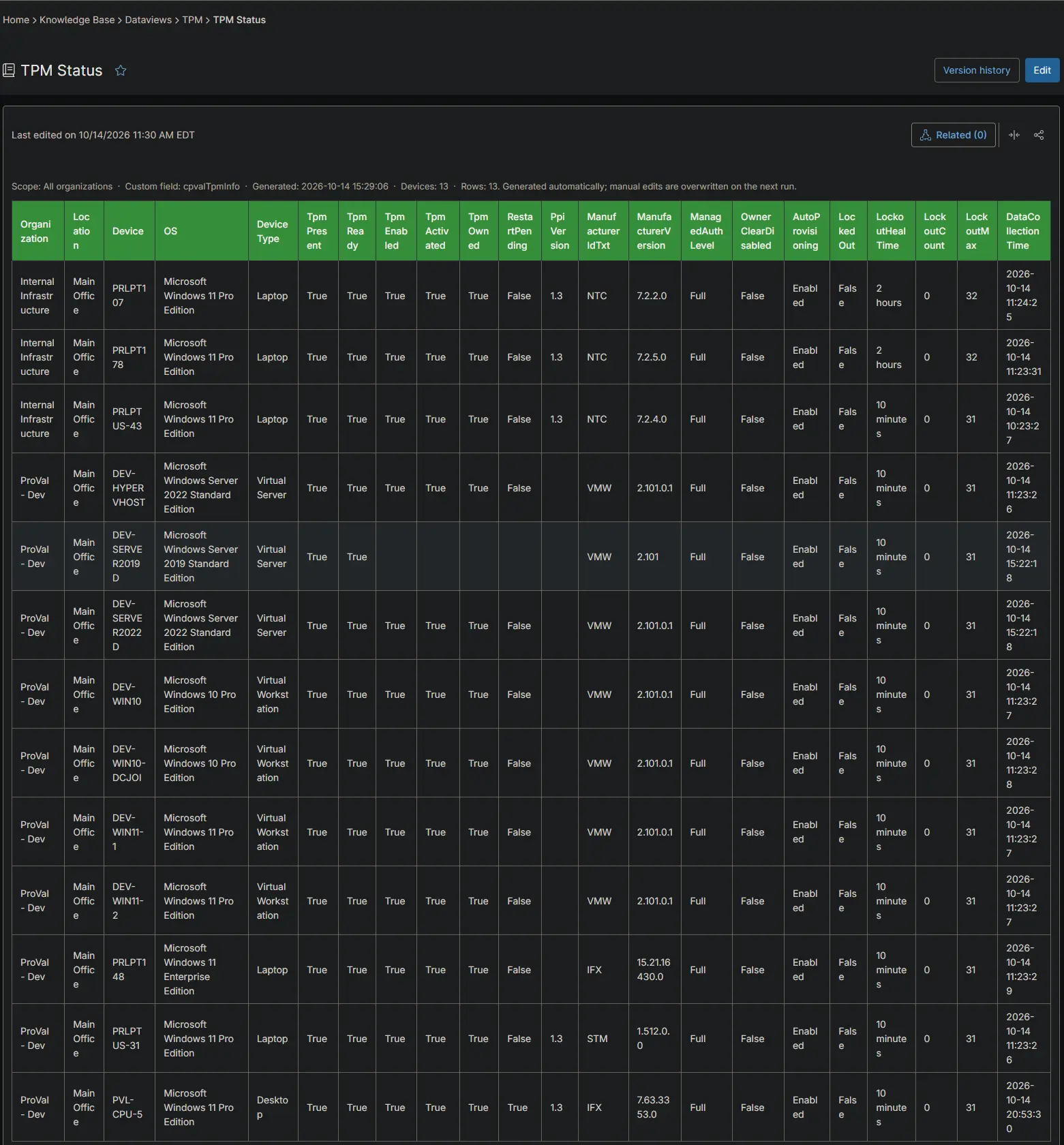

Global Article Sample Screenshot

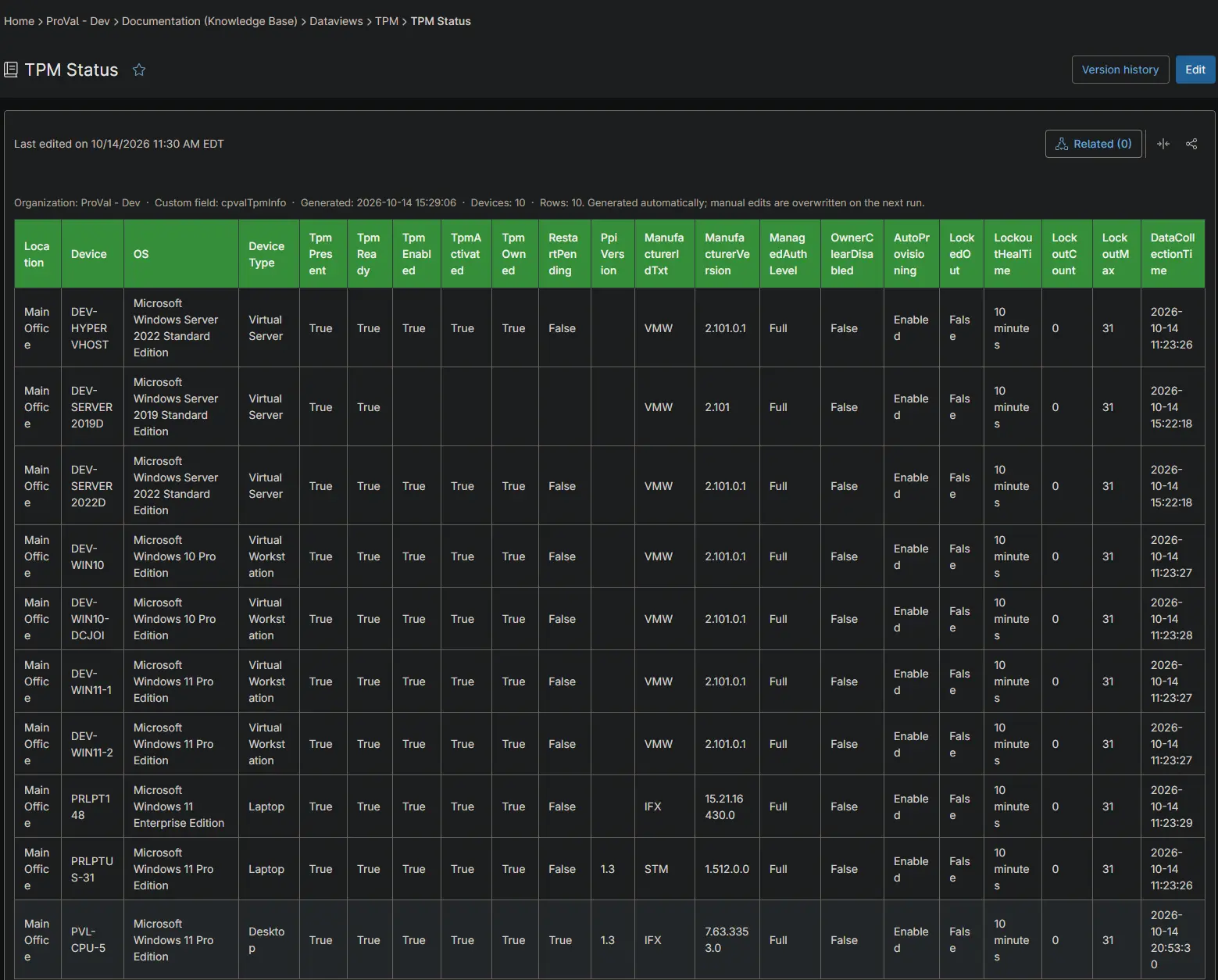

Organization Article Sample Screenshot

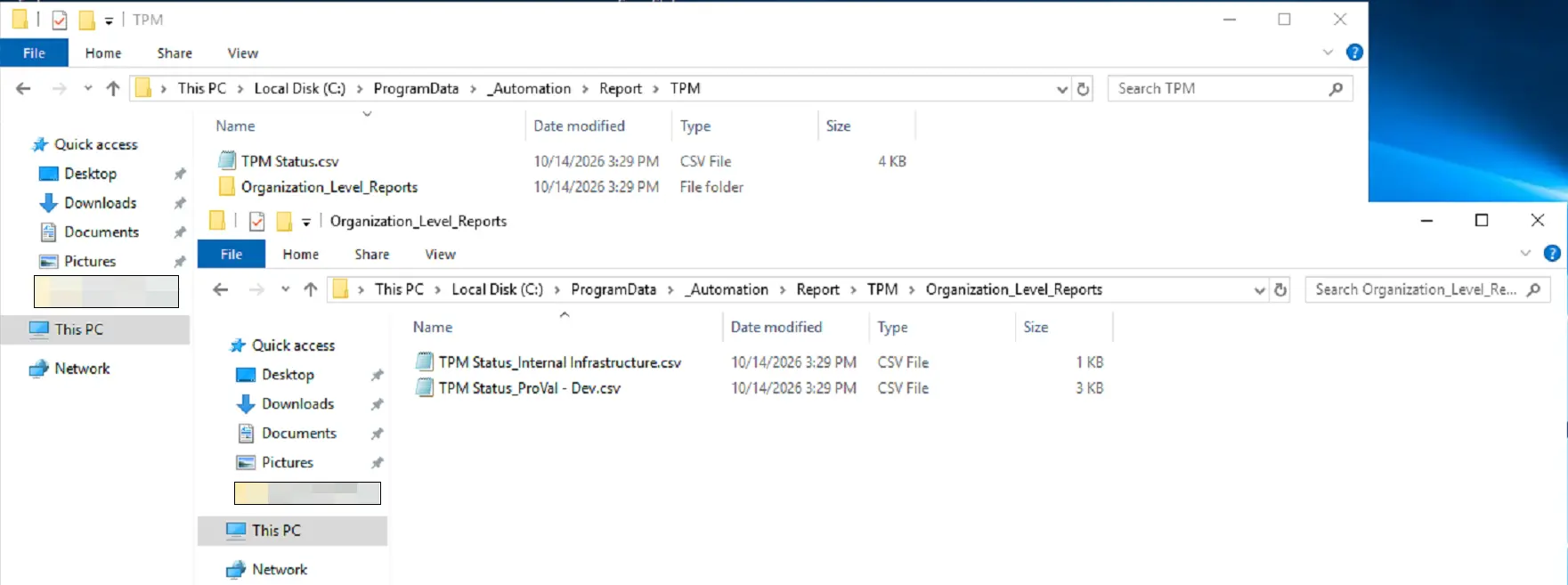

CSV Folder Sample Screenshot

The global CSV file, and the Organization_Level_Reports folder with one CSV file per organization.

Changelog

2026-10-14

• Initial version of the document
