Manage - Network Adapter Protocols

Summary

This task allows you to manage network protocols on Windows machines, including enabling, disabling, and configuring them to use DHCP.

Caution : Use this script with caution. Disabling IPv4 on the machine may result in a network disconnection.

Sample Run

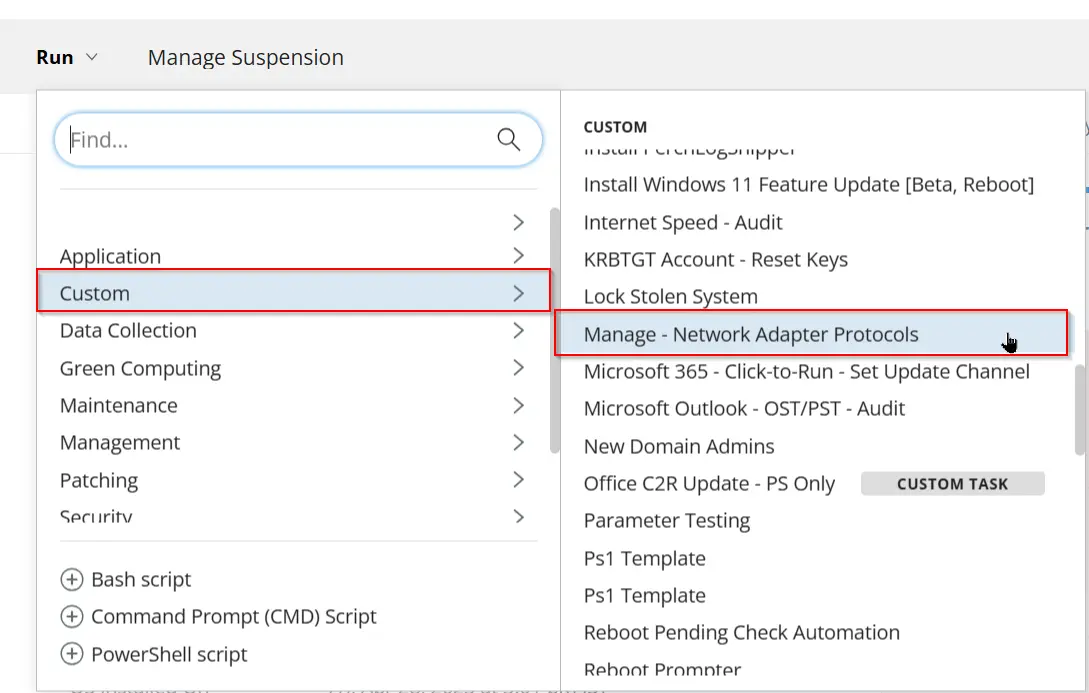

Serach for Manage - Network Adapter Protocols task and click on it

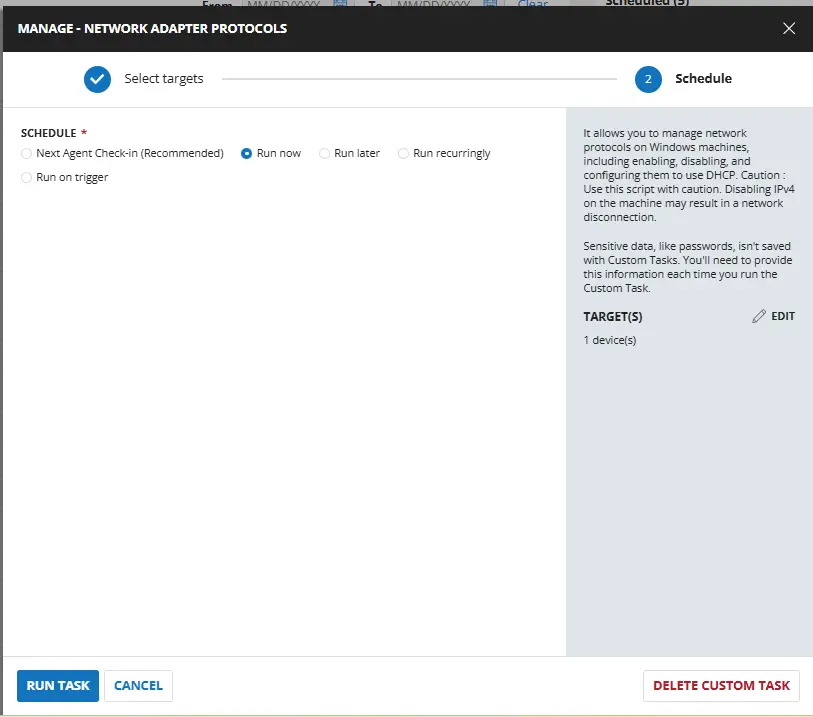

Selec Run Now and click Run Task button

Dependencies

• Dynamic Group - Devices Opted for Network Adapter Solution
• Manage - Network Adapter Solutions Custom Field
• Solution - Manage Network Adapter Solution

Task Creation

Step 1

Navigate to Automation ➞ Tasks

Step 2

Create a new Script Editor style task by choosing the Script Editor option from the Add dropdown menu

The New Script page will appear on clicking the Script Editor button:

Step 3

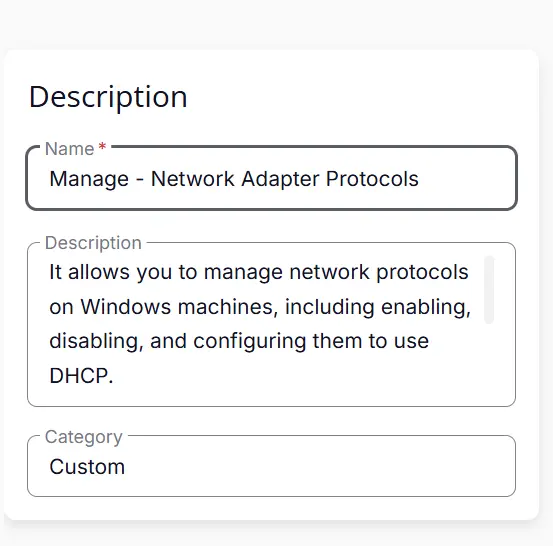

Fill in the following details in the Description section:

• Name: Manage - Network Adapter Protocols
• Description: It allows you to manage network protocols on Windows machines, including enabling, disabling, and configuring them to use DHCP.
  Caution : Use this script with caution. Disabling IPv4 on the machine may result in a network disconnection.
• Category: Custom

Script Editor

Click the Add Row button in the Script Editor section to start creating the script

A blank function will appear:

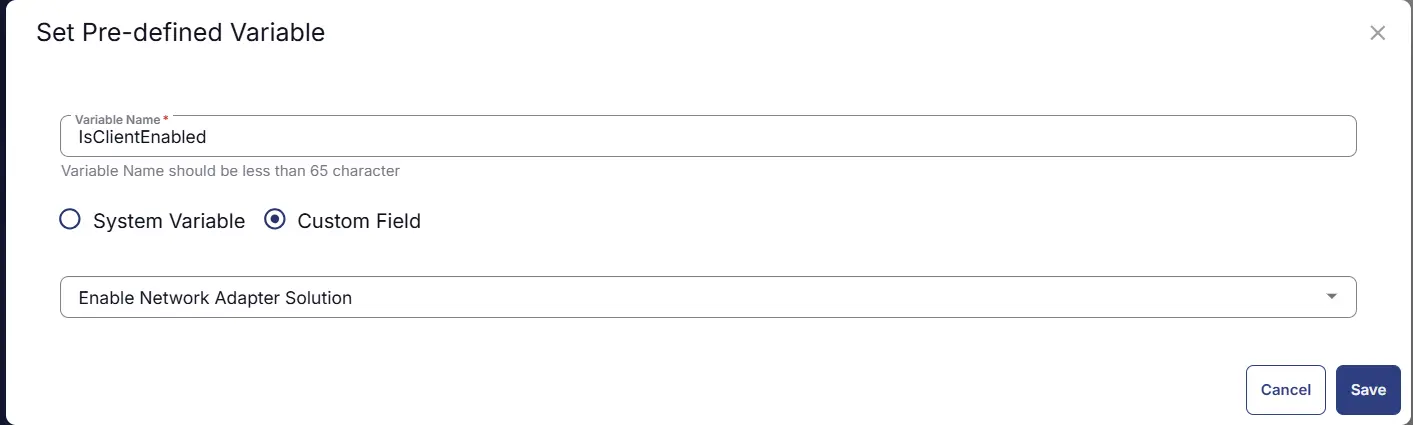

Row 1 Function: Set Pre-defined Variable

• Select Set Pre-Defined Variable Function

• Select Custom Field
• Input IsClientEnabled as Variable name
• Select Enable Network Adapter Solution custom field from the dropdown
• Click Save

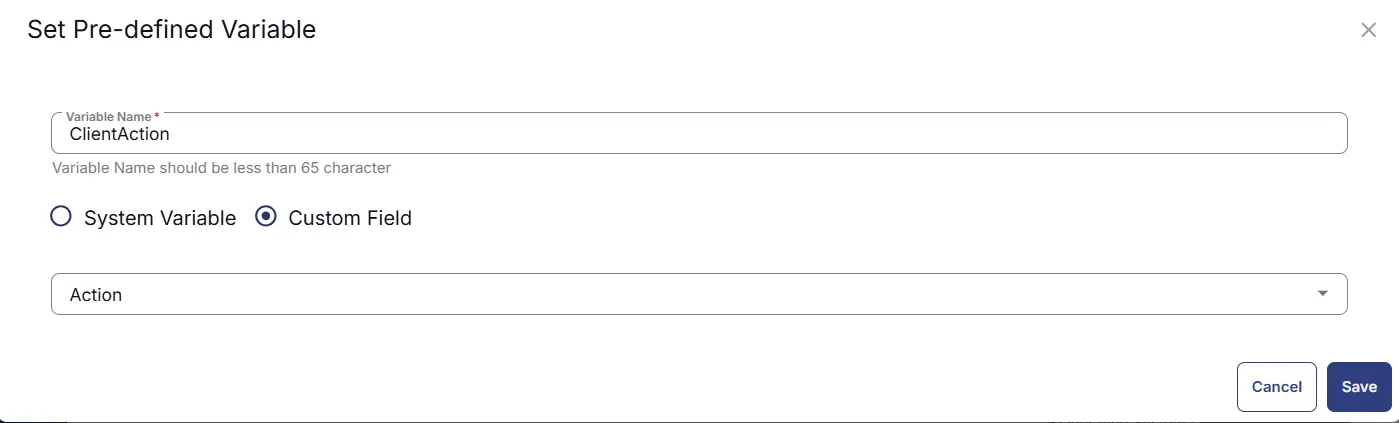

Row 2 Function: Set Pre-defined Variable

• Select Set Pre-Defined Variable Function

• Select Custom Field
• Input ClientAction as Variable name
• Select Action(ENUM - CLIENT) custom field from the dropdown for Client
• Click Save

Row 3 Function: Set Pre-defined Variable

• Select Set Pre-Defined Variable Function

• Select Custom Field
• Input SiteAction as Variable name
• Select Action(ENUM - SITE) custom field from the dropdown for Site
• Click Save

Row 4 Function: Set Pre-defined Variable

• Select Set Pre-Defined Variable Function

• Select Custom Field
• Input EndpointAction as Variable name
• Select Action(ENUM - ENDPOINT) custom field from the dropdown for Endpoint
• Click Save

Row 5 Function: Set Pre-defined Variable

• Select Set Pre-Defined Variable Function

• Select Custom Field
• Input ClientProtocol as Variable name
• Select Protocol(ENUM - CLIENT) custom field from the dropdown for Client
• Click Save

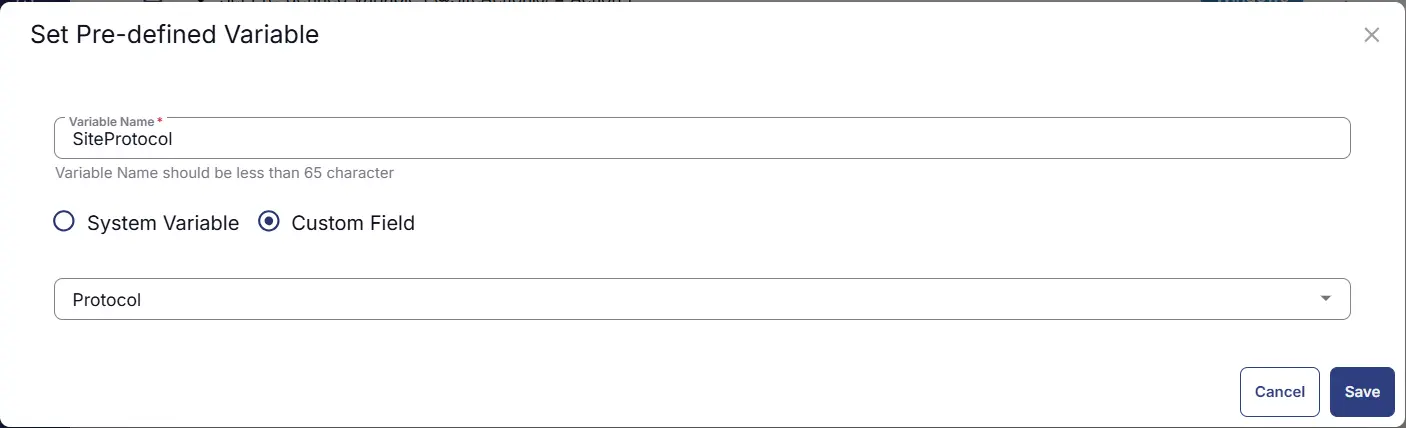

Row 6 Function: Set Pre-defined Variable

• Select Set Pre-Defined Variable Function

• Select Custom Field
• Input SiteProtocol as Variable name
• Select Protocol(ENUM - SITE) custom field from the dropdown for Site
• Click Save

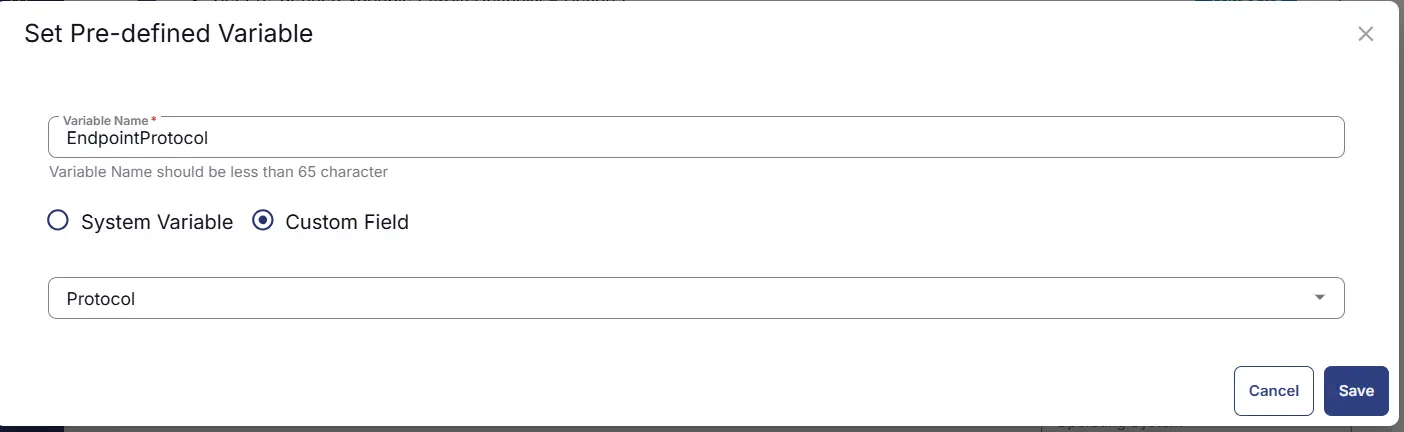

Row 7 Function: Set Pre-defined Variable

• Select Set Pre-Defined Variable Function

• Select Custom Field
• Input EndpointProtocol as Variable name
• Select Protocol(ENUM - ENDPOINT) custom field from the dropdown for Endpoint
• Click Save

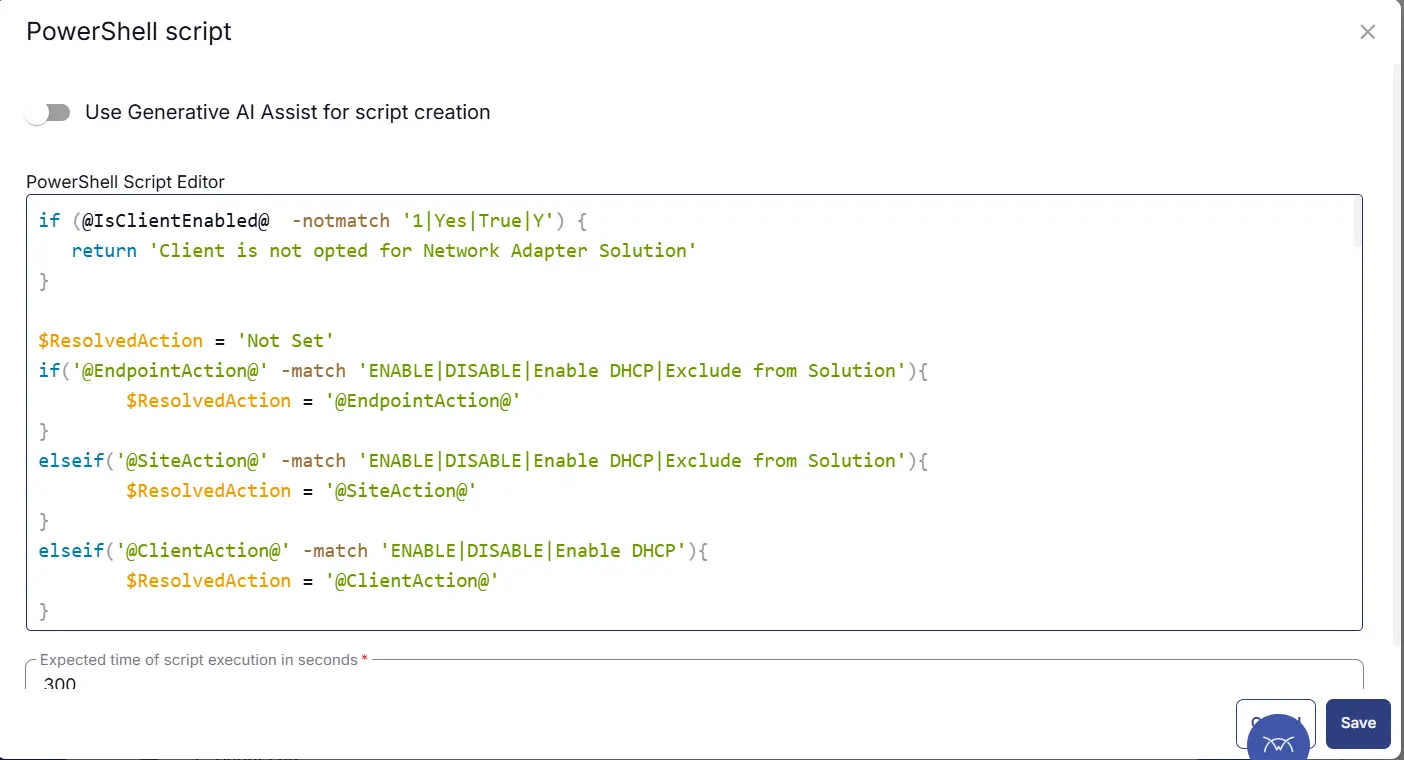

Row 8 Function: PowerShell Script

Paste in the following PowerShell script and set the expected script execution time to 900 seconds.

if ('@IsClientEnabled@' -notmatch '1|Yes|True|Y') {
    return 'Client is not opted for Network Adapter Solution'
}

# Resolve action
$ResolvedAction = 'Not Set'
if ('@EndpointAction@' -match 'ENABLE|DISABLE|Enable DHCP|Exclude from Solution') {
    $ResolvedAction = '@EndpointAction@'
}
elseif ('@SiteAction@' -match 'ENABLE|DISABLE|Enable DHCP|Exclude from Solution') {
    $ResolvedAction = '@SiteAction@'
}
elseif ('@ClientAction@' -match 'ENABLE|DISABLE|Enable DHCP') {
    $ResolvedAction = '@ClientAction@'
}

if ($ResolvedAction -match 'Not Set|Exclude from Solution') {
    return 'Please verify that the Action is defined properly or solution is enabled for the machine, then reattempt executing the Task'
}

# Resolve protocol
$ResolvedProtocol = 'Not Set'
if ('@EndpointProtocol@' -match 'IPv4|IPv6|Both') {
    $ResolvedProtocol = '@EndpointProtocol@'
}
elseif ('@SiteProtocol@' -match 'IPv4|IPv6|Both') {
    $ResolvedProtocol = '@SiteProtocol@'
}
elseif ('@ClientProtocol@' -match 'IPv4|IPv6|Both') {
    $ResolvedProtocol = '@ClientProtocol@'
}

if ($ResolvedProtocol -match 'Not Set') {
    return 'Please verify that the Protocol is properly defined for the machine, then reattempt executing the Task'
}

$Action = $ResolvedAction
$Protocol = $ResolvedProtocol

function Set-NetworkAdapterIP {
    param (
        [string]$InterfaceAlias,
        [string]$Protocol,
        [string]$Action
    )

    $ComponentID = if ($Protocol -eq "IPv6") { "ms_tcpip6" } else { "ms_tcpip" }

    if ($Action -eq "DISABLE") {
        Disable-NetAdapterBinding -Name $InterfaceAlias -ComponentID $ComponentID
        $binding = Get-NetAdapterBinding -Name $InterfaceAlias | Where-Object { $_.ComponentID -eq $ComponentID }
        if ($binding.Enabled -eq $false) {
            Write-Output "$Protocol successfully disabled on $InterfaceAlias."
        } else {
            Write-Error "Failed to disable $Protocol on $InterfaceAlias."
        }
    }
    elseif ($Action -eq "ENABLE") {
        Enable-NetAdapterBinding -Name $InterfaceAlias -ComponentID $ComponentID
        $binding = Get-NetAdapterBinding -Name $InterfaceAlias | Where-Object { $_.ComponentID -eq $ComponentID }
        if ($binding.Enabled -eq $true) {
            Write-Output "$Protocol successfully enabled on $InterfaceAlias."
        } else {
            Write-Error "Failed to enable $Protocol on $InterfaceAlias."
        }
    }
    elseif ($Action -eq "Enable DHCP") {
        Enable-NetAdapterBinding -Name $InterfaceAlias -ComponentID $ComponentID

        if ($Protocol -eq "IPv4") {
            Set-NetIPInterface -InterfaceAlias $InterfaceAlias -Dhcp Enabled
            Remove-NetIPAddress -InterfaceAlias $InterfaceAlias -AddressFamily IPv4 -Confirm:$false -ErrorAction SilentlyContinue
        }
        elseif ($Protocol -eq "IPv6") {
            Set-NetIPInterface -InterfaceAlias $InterfaceAlias -AddressFamily IPv6 -Dhcp Enabled
            Remove-NetIPAddress -InterfaceAlias $InterfaceAlias -AddressFamily IPv6 -Confirm:$false -ErrorAction SilentlyContinue
        }

        $dhcpStatus = Get-NetIPInterface -InterfaceAlias $InterfaceAlias -AddressFamily $Protocol
        if ($dhcpStatus.Dhcp -eq "Enabled") {
            Write-Output "$Protocol DHCP successfully enabled on $InterfaceAlias."
        } else {
            Write-Error "Failed to enable DHCP for $Protocol on $InterfaceAlias."
        }
    }
}

$adapters = Get-NetAdapter

foreach ($adapter in $adapters) {
    if ($Protocol -eq "Both") {
        if ($Action -eq "DISABLE") {
            Write-Error "Invalid selection: Cannot disable both IPv4 and IPv6."
            exit 1
        }
        Set-NetworkAdapterIP -InterfaceAlias $adapter.Name -Protocol "IPv4" -Action $Action
        Set-NetworkAdapterIP -InterfaceAlias $adapter.Name -Protocol "IPv6" -Action $Action
    }
    elseif ($Protocol -eq "IPv4") {
        Set-NetworkAdapterIP -InterfaceAlias $adapter.Name -Protocol "IPv4" -Action $Action
        if ($Action -eq "DISABLE") {
            Set-NetworkAdapterIP -InterfaceAlias $adapter.Name -Protocol "IPv6" -Action "ENABLE"
        }
    }
    elseif ($Protocol -eq "IPv6") {
        Set-NetworkAdapterIP -InterfaceAlias $adapter.Name -Protocol "IPv6" -Action $Action
        if ($Action -eq "DISABLE") {
            Set-NetworkAdapterIP -InterfaceAlias $adapter.Name -Protocol "IPv4" -Action "ENABLE"
        }
    }
}

Row 9 Function: Script Log

Add a new row by clicking the Add Row button.

A blank function will appear.

Search and select the Script Log function.

The following function will pop up on the screen:

In the script log message, simply type %output% and click the Save button.

Click the Save button at the top-right corner of the screen to save the script.

Save Task

Click the Save button at the top-right corner of the screen to save the script.

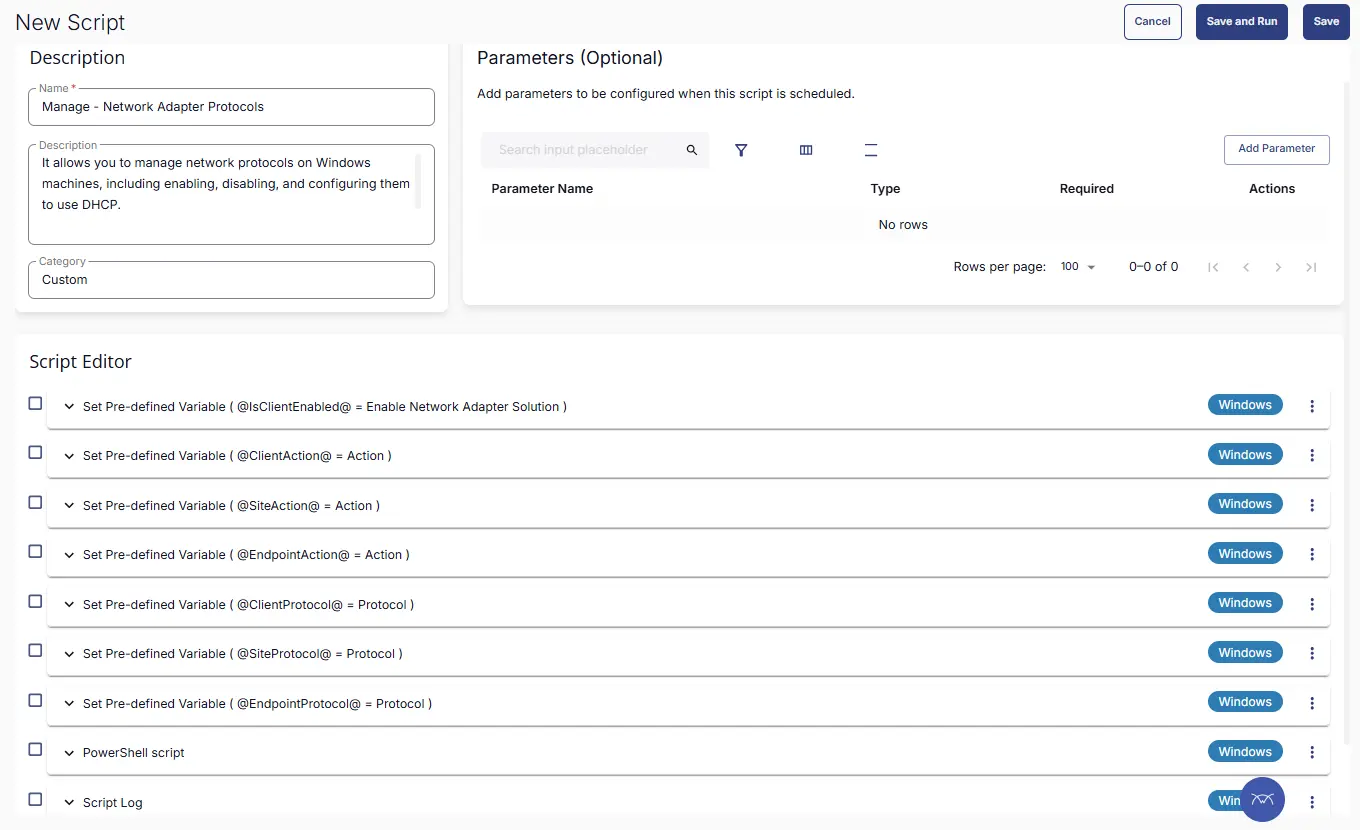

Completed Task

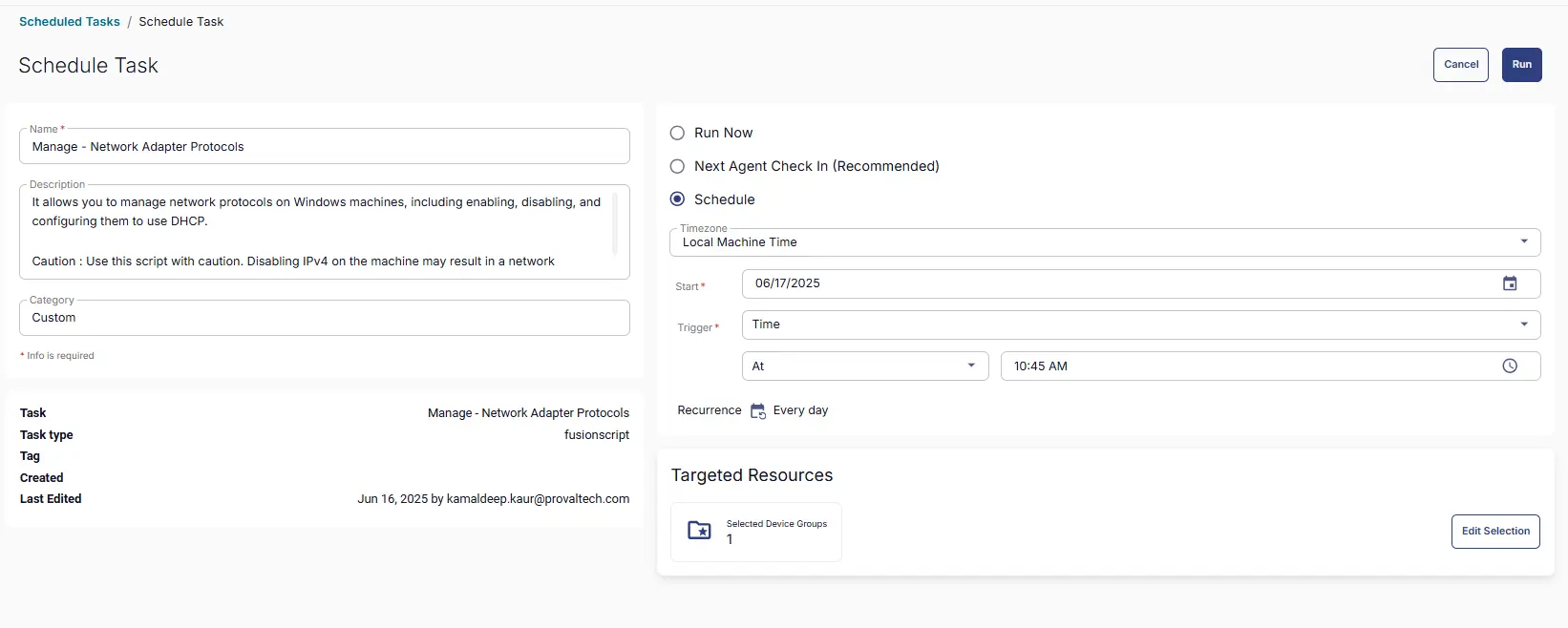

Deployment

This task has to be scheduled on Devices Opted for Network Adapter Solution group for auto deployment. The script can also be run manually if required.

• Go to Automations > Tasks.
• Search for Manage - Network Adapter Protocols.
• Then click on Schedule from right side and provide the parameters detail as necessary for the script completion.
• Select Targeted Resources as device group Devices Opted for Network Adapter Solution.

Output

• Script Logs
