BitLocker - Volume - Add Recovery Password [Autofix]

Summary​

The script is designed to safely reinitialize BitLocker on the system drive when BitLocker is enabled but the volume is missing a valid key protector and the affected volume is the operating system drive (C:).

The script will first validate the affected BitLocker volume and proceed only if the detected volume is C:. It will verify that TPM is present and ready before starting the remediation process. Once validation is completed, it will disable the current BitLocker encryption, continuously monitor the decryption status until the drive reaches a fully decrypted state, and then re-enable BitLocker encryption with a valid recovery password protector. ;

Note This script is intended to be executed as an Autofix script from the Monitor : BitLocker - Missing Key Protectors.

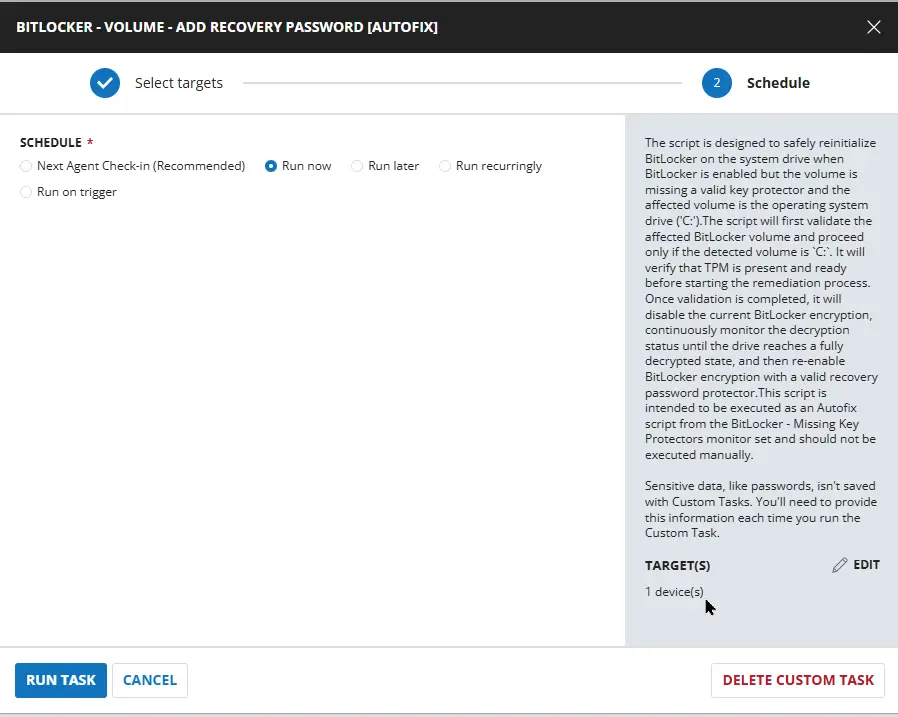

Sample Run​


Dependencies​

Task Creation​

Script Details​

Step 1​

Navigate to Automation ➞ Tasks
step1

Step 2​

Create a new Script Editor style task by choosing the Script Editor option from the Add dropdown menu
step2

The New Script page will appear on clicking the Script Editor button:
step3

Step 3​

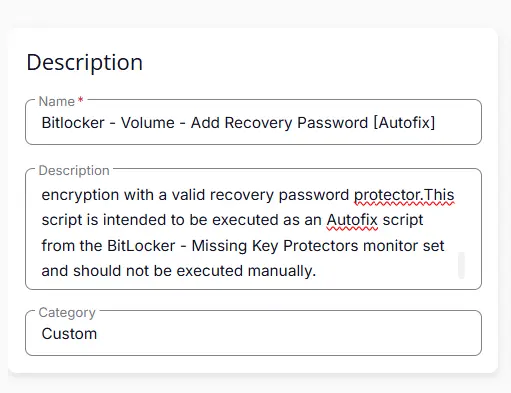

Fill in the following details in the Description section:

  • Name: BitLocker - Volume - Add Recovery Password [Autofix]
  • Description: The script is designed to safely reinitialize BitLocker on the system drive when BitLocker is enabled but the volume is missing a valid key protector and the affected volume is the operating system drive ('C:').The script will first validate the affected BitLocker volume and proceed only if the detected volume is C:. It will verify that TPM is present and ready before starting the remediation process. Once validation is completed, it will disable the current BitLocker encryption, continuously monitor the decryption status until the drive reaches a fully decrypted state, and then re-enable BitLocker encryption with a valid recovery password protector.This script is intended to be executed as an Autofix script from the BitLocker - Missing Key Protectors monitor set and should not be executed manually.
  • Category: Custom


Script Editor​

Click the Add Row button in the Script Editor section to start creating the script
AddRow

A blank function will appear:
BlankFunction

Row 1 Function: Set User Variable​

Enter the Parameter in the Variable Name box and provide the Value as -RecoveryPasswordProtector -MountPoint 'C:'. Enable Continue on Failure


Row 2 Function: PowerShell Script​

Search and select the PowerShell Script function.

PowerShell Function Selected

The following function will pop up on the screen:
PowerShell Function Example

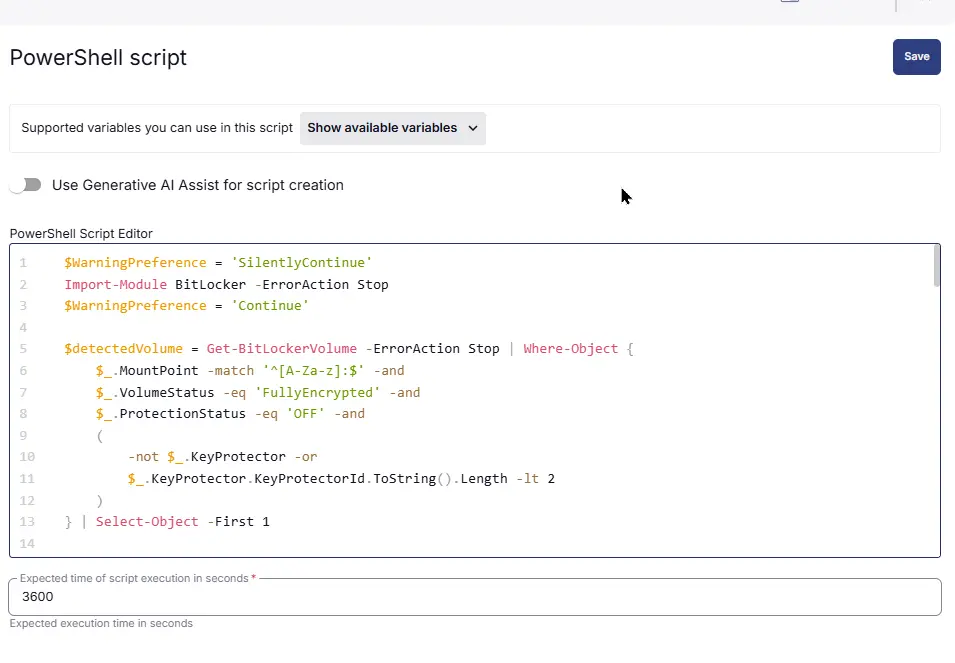

Paste in the following PowerShell script and set the Expected time of script execution in seconds to 3600 seconds and enable Continue on Failure. Click the Save button.

PowerShell Script


Row 3 Function: Script Log​

Add a new row by clicking the Add Row button.
Add Row

A blank function will appear.
Blank Function

Search and select the Script Log function.
Script Log Search

In the script log message, simply type %output% and click the Save button.
Script Log Save

Row 4 Logic: If/Then​

Click Add Logic and select If/Then


Row 4a Condition: Output Contains​

In the IF part, enter Fail in the right box of the "Output Contains" part.

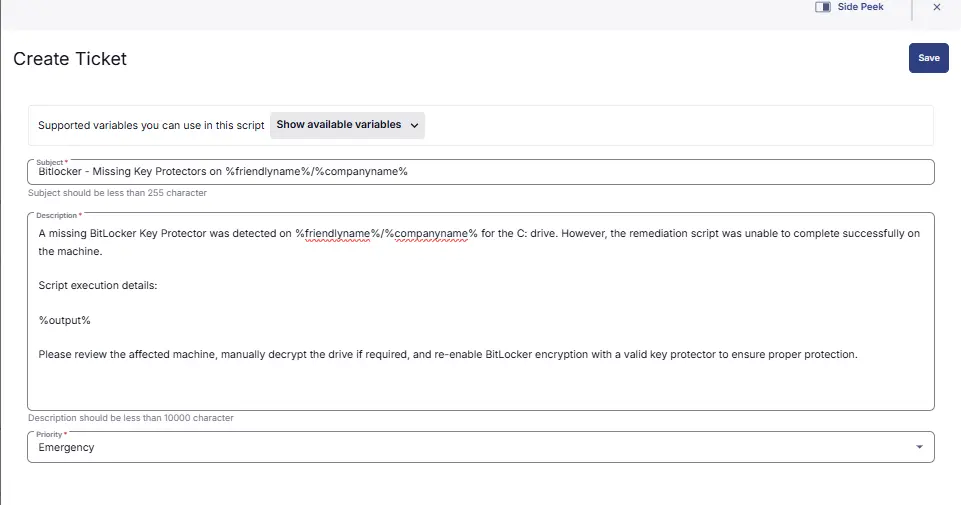

Row 3b Function: Create Ticket​

  • Subject : BitLocker - Missing Key Protectors on %friendlyname%/%companyname%

  • Description : A missing BitLocker Key Protector was detected on %friendlyname%/%companyname% for the C: drive. However, the remediation script was unable to complete successfully on the machine.

    Script execution details:

    %output%

    Please review the affected machine, manually decrypt the drive if required, and re-enable BitLocker encryption with a valid key protector to ensure proper protection.

  • Priority : Emergency


Save Task​

Click the Save button at the top-right corner of the screen to save the script.
SaveButton

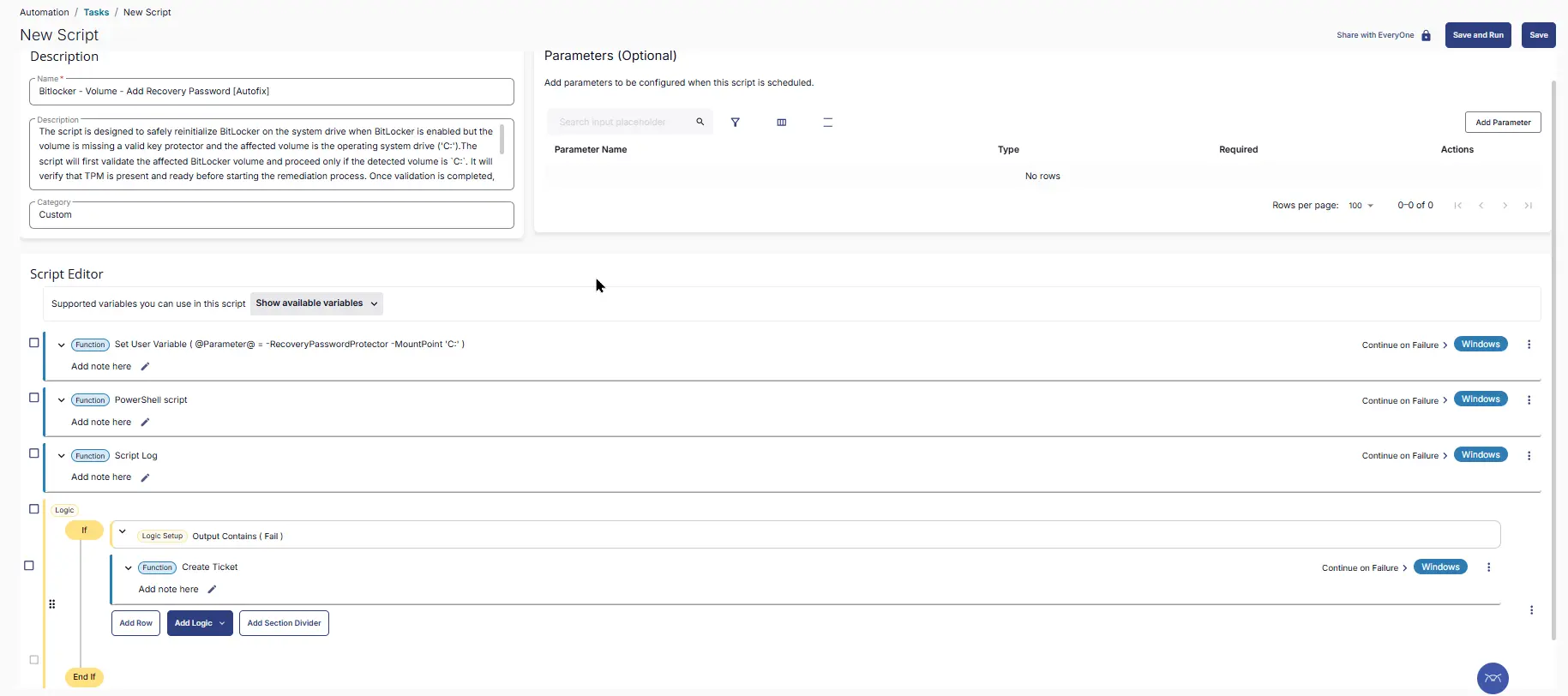

Completed Task​


Deployment​

This script is intended to run as an autofix Script with Monitor : BitLocker - Missing Key Protectors

Output​

  • Script Logs

Changelog​

2026-08-10​

  • Initial version of the document
