Implement- Dell Hardware Monitoring

Steps

1. Import the Alert Template

Import the Alert Template △ Custom - Ticket Creation Computer [Failures Only]. The alert template should not be performing any action for the Warning state.

2. Validate Script Import

Validate that the Script - Ticket Creation - Computer [Failures Only] was imported as well.

3. Run SQL Query

Run this SQL query from a RAWSQL monitor set to import the required search.

INSERT INTO `sensorchecks`
SELECT
'' as `SensID`,
'Computers - Dell Servers' as `Name`,
'SELECT \n   computers.computerid as `Computer Id`,\n   computers.name as `Computer Name`,\n   clients.name as `Client Name`,\n   computers.domain as `Computer Domain`,\n   computers.username as `Computer User`,\n   Computers.BiosMFG as `Computer.Hardware.Manufacturer`,\n   IF(INSTR(computers.os, \'server\')>0, 1, 0) as `Computer.OS.IsServer`\nFROM Computers \nLEFT JOIN inv_operatingsystem ON (Computers.ComputerId=inv_operatingsystem.ComputerId)\nLEFT JOIN Clients ON (Computers.ClientId=Clients.ClientId)\nLEFT JOIN Locations ON (Computers.LocationId=Locations.LocationID)\n WHERE \n((((Instr(Computers.BiosMFG,\'Dell\') > 0) AND (IF(INSTR(computers.os, \'server\')>0, 1, 0)<>0))))\n' as `SQL`,
'4' as `QueryType`,
'READONLY' as `ListData`,
'1' as `FolderID`,
'<LabTechAbstractSearch><asn><st>AndNode</st><cn><asn><st>AndNode</st><cn><asn><st>ComparisonNode</st><lon>Computer.Hardware.Manufacturer</lon><lok>Computer.Hardware.Manufacturer</lok><lmo>Contains</lmo><dv>Dell</dv><dk>Dell</dk></asn><asn><st>ComparisonNode</st><lon>Computer.OS.IsServer</lon><lok>Computer.OS.IsServer</lok><lmo>IsTrue</lmo><dv>NULL</dv><dk>NULL</dk></asn></cn></asn></cn></asn></LabTechAbstractSearch>' as `SearchXML`,
(NULL) as `UpdatedBy`,
(NULL) as `UpdateDate`
FROM  (SELECT MIN(computerid) FROM computers) a
WHERE (SELECT count(*) From SensorChecks where `GUID` = '9185ef1d-4eee-4430-8b72-f086f8849eb8') = 0;

4. Obtain Group IDs

Obtain the group ID(s) of the group(s) that the remote monitor should be applied to.

5. Insert Group Agents

Copy the following query and replace YOUR COMMA SEPARATED LIST OF GROUPID(S) with the Group ID(s) of the relevant groups. (The string to replace can be found at the very bottom of the query, right after WHERE).

Set @searchid = (SELECT sensid FROM sensorchecks WHERE `GUID` = '9185ef1d-4eee-4430-8b72-f086f8849eb8');
INSERT INTO groupagents
SELECT '' as `AgentID`,
`groupid` as `GroupID`,
@Searchid as `SearchID`,
'ProVal - Production - Dell Hardware Monitoring' as `Name`,
'6' as `CheckAction`,
'1' as `AlertAction`,
'Dell OMSA Alert for: %CLIENTNAME%\\%COMPUTERNAME%~~~No Dell Hardware alerts were detected in the last 60 minutes.!!!Dell OMSA Alert for: %CLIENTNAME%\\%COMPUTERNAME%~~~Dell Open Manage has detected an issue with %Computername% at %clientname%. The message details are outlined below: %RESULT%' as `AlertMessage`,
'0' as `ContactID`,
'3600' as `interval`,
'127.0.0.1' as `Where`,
'7' as `What`,
'C:\\Windows\\System32\\WindowsPowerShell\\v1.0\\powershell.exe -ExecutionPolicy Bypass -Command \"$ErroractionPreference= \'SilentlyContinue\'; $startTime = (Get-Date).AddMinutes(-60); $excludeMessages=\'The controller write policy has been changed to Write Through|certified drive|SAS management and monitoring is not possible|older than the required .* version\'; $provider = \'Server Administrator\'; Get-WinEvent -FilterHashTable @{Logname = \'Application\',\'System\'; StartTime = $StartTime; Level = 1,2,3 } | Where-Object { $_.ProviderName -eq $Provider -and $_.message -notmatch $excludeMessages } | Select-Object Id, TimeCreated, LogName, ProviderName, LevelDisplayName, Message | Group-Object -Property Id | Sort-Object -Property Count -Descending | Select-Object -Property count, group | Foreach-Object {$mostrecent = $_.Group | Sort-Object -Property TimeCreated -Descending | Select-Object -First 1; [pscustomobject]@{Occurrences=$_.Count; EventID=$mostrecent.id; Logname=$Mostrecent.Logname; Source=$MostRecent.ProviderName; MostRecentDate=$mostrecent.TimeCreated; Level=$Mostrecent.LevelDisplayName; Message = $MostRecent.Message }}"' as `DataOut`,
'16' as `Comparor`,
'10|((^((OK){0,}(\\r\\n){0,}[\\r\\n]{0,}\\s{0,})$)%7C(^$))|11|((^((OK){0,}(\\r\\n){0,}[\\r\\n]{0,}\\s{0,})$)%7C(^$))%7C(^((\\r\\n){0,}[\\r\\n]{0,}\\s{0,})Occurrences)|10|^((\\r\\n){0,}[\\r\\n]{0,}\\s{0,})Occurrences' as `DataIn`,
'' as `IDField`,
'0' as `AlertStyle`,
'0' as `ScriptID`,
'' as `datacollector`,
'21' as `Category`,
'0' as `TicketCategory`,
'1' as `ScriptTarget`,
UUID() as `GUID`,
'root' as `UpdatedBy`,
(NOW()) as `UpdateDate`
FROM mastergroups m
WHERE m.groupid IN (YOUR COMMA SEPARATED LIST OF GROUPID(S))
AND m.groupid NOT IN  (SELECT DISTINCT groupid FROM groupagents WHERE `Name` = 'ProVal - Production - Dell Hardware Monitoring');

6. Example Query

An example of the query with group IDs and modified thresholds.

Set @searchid = (SELECT sensid FROM sensorchecks WHERE `GUID` = '9185ef1d-4eee-4430-8b72-f086f8849eb8');
INSERT INTO groupagents
SELECT '' as `AgentID`,
`groupid` as `GroupID`,
@Searchid as `SearchID`,
'ProVal - Production - Dell Hardware Monitoring' as `Name`,
'6' as `CheckAction`,
'1' as `AlertAction`,
'Dell OMSA Alert for: %CLIENTNAME%\\%COMPUTERNAME%~~~No Dell Hardware alerts were detected in the last 60 minutes.!!!Dell OMSA Alert for: %CLIENTNAME%\\%COMPUTERNAME%~~~Dell Open Manage has detected an issue with %Computername% at %clientname%. The message details are outlined below: %RESULT%' as `AlertMessage`,
'0' as `ContactID`,
'3600' as `interval`,
'127.0.0.1' as `Where`,
'7' as `What`,
'C:\\Windows\\System32\\WindowsPowerShell\\v1.0\\powershell.exe -ExecutionPolicy Bypass -Command \"$ErroractionPreference= \'SilentlyContinue\'; $startTime = (Get-Date).AddMinutes(-60); $excludeMessages=\'The controller write policy has been changed to Write Through|certified drive|SAS management and monitoring is not possible|older than the required .* version\'; $provider = \'Server Administrator\'; Get-WinEvent -FilterHashTable @{Logname = \'Application\',\'System\'; StartTime = $StartTime; Level = 1,2,3 } | Where-Object { $_.ProviderName -eq $Provider -and $_.message -notmatch $excludeMessages } | Select-Object Id, TimeCreated, LogName, ProviderName, LevelDisplayName, Message | Group-Object -Property Id | Sort-Object -Property Count -Descending | Select-Object -Property count, group | Foreach-Object {$mostrecent = $_.Group | Sort-Object -Property TimeCreated -Descending | Select-Object -First 1; [pscustomobject]@{Occurrences=$_.Count; EventID=$mostrecent.id; Logname=$Mostrecent.Logname; Source=$MostRecent.ProviderName; MostRecentDate=$mostrecent.TimeCreated; Level=$Mostrecent.LevelDisplayName; Message = $MostRecent.Message }}"' as `DataOut`,
'16' as `Comparor`,
'10|((^((OK){0,}(\\r\\n){0,}[\\r\\n]{0,}\\s{0,})$)%7C(^$))|11|((^((OK){0,}(\\r\\n){0,}[\\r\\n]{0,}\\s{0,})$)%7C(^$))%7C(^((\\r\\n){0,}[\\r\\n]{0,}\\s{0,})Occurrences)|10|^((\\r\\n){0,}[\\r\\n]{0,}\\s{0,})Occurrences' as `DataIn`,
'' as `IDField`,
'0' as `AlertStyle`,
'0' as `ScriptID`,
'' as `datacollector`,
'21' as `Category`,
'0' as `TicketCategory`,
'1' as `ScriptTarget`,
UUID() as `GUID`,
'root' as `UpdatedBy`,
(NOW()) as `UpdateDate`
FROM mastergroups m
WHERE m.groupid IN (855,856)
AND m.groupid NOT IN  (SELECT DISTINCT groupid FROM groupagents WHERE `Name` = 'ProVal - Production - Dell Hardware Monitoring');

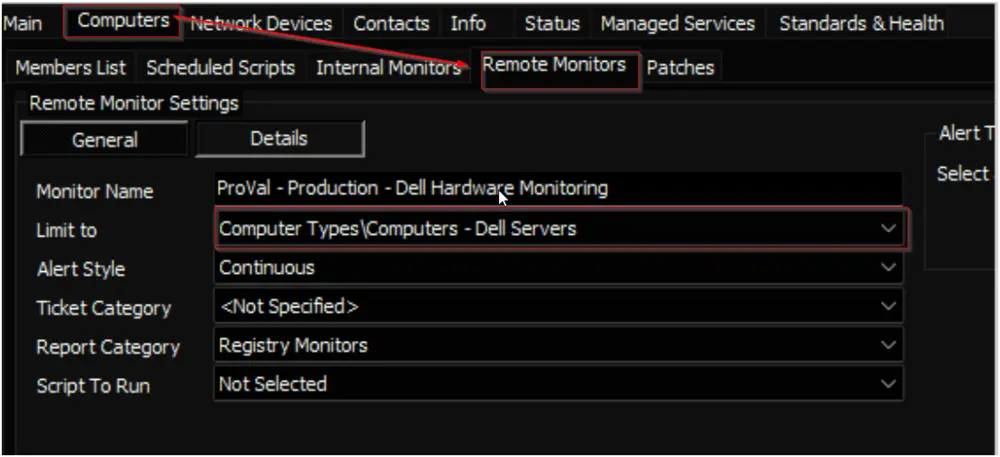

7. Check Groups

Check the concerned groups to ensure the monitor set is created and configured with the correct search.

Limit to: Computers - Dell Servers

8. Set Alert Template

Set the appropriate alert template.
