Active Computers in AD with No Agent

Summary​

The monitor set generates a client-level ticket containing details of domain-joined computers active within the domain, which have been joined to the domain for at least 7 days but do not have the Automate agent installed. This data is retrieved from the Active Directory Browser plugin, necessitating proper installation and configuration of the plugin to facilitate this monitoring process.

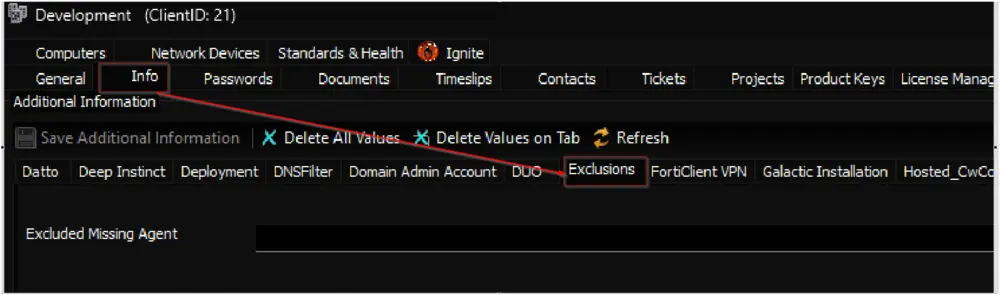

Client-level EDF Excluded Missing Agent Computers can be used to exclude the computer(s) from monitoring. Multiple computer names should be separated by commas (without any spaces).

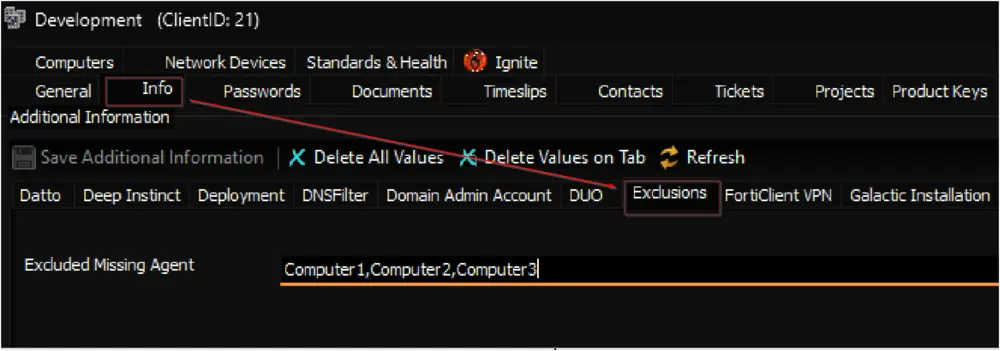

Example: Adding Computer1,Computer2,Computer3 to the EDF will exclude these machines from monitoring and from being fetched in the ticket.


Additional Notes​

Execute this SQL query from a RAWSQL monitor set to create the EDF before importing the monitor set from the ProSync plugin.

INSERT IGNORE
    INTO `extrafield`
        (`Form`, `Name`, `Sort`, `NoBreak`, `FType`, `Section`, `UnEditable`, `Collapsed`, `Fill`, `LtGuid`, `IsPassword`, `IsEncrypted`, `IsHidden`, `IsRestricted`, `ViewPermissions`, `EditPermissions`)
    VALUES
        (3, 'Excluded Missing Agent Computers', 0, 0, 0, 'Exclusions', 0, 0, '', 'c3e5dfe9-3950-4057-a37d-1e0555ac03ed', 0, 0, 0, 0, '', '');
CALL v_extradata(3, 'Clients');
CALL v_ExtraDataRefresh(3, 'Clients');

Dependencies​

CWM - Automate - Ticket Creation - Client

Target​

Global

Alert Template​

Name: △ Custom - Ticket Creation - Client

Ticketing​

Subject: Detection of Missing Automate Agents in <Domain Name> Domain: <Number of Computers> Active Computers Identified

Body:

Detection of Missing Automate Agents in <Domain Name> Domain: <Number of Computers> Active Computers Identified

Details of the computers that are missing the Automate agent:

Computer Name: <Computer Name>
OS: <Operating System>
Creation Date: <Domain Joining Date>
Last Logon: <Last Logon Date>

Note: The list of machine names, separated by commas, can be configured within the client-level Extra Data Field (EDF) labeled "Excluded Missing Agent Computers" to exclude those machines from this monitoring process.
