Memory Threshold Violation Monitoring Configuration Writer

Summary​

The Memory Threshold Violation Monitoring Configuration Writer is a preparation task that builds the local monitoring configuration consumed by the Memory Threshold Violation Monitoring monitor set(s). It does not perform any monitoring itself. Instead, it reads the threshold values you define in ConnectWise RMM custom fields — together with the ConnectWise ticketing webhook URL — and writes a simple JSON file that the deployed monitor set reads every time it runs. Two monitor‑set variants share this file: the original Memory Threshold Violation Monitoring set, which uses the monitor's built‑in ticketing, and the optional Memory Threshold Violation Monitoring [Workflow] set, which delegates ticketing to the ConnectWise workflow. The webhook URL written into the file is consumed only by the [Workflow] variant; the original set ignores it.

How it works​

  1. Custom Fields Evaluation
    The script reads the memory monitoring thresholds from custom fields at the Company, Site, and Endpoint levels. It follows a strict priority order: Endpoint → Site → Company. If a value is set at the Endpoint level, that value is used. If not, the Site level is checked, then the Company level. If no value is set at any level, a sensible default is applied. In the same pass it also reads the company-level Ticket_Mgmt_Webhook_Url field, which holds the webhook URL of the CWRMM ticketing workflow. Unlike the threshold fields, this URL is read at the Company level only — there is no Site/Endpoint override and no _Svr / _Wks server/workstation split — because it represents a single, global webhook endpoint shared by every device. The value is stored purely so the [Workflow] monitor‑set variant can reach the workflow; the original monitor set never reads it.

  2. Server & Workstation Separation
    The script automatically detects whether the endpoint is a Windows Server or Workstation and applies the correct set of Company/Site fields (_Svr or _Wks suffix) for the thresholds. (The webhook URL is unaffected by this detection — it is the same company-level value on both.) This allows you to set different thresholds for servers and workstations without duplicating scripts.

  3. Configuration File Generation
    Once the final values are resolved, the script writes a JSON configuration file to the endpoint:

    C:\ProgramData\_Automation\Script\Test-MemoryUsage\Test-MemoryUsage.json

    The file contains:

    • HighThreshold – memory percentage that, once exceeded, starts the timer.
    • LowThreshold – memory percentage that resets the timer if usage drops below it.
    • UsageMins – the number of minutes the memory must stay above the low threshold (after the initial spike above the high threshold) before an alert is triggered.
    • TicketWebhookUrl – the ConnectWise ticketing webhook URL resolved from Ticket_Mgmt_Webhook_Url, written verbatim so the Memory Threshold Violation Monitoring [Workflow] monitor set can POST Create / Close / Comment payloads to the workflow. The original monitor set ignores this key. If the company field is empty or its RMM token fails to resolve, a hard-coded placeholder (https://webhook.myconnectwise.net/REPLACE_WITH_YOUR_DEFAULT_WEBHOOK_URL) is written instead.

In the samples below, https://webhook.myconnectwise.net/... is documentation shorthand for the real instance URL you paste into the company field; the script writes whatever string is stored there verbatim, with no validation of the URL itself.

Sample Scenario 1: Using Default Values​

No threshold custom fields are configured at any level. The script runs on a server and uses the built‑in defaults for servers: High = 95, Low = 90, Minutes = 30. The company-level Ticket_Mgmt_Webhook_Url field is assumed to be set, because it is a mandatory prerequisite for the [Workflow] monitor‑set variant (see the Custom Fields notes).

The resulting configuration file would be:

{
    "HighThreshold": 95,
    "LowThreshold": 90,
    "UsageMins": 30,
    "TicketWebhookUrl": "https://webhook.myconnectwise.net/..."
}

Sample Scenario 2: Using Custom Field Overrides​

An administrator wants a tighter threshold for a critical database server. At the Endpoint level, they set:

  • MTVM_HighThreshold = 98
  • MTVM_LowThreshold = 90
  • MTVM_UsageMins = 15

The script runs and, because the Endpoint fields take priority over any Company or Site fields, the threshold values are overridden, but TicketWebhookUrl is unaffected — it always reflects the single company-level field, never the per-level overrides, and is consumed only by the [Workflow] monitor‑set variant. The configuration file becomes:

{
    "HighThreshold": 98,
    "LowThreshold": 90,
    "UsageMins": 15,
    "TicketWebhookUrl": "https://webhook.myconnectwise.net/..."
}

On all other servers where no Endpoint-level fields are set, the script falls back to the Company or default values.

Ticketing & Alerting Behavior​

  • The deployed monitor set reads the configuration file and periodically checks the memory usage. Which set is deployed is a per‑partner choice — only one of the two should be active for a given device.
  • An alert is triggered only when the memory first exceeds the high threshold and then continues to stay above the low threshold for the number of minutes specified in UsageMins. When the memory drops below the low threshold, the condition clears.
  • Original Memory Threshold Violation Monitoring set: generates alerts and tickets using the monitor's built‑in ticketing. It reads only the thresholds from the config file and ignores TicketWebhookUrl. It raises one ticket per incident and auto‑resolves it on recovery via the monitor set's automatic resolution rule, but the ticket subject/body are monitor‑generated (not customizable) and a comment is appended on every detection while the alert persists. For this variant the webhook URL is irrelevant and the company field may be left blank.
  • Optional Memory Threshold Violation Monitoring [Workflow] set: evaluates memory usage the same way, but instead of the built‑in ticketing it reads TicketWebhookUrl from the config file and POSTs Create / Close / Comment payloads to the CWRMM ticketing workflow. The monitor script fires a Close payload when the condition clears, so the workflow auto‑closes the ticket on recovery — overcoming the manual‑close limitation of the built‑in path — while also producing clean tickets with no comment spam. This is the only variant for which the webhook URL is required.
  • The configuration writer itself never contacts the webhook; it only stores the URL for the [Workflow] monitor set to use.
  • The configuration file is updated once per day (or manually) by this task, so any changes to custom fields — including the webhook URL — take effect on the next scheduled run.

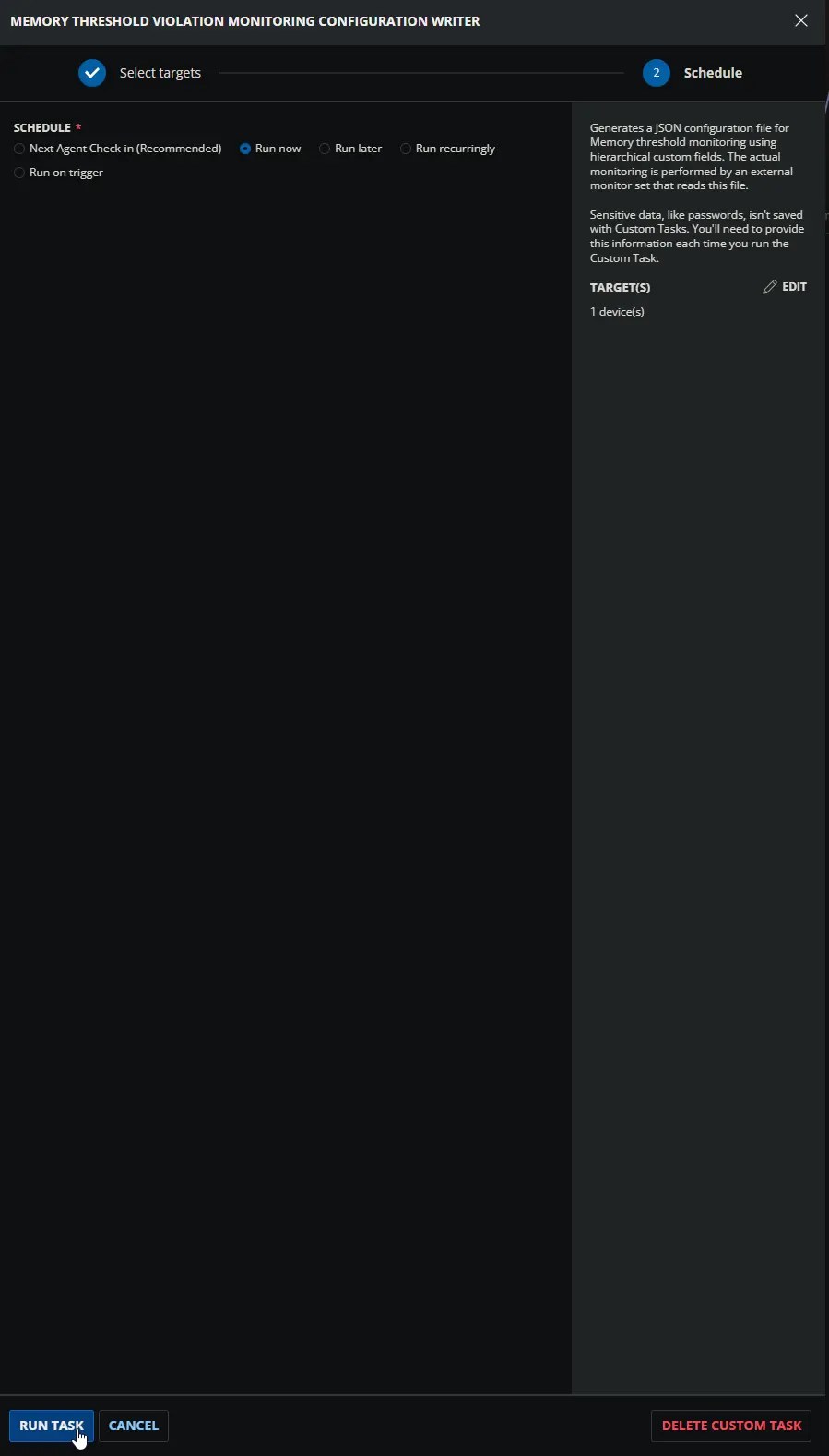

Sample Run​


Dependencies​

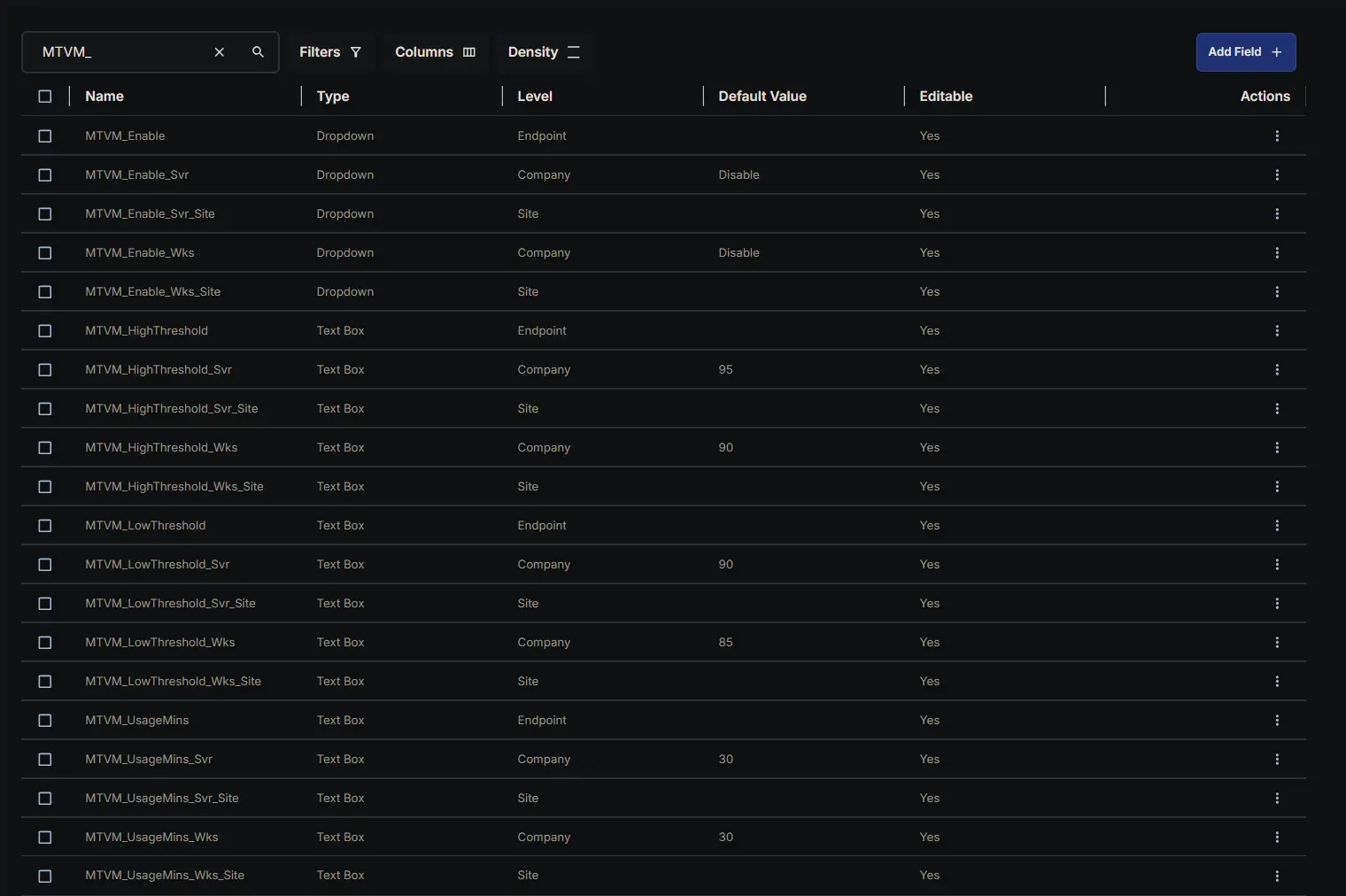

Custom Fields​

The following table lists all custom fields used by the script to determine the Memory monitoring thresholds. The Enable fields are not listed here; they are used exclusively by the automation group to decide whether the script runs at all.

NameExampleLevelTypeDefault ValueDescription
MTVM_HighThreshold_Svr95, 98CompanyText Box95Defines Company baseline high Memory % for servers. This value starts the timer when exceeded. Overridden by Site or Endpoint.
MTVM_HighThreshold_Wks90, 98CompanyText Box90Defines Company baseline high Memory % for workstations. This value starts the timer when exceeded. Overridden by Site or Endpoint.
MTVM_HighThreshold_Svr_Site95, 99SiteText Box–Site‑level override for servers. Overrides Company; overridden by Endpoint.
MTVM_HighThreshold_Wks_Site90, 92SiteText Box–Site‑level override for workstations. Overrides Company; overridden by Endpoint.
MTVM_HighThreshold98, 88EndpointText Box–Endpoint‑level high Memory %. Overrides all higher levels (applies to both OS types).
MTVM_LowThreshold_Svr90, 85CompanyText Box90Defines Company baseline low Memory % for servers. If usage drops below this, the timer resets. Overridden by Site or Endpoint.
MTVM_LowThreshold_Wks85, 80CompanyText Box85Defines Company baseline low Memory % for workstations. If usage drops below this, the timer resets. Overridden by Site or Endpoint.
MTVM_LowThreshold_Svr_Site80, 75SiteText Box–Site‑level override for servers. Overrides Company; overridden by Endpoint.
MTVM_LowThreshold_Wks_Site80, 70SiteText Box–Site‑level override for workstations. Overrides Company; overridden by Endpoint.
MTVM_LowThreshold85, 75EndpointText Box–Endpoint‑level low Memory %. Overrides all higher levels (applies to both OS types).
MTVM_UsageMins_Svr30, 15CompanyText Box30Defines Company baseline for servers: minutes Memory must stay above low threshold after initially exceeding the high threshold before an alert fires. Overridden by Site or Endpoint.
MTVM_UsageMins_Wks30, 20CompanyText Box30Defines Company baseline for workstations: minutes Memory must stay above low threshold after initially exceeding the high threshold before an alert fires. Overridden by Site or Endpoint.
MTVM_UsageMins_Svr_Site15, 10SiteText Box–Site‑level override for servers. Overrides Company; overridden by Endpoint.
MTVM_UsageMins_Wks_Site20, 10SiteText Box–Site‑level override for workstations. Overrides Company; overridden by Endpoint.
MTVM_UsageMins5, 10EndpointText Box–Endpoint‑level sustained minutes. Overrides all higher levels (applies to both OS types).


In addition to the threshold fields listed above, this task also reads the following company-level field and embeds its value into the configuration file as TicketWebhookUrl:

NameExampleLevelTypeDefault ValueDescription
Ticket_Mgmt_Webhook_Urlhttps://webhook.<rmm-domain>/<instance-id>CompanyText Boxhttps://webhook.myconnectwise.net/...Company-level webhook URL of the CWRMM ticketing workflow; written into the config JSON as TicketWebhookUrl. Read at the Company level only and consumed only by the Memory Threshold Violation Monitoring [Workflow] monitor set — see notes below. Name must match exactly.

Only required for the [Workflow] monitor-set variant:
TicketWebhookUrl exists in the config file for the benefit of the optional Memory Threshold Violation Monitoring [Workflow] monitor set, which is the only component that reads it. If a partner deploys the original Memory Threshold Violation Monitoring set (built-in ticketing) instead, this field is unused end-to-end — the original monitor set ignores the key, so the company field may be left blank and the silent-failure consequence described below does not apply. The mandatory-prerequisite and silent-failure warnings that follow therefore apply only when the [Workflow] monitor set is in use.

Company-level only — no hierarchical override and no server/workstation split:
Unlike every MTVM_* threshold field above, Ticket_Mgmt_Webhook_Url exists only at the Company level and has no _Svr / _Wks variants. The script reads it once (Row 16) and the OS-detection block does not touch it, so servers and workstations — and every Site and Endpoint — share the exact same webhook URL. This is intentional: the URL points to a single, environment-wide webhook instance, not to a per-device or per-class value.

Mandatory prerequisite for the [Workflow] variant — silent-failure risk if left blank:
When the [Workflow] monitor set is deployed, the value written to TicketWebhookUrl must be the real workflow URL — whatever string is stored as the field's Default Value, copied verbatim from the workflow's trigger webhook instance. The https://webhook.myconnectwise.net/... shown in the table is only a placeholder / example and must be replaced with the real URL during workflow setup. If the field is empty, missing, or its RMM token fails to resolve, the script does not error out — Row 16 is configured with Continue on Failure = True — it silently writes the hard-coded fallback https://webhook.myconnectwise.net/REPLACE_WITH_YOUR_DEFAULT_WEBHOOK_URL into the JSON instead. The configuration task will still report success, but the [Workflow] monitor set will then have no valid endpoint to POST to, and ticket creation/closure will silently fail for every device. After saving the field, always confirm the URL stored in the company field is a character-for-character match of the URL shown in the workflow's trigger instance, then re-run this task (or wait for the next daily run) so the new URL is written into the config file.

No URL validation is performed:
This task only stores the string; it does not check that the URL is reachable or well-formed. Connectivity, authentication, and payload handling are the responsibility of the [Workflow] monitor set and the workflow on the receiving end.

Task Setup Path​

  • Tasks Path: AUTOMATION ➞ Tasks
  • Task Type: Script Editor

Task Creation​

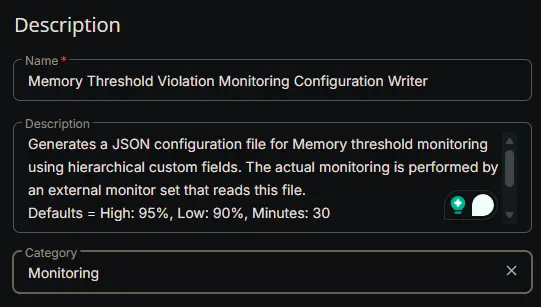

Description​

  • Name: Memory Threshold Violation Monitoring Configuration Writer
  • Description:
Generates a JSON configuration file for Memory threshold monitoring using hierarchical custom fields. The actual monitoring is performed by an external monitor set that reads this file.
Defaults = High: 95%, Low: 90%, Minutes: 30
Output File = %ProgramData%\_Automation\Script\Test-MemoryUsage\Test-MemoryUsage.json
  • Category: Monitoring


Script Editor​

Row 1 Function: Set Pre-defined Variable ( @MTVM_HighThreshold@ = MTVM_HighThreshold )​

  • Notes: MTVM_HighThreshold
  • Continue on Failure: False
  • Operating System: Windows
  • Variable Name: MTVM_HighThreshold
  • Custom Field: MTVM_HighThreshold (STRING - ENDPOINT)


Row 2 Function: Set Pre-defined Variable ( @MTVM_LowThreshold@ = MTVM_LowThreshold )​

  • Notes: MTVM_LowThreshold
  • Continue on Failure: False
  • Operating System: Windows
  • Variable Name: MTVM_LowThreshold
  • Custom Field: MTVM_LowThreshold (STRING - ENDPOINT)


Row 3 Function: Set Pre-defined Variable ( @MTVM_UsageMins@ = MTVM_UsageMins )​

  • Notes: MTVM_UsageMins
  • Continue on Failure: False
  • Operating System: Windows
  • Variable Name: MTVM_UsageMins
  • Custom Field: MTVM_UsageMins (STRING - ENDPOINT)


Row 4 Function: Set Pre-defined Variable ( @MTVM_HighThreshold_Svr_Site@ = MTVM_HighThreshold_Svr_Site )​

  • Notes: MTVM_HighThreshold_Svr_Site
  • Continue on Failure: False
  • Operating System: Windows
  • Variable Name: MTVM_HighThreshold_Svr_Site
  • Custom Field: MTVM_HighThreshold_Svr_Site (STRING - SITE)


Row 5 Function: Set Pre-defined Variable ( @MTVM_HighThreshold_Wks_Site@ = MTVM_HighThreshold_Wks_Site )​

  • Notes: MTVM_HighThreshold_Wks_Site
  • Continue on Failure: False
  • Operating System: Windows
  • Variable Name: MTVM_HighThreshold_Wks_Site
  • Custom Field: MTVM_HighThreshold_Wks_Site (STRING - SITE)


Row 6 Function: Set Pre-defined Variable ( @MTVM_LowThreshold_Svr_Site@ = MTVM_LowThreshold_Svr_Site )​

  • Notes: MTVM_LowThreshold_Svr_Site
  • Continue on Failure: False
  • Operating System: Windows
  • Variable Name: MTVM_LowThreshold_Svr_Site
  • Custom Field: MTVM_LowThreshold_Svr_Site (STRING - SITE)


Row 7 Function: Set Pre-defined Variable ( @MTVM_LowThreshold_Wks_Site@ = MTVM_LowThreshold_Wks_Site )​

  • Notes: MTVM_LowThreshold_Wks_Site
  • Continue on Failure: False
  • Operating System: Windows
  • Variable Name: MTVM_LowThreshold_Wks_Site
  • Custom Field: MTVM_LowThreshold_Wks_Site (STRING - SITE)


Row 8 Function: Set Pre-defined Variable ( @MTVM_UsageMins_Svr_Site@ = MTVM_UsageMins_Svr_Site )​

  • Notes: MTVM_UsageMins_Svr_Site
  • Continue on Failure: False
  • Operating System: Windows
  • Variable Name: MTVM_UsageMins_Svr_Site
  • Custom Field: MTVM_UsageMins_Svr_Site (STRING - SITE)


Row 9 Function: Set Pre-defined Variable ( @MTVM_UsageMins_Wks_Site@ = MTVM_UsageMins_Wks_Site )​

  • Notes: MTVM_UsageMins_Wks_Site
  • Continue on Failure: False
  • Operating System: Windows
  • Variable Name: MTVM_UsageMins_Wks_Site
  • Custom Field: MTVM_UsageMins_Wks_Site (STRING - SITE)


Row 10 Function: Set Pre-defined Variable ( @MTVM_HighThreshold_Svr@ = MTVM_HighThreshold_Svr )​

  • Notes: MTVM_HighThreshold_Svr
  • Continue on Failure: False
  • Operating System: Windows
  • Variable Name: MTVM_HighThreshold_Svr
  • Custom Field: MTVM_HighThreshold_Svr (STRING - COMPANY)


Row 11 Function: Set Pre-defined Variable ( @MTVM_HighThreshold_Wks@ = MTVM_HighThreshold_Wks )​

  • Notes: MTVM_HighThreshold_Wks
  • Continue on Failure: False
  • Operating System: Windows
  • Variable Name: MTVM_HighThreshold_Wks
  • Custom Field: MTVM_HighThreshold_Wks (STRING - COMPANY)


Row 12 Function: Set Pre-defined Variable ( @MTVM_LowThreshold_Svr@ = MTVM_LowThreshold_Svr )​

  • Notes: MTVM_LowThreshold_Svr
  • Continue on Failure: False
  • Operating System: Windows
  • Variable Name: MTVM_LowThreshold_Svr
  • Custom Field: MTVM_LowThreshold_Svr (STRING - COMPANY)


Row 13 Function: Set Pre-defined Variable ( @MTVM_LowThreshold_Wks@ = MTVM_LowThreshold_Wks )​

  • Notes: MTVM_LowThreshold_Wks
  • Continue on Failure: False
  • Operating System: Windows
  • Variable Name: MTVM_LowThreshold_Wks
  • Custom Field: MTVM_LowThreshold_Wks (STRING - COMPANY)


Row 14 Function: Set Pre-defined Variable ( @MTVM_UsageMins_Svr@ = MTVM_UsageMins_Svr )​

  • Notes: MTVM_UsageMins_Svr
  • Continue on Failure: False
  • Operating System: Windows
  • Variable Name: MTVM_UsageMins_Svr
  • Custom Field: MTVM_UsageMins_Svr (STRING - COMPANY)


Row 15 Function: Set Pre-defined Variable ( @MTVM_UsageMins_Wks@ = MTVM_UsageMins_Wks )​

  • Notes: MTVM_UsageMins_Wks
  • Continue on Failure: False
  • Operating System: Windows
  • Variable Name: MTVM_UsageMins_Wks
  • Custom Field: MTVM_UsageMins_Wks (STRING - COMPANY)


Row 16 Function: Set Pre-defined Variable ( @Ticket_Mgmt_Webhook_Url@ = Ticket_Mgmt_Webhook_Url )​

  • Notes: Ticket_Mgmt_Webhook_Url
  • Continue on Failure: True
  • Operating System: Windows
  • Variable Name: Ticket_Mgmt_Webhook_Url
  • Custom Field: Ticket_Mgmt_Webhook_Url (STRING - COMPANY)

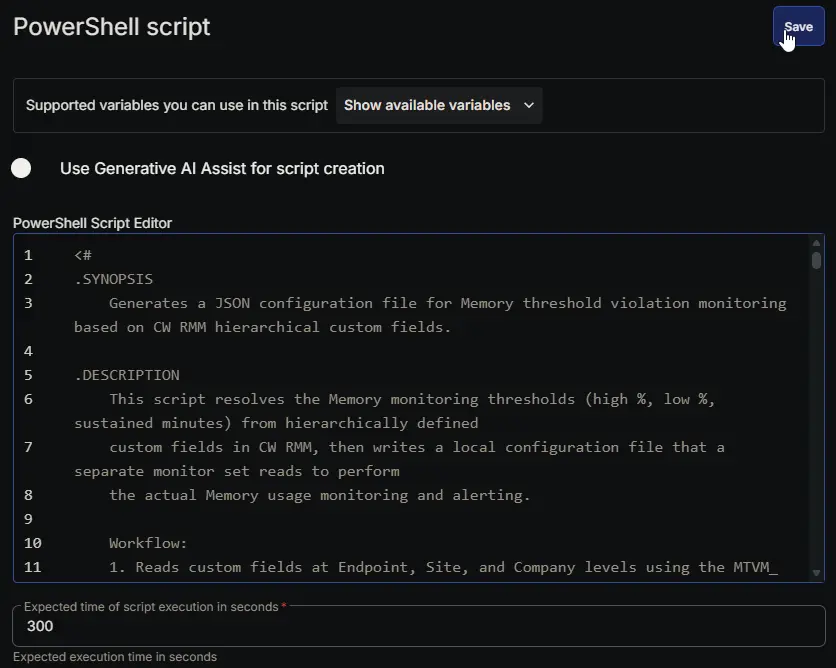

Row 17 Function: PowerShell script​

  • Notes: <Leave it Blank>
  • Use Generative AI Assist for script creation: False
  • Expected time of script execution in seconds: 300
  • Continue on Failure: False
  • Run As: System
  • Operating System: Windows
  • PowerShell Script Editor:

PowerShell Script


Row 18 Function: Script Log​

  • Notes: <Leave it Blank>
  • Continue on Failure: False
  • Operating System: Windows
  • Script Log Message: %Output%

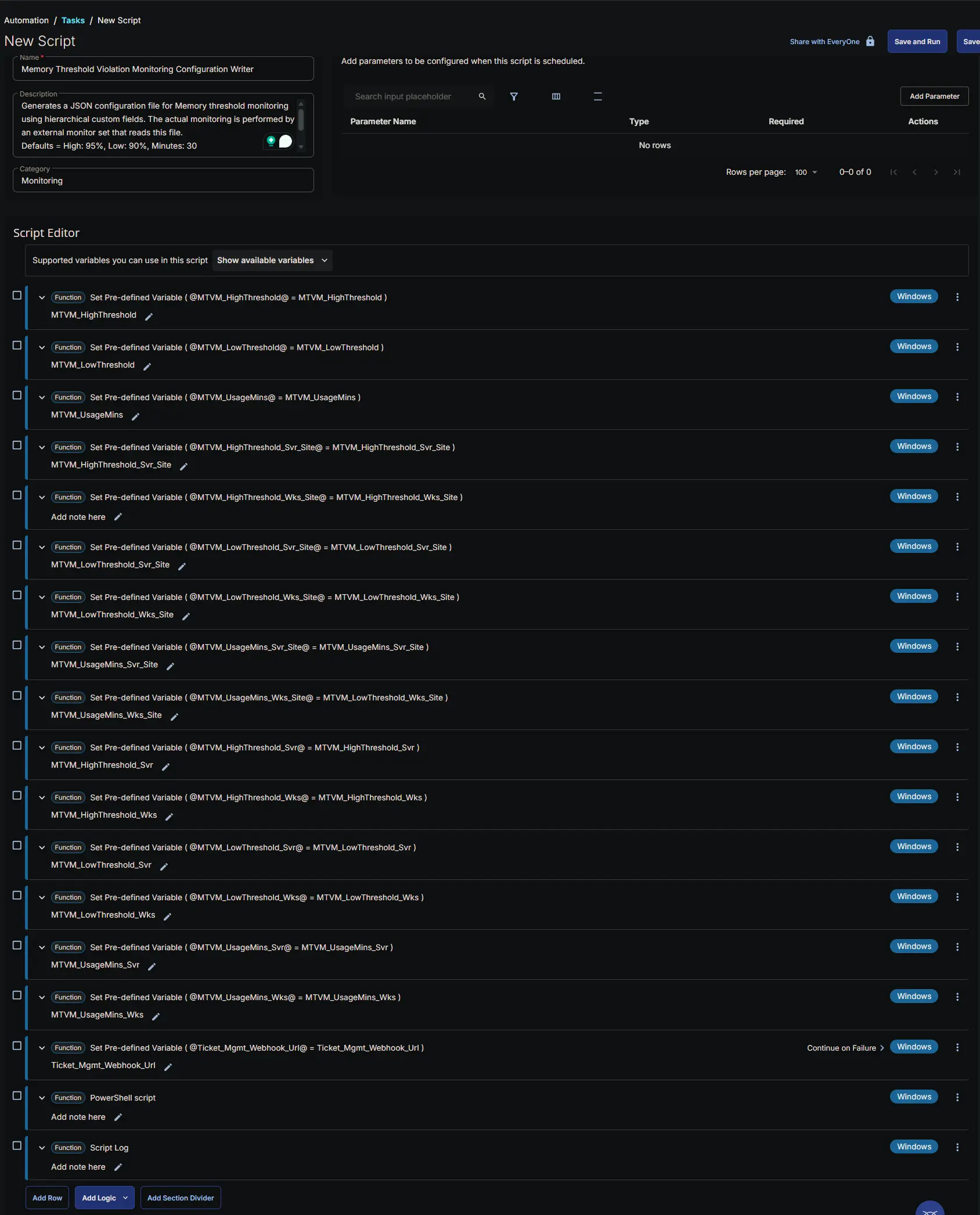

Completed Script​


Output​

  • Script Log
  • JSON File at C:\ProgramData\_Automation\Script\Test-MemoryUsage\Test-MemoryUsage.json

Schedule Task​

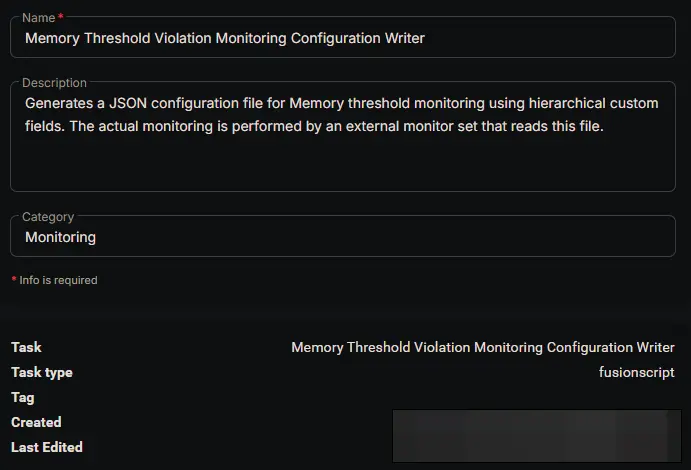

Task Details​

  • Name: Memory Threshold Violation Monitoring Configuration Writer
  • Description: Generates a JSON configuration file for Memory threshold monitoring using hierarchical custom fields. The actual monitoring is performed by an external monitor set that reads this file.
  • Category: Monitoring


Schedule​

  • Schedule Type: Schedule
  • Timezone: Local Machine Time
  • Start: <Current Date>
  • Trigger: Time At <Current Time>
  • Recurrence: Every day
  • Execute at next agent check-in: True
  • Stop After: 22
  • Unit: Hour(s)


Targeted Resource​

Device Group: Memory Threshold Violation Monitoring

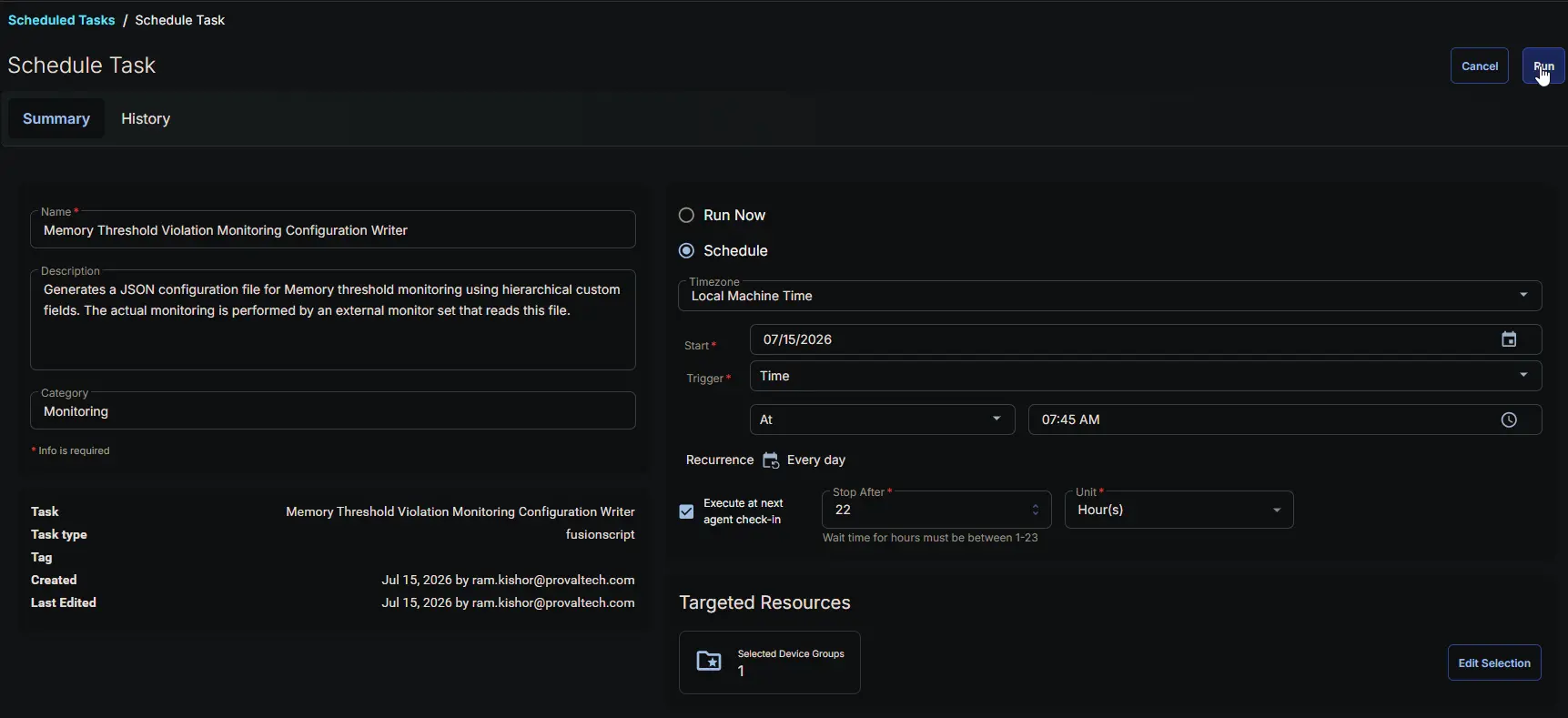

Completed Scheduled Task​


Changelog​

2026-07-23​

  • Task Update: The task now reads the company-level Ticket_Mgmt_Webhook_Url custom field and writes it into the configuration file as TicketWebhookUrl, enabling the optional [Workflow] monitor-set variant to trigger the ConnectWise ticketing workflow.

2026-07-15​

  • Initial version of the document
