BitLocker Status
Summary
Lists every BitLocker volume and key protector on each Windows workstation, with its Secure Boot status and BitLocker eligibility. Use it to confirm which drives are encrypted, find drives where protection is off, and see which devices are ready for BitLocker. The BitLocker and TPM Audit automation collects the data on each device.
Requirements
The Knowledge Base articles need the NinjaOne Documentation app enabled in NinjaOne, as shown below. If your NinjaOne does not have it, set Report Output to Local CSV Files in the report automation. The report then creates only the CSV files, on the device that runs it.
Where to Find the Report
| Report | Knowledge Base Article | CSV File |
|---|---|---|
| Global | Global Knowledge Base > Dataviews > BitLocker > BitLocker Status | C:\ProgramData\_Automation\Report\BitLocker\BitLocker Status.csv |
| Organization | Organization Knowledge Base > Dataviews > BitLocker > BitLocker Status | C:\ProgramData\_Automation\Report\BitLocker\Organization_Level_Reports\BitLocker Status_<Organization>.csv |
The articles and CSV files are replaced every time the report runs. CSV files are saved on the device that runs the report automation. An article that grows too large is split into - Part 1, - Part 2 and so on. Recovery passwords are left out of this report. Find them in the cPVAL BitLocker Info field of the device.
Report Columns
| Column Name | Appears In | Description |
|---|---|---|
| Organization | Global only | The organization the device belongs to. |
| Location | Both | The location the device belongs to. |
| Device | Both | The device name. |
| OS | Both | The operating system of the device. |
| DeviceType | Both | The device type: Physical Server, Virtual Server, Laptop, Desktop or Virtual Workstation. |
| MountPoint | Both | The drive letter of the volume. |
| EncryptionMethod | Both | The encryption algorithm, for example XtsAes128. |
| AutoUnlockEnabled | Both | True when the volume unlocks automatically. |
| AutoUnlockKeyStored | Both | True when an auto-unlock key is stored on the device. |
| MetadataVersion | Both | The BitLocker metadata version of the volume. |
| VolumeStatus | Both | The encryption state, for example FullyEncrypted or FullyDecrypted. |
| ProtectionStatus | Both | On when the volume is encrypted and protected. |
| LockStatus | Both | Locked or Unlocked. |
| EncryptionPercentage | Both | How much of the volume is encrypted. |
| WipePercentage | Both | How much free space has been wiped. |
| VolumeType | Both | The volume type, for example OperatingSystem or Data. |
| KeyProtectorId | Both | The ID of the key protector in this row. |
| AutoUnlockProtector | Both | True when this protector is used for auto-unlock. |
| KeyProtectorType | Both | The protector type, for example Tpm or RecoveryPassword. |
| KeyFileName | Both | The key file name, for external key protectors. |
| KeyCertificateType | Both | The certificate type, when a certificate is used. |
| Thumbprint | Both | The certificate thumbprint, when a certificate is used. |
| SecureBootStatus | Both | True when Secure Boot is on. |
| BitLockerEligibility | Both | Eligible, Not Eligible or Not Defined, based on the TPM status. |
| DataCollectionTime | Both | When the device collected the data. |

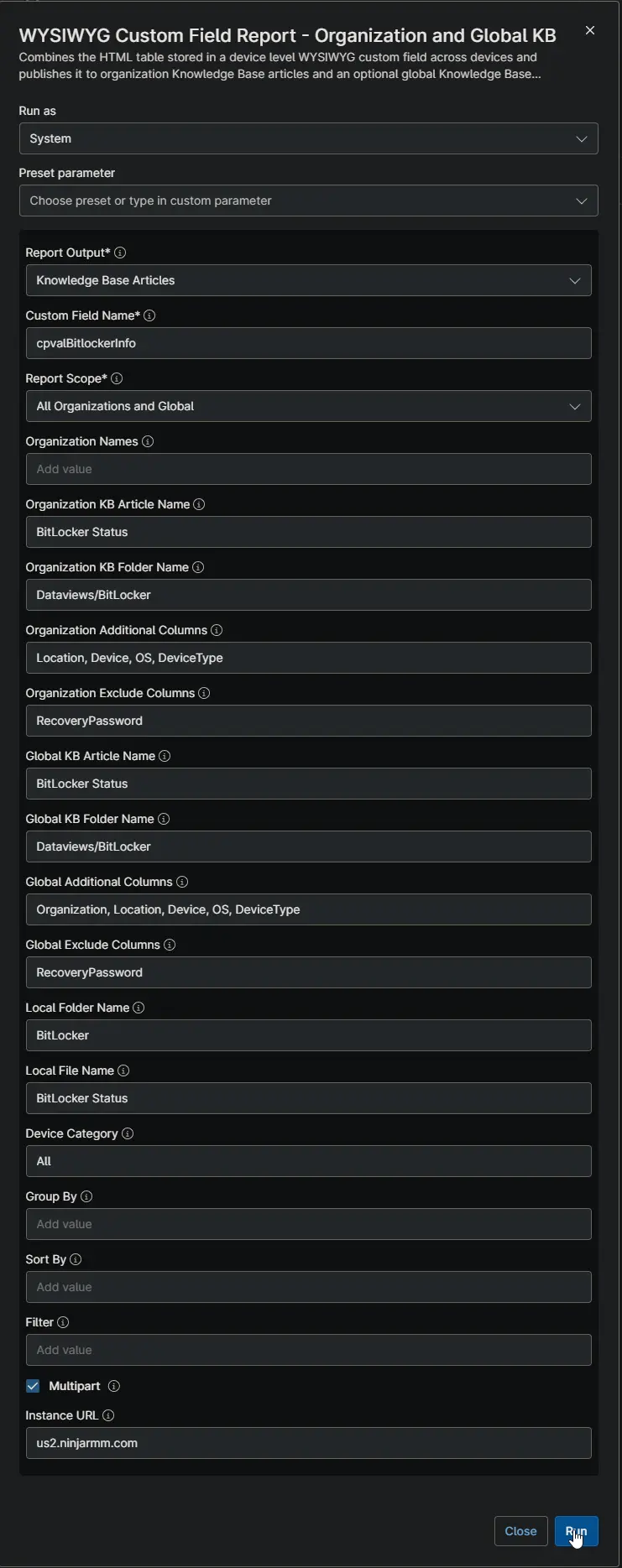

Report Settings
Values used in the WYSIWYG Custom Field Report - Organization and Global KB automation to build this report.
| Script Variable | Value |
|---|---|
| Report Output | Knowledge Base Articles and Local CSV Files |
| Custom Field Name | cpvalBitlockerInfo |
| Report Scope | All Organizations and Global |
| Organization KB Article Name | BitLocker Status |
| Organization KB Folder Name | Dataviews/BitLocker |
| Organization Additional Columns | Location, Device, OS, DeviceType |
| Organization Exclude Columns | RecoveryPassword |
| Global KB Article Name | BitLocker Status |
| Global KB Folder Name | Dataviews/BitLocker |
| Global Additional Columns | Organization, Location, Device, OS, DeviceType |
| Global Exclude Columns | RecoveryPassword |
| Local Folder Name | BitLocker |
| Local File Name | BitLocker Status |
| Device Category | All |
| Multipart | True |
| Instance Url | The NinjaOne instance of the partner, for example us2.ninjarmm.com |
Dependencies
- Automation: WYSIWYG Custom Field Report - Organization and Global KB
- Automation: BitLocker and TPM Audit
- Custom Field: cPVAL BitLocker Info
- Solution: BitLocker and TPM Audit

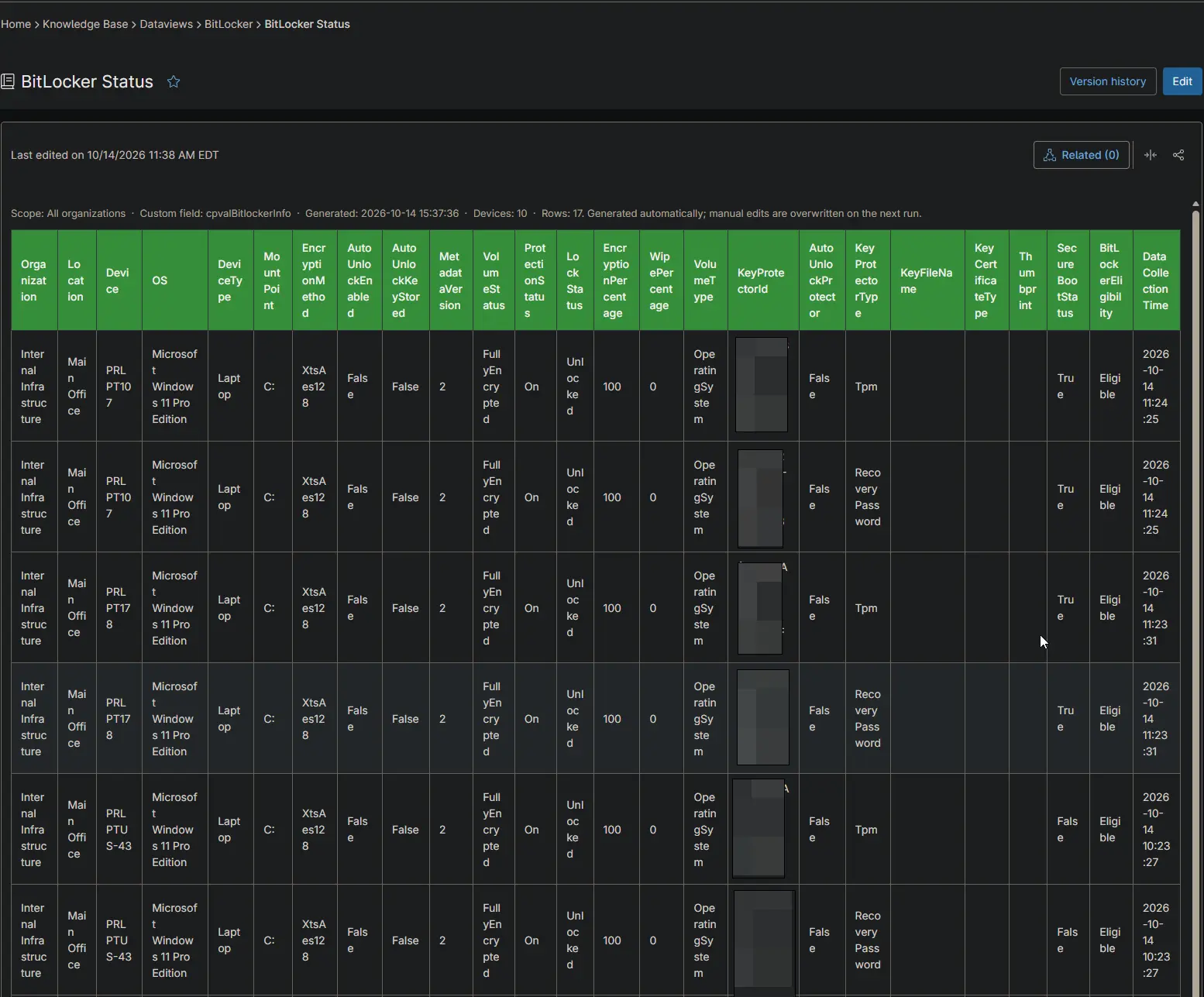

Global Article Sample Screenshot

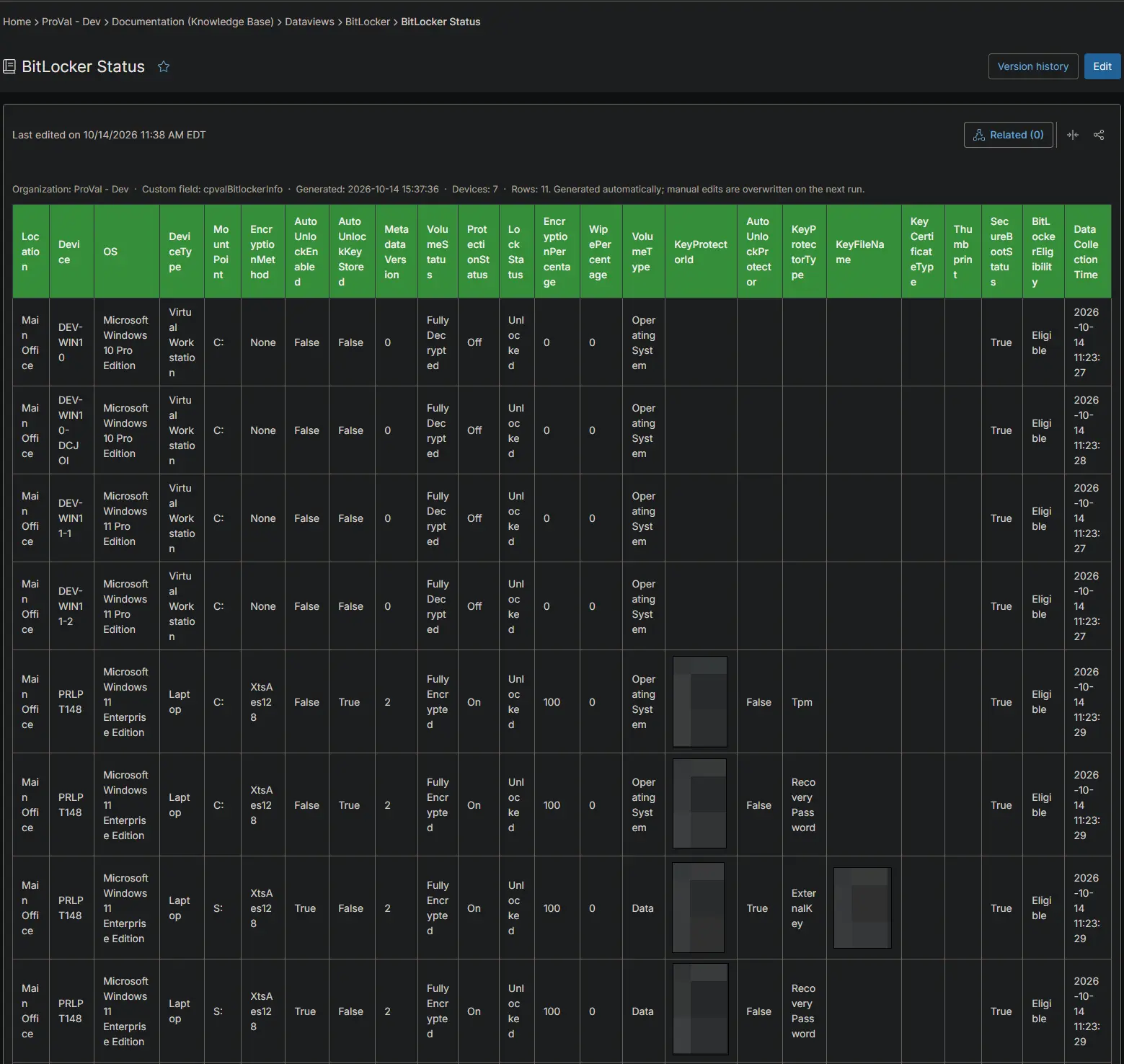

Organization Article Sample Screenshot

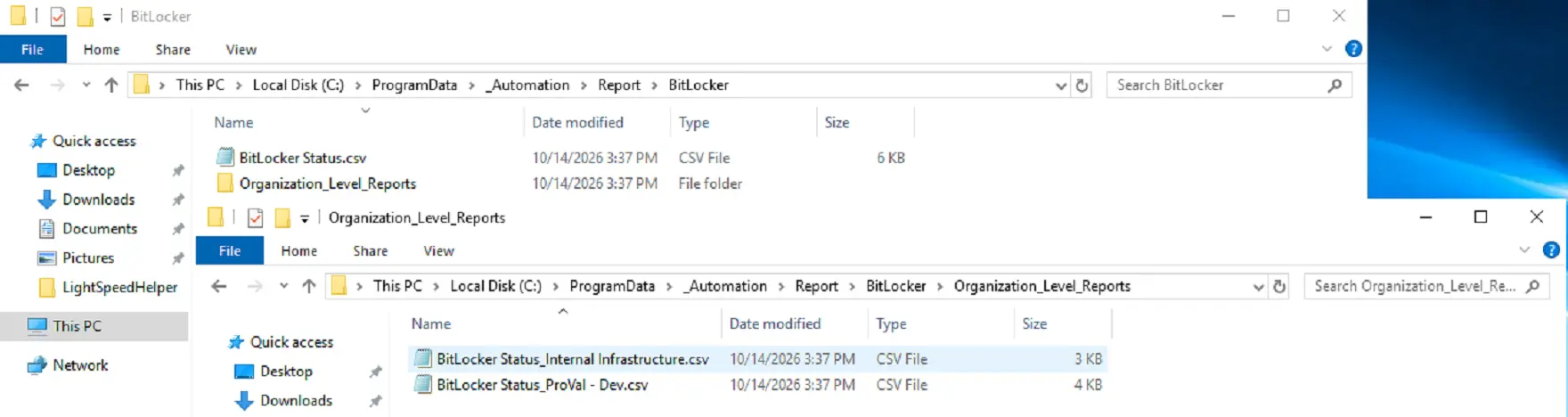

CSV Folder Sample Screenshot
The global CSV file, and the Organization_Level_Reports folder with one CSV file per organization.
Changelog
2026-10-14
- Initial version of the document
