Duo Deployment - Windows Servers
Summary
Triggers the Duo Deployment - Windows automation on Windows servers where deployment is enabled.
Details
Name: Duo Deployment - Windows Servers
Description: Triggers the auto-deployment script for Duo on Windows servers where deployment is enabled.
Recommended Agent Policy: Windows Server [Default]
Dependencies
Compound Condition Creation
Compound conditions can be configured within an Agent Policy. This document provides an example using the default Windows Server [Default] policy for demonstration purposes.
Navigate to Administration > Policies > Agent Policies.
Search for Windows Server and select the default Windows Server [Default] policy.
This will navigate you to the policy's landing page, which is the Conditions section. Note that conditions may vary across different policies and environments. The provided screenshot is for demonstration purposes only.
Navigate to the Compound Conditions section. Note that existing compound conditions may vary across different policies and environments. The provided screenshot is for demonstration purposes only.
Click the + Add button to add a compound condition.
Clicking the + Add button opens the compound condition creation window.
Conditions
Condition 1: Software
Click the + Add condition button.
Select the Software option from the list that will appear after clicking the + Add condition button.
Add Software Condition screen will appear on selecting the Software option:
Configure the Add Software Condition as follow:
Software Name: Duo Authentication for Windows Logon x64
Trigger when: Any Software Doesn't exist
Note: The Return key must be pressed after pasting the name to set the Software Name.
Click the Apply button to save the software condition.
Condition 2: Custom fields
Click the + Add condition button.
Select the Custom fields option from the list that will appear after clicking the + Add condition button.

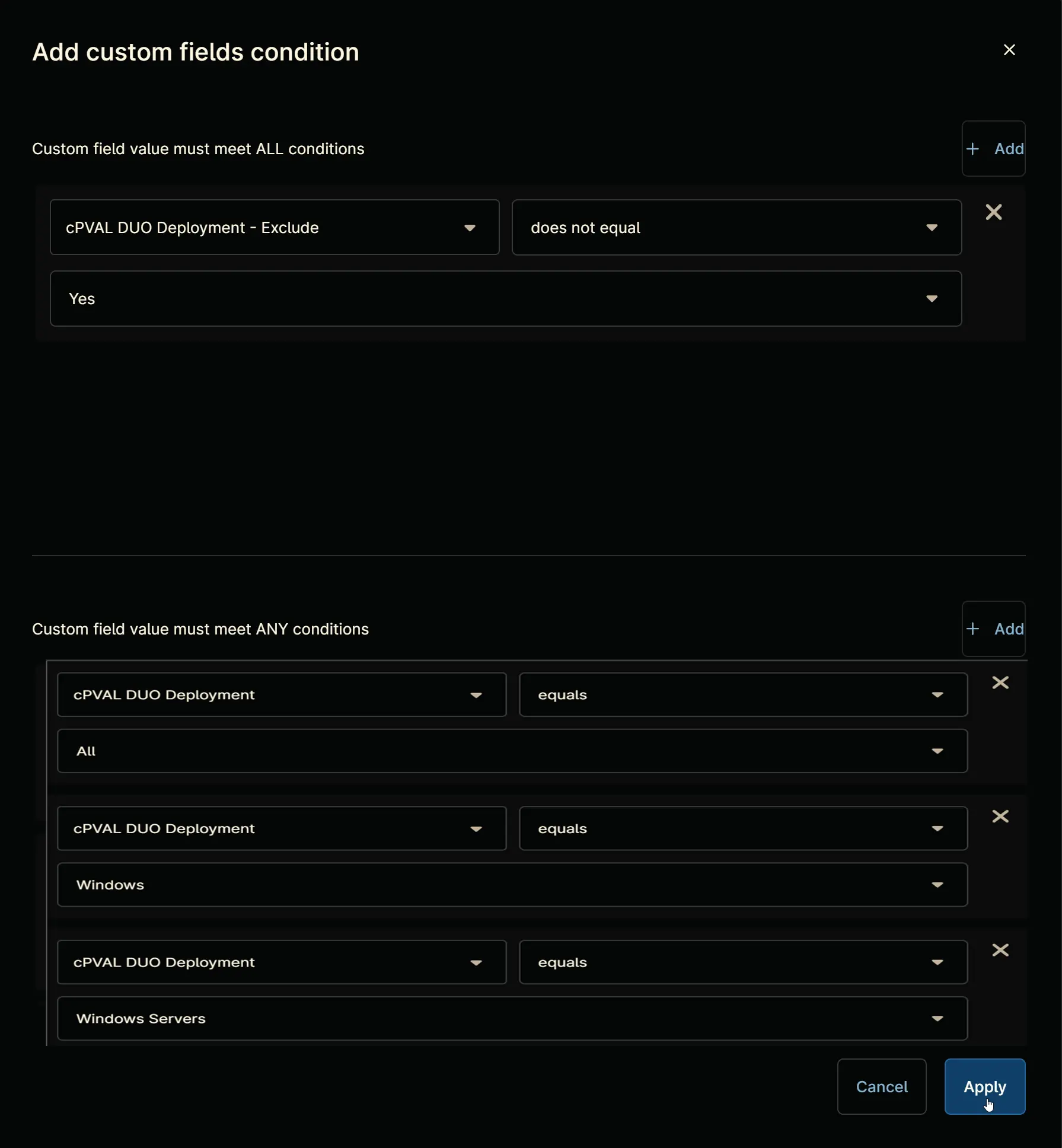

Add custom fields condition screen will appear on selecting the Custom fields option:
Click the + Add button within the upper section labeled Custom field value must meet ALL conditions.
A new row will be added upon clicking the + Add button.
Search and select the cPVAL DUO Deployment - Exclude custom field.
Condition: cPVAL DUO Deployment - Exclude does not equal Yes
Click the + Add button within the lower section labeled Custom field value must meet ANY conditions.
A new row will be added upon clicking the + Add button.
Search and select the cPVAL DUO Deployment custom field.
Condition: cPVAL DUO Deployment equals All
Click the + Add button within the lower section labeled Custom field value must meet ANY conditions.
A new row will be added upon clicking the + Add button.
Search and select the cPVAL DUO Deployment custom field.
Condition: cPVAL DUO Deployment equals Windows
Click the + Add button within the lower section labeled Custom field value must meet ANY conditions.
A new row will be added upon clicking the + Add button.
Search and select the cPVAL DUO Deployment custom field.
Condition: cPVAL DUO Deployment equals Windows Servers
Click the Apply button to save the custom field condition.
Automations
Navigate to Automations section.
Click the + Add automation button.
Automation Library will appear upon clicking the + Add Automation button. Note that existing automation library may vary across different environments. The provided screenshot is for demonstration purposes only.
Search and select the Duo Deployment - Windows script.
Click the Apply button to add the automation.
Completed Automation Section:
Settings
Navigate to Settings section.
Set the Settings section as follows:
Name: Duo Deployment - Windows Servers
Auto Reset:
- After:
True1 hour - When no longer met:
True
Run Every: 30 Minutes
Trigger uptime: False
Notifications
Leave the Notifications section untouched.
Completed Component
Click the Apply button at the bottom to save the compound condition.
Saving Agent Policy
Click the Save button located at the top-right corner of the screen to save the agent policy.
You will be prompted to enter your MFA code. Provide the code and press the Continue button to finalize the process.
