Remote Event Log Monitor - Create

Summary

This Automate Script will create a state-based event log monitor on the specifically requested group. By default, it will set these monitors to the "Default - Do Nothing" alert template, which needs to be modified to fit your desired result after creation.

PowerShell-related issues are addressed in the WARNING state. It is suggested to use the CWM - Automate - Script - Ticket Creation - Computer script for ERROR state alerting, as the remote monitor truncates the message while creating a default ticket using the alert template.

Note: You must review the properties of the event log to determine the name.

Requirements

This script will create the remote monitor on a group with the default settings being:

1. Do nothing
2. No error actions
3. No alert actions

If you desire a different end result, the monitor will need to be modified manually.

Sample Run

Intended Target: Any Computer (offline Computer Script)

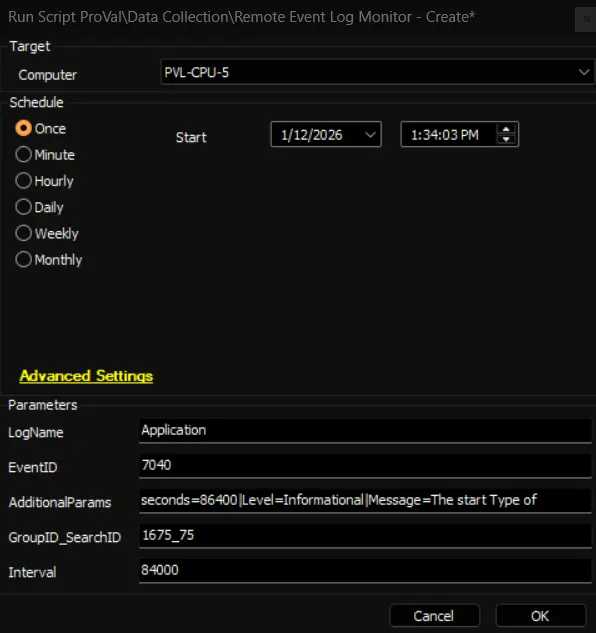

The following parameters will configure a remote monitor on group ID 1675, restricted to search ID 75:

• Monitor Name: Application - Event 7040 - Level Informational
• Monitor Schedule: Every 84000 seconds

The aforementioned monitor will be designed to scan for Informational events from the Application log, which contain an event ID of 7040, the message within the event log containing the phrase "The Start Type of," and generated over the last 86400 seconds.

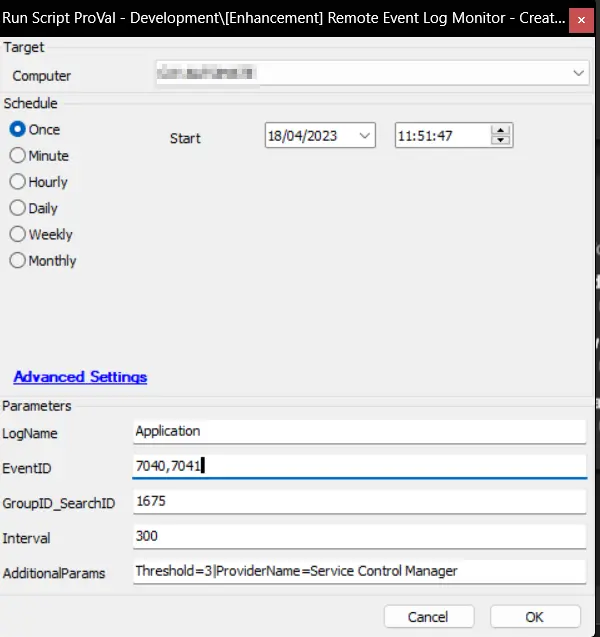

The following parameters will be utilized to configure a remote monitor on group ID 1675, restricted to search ID 75:

• Monitor Name: Application - Event 7040,7041 - Provider Service Control Manager
• Monitor Schedule: Every 300 seconds

The aforementioned monitor will be designed to scan for all events from the Application log, which contain an event ID of 7040 or 7041, with the provider name of 'Service Control Manager,' and have generated at least three times over the last 300 seconds (Monitor's interval).

Dependencies

• EPM - Data Collection - Agnostic - Script - Get-RecentEventLog
  Documentation Link

Variables

Name	Description
GroupID_SearchID	Holds parsed GroupID and SearchID from the user parameters
GroupID	Holds the Group ID you specified
SearchID	Holds the Search ID you specified
CheckAction	Holds the check action to be taken on the remote monitor (File)
AlertAction	Holds the alert action to be taken on the remote monitor (Default is Default Do Nothing)
ProjectName	Get-RecentEventLog
WorkingDirectory	C://ProgramData//_automation//script//Get-RecentEventLog
PS1Path	C://ProgramData//_automation//script//Get-RecentEventLog//Get-RecentEventLog.ps1
AdditionalParams	Additional Parameters provided from the user parameters
Interval	Run time interval of the monitor set in seconds
LogNameSwitch	Converts the desired LogName to a formatted LogName switch for the agnostic script
EventIDSwitch	Converts the desired event ID to a formatted event ID switch for the agnostic script
ProviderSwitch	Converts the desired ProviderName to a formatted provider name switch for the agnostic script
Message	Message passed in the additional params user parameter with SQL-compatible modifications
MessageSwitch	Converts the desired message to a formatted Message switch for the agnostic script
LevelSwitch	Converts the desired Level to a formatted Level switch for the agnostic script
SecondsSwitch	Converts the desired Seconds to a formatted Seconds switch for the agnostic script
AdditionalParameters	Formatted Additional Parameters provided from the user parameters
GUID	GUID for the remote monitor
ComparisonString	Formatted conditions to be used within the remote monitor for NORMAL, WARNING, and FAILED states
ExecuteString	Command to be used within the remote monitor

User Parameters

Name	Example	Required	Description
LogName	Application	True	The event log sub-container you wish to query.
EventID	7040	True	The event ID you wish to query for in the log selected.
GroupID_SearchID	1675_75	True	The ID of the group you wish to create the monitor upon, and the search ID to limit it.
Interval	3600	False	Interval to run the monitor set. Leaving it blank or setting it lower than 60 will default it to 60.
AdditionalParams	seconds=86400	Level=Informational	Message=The start type of

Note: Do not enclose the parameters in quotations.

Output

• Script log
• Remote Monitor

Sample Remote Monitors

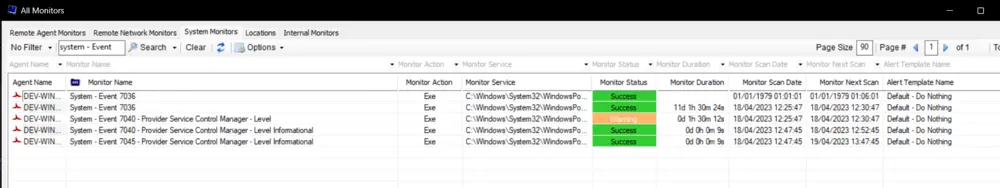

Multiple Monitors:

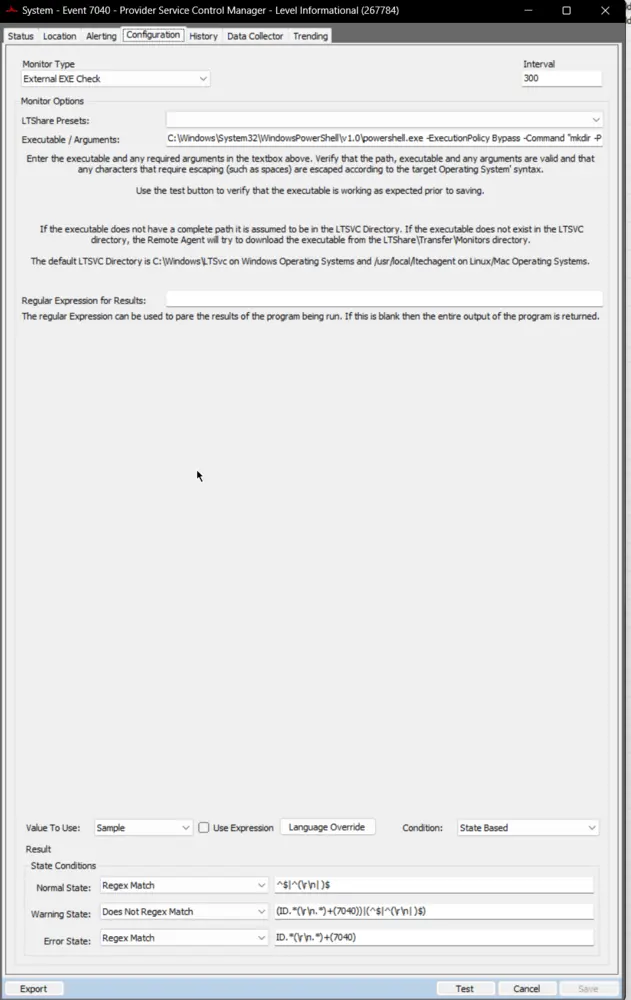

Configuration Tab:

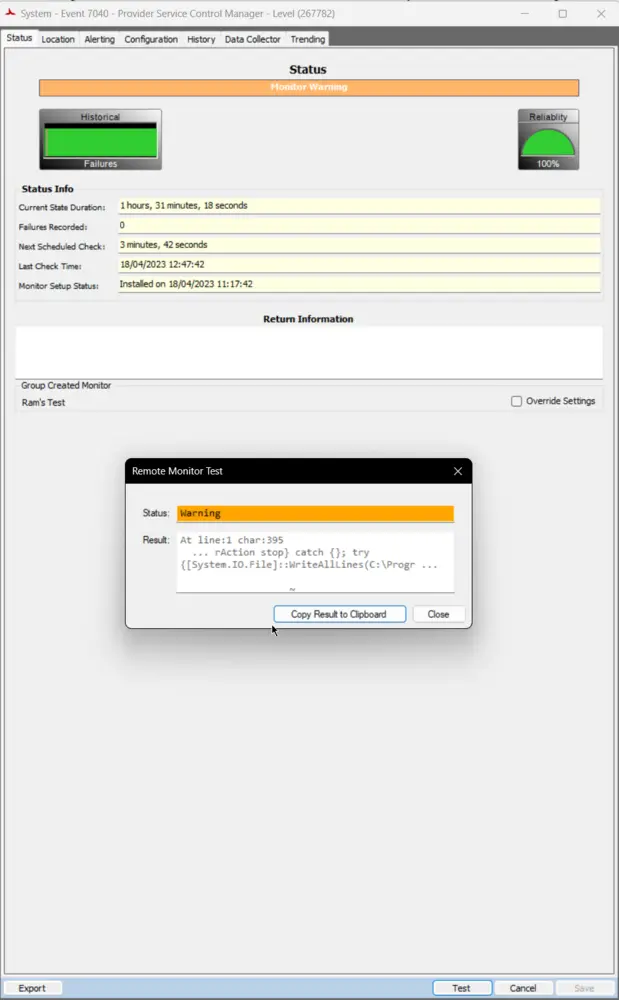

Example Warning:

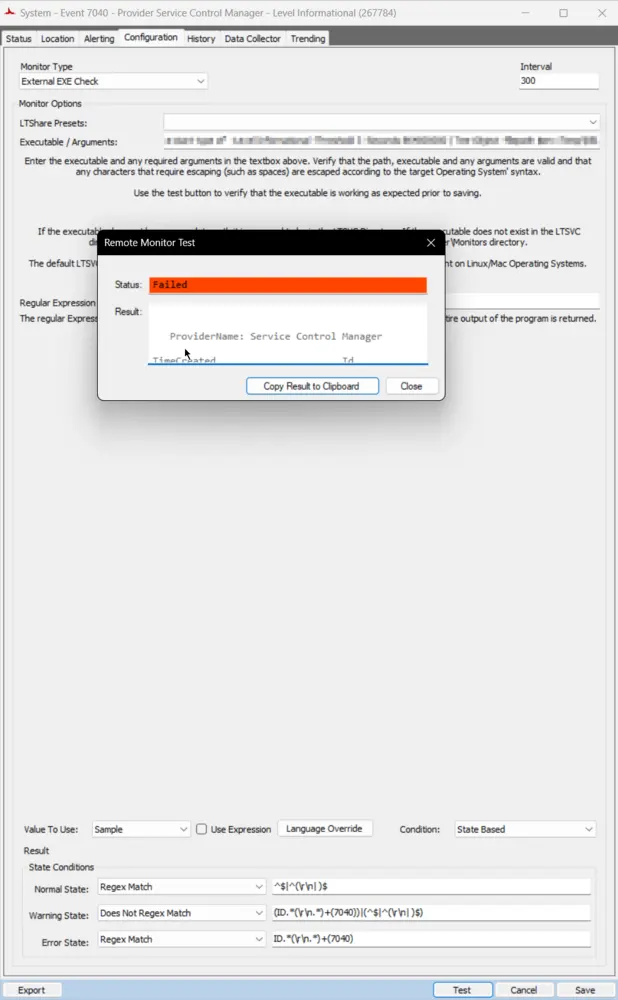

Example Failed:

Example Success:

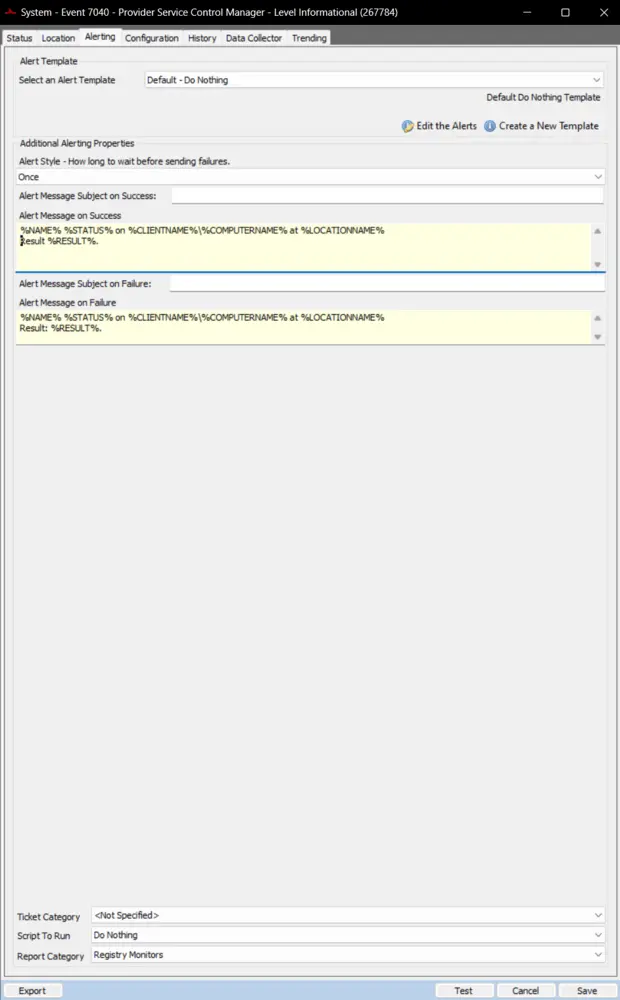

Alerting Tab:

Example %RESULT%

ProviderName: Service Control Manager
TimeCreated                            Id LevelDisplayName Message
-----------                            -- ---------------- -------
4/18/2023 9:53:50 AM               7040 Information      The start type of the Background Intelligent Transfer Service s...
4/18/2023 9:44:28 AM               7040 Information      The start type of the Background Intelligent Transfer Service s...
4/18/2023 9:40:19 AM               7040 Information      The start type of the Background Intelligent Transfer Service s...
4/18/2023 9:37:56 AM               7040 Information      The start type of the Background Intelligent Transfer Service s...
4/18/2023 9:35:50 AM               7040 Information      The start type of the Background Intelligent Transfer Service s...
4/18/2023 9:23:01 AM               7040 Information      The start type of the Background Intelligent Transfer Service s...
4/18/2023 9:18:12 AM               7040 Information      The start type of the Background Intelligent Transfer Service s...
4/18/2023 9:06:48 AM               7040 Information      The start type of the Background Intelligent Transfer Service s...
4/18/2023 9:01:58 AM               7040 Information      The start type of the Background Intelligent Transfer Service s...
