Network Glue Collector - Install
Summary
This document provides detailed instructions for installing the NetworkGlue Collector, including requirements for the client-specific activation key and the necessary URL for the installer. It outlines user and global parameters, the process for installation, and ticketing information for failed installations.

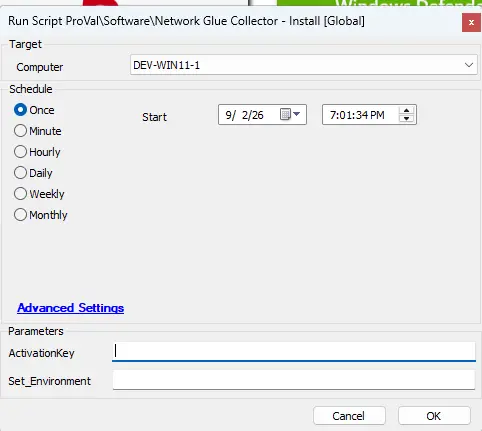

Sample Run
Dependencies
- Solution - Application - Network Glue Collector
- Internal Monitor - ProVal Production - Network Glue - Deployment
Global Parameters
| Name | Example | Required | Description |
|---|---|---|---|
| URL | https://s3.amazonaws.com/networkdetective/download/NetworkGlueCollector.msi | True | MSI URL link to install Network Glue Collector |
User Parameters
| Name | Example | Required | Description |
|---|---|---|---|
| Activation Key | &!GHGSDG$#SHJG7668717% | False | This is required to be set with the individual clients activation key found in their IT Glue Networks page to enable auto deployment. |
| Set_Environment | 1 | True (for first execution) | Run the script with the Set_Environment parameter set to 1 to create the EDFs used by the solution. |
EDFs
| Name | Level | Type | Editable | Description |
|---|---|---|---|---|
| Network Glue Activation Key | Client | Text | Yes | This is required to be set with the individual clients activation key found in their IT Glue Networks page to enable auto deployment. |
Output
- Script Logs
- Ticketing
Ticketing
Subject :
SW - Network Glue Collector failed to install on %computername%
Body :
Network Glue Collector installation failed on %CLIENTNAME%\%COMPUTERNAME% at %LOCATIONNAME%. Please review the log below:
@ErrorLog@.
Comment :
Network Glue Collector installation failed again on the %computername% of %clientname%\%locationname%. Please review the log below:
@ErrorLog@.
Changelog
2026-09-03
- Fixed the document as it was missing the content.
- Signed the powershell script used in the script.
- Updated script to auto close ticket.
- Added Set_Environment parameter to create EDFs in a new environment.
2025-04-10
- Initial version of the document
