Cisco Secure Client Parameter

Summary

This company-level custom field stores the parameter to install the Cisco Secure Client package using the SWM - Software Install - Task - Cisco Secure Client Package Installation (Windows) task.

Parameters must be set in a manner consistent with the agnostic script SWM - Software Install - Agnostic - Install-CiscoSecureClient.

Dependencies

SWM - Software Install - Task - Cisco Secure Client Package Installation (Windows)

Details

Field Name	Type of Field	Description
Cisco Secure Client Parameter	Company	Stores the parameter to install the Cisco Secure Client package using the Cisco Secure Client Package Installation (Windows) task. How to use parameters: Install-CiscoSecureClient

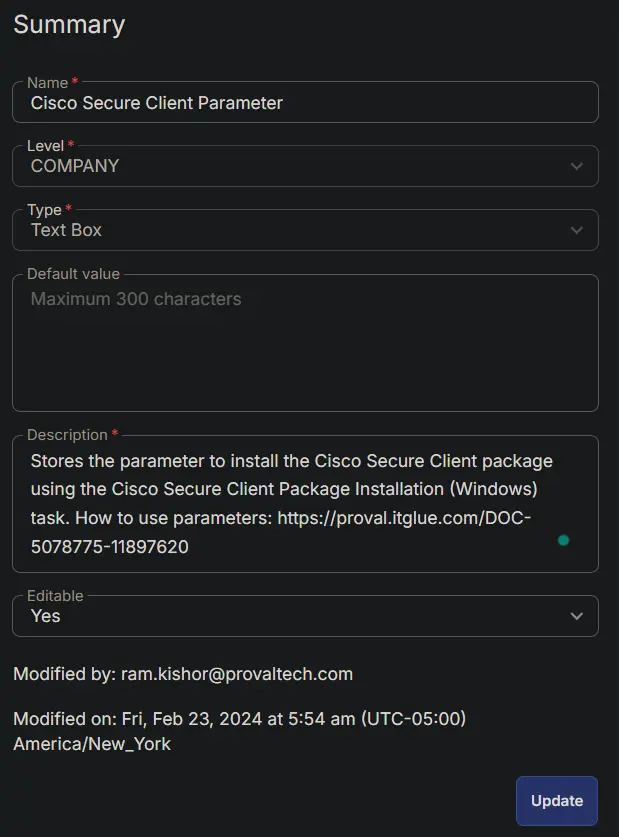

Screenshot

How to Use the Custom Field

• Navigate to Client Management > Company Management


• Select the desired client from the Company List


• Go to the Custom Fields section in the Company Details



• Click the edit button for the Cisco Secure Client Parameter Custom Field

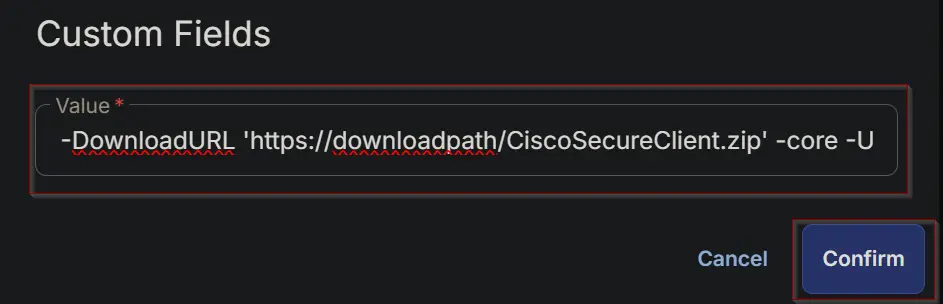

• This pop-up will appear on the screen


• Write the required parameter in the Value text box and click the Confirm button to save.


Sample Values

Value:

-DownloadURL 'https://downloadpath/CiscoSecureClient.zip' -core -Umbrella -UserID 1234567 -Fingerprint oash098ashuiue -OrgId 394058

Outcome:
The task will install the Core VPN (keeping it hidden from the end-user) and Umbrella Modules. Because Umbrella is being installed, the UserID, Fingerprint, and OrgId are required. Also, it's mandatory to install the Core VPN module to install the Umbrella module.

Value:

-DownloadURL 'https://downloadpath/CiscoSecureClient.zip' -Dart -Nvm -Posture

Outcome:
The task will install the Diagnostics and Reporting, VPN Posture (HostScan), and Network Visibility Modules.

Value:

-DownloadURL 'https://downloadpath/CiscoSecureClient.zip' -core -Umbrella -Dart -Nvm -UserID 1234567 -Fingerprint oash098ashuiue -OrgId 394058

Outcome:
The task will install the Core VPN module (keeping it hidden from the end-user), Umbrella, Diagnostics and Reporting, and Network Visibility Modules. Because Umbrella is being installed, the UserID, Fingerprint, and OrgId are required.

Value:

-DownloadURL 'https://downloadpath/CiscoSecureClient.zip' -core -ShowVPN -Umbrella -Dart -Nvm -UserID 1234567 -Fingerprint oash098ashuiue -OrgId 394058

Outcome:
The task will install the Core VPN module (visible to the end-user in the system tray icon), Umbrella, Diagnostics and Reporting, and Network Visibility Modules. Because Umbrella is being installed, the UserID, Fingerprint, and OrgId are required.

Value:

-DownloadURL 'https://downloadpath/CiscoSecureClient.zip' -All -UserID 1234567 -Fingerprint oash098ashuiue -OrgId 394058

Outcome:
The task will install all modules, including Umbrella, which require the UserID, Fingerprint, and OrgId to be provided. Programmatically creates a JSON authentication file for access by the Umbrella module.

Note:
The DownloadURL, Fingerprint, OrgID, and UserID provided above are for illustrative purposes only. When executing the script, it is essential to set the correct values for these parameters according to the specific requirements.

Agnostic Script Parameters

Different installation parameters can be created by using these parameters from the agnostic script.

Parameter	Required	Default	Type	Parameter Set Members	Description
All	False		Switch	All	Installs all modules. Requires dynamic parameters.
UserID	True		String	Dynamic: All, Umbrella	Cisco Client ID: Required for Umbrella and all switches.
FingerPrint	True		String	Dynamic: All, Umbrella	Cisco Fingerprint: Required for Umbrella and all switches.
orgID	True		String	Dynamic: All, Umbrella	Cisco Org ID: Required for Umbrella and all switches.
core	False		Switch	Custom	Installs the Core VPN module.
showVPN	False		Switch	Dynamic: All, core	Displays the Core VPN module in the system tray icon.
SBL	False		Switch	Custom	Installs the Start Before Login module.
DART	False		Switch	Custom	Installs the Diagnostic and Reporting Tool module.
NVM	False		String	Custom	Installs the Network Visibility module.
NAM	False		String	Custom	Installs the Network Access Manager module.
Posture	False		String	Custom	Installs the VPN Posture (HostScan) module.
ISEPosture	False		String	Custom	Installs the ISE Posture module.
Umbrella	False		String	Custom	Installs the Umbrella module. Requires dynamic parameters.
DownloadURL	True		String	Core, All, Custom, Umbrella	URL to download the CiscoSecureClient.zip file.
