Workstation Reboot Schedule on Specific Days

Summary​

This document outlines the process for scheduling a forced reboot of workstations on specific days based on the approved window check.

Sample Run​

Select the device and search for 'Workstation Re' in the search box, then click.

Sample Run Image 1

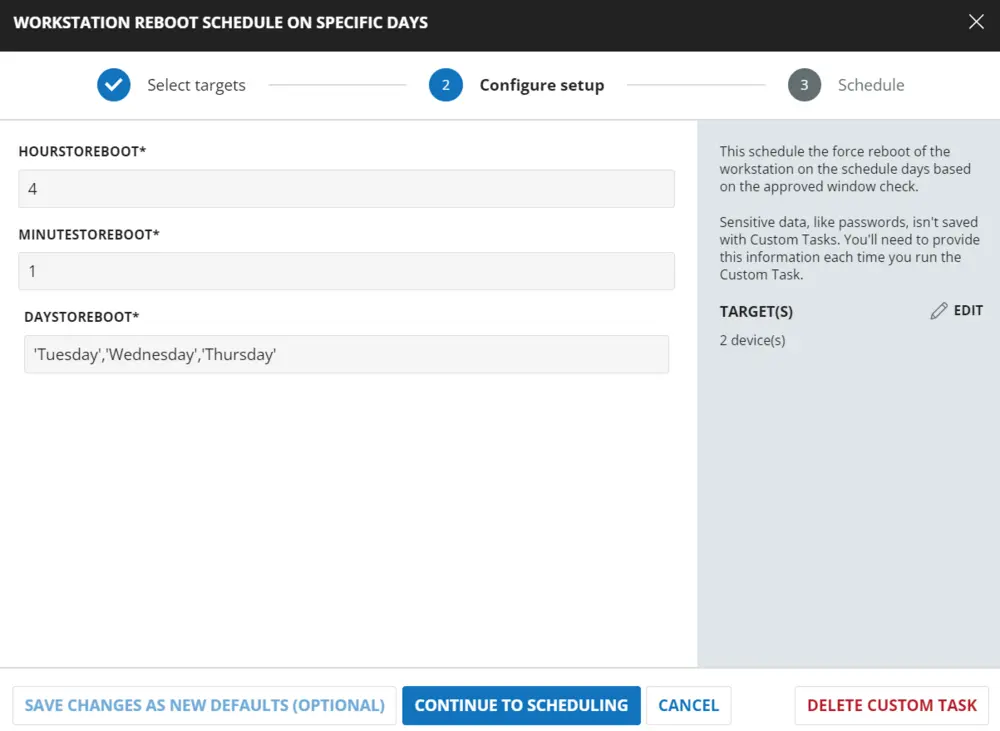

Provide the user parameter value as per the requirement and then click 'Continue to scheduling'.

Sample Run Image 2

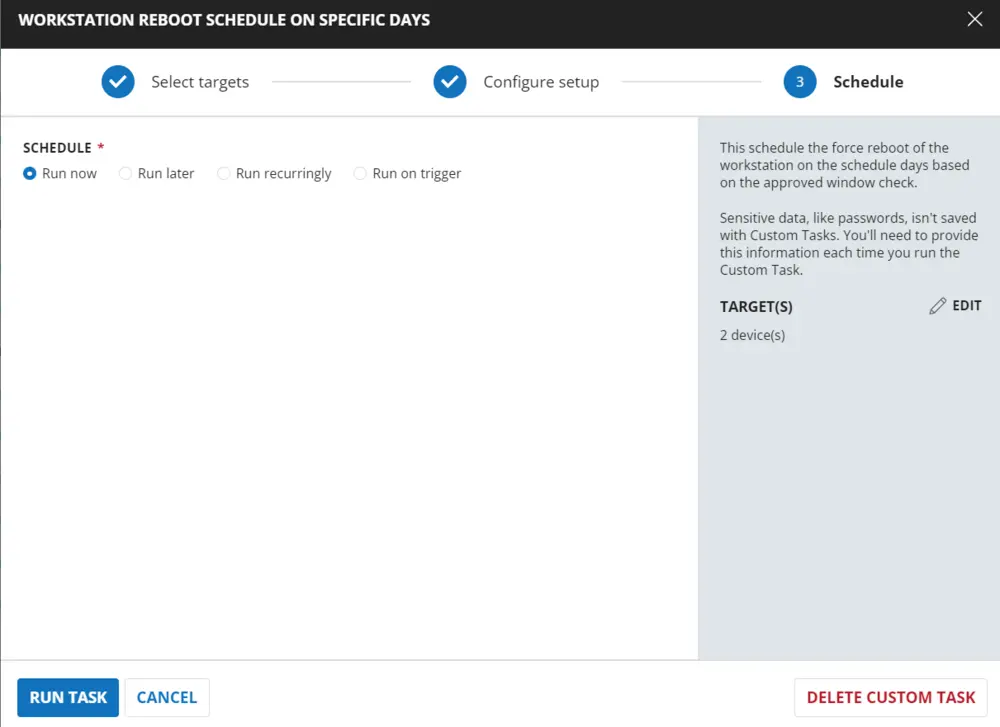

Click 'Run task' to schedule the task immediately.

Sample Run Image 3

User Parameters​

NameExampleRequiredDescription
HoursToReboot4TrueThe hour of the day to reboot in a 24-hour format. Example: 13 = 1:00 PM
MinutesToReboot0TrueThe minute of the hour to reboot. Supports values from 0 - 59
DaysToReboot'Tuesday','Wednesday','Thursday'TrueMust be a comma-separated list of strings in single quotes with the names of the days of the week to reboot. Example: 'Tuesday','Wednesday','Thursday'

Dependencies​

Custom Fields - Reboot Trigger/Schedule

Implementation​

Create Task​

To implement this script, please create a new "Script Editor" style script in the system.

Create Task Image

  • Name: Workstation Reboot Schedule on Specific Days
  • Description: This schedule forces the reboot of the workstation on the scheduled days based on the approved window check.
  • Category: Maintenance

Create Task Image 2

Script​

Start by making three separate rows. You can do this by clicking the "Add Row" button at the bottom of the script page.

Script Image

Row 1: Function: Script Log​

Row 1 Image

Paste the highlighted text: Checking OS

Row 1 Image 2

Row 2: Function: PowerShell Script​

Row 2 Image

Paste in the following PowerShell script and set the expected time of script execution to 600 seconds.

$os = Get-CimInstance -ClassName Win32_OperatingSystem
if ($os.ProductType -eq 1) {
    return 'Workstation'
} elseif ($os.ProductType -eq 2 -or $os.ProductType -eq 3) {
    return 'Server'
} else {
    return 'Unknown OS Type'
}

Row 3: Function: Script Log​

alt text

In the script log message, simply type %output% so that the script will send the results of the PowerShell script above to the output on the Automation tab for the target device.

alt text

Row 4: Logic: If/Then​

Row 4 Image

Row 4a: Condition: Output Contains​

In the IF part, enter Workstation in the right box of the "Output Does Not Contain" part.

Row 4a Image

Row 4b: Function: Script Log​

alt text

In the script log message, type The OS detected is confirmed not a Workstation. Please try the script 'Force Reboot Server with Reboot Windows Verification'. Exiting script without any action.

Row 4b Image

Row 4c: Function: Script Exit​

alt text

Add a new row by clicking on the Add row button. In the script exit message, leave it blank.

alt text

Row 5: Logic: If/Then​

Row 5 Image

Row 5a: Condition: Custom Field Equals​

In the IF part, enter true in the right box of the "Custom Field Equals" part.

Row 5a Image

Row 5b: Function: Script Log​

alt text

In the script log message, type Force Reboot is approved on the endpoint via Reboot Scripts. Proceeding for reboot schedule without reboot window validation.

Row 5b Image

Row 5c: Function: PowerShell Script​

Paste in the following PowerShell script and set the expected time of script execution to 900 seconds.

function Restart-ComputerOnSchedule {
    [CmdletBinding()]
    param (
        [Parameter(Mandatory)][string[]]$Days,
        [Parameter(Mandatory)][int]$Hour,
        [Parameter(Mandatory)][int]$Minute,
        [switch]$Test
    )
    if(-not [bool]$Days) {
        Write-Output "ERROR: No days specified to reboot."
        return
    }
    $INCORRECT_DAYS = $Days | Where-Object {$_ -notmatch "^(Sunday|Monday|Tuesday|Wednesday|Thursday|Friday|Saturday)$"}
    if([bool]$INCORRECT_DAYS) {
        Write-Output "ERROR: Specified days are incorrect: $($INCORRECT_DAYS -join ',')"
        return
    }
    if((0..23) -notcontains $Hour) {
        Write-Output "ERROR: Specified hour is incorrect: $Hour"
        return
    }
    if((0..59) -notcontains $Minute) {
        Write-Output "ERROR: Specified minute is incorrect: $Minute"
        return
    }
    $currentDate = Get-Date
    $rebootDate = $(Get-Date -Hour $Hour -Minute $Minute).AddDays(1)
    $failsafe = 0
    while($Days -notcontains $rebootDate.DayOfWeek) {
        if($failsafe -gt 7) {break}
        $rebootDate = $rebootDate.AddDays(1)
        $failsafe++
    }
    if($failsafe -gt 7) {
        Write-Output "ERROR: Something went wrong and the reboot date could not be determined."
        return
    }
    $rebootDelay = [Math]::Round($($rebootDate - $currentDate).TotalSeconds)
    $rebootComment = "Server is being rebooted automatically at: $($rebootDate.tostring())"
    $rebootArgs = @("/r", "/t", $rebootDelay, "/c", $rebootComment)
    if(-not $Test) {
        & shutdown /a 2>&1 | Out-Null
        & shutdown $rebootArgs 2>&1 | Out-Null
    }

    Write-Output "RebootDateTime=$($rebootDate.tostring("yyyy-MM-dd hh:mm:ss"))"
}
Restart-ComputerOnSchedule -Days (@DaysToReboot@) -Hour @HoursToReboot@ -Minute @MinutesToReboot@

Row 5d: Function: Script Log​

alt text

In the script log message, simply type %output%.

alt text

Row 5e: Logic: If/Then​

Row 5e Image

Row 5e.1: Condition: Output Does Not Contain​

In the IF part, enter RebootDateTime in the right box of the "Output Does Not Contain" part.

Row 5e.1 Image

Row 5e.2: Function: Script Exit​

alt text

In the script exit message, type Reboot Schedule Failed with an error %output%. This will end the task with failure.

Row 5e.2 Image

Row 5f: Function: Script Log​

alt text

In the script log message, type Reboot successfully scheduled on %output%.

Row 5f Image

Row 5g: Function: Script Exit​

alt text

Add a new row by clicking on the Add row button. In the script exit message, leave it blank.

alt text

Row 6: Function: Set Pre-defined Variable​

Select the custom field 'WorkstationRebootWindowStart' and set the variable 'RebootWindowStart'.

Row 6 Image

alt text

Row 7: Function: Set Pre-defined Variable​

Select the custom field 'WorkstationRebootWindowEnd' and set the variable 'RebootWindowEnd'.

Row 7 Image

alt text

Row 8: Function: Set Pre-defined Variable​

Select the custom field 'WorkstationRebootWindowDay' and set the variable 'RebootWindowDay'.

Row 8 Image

alt text

Row 9: Logic: If/Then​

Row 9 Image

Row 9a: Condition: Custom Field Equals​

In the IF part, enter true in the right box of the "Custom Field Equals" part.

Row 9a Image

Row 9b: Function: Script Log​

alt text

In the script log message, type This endpoint has 'Exclude Reboot' flag checked. Exiting script without any action.

Row 9b Image

Row 9c: Function: Script Exit​

alt text

Add a new row by clicking on the Add row button. In the script exit message, leave it blank.

alt text

Row 10: Function: Script Log​

alt text

In the script log message, type Verifying that machine is in approved window between @RebootWindowStart@ and @RebootWindowEnd@ (Note: 0=12:00 AM, 23=11:00 PM) and Day @RebootWindowDay@.

Row 10 Image

Row 11: Function: PowerShell Script​

Paste in the following PowerShell script and set the expected time of script execution to 600 seconds.

$hour = [int](get-date -Format "HH");
$currentDay = (get-date).DayOfWeek
$Day = @RebootWindowDay@
$minHour = @RebootWindowStart@
$maxHour = @RebootWindowEnd@
if ($Day -contains $currentDay) {
    if (($hour -ge $minHour) -and ($hour -lt $maxHour)) {
        return 'Machine is in reboot window'
    }
    else {
        return 'Time is not in approved window'
    }
}
else {
    return 'Day is not in approved window'
}

Row 12: Function: Script Log​

alt text

In the script log message, simply type %output% so that the script will send the results of the PowerShell script above to the output on the Automation tab for the target device

alt text

Row 13: Logic: If/Then​

Row 13 Image

Row 13a: Condition: Output Contains​

In the IF part, enter Machine is in reboot window in the right box of the "Output Does Not Contain" part.

Row 13a Image

Row 13b: Function: Script Log​

alt text

In the script log message, type Scheduling the reboot as the reboot schedule falls under the reboot window set on the company level.

Row 13b Image

Row 13c: Function: PowerShell Script​

Paste in the following PowerShell script and set the expected time of script execution to 900 seconds.

function Restart-ComputerOnSchedule {
    [CmdletBinding()]
    param (
        [Parameter(Mandatory)][string[]]$Days,
        [Parameter(Mandatory)][int]$Hour,
        [Parameter(Mandatory)][int]$Minute,
        [switch]$Test
    )
    if(-not [bool]$Days) {
        Write-Output "ERROR: No days specified to reboot."
        return
    }
    $INCORRECT_DAYS = $Days | Where-Object {$_ -notmatch "^(Sunday|Monday|Tuesday|Wednesday|Thursday|Friday|Saturday)$"}
    if([bool]$INCORRECT_DAYS) {
        Write-Output "ERROR: Specified days are incorrect: $($INCORRECT_DAYS -join ',')"
        return
    }
    if((0..23) -notcontains $Hour) {
        Write-Output "ERROR: Specified hour is incorrect: $Hour"
        return
    }
    if((0..59) -notcontains $Minute) {
        Write-Output "ERROR: Specified minute is incorrect: $Minute"
        return
    }
    $currentDate = Get-Date
    $rebootDate = $(Get-Date -Hour $Hour -Minute $Minute).AddDays(1)
    $failsafe = 0
    while($Days -notcontains $rebootDate.DayOfWeek) {
        if($failsafe -gt 7) {break}
        $rebootDate = $rebootDate.AddDays(1)
        $failsafe++
    }
    if($failsafe -gt 7) {
        Write-Output "ERROR: Something went wrong and the reboot date could not be determined."
        return
    }
    $rebootDelay = [Math]::Round($($rebootDate - $currentDate).TotalSeconds)
    $rebootComment = "Server is being rebooted automatically at: $($rebootDate.tostring())"
    $rebootArgs = @("/r", "/t", $rebootDelay, "/c", $rebootComment)
    if(-not $Test) {
        & shutdown /a 2>&1 | Out-Null
        & shutdown $rebootArgs 2>&1 | Out-Null
    }

    Write-Output "RebootDateTime=$($rebootDate.tostring("yyyy-MM-dd hh:mm:ss"))"
}
Restart-ComputerOnSchedule -Days (@DaysToReboot@) -Hour @HoursToReboot@ -Minute @MinutesToReboot@

Row 13d: Function: Script Log​

In the script log message, simply type %output%.

Row 13e: Function: Script Log​

Row 13e Image

Row 13e.1: Condition: Output Contains​

In the IF part, enter RebootDateTime in the right box of the "Output Contains" part.

Row 13e.1 Image

Row 13e.2: Function: Script Log​

alt text

In the script log message, type Reboot successfully scheduled on %output%.

Row 13e.2 Image

Row 13e.3: Function: Script Exit​

alt text

Add a new row by clicking on the Add row button. In the script exit message, leave it blank.

alt text

Row 13f: Function: Script Exit​

alt text

In the script exit message, type Reboot Schedule Failed with an error %output%. This will end the task with failure.

Row 13f Image

Row 14: Complete​

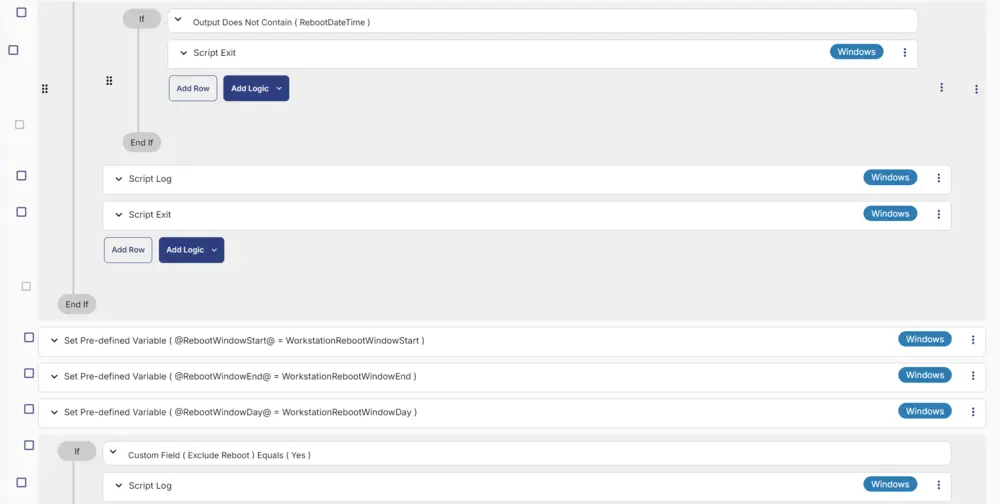

The complete script looks as shown below:

Complete Script Image 1

Complete Script Image 2

Complete Script Image 3

Complete Script Image 4

Deployment​

This task can be run manually or in a group. It will only reboot endpoints if the reboot falls under the reboot window provided in the company-level custom fields.

Reboot Trigger/Schedule

  • Go to Automation > Tasks.
  • Search for Workstation Reboot Schedule on Specific Days Task.
  • Select the concerned task.

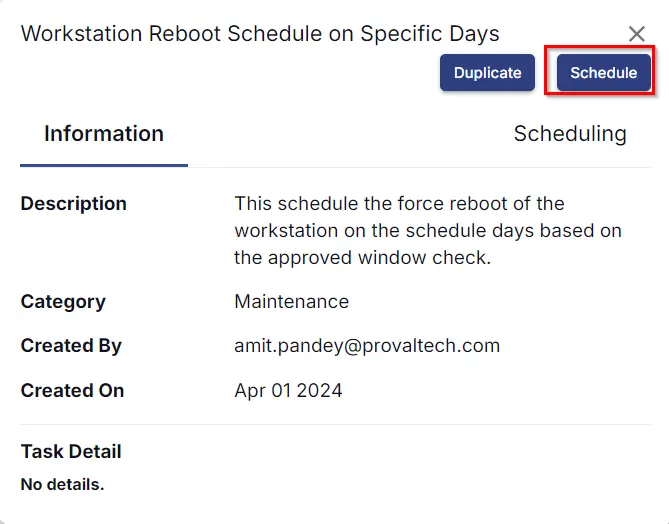

  • Click on the Schedule button to schedule the task/script.

Deployment Step 1

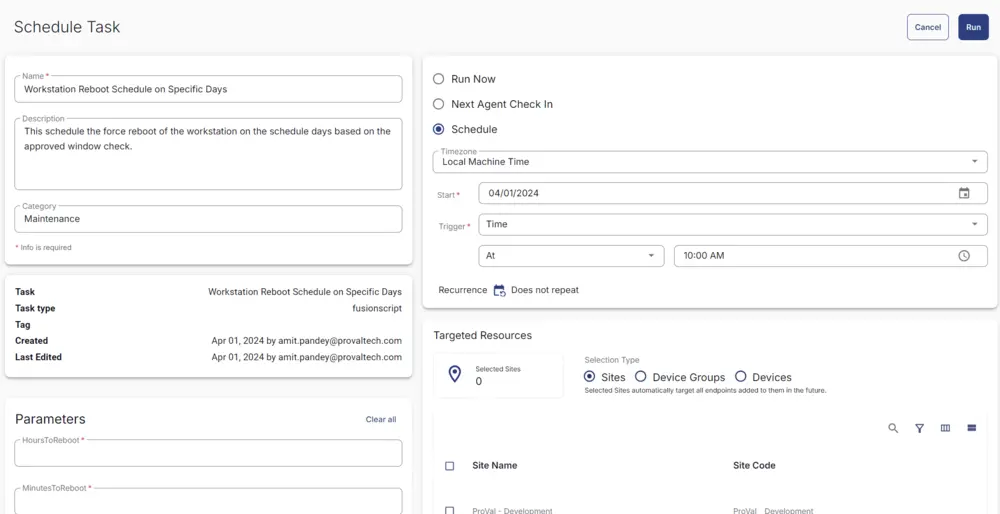

This screen will appear.

Deployment Step 2

  • Select the relevant time to run the script and click the 'Do not repeat' button.

Deployment Step 3

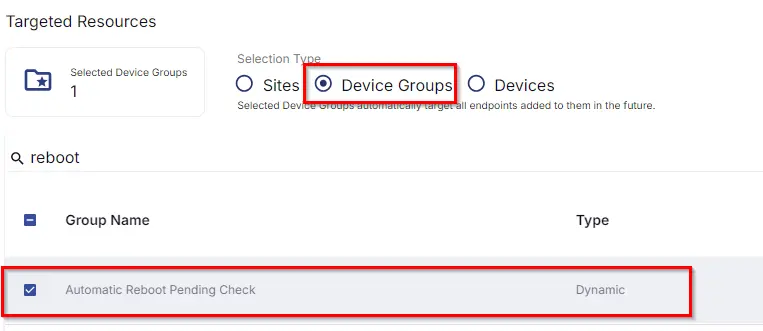

  • Select the target to schedule the 'Workstation Reboot Schedule on Specific Days'.

Deployment Step 4

  • Now click the Run button once all customization is set to initiate the task.

Deployment Step 5

  • The task will start appearing in the Scheduled Tasks.

Output​

  • Task & Sequences Log
