Duo Deployment - Macintosh

Overview

Installs and configures the latest version of Duo Two-Factor Authentication for macOS.

Parameters Reference: Duo Silent Install

Sample Run

Play Button > Run Automation > Script
SampleRun1

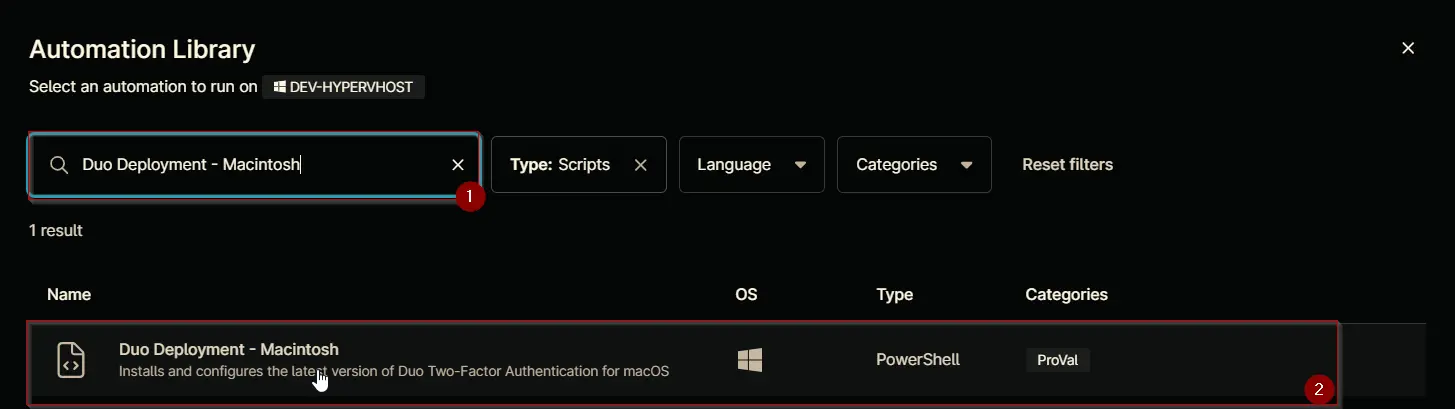

Search and select Duo Deployment - Macintosh

Click the Run button to run the script.
Run As: System
Preset Parameter: <Leave it Blank>

Run Automation: Yes
RunAutomation

Dependencies

Automation Setup/Import

Step 1

Navigate to Administration > Library > Automation
Step1

Step 2

Locate the Add button on the right-hand side of the screen, click on it and click the New Script button.
Step2

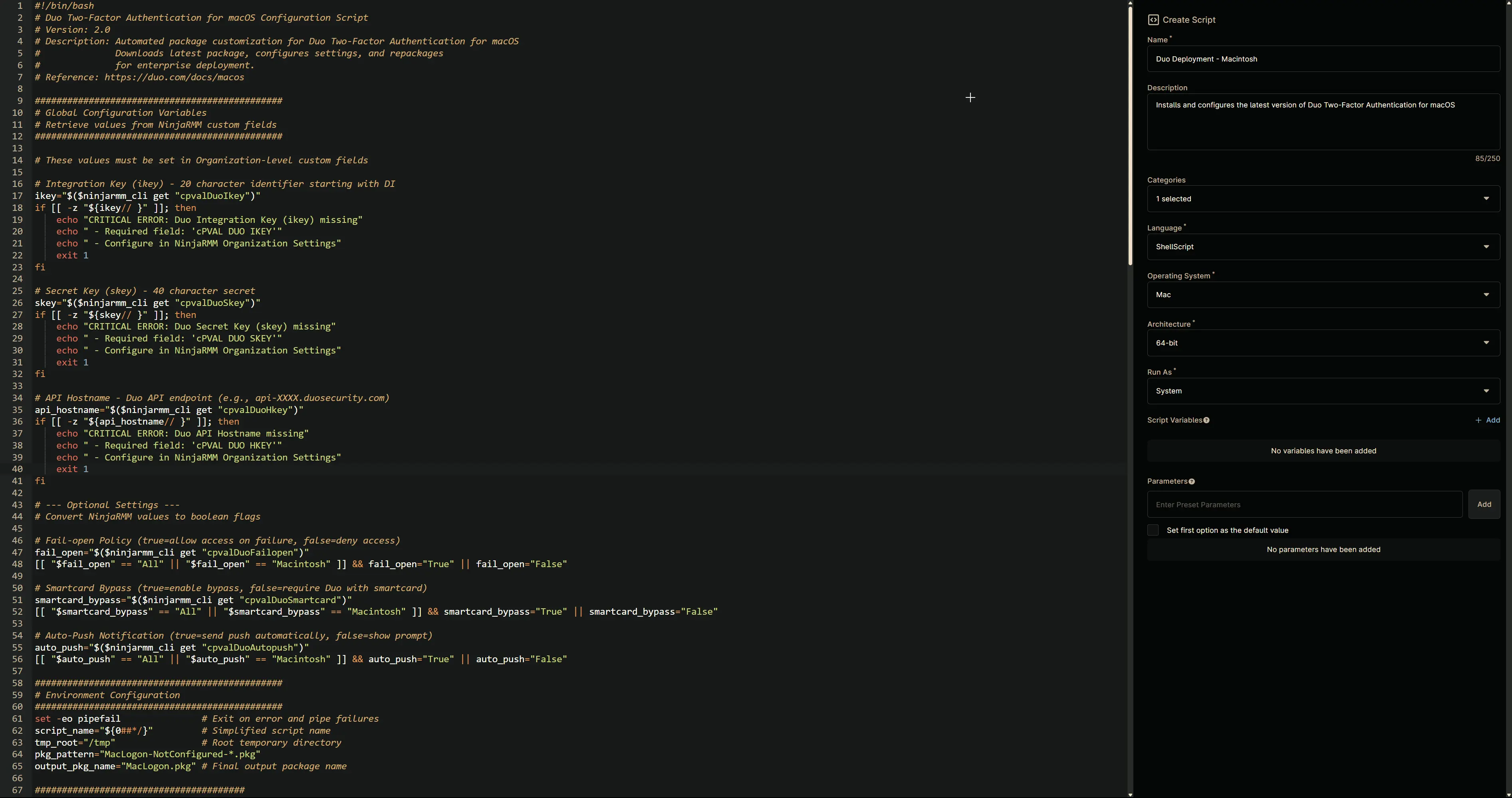

The scripting window will open.
ScriptingScreen

Step 3

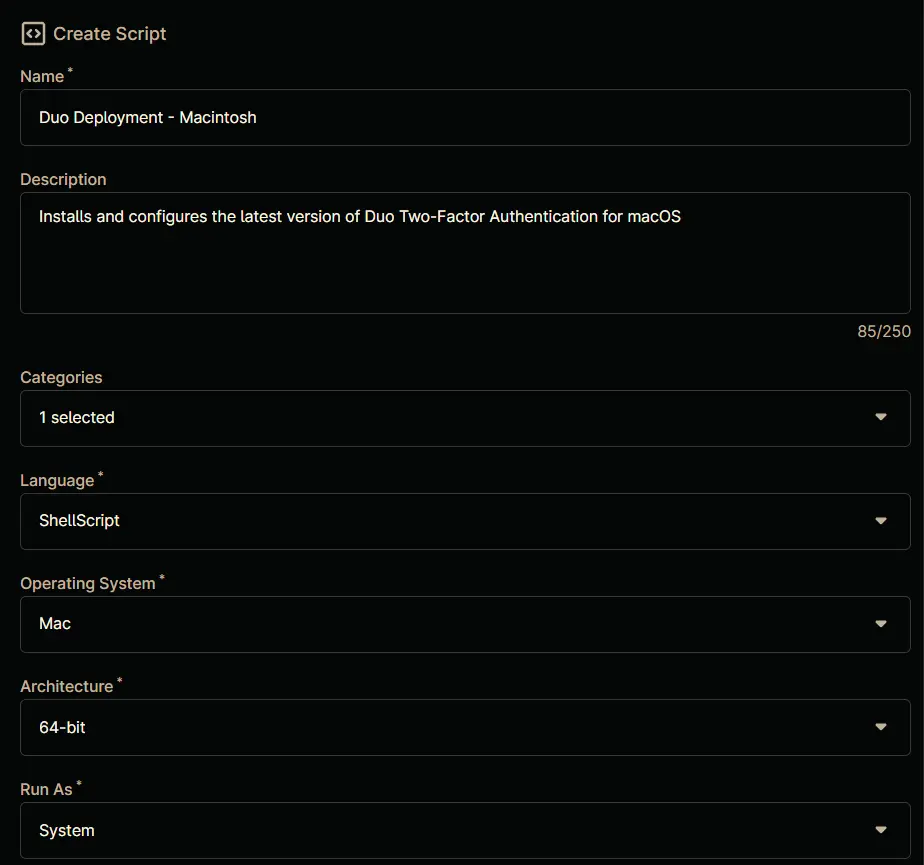

Configure the Create Script section as follows:

Name: Duo Deployment - Macintosh
Description: Installs and configures the latest version of Duo Two-Factor Authentication for macOS
Categories: ProVal
Language: ShellScript
Operating System: Mac
Architecture: 64-bit
Run As: System

Step 4

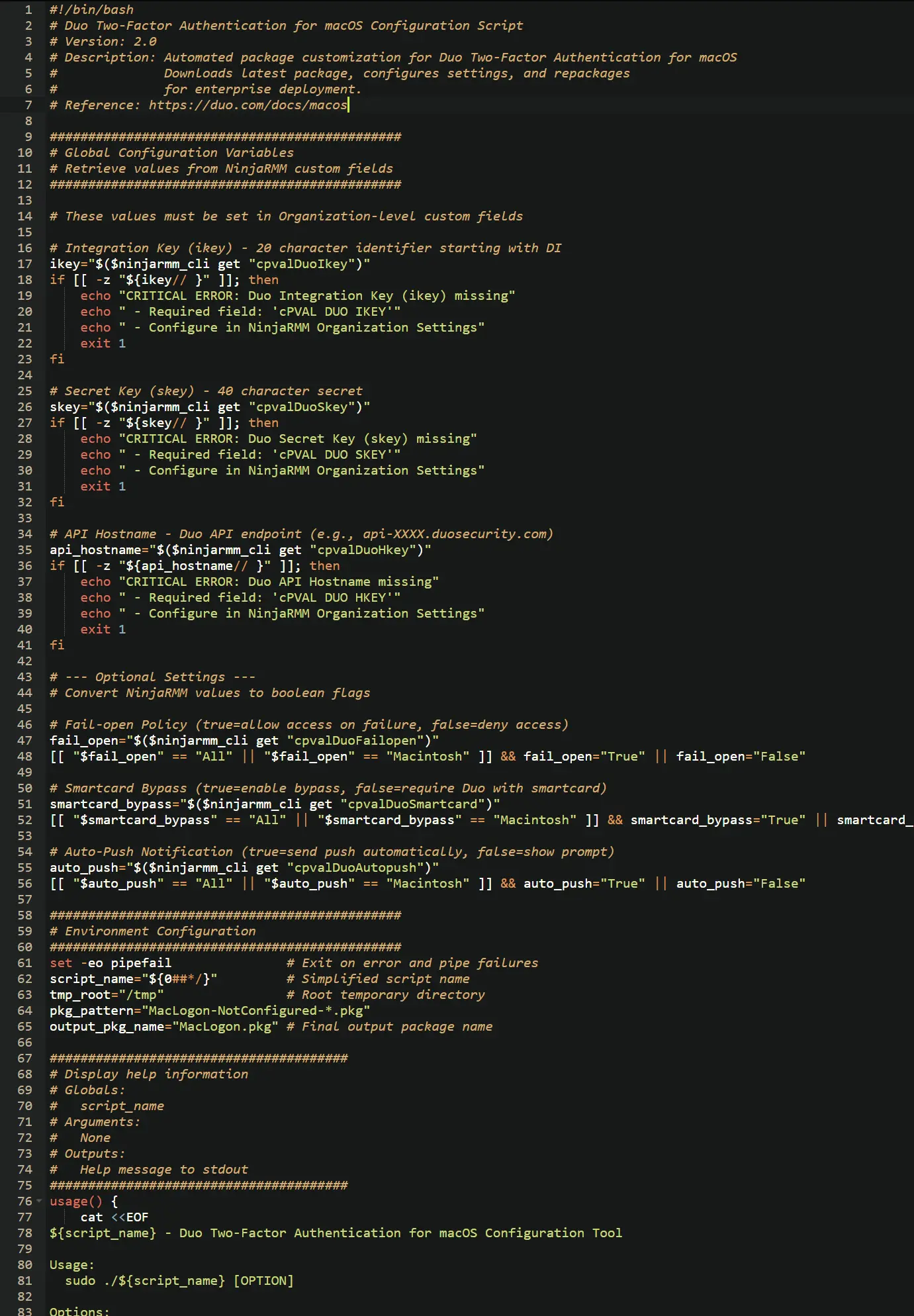

Paste the following Shell script in the scripting section:

#!/bin/bash
# Duo Two-Factor Authentication for macOS Configuration Script
# Version: 2.0
# Description: Automated package customization for Duo Two-Factor Authentication for macOS
#              Downloads latest package, configures settings, and repackages
#              for enterprise deployment.
# Reference: https://duo.com/docs/macos

##############################################
# Global Configuration Variables
# Retrieve values from NinjaRMM custom fields
##############################################

# These values must be set in Organization-level custom fields

# Integration Key (ikey) - 20 character identifier starting with DI
ikey="$($ninjarmm_cli get "cpvalDuoIkey")"
if [[ -z "${ikey// }" ]]; then
    echo "CRITICAL ERROR: Duo Integration Key (ikey) missing"
    echo " - Required field: 'cPVAL DUO IKEY'"
    echo " - Configure in NinjaRMM Organization Settings"
    exit 1
fi

# Secret Key (skey) - 40 character secret
skey="$($ninjarmm_cli get "cpvalDuoSkey")"
if [[ -z "${skey// }" ]]; then
    echo "CRITICAL ERROR: Duo Secret Key (skey) missing"
    echo " - Required field: 'cPVAL DUO SKEY'"
    echo " - Configure in NinjaRMM Organization Settings"
    exit 1
fi

# API Hostname - Duo API endpoint (e.g., api-XXXX.duosecurity.com)
api_hostname="$($ninjarmm_cli get "cpvalDuoHkey")"
if [[ -z "${api_hostname// }" ]]; then
    echo "CRITICAL ERROR: Duo API Hostname missing"
    echo " - Required field: 'cPVAL DUO HKEY'"
    echo " - Configure in NinjaRMM Organization Settings"
    exit 1
fi

# --- Optional Settings ---
# Convert NinjaRMM values to boolean flags

# Fail-open Policy (true=allow access on failure, false=deny access)
fail_open="$($ninjarmm_cli get "cpvalDuoFailopen")"
[[ "$fail_open" == "All" || "$fail_open" == "Macintosh" ]] && fail_open="True" || fail_open="False"

# Smartcard Bypass (true=enable bypass, false=require Duo with smartcard)
smartcard_bypass="$($ninjarmm_cli get "cpvalDuoSmartcard")"
[[ "$smartcard_bypass" == "All" || "$smartcard_bypass" == "Macintosh" ]] && smartcard_bypass="True" || smartcard_bypass="False"

# Auto-Push Notification (true=send push automatically, false=show prompt)
auto_push="$($ninjarmm_cli get "cpvalDuoAutopush")"
[[ "$auto_push" == "All" || "$auto_push" == "Macintosh" ]] && auto_push="True" || auto_push="False"

##############################################
# Environment Configuration
##############################################
set -eo pipefail               # Exit on error and pipe failures
script_name="${0##*/}"         # Simplified script name
tmp_root="/tmp"                # Root temporary directory
pkg_pattern="MacLogon-NotConfigured-*.pkg"
output_pkg_name="MacLogon.pkg" # Final output package name

#######################################
# Display help information
# Globals:
#   script_name
# Arguments:
#   None
# Outputs:
#   Help message to stdout
#######################################
usage() {
    cat <<EOF
${script_name} - Duo Two-Factor Authentication for macOS Configuration Tool

Usage:
  sudo ./${script_name} [OPTION]

Options:
  -h, --help    Show this help message and exit

Description:
1. Removes previous installation artifacts
2. Downloads latest Duo Two-Factor Authentication for macOS package
3. Extracts and validates package contents
4. Configures organizational settings
5. Repackages for enterprise deployment

Requirements:
- Root privileges for package installation
- Active internet connection for downloads
- curl, unzip, pkgutil utilities available

Examples:
  sudo ./${script_name}
  sudo ./${script_name} --help
EOF
}

#######################################
# Clean up temporary files and handle exit
# Arguments:
#   $1 - Exit code
#######################################
cleanup() {
    local exit_code=$1
    echo "CLEANUP: Removing temporary files..."
    find "${tmp_root}" -maxdepth 1 -type f -name "${pkg_pattern}" -delete 2>/dev/null
    [[ -d "${tmp_pkg_path}" ]] && rm -rf "${tmp_pkg_path}"
    echo "Cleanup completed successfully"
    exit "${exit_code}"
}

#######################################
# Main script execution flow
#######################################
main() {
    echo "=== Duo Two-Factor Authentication for macOS Configuration Process ==="

    # Show help if requested
    if [[ "$1" =~ ^-h|--help ]]; then
        usage
        exit 0
    fi

    # Check for root privileges
    if [[ $EUID -ne 0 ]]; then
        echo "Error: This script must be run as root" >&2
        exit 1
    fi

    # Initial cleanup
    echo "PHASE 1: System Preparation"
    echo "Clearing previous installation artifacts..."
    find "${tmp_root}" -maxdepth 1 -type f -name "${pkg_pattern}" -delete 2>/dev/null

    # Download package
    echo "PHASE 2: Package Acquisition"
    local zip_path="${tmp_root}/MacLogon-latest.zip"
    echo "Downloading latest Duo Two-Factor Authentication for macOS package..."
    curl -fsSL -o "${zip_path}" 'https://dl.duosecurity.com/MacLogon-latest.zip'

    # Verify download
    echo "Validating package integrity..."
    [[ -f "${zip_path}" ]] || { echo "Error: Download failed"; cleanup 1; }
    stat "${zip_path}"

    # Extract package
    echo "PHASE 3: Package Extraction"
    echo "Unpacking compressed archive..."
    unzip -q "${zip_path}" -d "${tmp_root}/"

    # Locate package file
    echo "Searching for installer package..."
    local pkg_path=$(find "${tmp_root}" -type f -name "${pkg_pattern}" -print -quit)
    [[ -z "${pkg_path}" ]] && { echo "Error: Package not found"; cleanup 1; }
    echo "Discovered package at: ${pkg_path}"

    # Version extraction
    echo "PHASE 4: Version Validation"
    local version=$(basename "${pkg_path}" | sed -E 's/MacLogon-NotConfigured-(.*)\.pkg/\1/')
    [[ "${version}" =~ ^[0-9]+(\.[0-9]+)*$ ]] || { echo "Invalid version format: ${version}"; cleanup 1; }
    echo "Validated package version: ${version}"

    # Package configuration
    echo "PHASE 5: Package Customization"
    tmp_pkg_path="${tmp_root}/$(basename "${pkg_path}" .pkg)"
    echo "Creating temporary workspace: ${tmp_pkg_path}"
    pkgutil --expand "${pkg_path}" "${tmp_pkg_path}"

    # Configuration updates
    echo "Applying organizational settings..."
    local config_plist="${tmp_pkg_path}/Scripts/config.plist"
    defaults write "${config_plist}" ikey -string "${ikey}"
    defaults write "${config_plist}" skey -string "${skey}"
    defaults write "${config_plist}" api_hostname -string "${api_hostname}"
    defaults write "${config_plist}" fail_open -bool "${fail_open}"
    defaults write "${config_plist}" smartcard_bypass -bool "${smartcard_bypass}"
    defaults write "${config_plist}" auto_push -bool "${auto_push}"
    defaults write "${config_plist}" twofa_unlock -bool false

    echo "Finalizing configuration..."
    plutil -convert xml1 "${config_plist}"

    # Repackaging
    echo "PHASE 6: Package Assembly"
    local output_pkg="${tmp_root}/${output_pkg_name}"
    echo "Generating final package: ${output_pkg}"
    pkgutil --flatten "${tmp_pkg_path}" "${output_pkg}"

    # Final validation
    [[ -f "${output_pkg}" ]] || { echo "Error: Repackaging failed"; cleanup 1; }
    echo "Successfully generated configured package"
}

# Execution and cleanup trap
trap 'cleanup $?' EXIT
main "$@"

Saving the Automation

Click the Save button in the top-right corner of the screen to save your automation.
SaveButton

You will be prompted to enter your MFA code. Provide the code and press the Continue button to finalize the process.
MFA

Completed Automation

Output

Activity Details
