Set-PowerPlan

Description

Configures power plan settings using either a provided hashtable or CSV file. If the specified power plan does not exist, it will be created.

Requirements

• PowerPlanSettingsTemplate.csv

Process

• Ensures mandatory parameters are provided and validates the parameter's format and structure.
• Retrieves available power plans using powercfg /list.
• Checks if the specified power plan ($Name) exists.
• If not, duplicates the active plan and renames it to the specified name.
• Retrieves current settings of the power plan.
• If a download URL is provided for $CSVPath, downloads and converts the CSV file to a PowerShell object.
• If a local computer path is provided for $CSVPath, converts the contents of the CSV file to a PowerShell object.
• If using a hashtable ($Setting), creates an array of settings based on the hashtable structure.
• Iterates through each setting in the configuration.
• Retrieves GUIDs for the subgroup and power setting from the current power plan settings.
• Uses powercfg commands to set AC and DC values for the specified subgroup and power setting.
• Logs success or error messages for each configuration attempt.

Usage

Example 1

Configures a custom power plan named 'CustomPlan' with specified AC and DC power settings.

.\PS C:\> .\Set-PowerPlanSettings.ps1 -Name 'CustomPlan'-Setting @{Subgroup=@{'Sleep' = @{ PowerSetting = @{ 'Sleep after' = @{ AC = 60; DC = 60 }; 'Allow hybrid sleep' = @{ AC = 1; DC = 100}; 'Hibernate After' = @{ AC = 0; DC = 18000}; 'Allow Wake Timers' = @{ AC = 2; DC = 2 }}}}}

Example 2

Configures a custom power plan named 'CustomPlan' with specified AC and DC power settings from the $Settings hashtable.

.\PS C:\> $setting = @{
            Subgroup = @{
                'Hard Disk' = @{
                    PowerSetting = @{
                        'Turn off hard disk after' = @{
                            AC = 0
                            DC = 0
                        }
                    }
                }
                'Internet Explorer' = @{
                    PowerSetting = @{
                        'JavaScript Timer Frequency' = @{
                            AC = 1
                            DC = 0
                        }
                    }
                }
                'Sleep' = @{
                    PowerSetting = @{
                        'Sleep after' = @{
                            AC = 60
                            DC = 60
                        }
                        'Allow hybrid sleep' = @{
                            AC = 1
                            DC = 100
                        }
                        'Hibernate After' = @{
                            AC = 0
                            DC = 18000
                        }
                        'Allow Wake Timers' = @{
                            AC = 2
                            DC = 2
                        }
                    }
                }
                'Intel(R) Graphics Settings' = @{
                    PowerSetting = @{
                        'Intel(R) Graphics Power Plan' = @{
                            AC = 2
                            DC = 2
                        }
                    }
                }
                'AMD Power Slider' = @{
                    PowerSetting = @{
                        Overlay = @{
                            DC = 2
                            AC = 2
                        }
                    }
                }
            }
        }
.\PS C:\> .\Set-PowerPlanSettings.ps1 -Name 'CustomPlan'-Setting $Setting

Example 3

Configures a custom power plan named 'CustomPlan' with specified AC and DC power settings from the $Settings hashtable, including the hidden power settings.

.\PS C:\> $setting = @{
            Subgroup = @{
                'Sleep' = @{
                    PowerSetting = @{
                        'Sleep after' = @{
                            AC = 0
                            DC = 900
                        }
                    }
                }
                'Power buttons and lid' = @{
                    PowerSetting = @{
                         'Lid close action' = @{
                            AC = 0
                            DC = 1
                        }
                        'Power button action' = @{
                            AC = 2
                            DC = 2
                        }
                        'Sleep button action' = @{
                            AC = 1
                            DC = 1
                        }
                    }
                }
            }
        }
.\PS C:\> .\Set-PowerPlanSettings.ps1 -Name 'CustomPlan'-Setting $Setting

Changes to the hidden settings under Power buttons and lid will not appear in System Settings, but can be viewed in the Advanced Settings section.

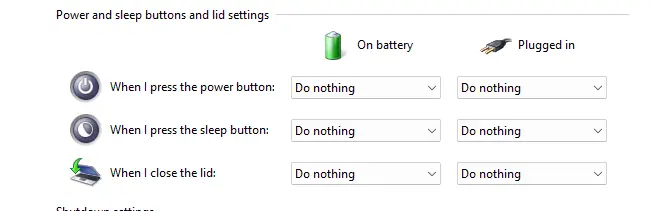

System Settings:

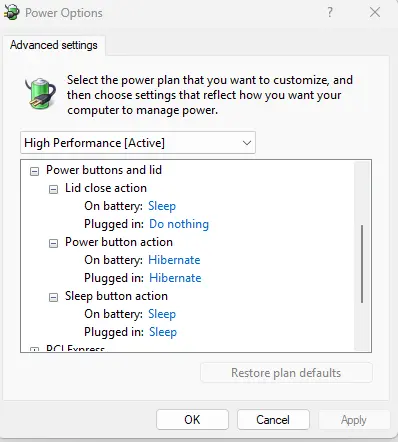

Advanced Settings:

Example 4

Configures a custom power plan named 'CustomPlan' with specified AC and DC power settings from the 'CustomPlanTemplate.csv' file located in the 'C:\Temp' directory.

PS C:\> .\Set-PowerPlanSettings.ps1 -Name 'CustomPlan'-CSVPath 'C:\temp\CustomPlanTemplate.csv'

Example 5

Configures a custom power plan named 'CustomPlan' with specified AC and DC power settings from the 'CustomPlanTemplate.csv' downloaded from 'https:\file.provaltech.com\CustomPlanTemplate.csv'.

PS C:\> .\Set-PowerPlanSettings.ps1 -Name 'CustomPlan'-CSVPath 'https:\\file.provaltech.com\CustomPlanTemplate.csv'

Parameters

Parameter	Alias	Required	ParameterSetName	Type	Description
Name		True	hashtable, csv	String	Specifies the name of the power plan to configure.
CSVPath		True	hashtable	String	Specifies the path to a CSV file containing the power plan configuration, which can be either a local file on the computer or a download URL.
Setting		True	hashtable	HashTable	Specifies a hashtable containing the configuration for the power plan.

Output

• .\Set-PowerPlan-log.txt
• .\Set-PowerPlan-Error.txt

Attachments

PowerPlanSettingsTemplate.csv
