CPU Threshold Violation Monitoring
Summary
Endpoints in this group are monitored for sustained high CPU usage. Alerts are triggered when the CPU remains above a defined threshold for too long. Thresholds are set using custom fields.
Dependencies
- Custom Field: CTVM_Enable
- Custom Field: CTVM_Enable_Svr
- Custom Field: CTVM_Enable_Svr_Site
- Custom Field: CTVM_Enable_Wks
- Custom Field: CTVM_Enable_Wks_Site
- Solution: CPU Threshold Violation Monitoring
Group Setup Location
- Group Path:
ENDPOINTS➞Groups - Group Type:
Dynamic Group

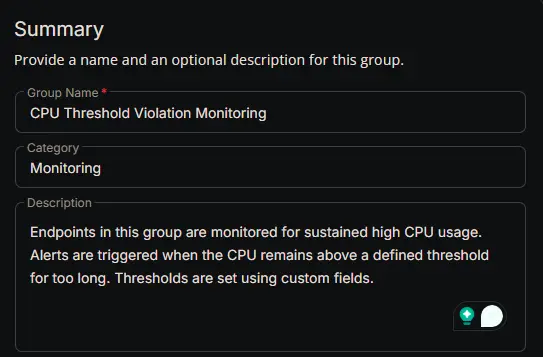

Group Summary
- Group Name:
CPU Threshold Violation Monitoring - Category:
Monitoring - Description:
Endpoints in this group are monitored for sustained high CPU usage. Alerts are triggered when the CPU remains above a defined threshold for too long.

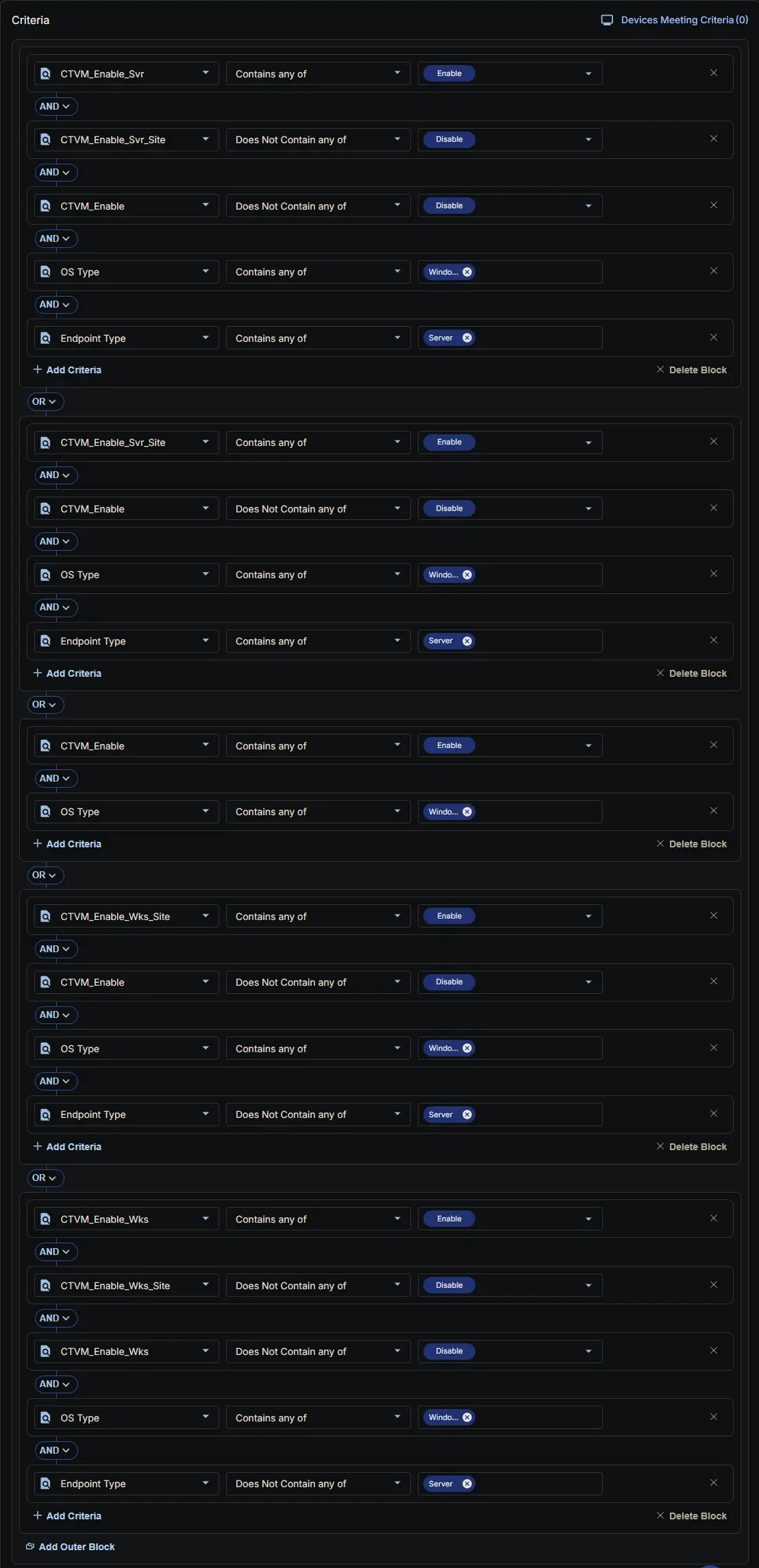

Criteria
The group is defined by the following criteria blocks, joined by an OR. Each block uses AND logic between its conditions.
| Block | Criteria Name | Operator | Value(s) |
|---|---|---|---|
| 1 | CTVM_Enable_Svr | Contains any of | Enable |
| 1 | CTVM_Enable_Svr_Site | Does Not Contain any of | Disable |
| 1 | CTVM_Enable | Does Not Contain any of | Disable |
| 1 | OS Type | Contains any of | Windows |
| 1 | Endpoint Type | Equal | Server |
| 2 | CTVM_Enable_Svr_Site | Contains any of | Enable |
| 2 | CTVM_Enable | Does Not Contain any of | Disable |
| 2 | OS Type | Contains any of | Windows |
| 2 | Endpoint Type | Equal | Server |
| 3 | CTVM_Enable | Contains any of | Enable |
| 3 | OS Type | Contains any of | Windows |
| 4 | CTVM_Enable_Wks | Contains any of | Enable |
| 4 | CTVM_Enable_Wks_Site | Does Not Contain any of | Disable |
| 4 | CTVM_Enable | Does Not Contain any of | Disable |
| 4 | OS Type | Contains any of | Windows |
| 4 | Endpoint Type | Not Equal | Server |
| 5 | CTVM_Enable_Wks_Site | Contains any of | Enable |
| 5 | CTVM_Enable | Does Not Contain any of | Disable |
| 5 | OS Type | Contains any of | Windows |
| 5 | Endpoint Type | Not Equal | Server |
- Block 1: Targets Windows Servers where the primary server setting (CTVM_Enable_Svr) is enabled, provided that the feature has not been explicitly disabled at the site level (CTVM_Enable_Svr_Site) or the individual endpoint level (CTVM_Enable).
- Block 2: Targets Windows Servers where the site‑level server setting (CTVM_Enable_Svr_Site) is explicitly enabled, provided that it has not been overridden and disabled at the individual endpoint level (CTVM_Enable).
- Block 3: Targets Any Windows Device (Server or Workstation) where the feature is explicitly enabled directly at the individual endpoint level (CTVM_Enable).
- Block 4: Targets Windows Workstations (devices not equal to "Server") where the primary workstation setting (CTVM_Enable_Wks) is enabled, provided that the feature has not been explicitly disabled at the site level (CTVM_Enable_Wks_Site) or the individual endpoint level (CTVM_Enable).
- Block 5: Targets Windows Workstations (devices not equal to "Server") where the site‑level workstation setting (CTVM_Enable_Wks_Site) is explicitly enabled, provided that it has not been overridden and disabled at the individual endpoint level (CTVM_Enable).
Logic:
A machine matches the group if it meets ALL criteria in Block 1, OR ALL criteria in Block 2, OR ALL criteria in Block 3, OR ALL criteria in Block 4, OR ALL criteria in Block 5.

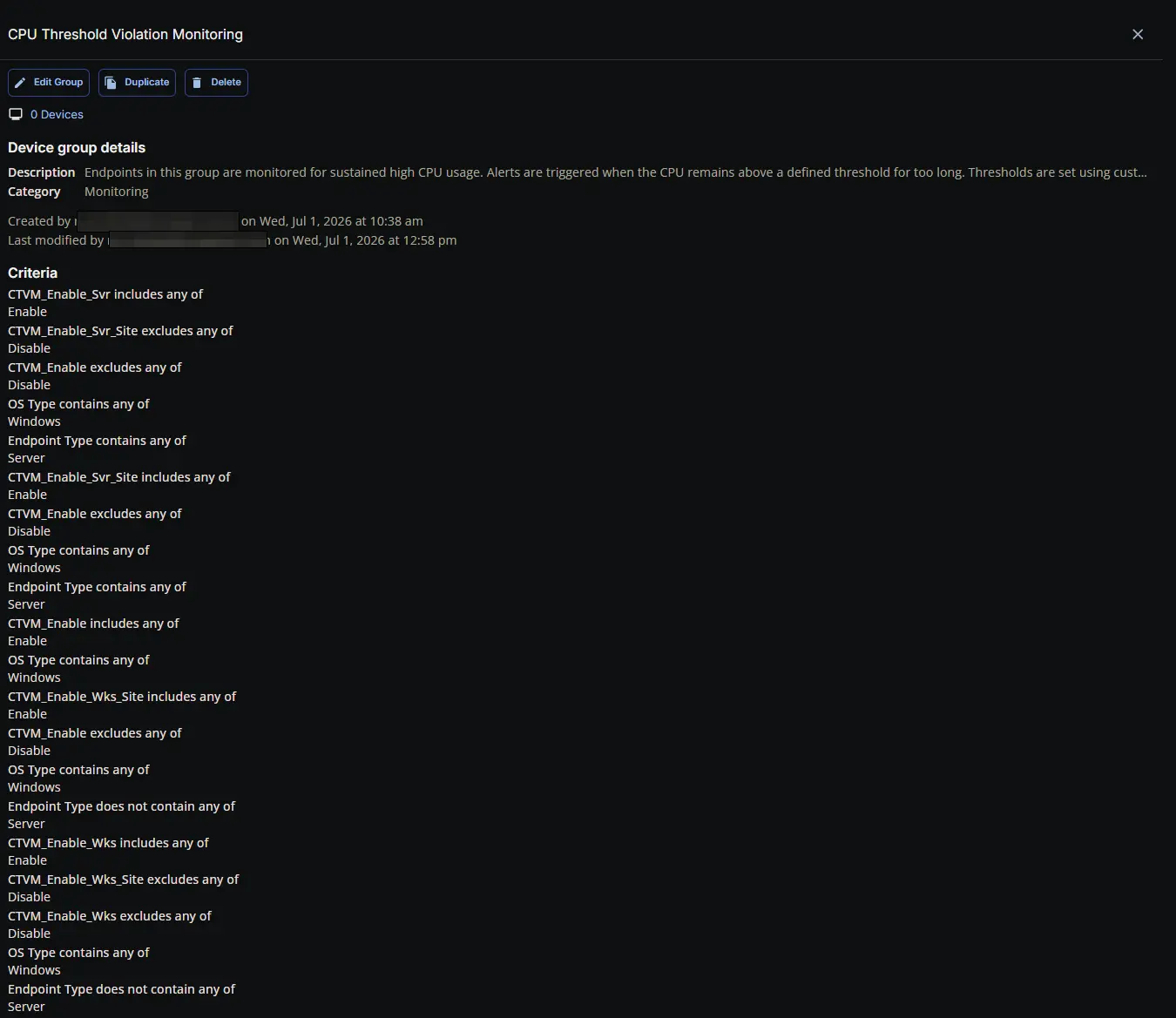

Completed Group
Changelog
2026-07-03
- Initial version of the document
